7/8" RF
hellosignal
XT0316
Specification

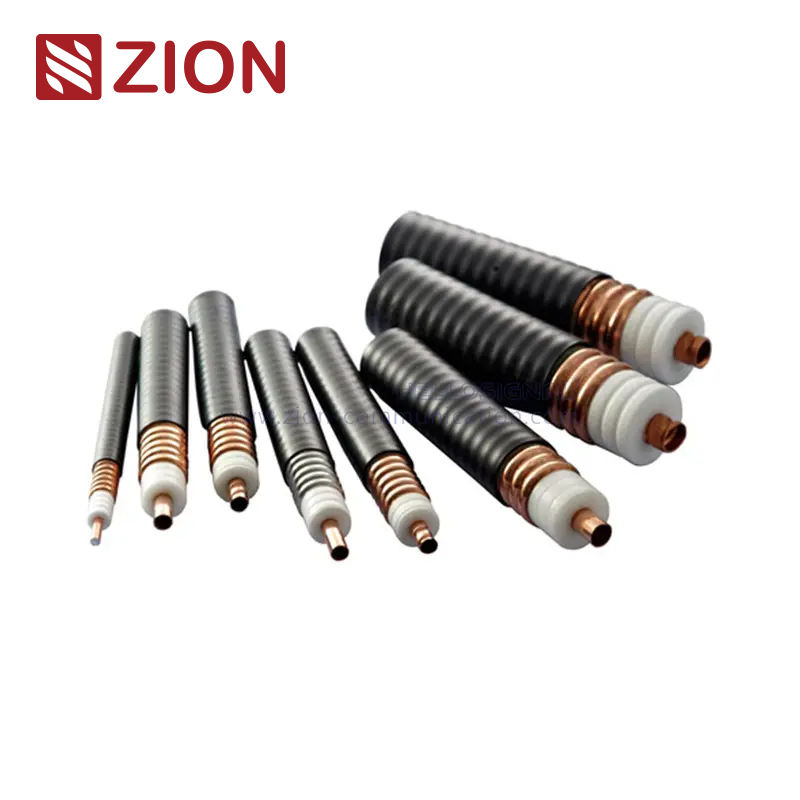

7/8" RF Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 9.0mm Smooth Copper Tube | |
| Dielectric | 22.5mm Foamed PE | |
| Outer Conductor | Nom.24.9mm Corrugated Copper Tube | |
| Jacket | 27.7mm Black PE/Low Smoke Halogen-free Fire-retardant PE | |
| Electrical Characteristics: | ||
| Capacitance | 76 pF/m | |
| Impedance | 50 Ω | |
| Velocity of Propagation | 0.88 | |
| Peak Power Rating | 91 KW | |
| RF Peak Voltage | 3.0 KV | |
| Insulation Resistance | >5000 M.Ω.KM | |
| Cut-off Frequency | 5.2 GHz | |
| Insulation Voltage | 10 KV | |
| Jacket Sparkt | 8.0 KV | |
| Shielding Effectiveness | >120 dB | |
| Mechanical and Environmental: | ||
| Min.Single Bending Radius | 90 mm | |
| Min.Repeated Bending Radius | 250 mm | |
| No. of Bends | 15 | |
| Tensile Strength | 147 kg | |
| Operating Temp. | -55 to +85 ℃ | |
| Attenuation(20℃): | ||
| Frequency (MHZ) | Attenuation (dB/100m) | Average Power(KW) |
| 100 | 1.17 | 8.62 |
| 200 | 1.69 | 5.99 |
| 450 | 2.60 | 3.88 |
| 800 | 3.56 | 2.83 |
| 900 | 3.80 | 2.65 |
| 1000 | 4.03 | 2.50 |
| 1500 | 5.08 | 1.99 |
| 1800 | 5.61 | 1.79 |
| 2000 | 6.05 | 1.68 |
| 3000 | 7.60 | 1.33 |
| Order Informations: | ||
| Marking | HELLOSIGNAL 7/8" RF COAXIAL CABLE XXX M (or Per customer's request) | |
| Inner Package | 1000m/Wooden Drum (or Per customer's request) | |
| Outer Package | ||
| Delivery time | Normally 15 days after received the deposit. | |
| More informations | please contact with us. | |
| Brand | HELLOSIGNAL® OR OEM | |
