Without a doubt, fiber optic cables ensure that data flows around the globe due to sophisticated communication networks in fast-moving data transmission. They serve both the telecommunications and electrical power networks with ease while ensuring that the most amount of data are transferred with speed, safety, and efficiency. Of the many kinds of fiber optic cables that are used today, you would probably agree that two of them are ADSS (All-Dielectric Self-Supporting) cables and OPGW (Optical Ground Wire) cables - just because of their distinct characteristics and tasks.
The only difference between ADSS and OPGW cables is that their internal structures focus on data transmission; the two of them are equally important but have different applications, manufacturing techniques, and strengths and weaknesses. This paper describes the divergences of ADSS and OPGW cables in detail, underlined by their specific application zones in communication and power areas, their distinguishing features, and added value to compare. We intend to provide such information to give the companies a wider and deeper insight into the capabilities and situations where the two technologies may be used, resulting in a well-informed choice on the right cable.
Before learning more about specific ADSS and OPGW cables, you have to get a clear understanding of the wider fiber optic cable context development. Fiber optic technology provided revolutionary data transmission through light, which would carry enormous amounts of information on long distances at unprecedented speeds and with lowest signal degradation on the planet. Unlike a traditional wire of copper, which requires electrical signals, the algorithms the fiber optic cables transform and transmit data via thin glass or plastic strands of fibers with the function of increasing the amount of data transferred and also eliminating interference.
Ever since the mid-20th century, the fiber optic communication development began, but only in the late 1970s - early 1980s, as the optical fibers became commercially viable, they began to be used for large network communication. Nowadays, optic fibers are applied, among others, in telecommunications not only but in many fields, such as medical devices, military communications, or the energy sector.
Therefore, we could definitely say that we have two examples of fiber optic cables designed to carry power transmission and communication: ADSS and OPGW cables that differ one from another in applications and have their unique advantages depending on the manufacturing method and purpose.
All-Dielectric Self-Supporting (ADSS) cable is a fiber optic cable that is particularly installed in the proximity of high-voltage power lines. All-Ditul Equipments Low currently feature a fundamental role - its "All-Dielectric" coat, which means that it contains no recognized metallic components. Due to this feature, the ADSS cables would not face the electromagnetic interference (EMI) issue and they can also be easily installed near power transmission lines with absolutely zero risk of electrical conduction.
ADSS cables are also "self-supporting," so that they do not require additional support structures such as messenger wires or ground cables. This allows ADSS cables to stand up to their own weight, and this capability makes them well-suited for spans that are too long to be economically feasible with high-maintenance and low-cost designs.

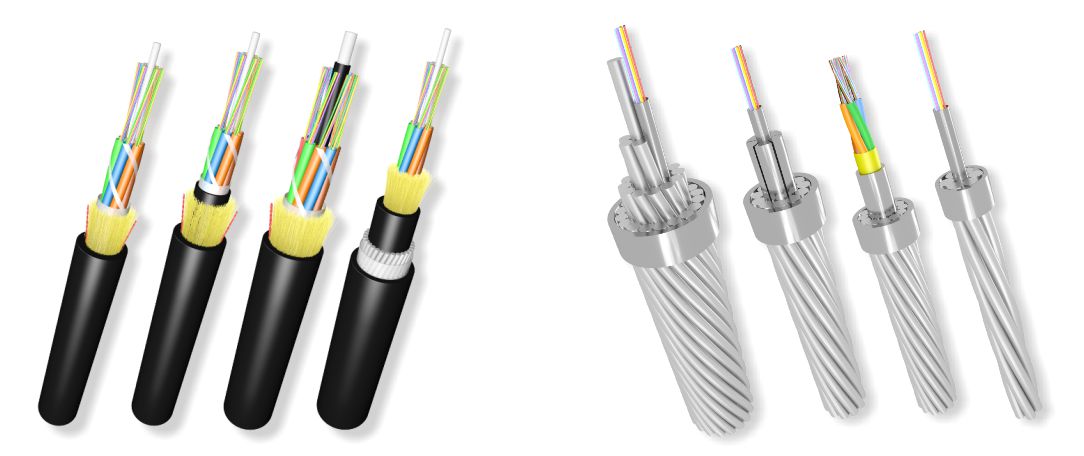

ADSS cable construction pays particular focus to the dielectric properties, which is the material having no metal. These configurations consist of:
Central Strength Member: This is executed by which are mostly made of fiberglass reinforced plastic (FRP) or aramid yarn that provide the main cord strength of the cable as well as prevent stretching.
Optical Fibers: These are made up of non-metallic substances, such as tubes made of either plastic or other non-metallic materials, and sit internally within an outer layer so as to ensure the best signal transmission.
Water-Blocking Materials: These materials also re included to arrest the fiber from being attacked by the moisture, thus the single fiber remains undamaged.
Outer Sheath: The three-phase line is insulated with an outer covering of UV and other weather-resistant materials like polyethylene or dielectrics. This sheath protects the cable from the extreme weather elements like wind, rain, or heavy snow.
There is no metallic element in the ADSS cables which make them lighter, easier to handle, and such that they can be exist in the proximity of electrical equipment, particularly in high-voltage interference prone areas where the use of metallic cables can cause problems.
ADSS cables are versatile and can be applied in different settings that are mainly where electric interference might possibly occur. The listed areas where ADSS cables contain high-performance features include:
Power Utility Networks: ADSS cables are among the most common transmitted mediums for data in power networks, while data monitoring and control systems do exist in power utility systems. The placement of the cables close to or on overhead power line structures allows every given cable to be used in a larger spectrum of power distribution systems.
Telecommunication Networks: ADSS cables are usually the first to boost the capacity of the existing telecommunication networks in towns and villages located in remote areas. Their capacity to operate long distances seamlessly while being suspended without additional support constructions makes the cables perfect candidates to close large distances between poles or towers.
Railway Communication Systems: ADSS cabling as well runs along rail lines or tube lines and is exposed to interference from the trains' and line-side power supply systems below. This phenomenon disturbs the communication systems and impairs their operation. The entire design is naturally asymmetric of ADSS, and this enables the transmission of the signals of the fiber data cables at high standards even in such an environment.
The main instrumental capability of ADSS cables is their self-supporting non-conductive attributes. This makes them and their components valuable in countries with each of the following challenges:
Immunity to Electromagnetic Interference (EMI): Since the metals are absent from ADSS cables, there is no possibility of inductive coupling, and therefore the cables are not affected by EMI. It is this property that makes the substructure great for use alongside and right under power lines carrying high voltage.
Ease of Installation: The main advantage of the design is the self-supporting feature of ADSS cables, which allows us not to use any additional supporting structures such as messenger wires or ground wires, which reduces both the installation and material costs.
Long Spans ADSS cables can cross past utilities’ poles or towers while allowing for shorter distances to other support structures.
Durability: Such cables were designed to withstand extremely adverse conditions such as UV rays, temperature changes, as well as strong winds.
Cost Efficiency: Since ADSS cables are smaller in size and the installation is also quite easy the entire structure would turn out to be cost-efficient when compared to other fiber optic cables.
Despite their apparent pros, disadvantages are equally an issue in the introduction of ADSS cables. Their prediction and proper management are actually the tool for ensuring full utilization:
Sag and Tension Management: The very nature of fibers when ADSS cables are used requires for the care and handling of cable tension and sag. Momentary sagging can result in signal distortion or line breakage, on the other, malfunction with too much tension can lead to the cable snapping.
Environmental Stress: Ice, wind, and lightning can cause trouble to ADSS cables. Ice loading with its variable weight is highly important for the impact on the cable load, leading to additional loads on the cable support structures.
Aging of Materials: Over the years, the outer sheath of fiber utilizes ADSS technology, which would eventually wear, as exposed by factors such as UV light and rainwater. This still underscores the necessity for critical inspection and maintenance so as for it to ensure the reliability.
Optical Ground Wire (OPGW) cable is a type of fiber optic cable that serves a dual purpose: it is both a data transmission medium and a grounding wire for high-voltage power transmission systems. Although OPGW cables contain metallic joints, which enable the passage of current and provide a path for the mechanics, these cables are not the same as the all-dielectric type (ADSS). However, just like ADSS cables, OPGW also acts as an important safety system, as it not only prevents faults in the power supply and also transmits data communications at high rates. OPGW cables are usually mounted on the top surface of the power line towers, elevating their position to the top, which allows them to function as a two-way road, meaning that they both act as a grounding path, thereby reducing chances of lightning strikes to the power system, and serve as a communication line, as they carry data signals as well.
Besides being much more complex in form, OPGW cables are also much more effective for their application than ASDS cables. Three essential parts are there:
Optical Fibers: Similarly to ADSS cables, OPGW cables use optical fibers for data signal transmission. These fibers are often inserted in necessarily protective sleeves to ensure their safety against damaging agents and mechanical vibrations.
Metal Wire Strength Members: Through using metal as the wire for protection, which may use aluminum or steel, these cables are made with strong mechanical and electrical conductivity capacities. The metallic elements present in the cable allow it to hold a good ground wire connection to the power system.
Outer Sheath: The external envelope of OPGW serves to isolate the cable from all possible environmental actions such as moisture, UV rays, and mechanical dominations, among others. Nevertheless, as opposed to the ADSS cables, the conductive quality of the outer cable sheath can be also the case of OPGW cables. The strength of OPGW cables is due to the existence of a metallic component that makes them be used as a ground wire.
However, the inclination of being the cause of electrical hazards like short circuits or arcing is the main downside of working with the cables. OPGW cables are used mainly in the HPT which they provide the function of grounding essential in these lines.
OPGW cables are mainly seen in the power transmission systems where they carry the grounding out to the washers. Some of the specific uses are:
Power System Grounding: OPGW cables are put at the top of power towers of power installation to provide overall grounding of all components of a system. They serve as the system's first line of defense against electrical faults, as they direct any excess electrical energy, such as a lightning strike or short circuit, into the ground.
Telecommunication for Power Utilities: To add to their nature of grounding cables, OPGW cables also transport the data necessary for operation and monitoring of the power grid utility designs. They allow for on-the-fly communication between the various parts of the grid to work normally, which in turn means that the system runs very effectively.
Once OPGW cables are on the power transmission system towers, these cables also work as a lightning ground shield that helps to keep the power lines safe from lightning strikes or problems from strikes that may happen. The cables function in this capacity because they are in direct line with the ground, which in turn discourages ball lightning from causing outages or damaging sensitive devices. Advantages of OPGW cables are that they can help to improve the quality of the signal through their dual function of that is required in situations where data transmission and electrical grounding are needed at the same time.
Some of the important benefits are: Dual Functionality: A significant strength of OPGW cables, as compared to conventional fiber optic cables, is their capability to be used as both data transmission and ground cables for electrical circuits. Dual-duty technology combines data transmission and grounding and thus eliminates the need for separate systems for communication and grounding, replacing redundant space and the cost of the conveyed elements.
Lightning Protection: OPGW cables are the best lightning protectors in the area, which is why they are used as a substitute for lightning protection systems. The risk of expected power outages and equipment damage is thus minimized. The reason that the cables are put at the top of the transmission towers has something to do with the fact that they are a natural location for a perfect lightning shield.
Reliable Grounding: OPGW cables serve the role of a ground wire, securing the stability of the system so electrical faults do not turn into widespread disasters. But while the cable acts as a sleeping mat for excess electricity, it is discharged safely to the ground.
Durability: OPGW cables have been equipped with the most appropriate designs which help them to withstand extremely stringent environmental factors. The cables, including both cable wires consisting of metal and not subjected cable wires to stiffening the structure, are resilient enough to perform reliably even under difficult situations.
High Capacity for Data Transmission: Just like any other fiber optic cable, OPGW cables can also transmit tons of data for miles far straight without loosing any quality.
For those of us who demand high speed, this design is appealing particularly for power grid measurement and command. While it is convenient to use fiber optic cables, there are technical difficulties in installation OPGW cables which among others are: Although installation of OPGW cables is beneficial, they come with some specific technical complications. Hence, all types of problems that may arise during design and implementation should be treated timely during the development phase to guarantee safe and efficient operation:
Electrical Hazards: By virtue of metallic components being present in OPGW system, they become electrically conductive and putting the risks of electrical hazards in the light, within the suggested system of installation. The system should be constructed according to the principle of protection and safety in order to avoid short circuits, sparks, or any kind of contact with charged objects as hungry animals during the dark.
Complex Installation: Setting up the ADSS cables is easier compared to OPGW installation, though, it necessitates precise grounding and needs to be seamlessly integrated into the electrical infrastructure to avoid conflicts at the station level. Such a complex nature leads to higher installation prices along with a longer deployment period.
Maintenance Requirements: Necessary inspections and maintenance are to be performed to ensure that the OPGW cables continue to perform their function of providing a proper ground. Corrosion, UV radiation, or mechanical stress cause over time the metallic parts to lose their original properties and the quality of the cable's work is then insufficient. Weight and Tension: Among other factors, OPGW cables have metal wires which increase their overall weight causing the tension on the towers and the support structures to rise. Efficient design and execution are important to maintain the stability of the support structures at their original level of load capacity. Moreover, the design is required so as to prevent sagging or mechanical failure during excess load.

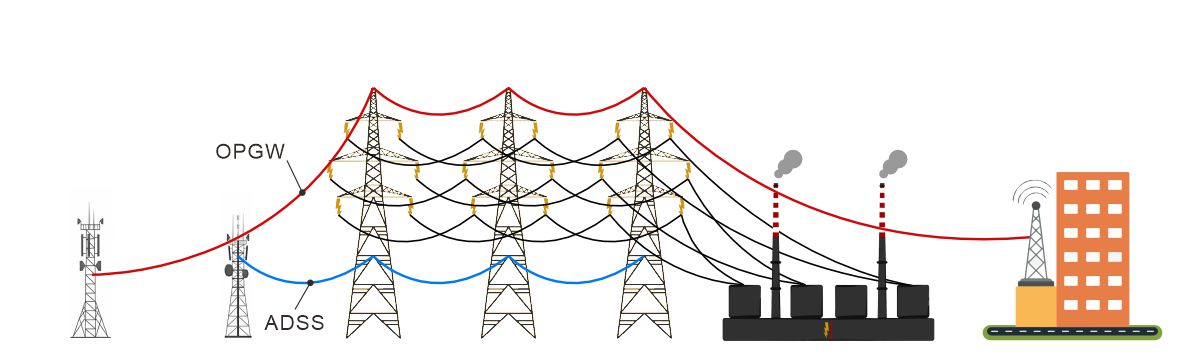

Now that we have explored the structure, applications, advantages, and challenges associated with both ADSS and OPGW cables, it is important to compare the two types of cables. This comparison will help highlight the scenarios in which each cable type is most suitable.
Structure:
ADSS: All-dielectric: it is devoid of any metal parts. Due to the cables featuring non-conductive features, they are immune from electromagnetic interference (EMI) and therefore can be installed next to the high power lines without the risk of EHT.
OPGW: Among others, OPGW cables not only have optical fiber but also metallic parts. Because of this, the metal parts in these types of cables help conduct electricity making the cables able to be used as certain ground-wires in electrical systems.
This seems like a pretty complex concept for OPGW cables to be able to accommodate the electrical hazards during installation.
Functionality:
ADSS: Alleged to be apriority - the main function is for the transferring of data. The unique bound nature of this type of cable allows ADSS to exist over great distances without the need of new support structures.
OPGW: An OPGW is a two-in-one cable that conforms both to the optical fiber communicating medium and to the electrical grounding purpose. Being a mainstay for protection of electric systems against lighting strikes and electrical disturbances is another feature that it is known for.
Installation Complexity:
ADSS: More time-efficient and likely in trickier cases due to its self-supporting structure. This is one of its benefits that could be useful when working near the high voltage power lines, which need, among other things, proper grounding that it is already provided.
OPGW: Complicated to the extent that a proper grounding is necessary and the verification of installation requires a special emphasis needs to be put upfront. The installation phase becomes complicated and demands greater coordination especially with respect to the transportation of high-voltage power transmission systems.
Application Scenarios:
ADSS: Also, it is the most advantageous mode in places where electromagnetic interference is a prominent problem, for example, environments with high-voltage lines or big electrical devices. ADSS cables receive great attention in the telecommunication networks, the utility run monitoring systems, and railway communication systems.
OPGW: Recommended for high-voltage transmission systems designed specifically for transmission of electrical energy through the use of metallic grounding equipment to protect against lightning strikes and electrical faults. The common place of OPGW is in the power grids, for instance, at the top of the transmission towers, where OPGW takes up two roles as a data transmission medium and a ground wire.
Environmental Resistance:
ADSS: Manufactured to surpass a variety of the environmental factors, such as UV rays, very cold and hot temperatures, wind, and rain. On the contrary, because they are not of metallic origin, they cannot be exposed to the electric degradation that affects the metal components.
OPGW: Using the same environment as the aforementioned issue remains, even if the metallic components may not be long-lasting because of the corrosion or other degradation. In case of failure of any component which is related to grounding, all the system is affected and cannot operate normally.
Cost:
ADSS: Compared to a standard ADSS installation, the cost of that for fittings and hardware is cheaper due to the simplified installation process and the lack of galvanised fittings. The ADSS cables are a kind of option that is self-supporting and also lightweight, thus there is less expenditure on sites requiring extensive supporting structures reducing the overall project cost on the other hand.
OPGW: The increased costs linked to the multi-functional TITung can possibly be a consequence of the higher precision needed and the different ground path for the constituents. The additional cost would be a rationale in certain situations where data transmission and grounding are required at the same time, ADSS cables may be an economical solution if they are only used for data transmission.
As telecommunications and power systems are constantly changing with time, fiber optic cables are becoming more significant regarding their role in the two industries. The requirement for high-speed data rates, enhanced dependability, and better environmental sustainability are significantly pushing the development of both ADSS and OPGW technologies. As the demand is for faster data downloading, the adaptability of fiber optic wires creates new challenges in its technology because there is a need for a faster data rate. For instance, the fiber optics technology is now more trending to become the most advanced tool that is capable of experiencing long-distance signal data with the least signal loss.
Smart Grid Integration: In the sphere of energy, the era of invention of smart grids has opened the door to the use of OPGW cables. Advanced grids based on real-time data transfer for the distribution of power through the transmission line are disturbed, and OPGW cables provide the speedy communication network jut for that purpose. As they are used for grounding electrical systems, OPGW cables also serve another function, which is sensor monitoring and transferring of automated power distribution to all the parts of the grid.
Enhanced Toughness and Durability: There is also the improvement of tougher and more environmental resistant cables that is another key point. Having a sheath material that is resistant to UV rays, moistures, and environment, as well as the foam which can protect the mechanical stress is key for better ADSS cables. On the other hand, OPGW is being developed with newer coatings that would help reduce wear limits on the cables that were due to the corrosion of the wires and only will need to be checked for the conductor of the cables that is made from aluminum.
Hybrid Solutions: In some cases, there is an exploration of mixed solutions which involve taking advantage of the positives of ADSS and OPGW cables at the same time.
For example, OPPC (Optical Phase Conductor) cables, which contain both optic fiber and electrical conductor technologies in one cable, are becoming more and more popular in particular cases. These hybrid solutions add the prospect of a streamlined infrastructure and of a lower price since when multiple functions are combined in one, the total costs are cheaper.
Conclusion: ADSS and OPGW cables are essential means in providing global connectivity, emerging as critical components of modern communication and transmission networks. ADSS cables, which have all their members made from insulation material, are applicable to ordinary situations where these electrical activities can interfere with electromagnetic fields, they are also light and easy to install. ADSS is an economical solution for telecommunication over long distances AS OF cables is widely interested by the grid operators as they are appropriate for grounding of high voltage power transmission as well as for transmission of data speed communication. codes of engineering for engineers, utility companies, and telecommunications organizations to perfect their systems. More and more perfection in optical fiber technology will make OPGW and ADSS cables remain a stride, and in addition, they will fill up the gap of the advancing different data communication and transmission systems.
