Anti-Jamming FPV Fiber Systems: Zero-Latency UAV Transmission

■ FPV UAV Optical Fiber Transmission: The Complete Technical Guide

As FPV drones evolve from luxury hobbies to indispensable tools for industrial inspection, reconnaissance, and security, they hit the limits of wireless technology. The 2.4 GHz and 5.8 GHz frequency bands are now overcrowded with wireless signals, electromagnetic interference (EMI), and electronic countermeasures.

Optical fiber transmission is the answer to this hardware constraint. It offers what wireless cannot: complete immunity to interference, instantaneous hardware latency, and a "stealth" data channel.

This guide explains the mechanics behind FPV drones, the components, and why it is the new standard for high-availability UAV operations.

■ Understanding the Tech: Tethered vs. Spooling

Both technologies make use of optical fiber, but their underlying roles are different. One should not confuse the two.

Tethered UAV (Stationary / Long Endurance)

• Physics: The UAV is physically tethered to the ground power source through a rugged hybrid electrical cable (Power + Fiber).

• Primary Application: Hovering for extended periods (surveillance relay center or backup lighting).

• Limitations: All flight operations are limited to the length of the tether (usually above the ground power source).

Fiber Spooling UAV (This is the setting of the example)

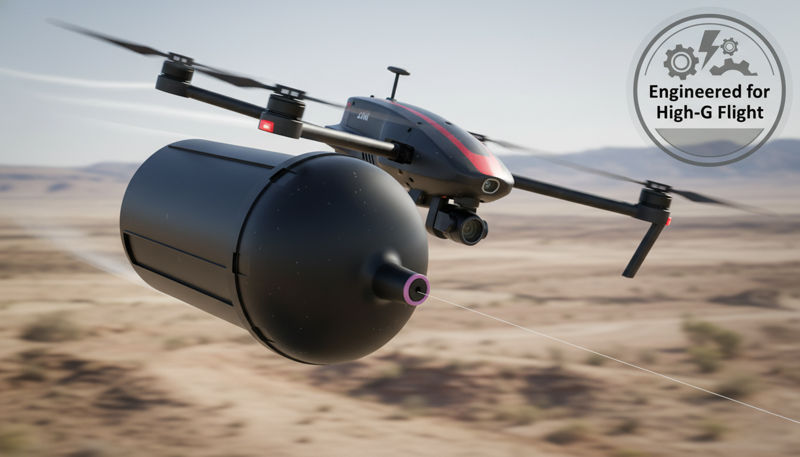

• Physics: The UAV has a lightweight spooling unit. The UAV spins fiber behind as it flies.

• Primary Application: Niche deployment of UAVs beyond the typical 1-2 km range (5-30 km) for inspection, reconnaissance, and sporting FPS racing.

• Key Feature: The fiber cable carries data only (unlike a hybrid power + fiber cable), thus reducing aerodynamic drag.

■ Is It Time to Abandon Wireless?

Wireless video signals operate through radio frequencies (RF), which have limited effectiveness due to their sensitivity:

Scenario. Complicated and complex environments (urban areas, power generation plants) experience packet loss, latency spikes, and sometimes complete blackout.

The Fiber Advantage

For mission-critical tasks, fiber offers superior performance metrics:

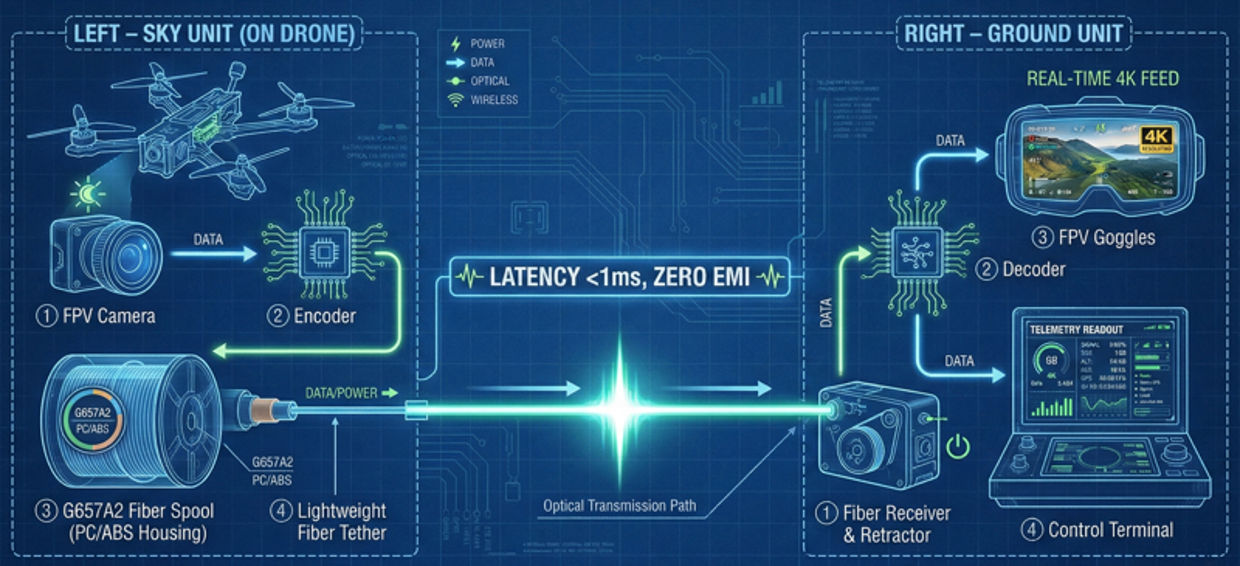

■ System Architecture: The Hardware

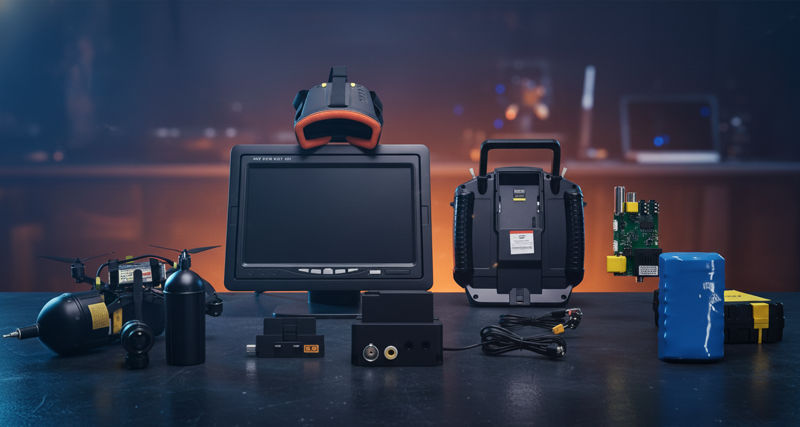

The fiber spooling system divides into two main parts: Air Unit and Base Unit.

The Air Unit (Payload)

• FPV Camera: This feeds the aerial encoder with raw video data.

• Encoder: The unit compresses video for easy fiber transmission.

• The Spool (Sky Unit): The backbone of the system. It must release fiber at speeds exceeding 100 km/h without "bird-nesting" or snapping taut.

• The Fiber when spooled: The G657A2 fiber. It is a unique type of customer-bendable optical fiber rated for higher mechanical fatigue (active snags) during deployment.

The Base Unit (Ground Station)

• Fiber Interface: The fiber receives an optical signal.

• Decoder: The video stream needs takes milliseconds to decode.

• Output: Plug-and-play for FPV goggles and monitors.

■ Material Chemistry: G657A2 Fiber Reinforcement

Normal fiber treat is too soft for drones. Traditional FPV drones often use enhanced coating profiles:

A. Primary Coating (UV-cured acrylate)

• Shock absorber. It limits micro-bending losses in the fiber.

B. Secondary Coating (The Armor)

• Trade-offs between rigidity and lightweight:

• 0.028 mm Thick: Added robustness (abrasion) and heavy compared to thin coatings. Good for abusive and industrial applications.

• 0.2-0.3 mm Thin: Lighter than a garage-scale drone. Great for racing and light inspections.

■ How This Works in Practice

1. The camera captures live video

2. The encoder compresses the feed

3. G.657A2 optical fiber transmits the signal with near-zero latency

4. The decoder reconstructs the HD stream

5. FPV goggles or a monitor display the real-time view

Because transmission occurs through physical fiber:

✔ No EMI

✔ No jamming

✔ No interception

✔ No RF exposure

■ Tactical Uses

Heavy Industry & High EMI Zones

Substations floors and welding floors are generally adverse to wireless. HDMI fiber can offer high video quality inspection.

Petrochemical & Hazardous Zones

RF signals can ignite gases and vapor. Avoiding RF altogether. Fiber-optics do not conduct current or sparks.

Reconnaissance Lights & Escape Anti-Jamming

Should active stealth be critical to the operation:

• Anti-Jamming Tech: Any drone jamming equipment has no effect on glass fiber.

• Non-Traceable: No radio frequency (RF) emissions mean drone operators cannot triangulate latitude and longitude.

Distal Inspection

Great for power, gas, railways, and fighting-monkey-military barricades. One 15-30 km reach is enough without latency distortion.

■ The ZION Engineering Advantage

ZION Communication Services Limited specializes in fiber relay deployment requirements. We do not just sell fiber; we sell the deployment system.

• G657A2 Fiber: Offering exceptionally low attenuation and high mechanical flexibility (resistance to snapping taut).

• Micro-Spooled Spooling: Our PC/ABS professional-grade spools prevent bird-nesting at high speeds (300 m/s).

• Range: Application flexibility is from 5 km for aero-surveillance to 30 km for extended inspections.

• Connectors: High-abrasion (FC, SC, LC) connectors available for high-vibration environments (rough landings).

■ Conclusion

The obsolescence of fiber is a myth. Today, value-deploying FPV and UAVs in difficult and dangerous environments are possible using fiber-spooling mechanisms for superior performance. With fiber, drones can fly for longer distances with more flexibility but with less signal degradation.
