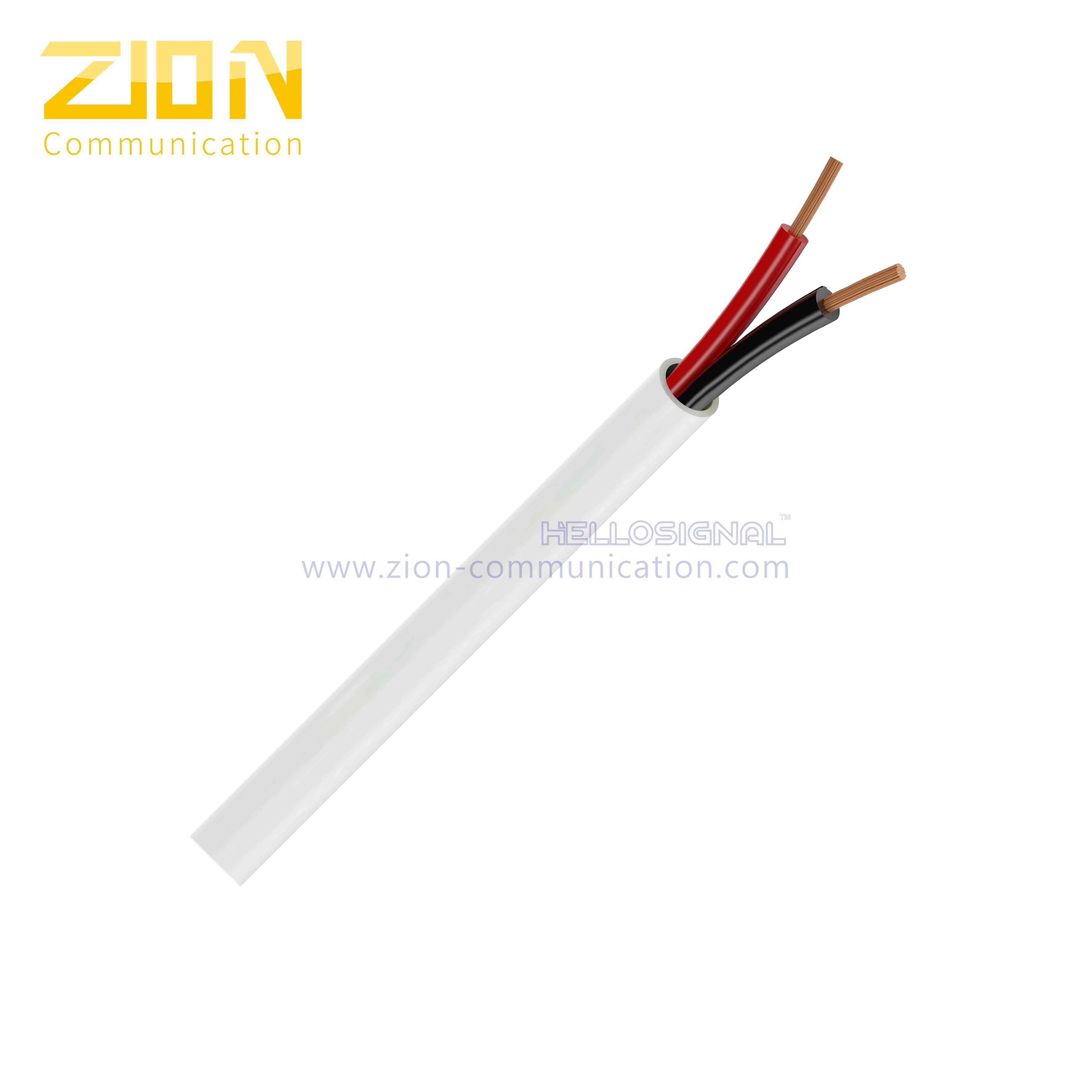

Audio Louder Speaker Cable

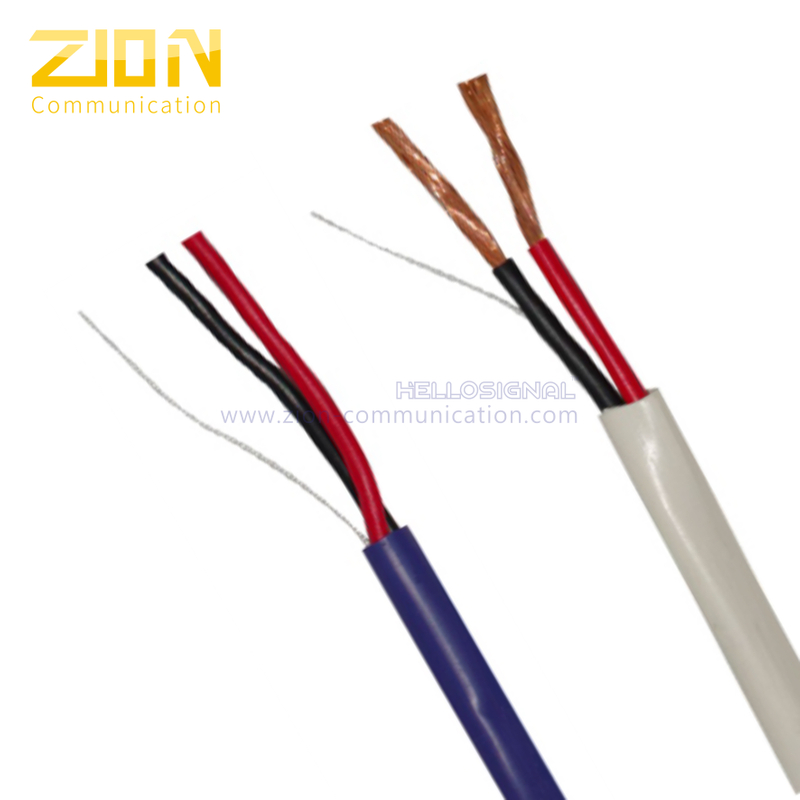

Description:

Zion Communications's Louder Speaker cable offer outstanding performance at an affordable price.

The cables are highly flexible and available in a wide variety of options for in-wall use for home theaters as well as high definition applications.

Conductor: OFC copper(99.95% pure)

Insulation: PVC

Jacket:PVC

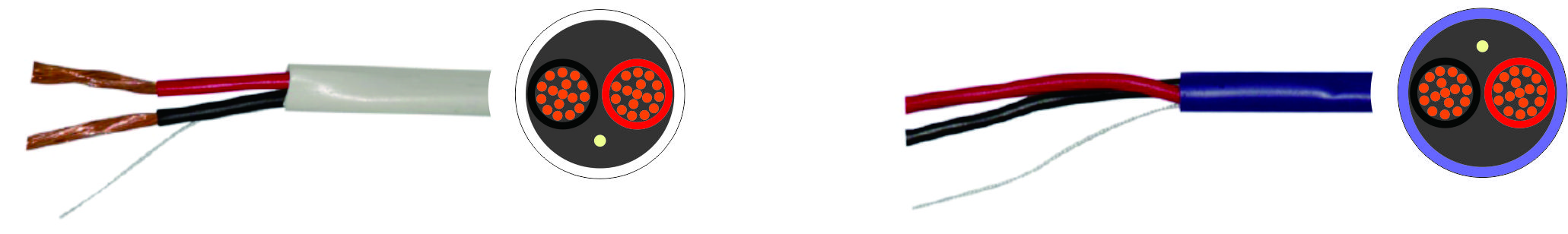

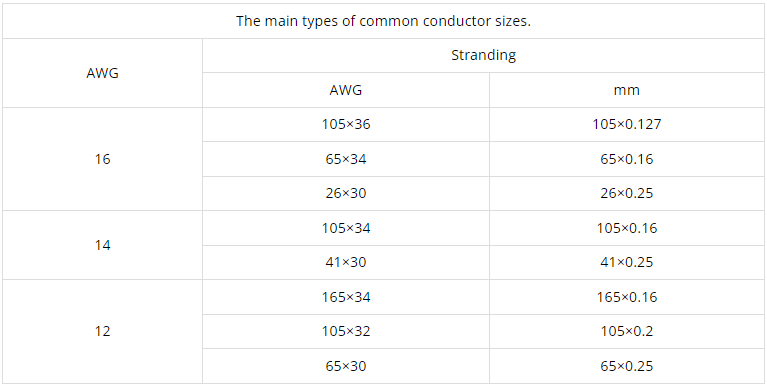

The main types of common conductor sizes.
AWG	Stranding
	AWG	mm
16	105×36	105×0.127
	65×34	65×0.16
	26×30	26×0.25
14	105×34	105×0.16
	41×30	41×0.25
12	165×34	165×0.16
	105×32	105×0.2
	65×30	65×0.25

---

Introduction:

Speaker Levels: (loudspeaker loads)

Low Impedance System - 4Ω and 8Ω

High Impedance System - 70.7 V

The cable is used to drive loudspeaker loads that are normally between 2 and 32Ω, although most systems are 4 and 8Ω. If the

concern is to deliver amplifier power to the loudspeaker, as the case for most commercial sound applications, the design procedure

is straightforward, with cable resistance being the only concern. If the highest audio fidelity is needed, the cable construction will

become an issue.

The resistance of the cable is the most important electrical issue in loudspeaker installations. The effects of capacitance and

inductance are negligible.

Low Impedance Systems: output impedance is low, the current must be high in order to get a given

amount of power to the speaker. The lower the resistance of the cable, the more power gets to the speaker.

High Impedance- Distributed Loudspeaker System- Constant Voltage System: Impedance of 4 and 8Ω are most common in amplifier

outputs. Manufacturers of commercial amps might also supply an output transformer with a number of secondary's, one may be

marked 8Ω and the other marked 70.7 V. The impedance of a 70 V output transformer depends upon the wattage of the amp.

A 25-watt, 70 V amp has an output impedance of 196Ω.

Actual speakers are still 4 or 8Ω, however, so when the wire is connected to each speaker, there must first be a small transformer to

reconvert from 70-volt to 4 or 8Ω. The quality of the transformer is critical. Distributed systems are used where quality is not the

primary consideration, such as, public address, background music,

or paging systems.

•High impedance loudspeaker distribution systems being higher voltage and lower current

  than low impedance (4/8Ω) loudspeaker systems have the following features:

• higher operating voltage means less power is consumed by copper resistance

• longer lines can be run before wire resistance becomes a concern

• lower operating current means that thinner wire can be used

---

Loudspeaker Cable Distance

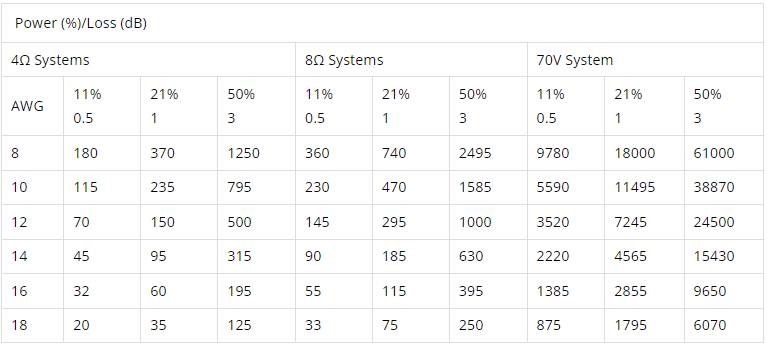

Speaker (Loudspeaker) Levels:

Power (%)/Loss (dB)
4Ω Systems				8Ω Systems			70V System
AWG	11% 0.5	21% 1	50% 3	11% 0.5	21% 1	50% 3	11% 0.5	21% 1	50% 3
8	180	370	1250	360	740	2495	9780	18000	61000
10	115	235	795	230	470	1585	5590	11495	38870
12	70	150	500	145	295	1000	3520	7245	24500
14	45	95	315	90	185	630	2220	4565	15430
16	32	60	195	55	115	395	1385	2855	9650
18	20	35	125	33	75	250	875	1795	6070

* 70-volt line drive systems, while considered a potential for Hi-Fi performance,

follow the same cable loss physics as the higher current (lower Impedance) system.

For sake of this calculation, a 25 watt 70-volt system (196 ohms) was used.

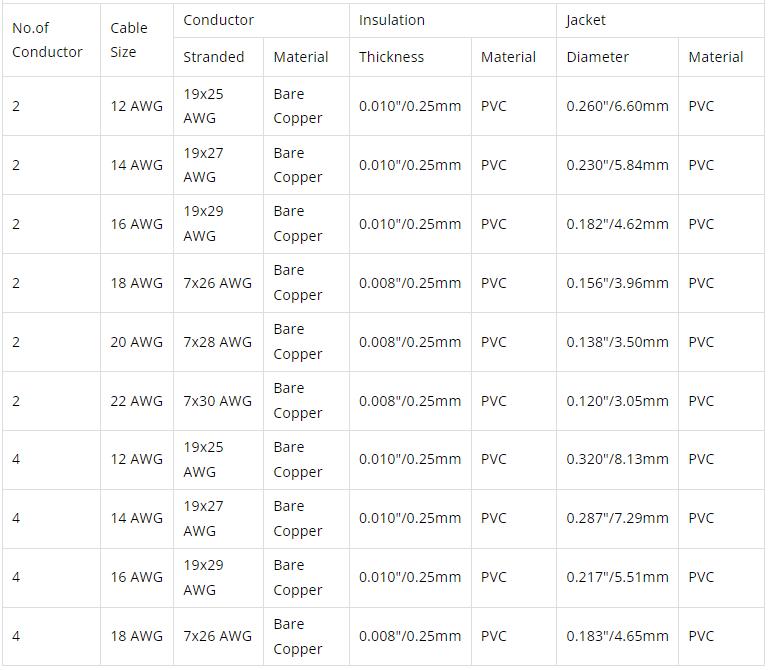

Construction Parameters:
No.of Conductor	Cable Size	Conductor		Insulation		Jacket
		Stranded	Material	Thickness	Material	Diameter	Material
2	12 AWG	19x25 AWG	Bare Copper	0.010"/0.25mm	PVC	0.260"/6.60mm	PVC
2	14 AWG	19x27 AWG	Bare Copper	0.010"/0.25mm	PVC	0.230"/5.84mm	PVC
2	16 AWG	19x29 AWG	Bare Copper	0.010"/0.25mm	PVC	0.182"/4.62mm	PVC
2	18 AWG	7x26 AWG	Bare Copper	0.008"/0.25mm	PVC	0.156"/3.96mm	PVC
2	20 AWG	7x28 AWG	Bare Copper	0.008"/0.25mm	PVC	0.138"/3.50mm	PVC
2	22 AWG	7x30 AWG	Bare Copper	0.008"/0.25mm	PVC	0.120"/3.05mm	PVC
4	12 AWG	19x25 AWG	Bare Copper	0.010"/0.25mm	PVC	0.320"/8.13mm	PVC
4	14 AWG	19x27 AWG	Bare Copper	0.010"/0.25mm	PVC	0.287"/7.29mm	PVC
4	16 AWG	19x29 AWG	Bare Copper	0.010"/0.25mm	PVC	0.217"/5.51mm	PVC
4	18 AWG	7x26 AWG	Bare Copper	0.008"/0.25mm	PVC	0.183"/4.65mm	PVC

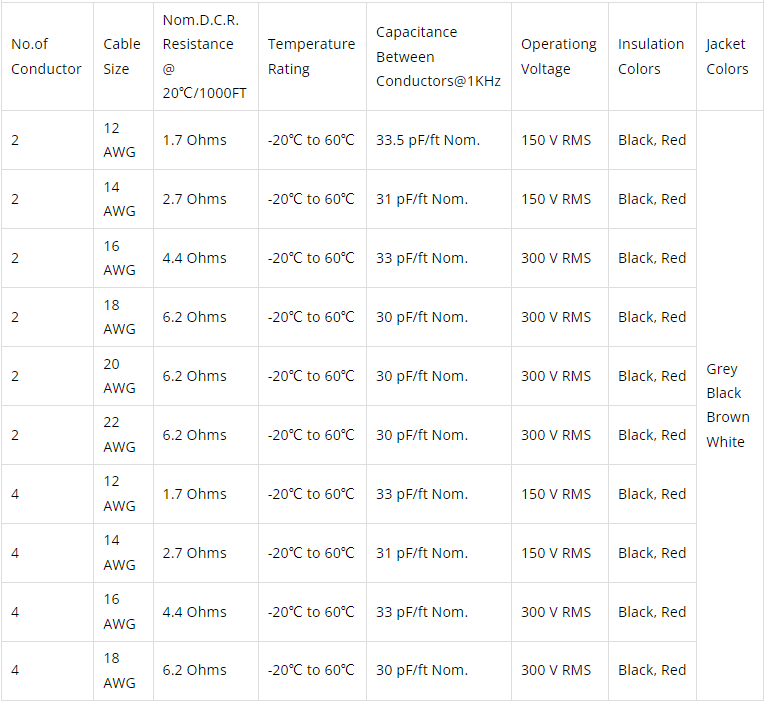

Electrical Parameters:
No.of Conductor	Cable Size	Nom.D.C.R. Resistance @ 20℃/1000FT	Temperature Rating	Capacitance Between Conductors@1KHz	Operationg Voltage	Insulation Colors	Jacket Colors
2	12 AWG	1.7 Ohms	-20℃ to 60℃	33.5 pF/ft Nom.	150 V RMS	Black, Red	Grey Black Brown White
2	14 AWG	2.7 Ohms	-20℃ to 60℃	31 pF/ft Nom.	150 V RMS	Black, Red
2	16 AWG	4.4 Ohms	-20℃ to 60℃	33 pF/ft Nom.	300 V RMS	Black, Red
2	18 AWG	6.2 Ohms	-20℃ to 60℃	30 pF/ft Nom.	300 V RMS	Black, Red
2	20 AWG	6.2 Ohms	-20℃ to 60℃	30 pF/ft Nom.	300 V RMS	Black, Red
2	22 AWG	6.2 Ohms	-20℃ to 60℃	30 pF/ft Nom.	300 V RMS	Black, Red
4	12 AWG	1.7 Ohms	-20℃ to 60℃	33 pF/ft Nom.	150 V RMS	Black, Red
4	14 AWG	2.7 Ohms	-20℃ to 60℃	31 pF/ft Nom.	150 V RMS	Black, Red
4	16 AWG	4.4 Ohms	-20℃ to 60℃	33 pF/ft Nom.	300 V RMS	Black, Red
4	18 AWG	6.2 Ohms	-20℃ to 60℃	30 pF/ft Nom.	300 V RMS	Black, Red
