As users continue to plunge into rich content for their entertainment and working needs—4K videos, cloud computing, and high-speed enterprise applications—the process of choosing for the right Ethernet cable becomes critical. Two of the most analyzed types of cable that would be important in such consideration are Cat6 and Cat6a. You might be misled into thinking that they are identical twins; however, the true story is that they are so different that they greatly influence the performance and installation cost as well as network scalability in the long run.
This article provides a guide to the differences between Cat6 and Cat6a cables through discussing their performance, price, and application options in order to help you choose the right cable suitable for your business or hardware designed.

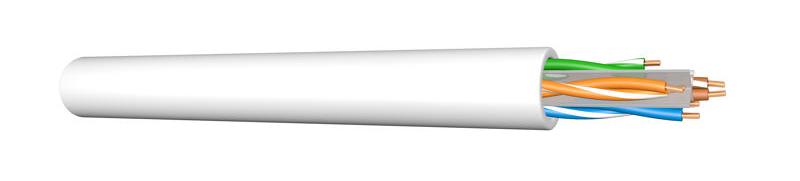

Cat6 (Category 6) is the standardized cable used for twisted-pair Ethernet which is designed to support Gigabit Ethernet and speeds up to 10Gbps for short distances. It should be noted that this type of cable is forward compatible with both Cat5 and Cat5e.
The version Cat6a (Category 6 Augmented) is an enhanced one of the otherwise existing Cat6. It has inherent 10 Gigabit Ethernet feature for 100 meters distance and can guarantee less even noise because of its better shielding or tighter twists.
Feature | Cat6 | Cat6a |
Max Bandwidth | 250 MHz | 500 MHz |
Max Data Rate | 10 Gbps (up to 37–55m) | 10 Gbps (up to 100m) |
Cable Diameter | Thinner (5.6–6.5mm) | Thicker (6.9–8.5mm) |
Shielding Options | Mostly UTP, some STP | UTP or fully shielded (F/UTP, S/FTP) |
Crosstalk Resistance | Moderate | Excellent (due to higher shielding) |
Future-Proofing | Good for short runs | Ideal for long runs and data-heavy environments |
Factor | Cat6 | Cat6a |
Cable Cost (per meter) | Lower | ~30–50% higher |
Installation Labor | Easier | More difficult due to thicker cable |
Bend Radius & Flexibility | More flexible | Less flexible |
Connector Compatibility | Standard RJ45 | RJ45, but may require larger jacks or keystones |
Though Cat6 is a much cheaper and easily deployable option, it might not be enough for some organizations and data centers, which are often limited in their deployment options. That is where Cat6a comes in, which has a much higher performance that can be found satisfactory by several enterprises and data centers.
Ideal Applications of Cat6 Cables
Home networking in residential buildings
Mini off-site enterprises
Fast run rates (2.5Gbps, 10Gbps)
VoIP phone systems
Most Popular Applications of Cat6a
Enterprise data backbone that supports 10Gbps
High interference areas (where machines, hospitals, etc.)
Data centers and server rooms
Smart buildings and installations including PoE++
Broad reach is important for the majority of OEMs and bulk purchasers:
Lifespan of the project – Is the cabling over capacity and will need more bandwidth enhancements?
Constraints – Is the run close to sizeable machines or energized lines?
Standards compliance – Is the cable meeting the UL, ETL, RoHS, or TIA 568-D standards?
Packaging needs – 305m pull boxes, 500m drums, or customization?
ZION Communication has been recognized as a distinguished manufacturer and OEM supplier. ZION supplies Cat6 and Cat6a Ethernet cables in UTP, FTP, S/FTP, as well as jacket types LSZH/CM/CMR/Plenum. It is great for characterize Mellitus distribution and mesh project needs.
Select Cat6 if the topping budget is tight, the run lengths are short, and Gigabit speed is enough.
Pick Cat6a if you have to establish an infrastructure lasting more than 10 years; need 10Gbps speed over 100m; or intend to involve in the EMI-sensitive commercial area.
