Author: Site Editor Publish Time: 06-05-2026 Origin: Site
A practical engineering reference for understanding PE, PVC, PP, CPE, PU, fluoropolymers and LSZH materials used in cable insulation and jacket design.
PVC, PE and PP remain common choices for cost-sensitive general cable applications.
PU, CPE, TPEE and XL-PE are preferred when flexibility, aging resistance, heat resistance or mechanical durability becomes critical.
For high-temperature, low-smoke, high-frequency or regulated environments, LSZH and fluoropolymers require earlier specification confirmation.

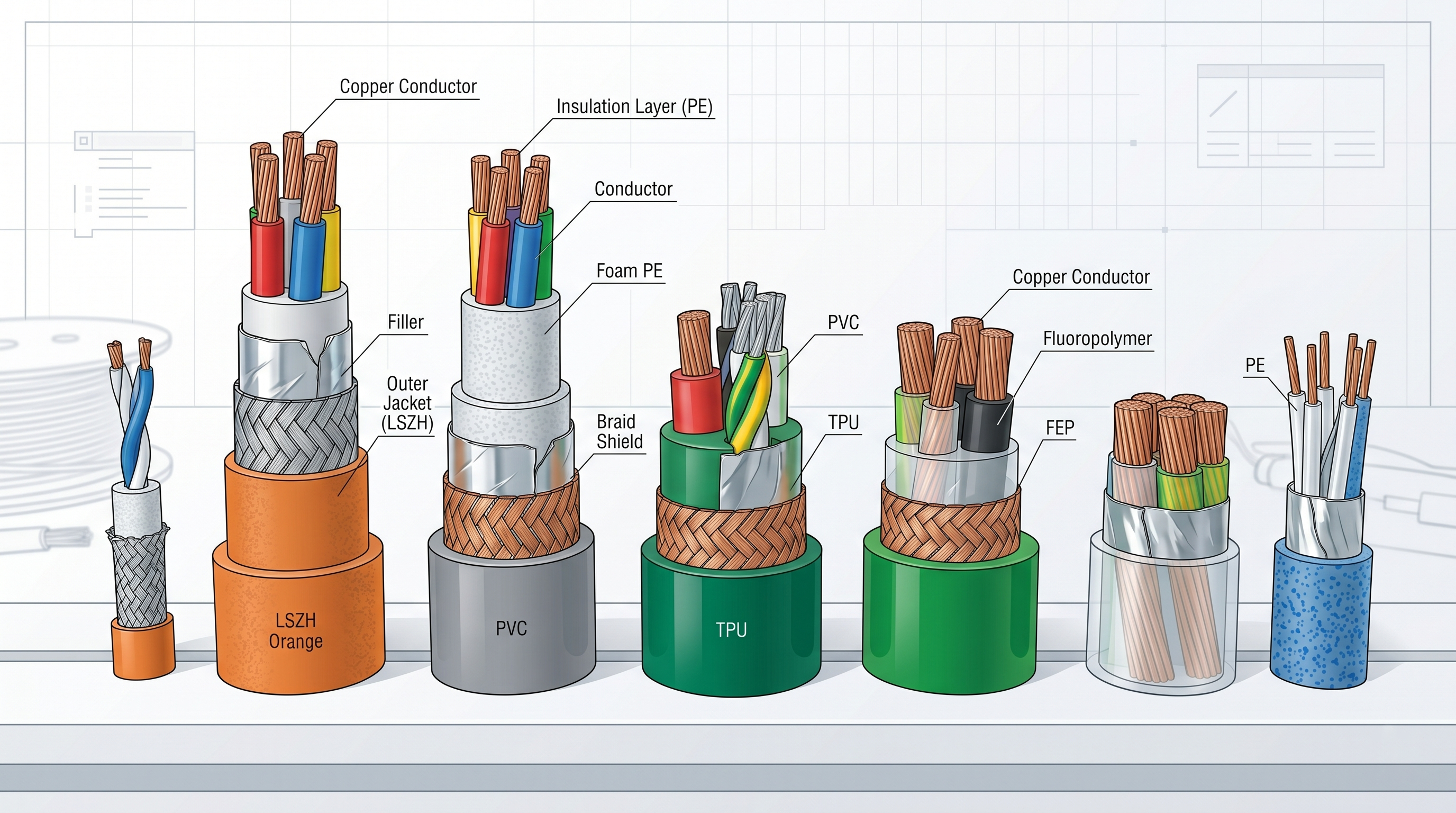

Plastic materials used in cables are polymer-based compounds designed to provide insulation, protection, mechanical support and environmental resistance. They are usually based on resin systems, with functional additives added when required for flame retardancy, flexibility, aging resistance, UV resistance, color stability or processability.
In cable manufacturing, plastic material selection directly affects electrical performance, tensile strength, elongation, temperature rating, flame behavior, flexibility, jacket durability and long-term reliability. A material that works well for indoor low-voltage wiring may fail quickly in outdoor, high-temperature, oil-exposed or high-frequency applications.
Do not select cable plastic only by price or hardness. Confirm voltage level, temperature rating, flame requirement, bending condition, installation environment and applicable standards before fixing insulation or jacket material.
Plastics can be classified by application level or by physical and chemical behavior. For cable engineers, both classification methods are useful because they help define cost level, processing method, recyclability and expected performance range.
| Classification Method | Type | Typical Materials | Engineering Meaning |
|---|---|---|---|
| By application | General plastics | PE, PP, PVC, PS, ABS | High volume, lower cost, suitable for common applications. |
| By application | Engineering plastics | PC, POM, PA, PET, PBT | Better mechanical and thermal performance, higher cost. |
| By thermal behavior | Thermoplastics | PE, PVC, PP, ABS, PC, PA | Can soften when heated and harden when cooled; generally recyclable. |
| By thermal behavior | Thermosetting plastics | Phenolic resin, epoxy resin, amino resin, polyurethane systems | After curing, they do not melt again; recycling is limited. |
For most communication and low-voltage cable projects, thermoplastic compounds are the main choice because they are easier to process, customize and scale in production.

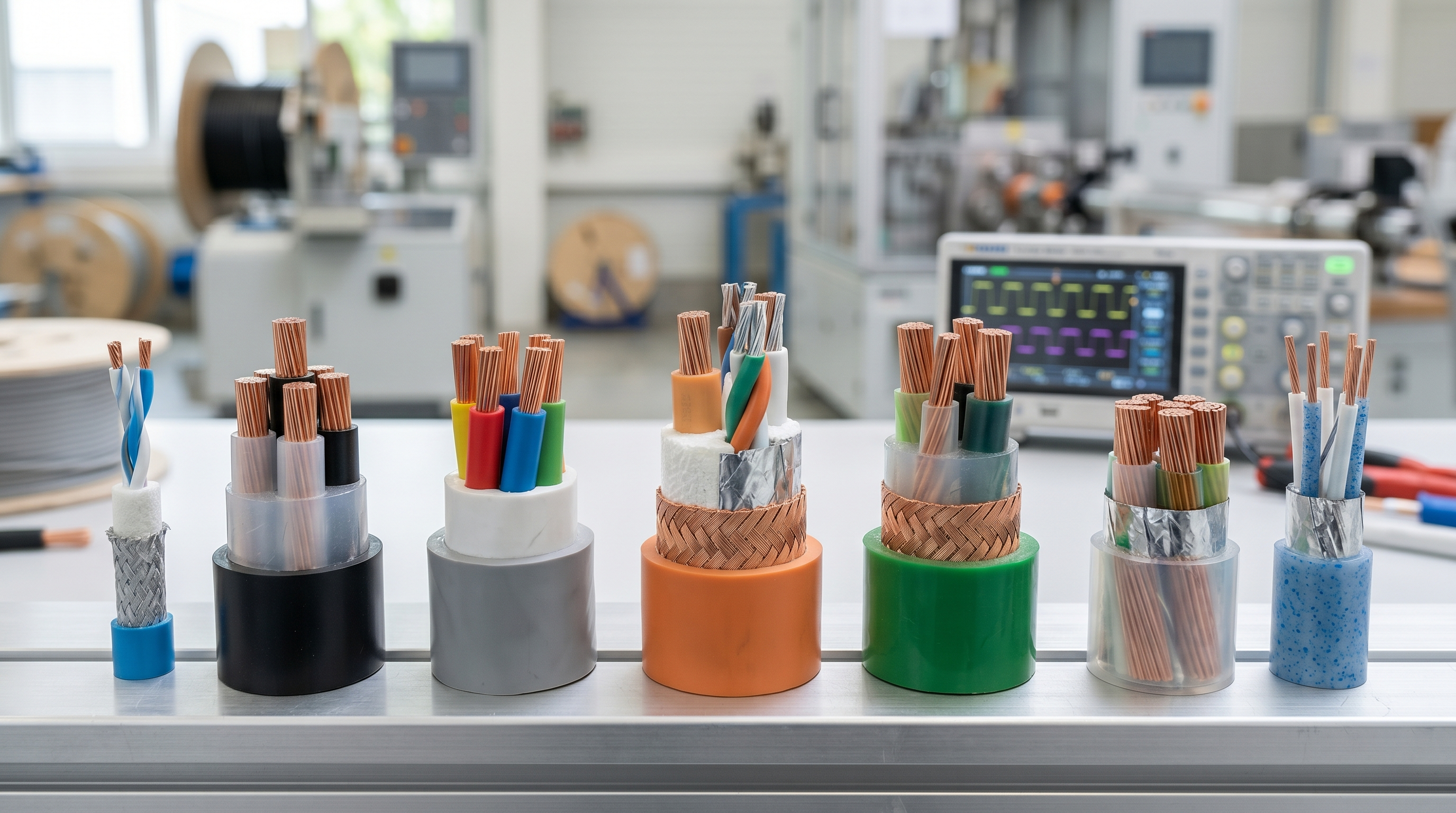

Cable plastic materials are not interchangeable. Each compound has its own balance of cost, processability, flame behavior, dielectric performance, mechanical strength and environmental resistance.
PE is widely used for cable insulation because of its good electrical properties, chemical resistance and low-temperature toughness. LDPE, LLDPE, HDPE, Foam PE and XL-PE are common forms. Foam PE is especially useful in high-frequency communication cables because it can reduce dielectric constant and cable diameter.
PVC is one of the most common cable insulation and jacket materials for low-voltage applications. It offers low cost, flexible hardness adjustment and good flame-retardant potential. However, its heat resistance and environmental profile need careful evaluation, especially where low smoke or halogen-free performance is required.
SR-PVC has higher hardness and strength than common soft PVC. It is often used for thin-wall core insulation in electronic wires and computer cables. The main concern is reduced elongation after high-temperature aging.
PP has low density, good rigidity, relatively high strength and better heat resistance than some general plastics. It is often used with EVA for communication cable core insulation. Its weak points are low-temperature impact resistance, aging sensitivity and flame dripping behavior.
CPE combines plastic and rubber-like properties. It improves oil resistance, ozone resistance, weather resistance, flame resistance and mechanical durability. It is commonly used in cable jackets, air-conditioning cables, waterproof materials and sealing applications.
TPEE provides high mechanical strength, abrasion resistance, flexibility and corrosion resistance. It is suitable for thin insulation or high-flex applications, but material cost and processing difficulty are higher.
PU is valued for flexibility, abrasion resistance, mechanical strength, weather resistance and chemical resistance. It is widely used in industrial cables, robotic cables, automotive cables and flexible jacket applications. The main concerns are cost, strong adhesion and processing difficulty during stripping.
Fluoropolymers are selected when heat resistance, chemical resistance, flame performance, low smoke behavior or high-frequency electrical performance is critical. They are common in high-temperature cables, LAN cables, coaxial cables, automotive cables, aerospace cables and heating cables.
LSZH compounds are designed to reduce smoke, toxic gas and corrosive gas emissions during combustion. They are widely used in public buildings, data centers, rail transit, communication networks and safety-critical cable systems.
The following table provides a quick comparison for engineering selection. Actual values depend on compound formulation, supplier grade, additives, processing method and applicable testing standard.
| Material | Main Strength | Main Limitation | Typical Specific Gravity | Typical Cable Use |
|---|---|---|---|---|
| PE | Good insulation and chemical resistance | Limited heat resistance unless cross-linked | Approx. 0.91–0.97 | Communication cable insulation, foam insulation |
| PVC | Low cost, flexible hardness, flame-retardant potential | Smoke, halogen and thermal limitations | Approx. 1.20–1.50 | AWM wire, computer cable, general jacket |
| SR-PVC | Higher strength than soft PVC | Aging may reduce elongation | Approx. 1.35–1.50 | Thin-wall core insulation |
| PP | Low density, rigidity, chemical resistance | Poor low-temperature impact resistance | Approx. 0.90–0.91 | Communication and telephone cable insulation |
| CPE | Weather, oil, ozone and flame resistance | Higher density and compound-specific processing | Approx. 1.6 | Cable jacket, air-conditioning cable jacket |
| PU | Flexibility, abrasion resistance, strength | Higher cost, stripping difficulty | Approx. 1.0–1.2 | Flexible industrial and automotive cable jackets |
| FEP / PFA / ETFE / PVDF | Heat, chemical and flame resistance | High cost and stricter processing control | Approx. 1.7–2.2 | High-temperature, high-frequency, aerospace cables |
| LSZH | Low smoke, zero halogen, lower corrosive gas | Needs careful formulation and flame testing | Depends on compound | Data centers, public buildings, rail transit, communication cables |

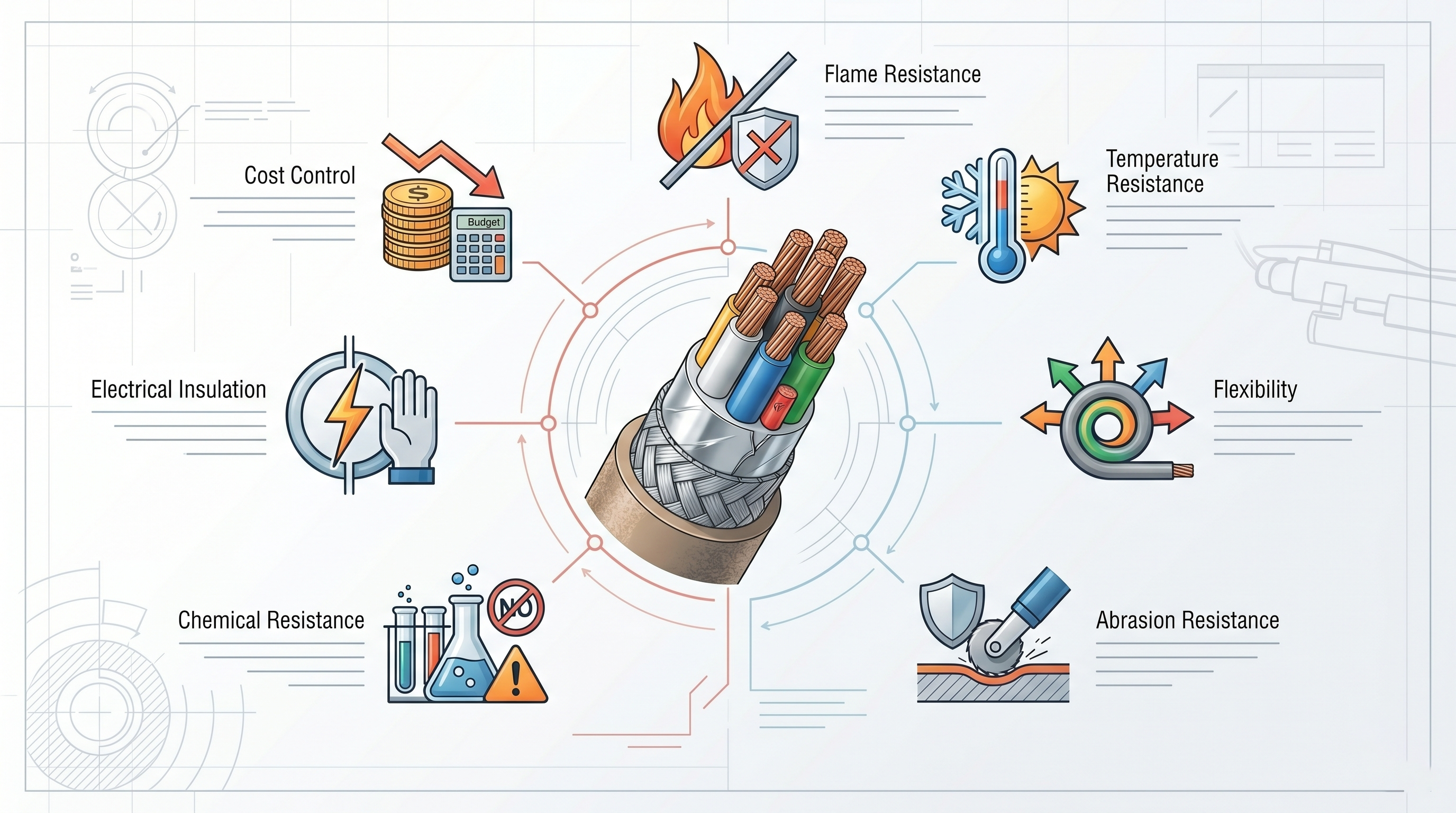

In cable material selection, the correct question is not “Which plastic is best?” but “Which material matches the electrical, mechanical, safety and cost boundary of this application?”
| Selection Question | Preferred Material Direction | Why It Matters | Engineering Checkpoint |
|---|---|---|---|
| Is this a cost-sensitive general low-voltage cable? | PVC, PE, PP | Balanced cost and mature processing. | Confirm flame grade, voltage rating and aging test. |
| Is the cable used for high-frequency signal transmission? | Foam PE, FEP, PFA | Dielectric stability affects signal loss and impedance. | Check dielectric constant, attenuation and process consistency. |
| Is low smoke or halogen-free performance required? | LSZH, selected fluoropolymers | Reduces smoke, toxic gas and corrosive gas risk. | Confirm flame, smoke density and halogen-related testing. |
| Does the cable need frequent bending or movement? | PU, TPEE, CPE | Improves flexibility, abrasion resistance and jacket life. | Check bending radius, cycle life and jacket adhesion. |
| Is the cable exposed to heat, oil, ozone or outdoor aging? | CPE, PU, XL-PE, ETFE, FEP | Environmental exposure accelerates material failure. | Confirm thermal aging, oil resistance and UV/weathering requirement. |
| Is the project for aerospace, automotive or heating cable? | ETFE, FEP, PFA, PVDF, XL-PE | Requires higher reliability and tighter safety margin. | Confirm temperature rating, flame requirement and certification path early. |
The most expensive material is not always the safest choice. Over-specification increases cost, while under-specification increases failure risk. The best choice is the material that matches the real installation environment and test requirement.
Cable materials should be matched to application scenarios rather than selected from a generic material list. Installation location, signal type, mechanical movement and fire safety requirements usually decide the final compound direction.
| Application Scenario | Common Material Options | Main Selection Logic | Common Risk If Wrong |
|---|---|---|---|
| General electronic wire | PVC, SR-PVC | Cost, processability, basic insulation and flame behavior. | Poor aging or insufficient tensile strength. |
| Communication cable core insulation | PE, PP, Foam PE | Electrical performance and stable signal transmission. | Higher attenuation or unstable impedance. |
| Data center or public building cable | LSZH, FEP, selected flame-retardant compounds | Smoke control, halogen-free requirement and safety compliance. | Smoke, corrosive gas or failed flame test. |
| Industrial flexible cable | PU, TPEE, CPE | Flex life, abrasion resistance and oil resistance. | Cracking, jacket wear or difficult maintenance. |
| Automotive cable | XL-PE, PU, ETFE, FEP | Heat, oil, vibration and long-term aging resistance. | Insulation hardening, jacket cracking or thermal failure. |
| Aerospace or special high-temperature cable | ETFE, FEP, PFA, PVDF | High temperature, low smoke, chemical resistance and reliability. | Excessive weight, failed certification or premature insulation failure. |
Many cable failures are not caused by one single material defect. They are often caused by selecting a compound without considering processing, testing, operating environment and long-term maintenance.
| Mistake | Possible Result | Cost / Risk Impact | Prevention |
|---|---|---|---|
| Using PVC where LSZH is required | Smoke, halogen and corrosive gas risk. | Failed project acceptance or safety compliance issue. | Confirm building code, customer specification and flame standard. |
| Using normal PE for high-temperature applications | Softening, deformation or insulation failure. | Early replacement and system downtime. | Consider XL-PE or high-temperature fluoropolymer options. |
| Ignoring bending radius and movement frequency | Jacket cracking, conductor fatigue or insulation damage. | Frequent maintenance and field failure. | Use PU, TPEE or suitable flexible jacket compound. |
| Selecting material only by tensile strength | Poor processability, poor flexibility or failed aging test. | Higher scrap rate and unstable production. | Evaluate elongation, aging, flame and processing window together. |
| Confirming standards too late | Material redesign after sample stage. | Delayed delivery and repeated testing cost. | Confirm UL, IEC, customer or project standards before trial production. |
Material selection should be completed before tooling, extrusion setup and sample testing. Changing compound after trial production usually increases both lead time and cost.
Simple burning identification can help distinguish material families, but it should not replace formal testing. For commercial cable projects, final material confirmation should rely on datasheets, test reports, flame tests, mechanical tests and customer-approved samples.
| Material | Simple Burning Observation | Engineering Note |
|---|---|---|
| PE | Blue flame, wax-like smell, molten dripping, continues burning. | Good electrical insulation, but flame behavior requires attention. |
| PVC | Green or yellow-green flame, white smoke, hydrochloric acid odor, often self-extinguishing. | Check halogen and smoke restrictions for public installations. |
| PP | Blue flame, molten dripping, kerosene-like smell, continues burning. | Evaluate aging and low-temperature impact behavior. |
| PU | Black smoke, blue flame area, melting, burnt hair-like odor. | Suitable for flexible applications, but stripping and adhesion need control. |
| Fluoropolymers | Softening and deformation near flame, difficult to ignite. | Use formal testing for high-temperature and flame-rated applications. |
| LSZH | Low odor, white smoke, white powder-like residue, some compounds self-extinguish. | Confirm smoke density, halogen-free and flame performance by standard testing. |
Burning observation is only a preliminary identification method. For purchase orders, use material grade, technical datasheet, compliance documents and sample test results as the acceptance basis.
Use PVC for cost-sensitive general applications where halogen and smoke restrictions are not critical. Use LSZH for data centers, public buildings, rail transit and safety-sensitive environments where low smoke and zero-halogen performance are required.
PE is widely used for communication cable insulation because of its electrical properties. However, the exact type should be selected according to frequency, attenuation requirement, mechanical design and temperature rating.
PU is suitable when flexibility, abrasion resistance and mechanical durability are important. It is often used in industrial, robotic, automotive and moving cable applications. Processing and stripping difficulty should be considered.
Fluoropolymers such as FEP, PFA, ETFE and PVDF offer high heat resistance, chemical resistance and flame performance, but raw material cost and processing requirements are higher than common plastics.
Provide voltage rating, conductor size, insulation thickness, jacket requirement, operating temperature, flame standard, bending condition, application environment and expected certification or test requirements.
Burning observation can support preliminary identification, but it cannot replace formal material verification. For engineering orders, datasheets, test reports and standard-compliant sample testing are required.
Cable plastic materials determine much more than appearance or softness. They influence electrical performance, flame behavior, mechanical life, environmental resistance, processing stability and total project cost.
For common low-voltage and communication cable applications, PVC, PE and PP remain widely used because of cost and mature production processes. For more demanding environments, CPE, PU, TPEE, XL-PE, LSZH and fluoropolymer materials should be evaluated according to heat, movement, flame, smoke, oil, chemical and certification requirements.
The most reliable selection process is to define the application first, confirm standards second, compare material options third, and validate with samples before mass production.
Share your cable structure, application environment, temperature rating, flame requirement and target standard. ZION Communication can help review material direction and provide practical options for OEM or project-based cable requirements.
