Author: Site Editor Publish Time: 28-04-2026 Origin: Site
A practical buying guide for choosing copper trunk cables by category, length, connector type, shielding, rack layout, port density, testing requirement and OEM project delivery.
Copper trunk cables reduce on-site termination time and improve rack deployment speed.
Choose Cat6A for most 10GBASE-T copper trunk applications in modern data centers.
Before ordering, confirm port count, wiring map, cable length, shielding, labeling, test report and rack pathway.

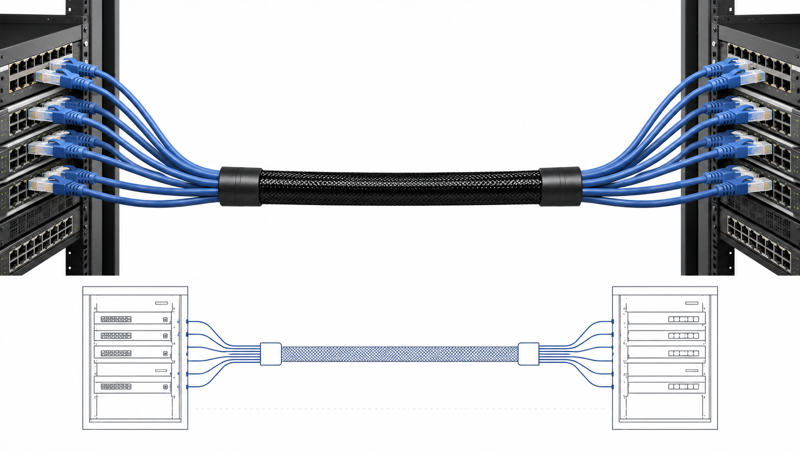

A copper trunk cable is a factory-terminated multi-cable assembly designed to connect network racks, patch panels, switches or distribution areas with less on-site termination work. Instead of pulling many individual Ethernet patch cables one by one, installers can deploy one bundled trunk assembly with pre-terminated RJ45 plugs, modular jacks or cassette interfaces.
In data centers and high-density equipment rooms, copper trunk cables are mainly used for short to medium copper links, especially where predictable cable routing, clean rack appearance and fast installation are important.
Copper trunk cable is not only a bundled cable product. It is a deployment method. The value comes from faster installation, factory-controlled termination quality, cleaner cable pathways and easier project standardization.
Traditional field termination gives installers flexibility, but it also depends heavily on site skill, tool condition, time pressure and testing discipline. Pre-terminated copper trunk cables move the critical termination process to the factory, where wiring, labeling and testing can be controlled before delivery.
Factory termination reduces installation time and makes large rack projects easier to schedule.
Bundled trunk design helps reduce cable clutter and improves cable pathway planning.
Each assembly can be tested before shipment to reduce field rework and troubleshooting risk.

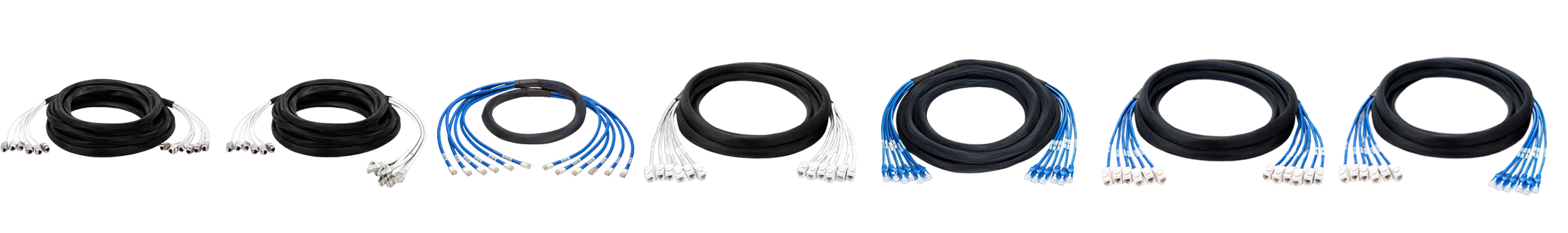

A copper trunk cable typically includes multiple Ethernet cables bundled together, with branch ends terminated according to rack design. Depending on the project, the assembly may use RJ45 plugs, keystone jacks, patch panel interfaces or customized breakout lengths.
| Type | Typical Design | Best Fit | Buyer Note |
|---|---|---|---|
| RJ45 Plug to RJ45 Plug Trunk | Both ends pre-terminated with RJ45 plugs. | Switch-to-switch or rack-to-rack patching. | Confirm plug protection during pulling. |
| RJ45 Plug to Keystone Jack Trunk | One end uses RJ45 plugs, the other end uses modular jacks. | Patch panel or work-area distribution. | Confirm panel compatibility and jack mounting style. |
| Cassette-Based Copper Trunk | Factory-terminated trunk connected to modular cassette or panel system. | High-density structured cabling systems. | Confirm cassette footprint and port numbering. |
| Custom Breakout Trunk | Different branch lengths, labels, colors and termination options. | Project-specific racks, cabinets and OEM systems. | Provide rack drawing before production. |
Copper trunk cable is not always better than field-terminated cable. It is better when the project values speed, consistency and clean deployment. Field termination is still useful when the site condition is uncertain or length adjustment is required during installation.
| Item | Copper Trunk Cable | Field-Terminated Cable | Decision Logic |
|---|---|---|---|
| Installation Speed | Fast | Slower | Use trunk cable when deployment schedule is tight. |
| Termination Quality | Factory controlled | Installer dependent | Use trunk cable when consistency is important. |
| Length Flexibility | Must be confirmed before production | Can be adjusted on site | Use field termination when site route is uncertain. |
| Rack Appearance | Cleaner and easier to standardize | Depends on installer discipline | Use trunk cable for high-density visible racks. |
| Rework Risk | Lower if drawings are correct | Higher termination-related risk | Both require testing and clear labeling. |
Buying copper trunk cables requires more detail than buying standard patch cords. Small mistakes in length, breakout direction, port numbering or connector type can create installation delays.
| Buying Factor | What to Confirm | Why It Matters | Common Choice |
|---|---|---|---|
| Cable Category | Cat6, Cat6A or Cat8 | Determines bandwidth and application limit. | Cat6A for 10GBASE-T |
| Shielding | UTP, FTP, S/FTP or shielded plug design | Affects EMI resistance and grounding plan. | S/FTP for high-interference or dense environments |
| Port Count | 6, 8, 12, 24 or customized groups | Must match patch panel and switch layout. | 12-port or 24-port trunk assemblies |
| Breakout Length | Branch length at each end | Determines how easily ports can be reached. | Customized according to rack drawing |
| Labeling | Port number, A/B end, color code, barcode | Reduces wrong connection and troubleshooting time. | Factory printed labels on both ends |
| Testing | Continuity, wire map, channel or component test | Protects project acceptance and reduces field failure. | Test report per assembly |
Copper trunk cables are most valuable when many copper links need to be deployed repeatedly in a clean, predictable and easy-to-maintain layout.
Used for rack-to-rack, patch panel to switch, or top-of-rack copper connections where deployment speed matters.
Helps simplify structured cabling between cabinets, distribution frames and network access equipment.
Useful for cabinet manufacturers, system builders and repeatable project kits requiring standardized cabling.
The correct question is not “Do we need copper trunk cable?” but “Does this project benefit from factory-terminated, repeatable and pre-tested copper links?”
| Project Condition | Recommended Direction | Reason | Checkpoint |
|---|---|---|---|
| Many repeated rack links | Use copper trunk cable | Improves deployment speed and consistency. | Confirm port map and labeling. |
| Uncertain site route | Use field termination or leave length margin | Pre-terminated length cannot be easily changed. | Measure pathway before ordering. |
| 10G copper network | Choose Cat6A trunk cable | Better margin for 10GBASE-T applications. | Confirm cable category and test report. |
| High EMI environment | Choose shielded copper trunk | Improves noise resistance when properly grounded. | Confirm grounding plan. |
| High-density cabinet | Use organized breakout and clear labels | Improves maintenance and port tracing. | Confirm branch length and bend radius. |
Copper trunk cable saves time only when the design information is accurate. If port layout, route length or breakout direction is wrong, pre-termination can turn into a rework cost.
Most copper trunk cable problems are not caused by the cable itself. They are often caused by incomplete ordering information, wrong rack measurement or unclear port numbering.
| Mistake | Possible Result | Risk Level | Prevention |
|---|---|---|---|
| Ordering before measuring rack route | Cable too short or excessive slack. | High | Measure pathway and add reasonable service margin. |
| Ignoring breakout direction | Difficult port access or crossed routing. | Medium | Provide A-end and B-end drawing. |
| No port labeling plan | Wrong connection and slow troubleshooting. | Medium | Use factory printed labels and port map. |
| Wrong shielding choice | EMI issue or grounding complexity. | High | Confirm EMI environment and grounding path. |
| No factory test report | Acceptance uncertainty and field troubleshooting. | High | Request wire map and performance test record. |
For OEM or project-based copper trunk cable orders, the specification should be confirmed before sample production. A clear order sheet reduces communication cost and prevents rework.
Confirm Cat6, Cat6A or Cat8, conductor size, shielding type, jacket material, flame rating and color.
Confirm total length, breakout length, branch direction, connector type, plug boot and pulling protection.
Confirm labeling, barcode, packaging, test report, carton mark and delivery schedule for site installation.
The best copper trunk cable order starts with a rack drawing, port map and installation route. These three documents help suppliers design the correct length, breakout and labeling plan.
It is a factory-terminated multi-cable assembly used to deploy multiple copper Ethernet links quickly and consistently in racks or equipment rooms.
Yes, Cat6A copper trunk cable is commonly selected for 10GBASE-T applications when the channel design and testing requirements are properly controlled.
Choose shielded cable for high-interference or dense environments, but confirm the grounding plan. Use unshielded cable for standard environments where EMI risk is low.
Provide cable category, length, port count, connector type, breakout length, A/B end layout, labeling plan, jacket requirement and testing requirement.
It is better for repeated rack links and fast deployment. Individual patch cords are still useful for small changes, flexible routing and uncertain site conditions.
Yes. Length, cable category, shielding, color, connector type, breakout length, labeling, packaging and test report can be customized for OEM or project requirements.
Share your rack layout, port map, cable category, length, shielding requirement and labeling plan. ZION Communication can support customized copper trunk cable assemblies for data centers, equipment rooms, structured cabling systems and OEM cabinet projects.
