GJXH
N/M
N/M
FTTH Fiber Optic drop cables
Flat-Type Zipcord
ISO9001
1km/Spool
Wooden Spool ，Φ280*280mm
100km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.
Flat-Type Zipcord Optical Fiber Drop Cable GJXH
Characteristic: Flat-Type Zipcord
Cable Type: FTTH Fiber Optic drop cables
Fiber Type: G.657.A1
Jacket Material: Low smoke zero halogen (LSZH)
Total Fiber Count: 1,2,4,8,
Subunit Type: Colors Fiber
Environmental Space: Aerial, Drop Home indoor
Armor: Corrugated Steel Armoring(PSP) | Steel Wires
Numbers of fibers: 1,2,4,8,
Fiber type: Single mode G.657.A1
Strength Member: Two Parallel steel wires
Loose Tube: No
Filler Rope: No
Water Blocking Layer（Material）: No
Additional Strength Member（Material）：No
Outer Sheath: Low smoke zero halogen (LSZH)
Cable Diameter(±0.2mm): 2.0*3.0mm
Cable Weight(±10.0kg/km): 8.5kg
Attenuation coefficient : @ 1310nm≤0.35dB ; @ 1550nm ≤0.2dB
Min. bending radius Without Tension: 10.0×Cable-φ
Min. bending radius Under Maximum Tension: 20.0×Cable-φ

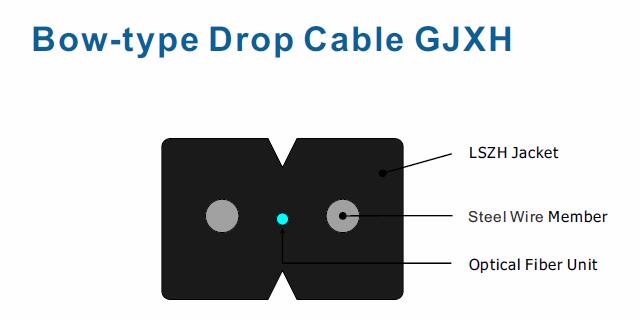

The indoor FTTH drop fiber cable consists of a central tight buffer fiber and the side two parallel FRP strength members. They are then sheathed in a black or colored PVC jacket or LSZH jacket. This self-supporting FTTH fiber cable is ideal for indoor installation.
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission properties.
Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
A single steel wire as the additional strength member ensures good performance of tensile strength.
Simple structure, light weight and high practicability.
Novel flute design. easily strip and splice, simplifying installation and maintenance.
Low smoke, zero halogen and flame retardant sheath.
Fiber Type: Single mode
Fiber Material: Doped silica
Attenuation Coefficient:
@ 1310 nm: ≤ 0.35 dB/km
@ 1383 nm: ≤ 0.32 dB/km
@ 1550 nm: ≤ 0.21 dB/km
@ 1625 nm: ≤ 0.24 dB/km
Point Discontinuity: ≤ 0.05 dB
Cable Cut-off Wavelength: ≤ 1260 nm
Zero-Dispersion Wavelength: 1300 ~ 1324 nm
Zero-Dispersion Slope: ≤ 0.092 ps/(nm².km)
Chromatic Dispersion:
@ 1288 ~ 1339 nm: ≤ 3.5 ps/(nm.km)
@ 1271 ~ 1360 nm: ≤ 5.3 ps/(nm.km)
@ 1550 nm: ≤ 18 ps/(nm.km)
@ 1625 nm: ≤ 22 ps/(nm.km)
PMDQ (Quadrature Average): ≤ 0.2 ps/km¹/²
Mode Field Diameter @ 1310 nm: 9.2 ± 0.4 μm
Core / Clad Concentricity Error: ≤ 0.5 μm
Cladding Diameter: 125.0 ± 0.7 μm
Cladding Non-Circularity: ≤ 1.0%
Primary Coating Diameter: 245 ± 10 μm
Proof Test Level: 100 kpsi (= 0.69 GPa), 1%
Temperature Dependence:
0°C ~ +70°C at 1310 & 1550 nm
≤ 0.1 dB/km attenuation
