fig.8 loose tube
hellosignal
CFOAC-AS-UT
FTTH
ISO9001
1km/Spool
Wooden Spool ，Φ280*280mm
40 km
5-25 Days
NINGBO CHINA
30%TT as deposit,70%Balance before shipping.

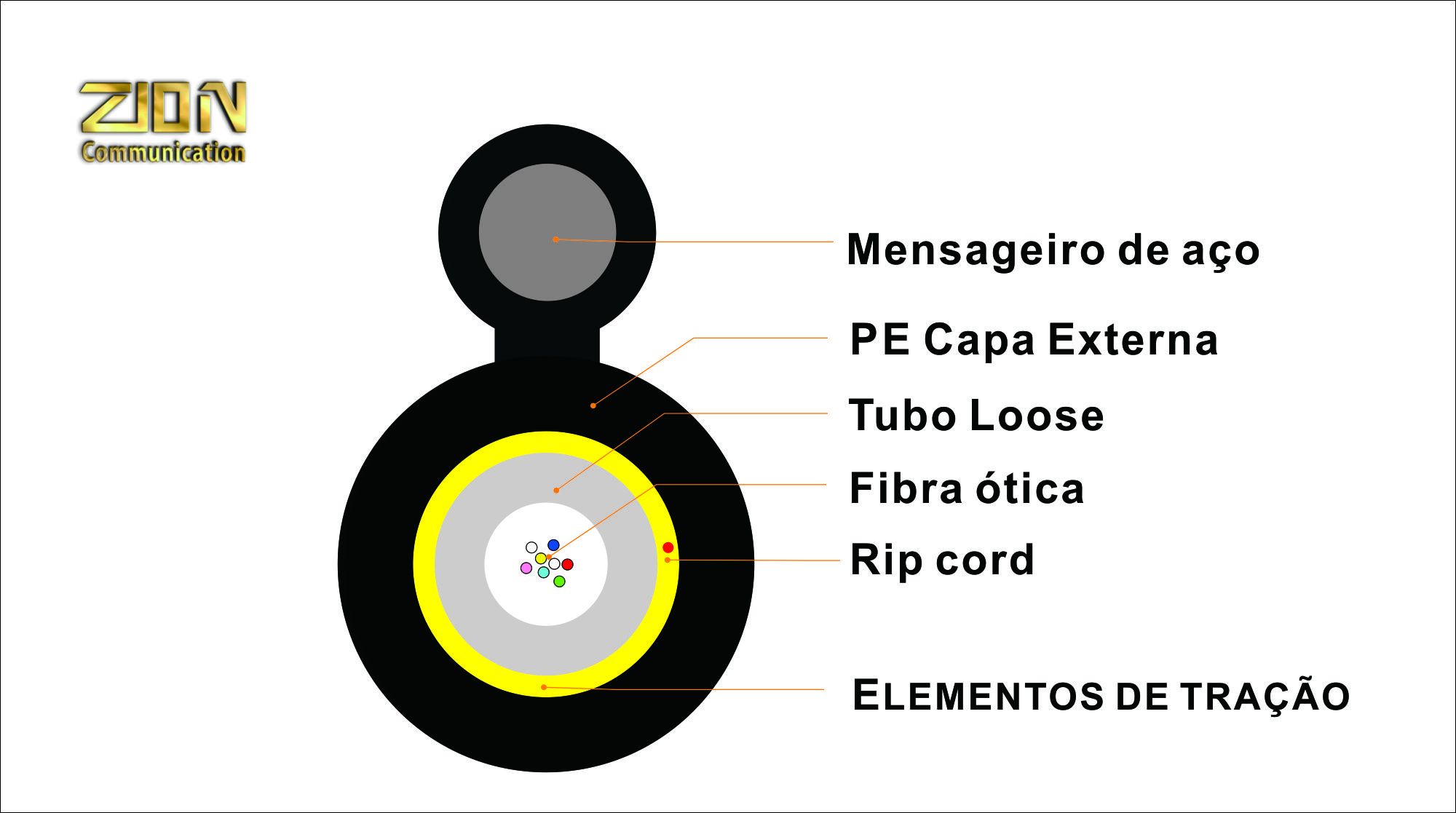

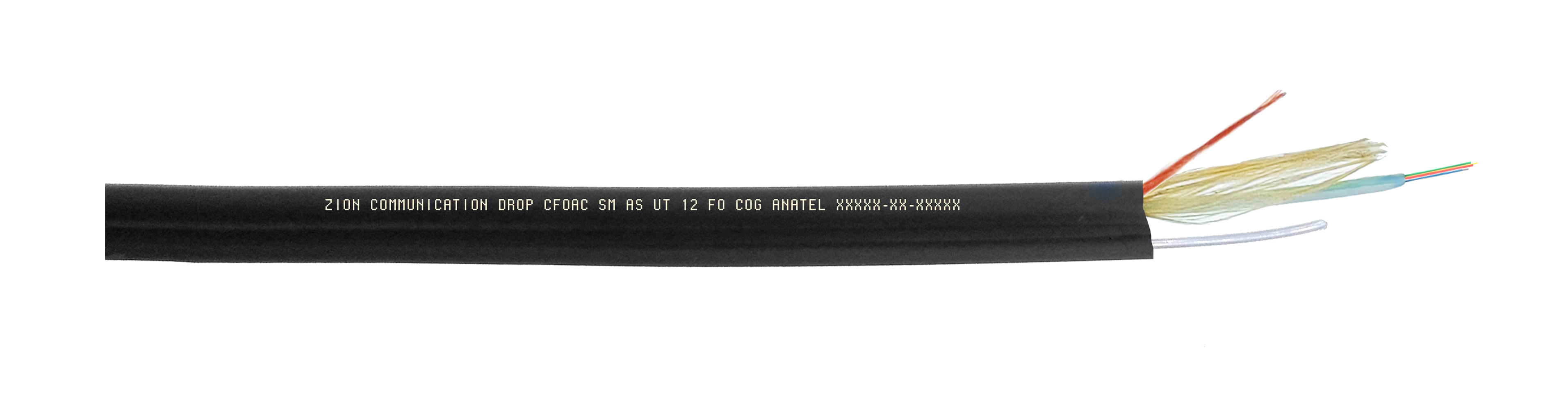

FIG.8 Loose Tube DROP OPTICAL CABLE
FTTH (CFOAC-AS-UT) -Aero Self-Supported
CFOAC SM AS UT- (01 to 12) FO COG ANATEL DROP CABLE
Nominal Cable Dimension: 2.8 ± 0.1mm * 4.6 ± 0.1mm * 8.8 ± 0.2mm PE
Fibers: G.657.A1 / G.652.D (01 to 12)
Technical Parameters
| Item | description | |||||
| Optical fiber | @1310nm ≤0.35dB/km; @1550nm ≤0.2dB/km;G.657.A1/G.652.D | |||||
| Traction Element | Filaments of dielectric fibers (aramid) | |||||
| Supporting Element | Steel wire with nominal diameter of 1.3 mm | |||||
| Nominal dimension (height x width) | 2.8±0.1mm*4.6±0.1mm*8.8±0.2mm | |||||
| Nominal tube diameter | 2.5mm | |||||
| External coating thickness | 0.85±0.1mm | |||||
| Nominal linear weight | 35±3kg/km | |||||
| External Cover | MDPE(COG) | |||||
| Standard Length | 1000m or 2000m | |||||
| Kind of packing | Wooden bobbin | |||||
| Operating Temperature | -20~+65℃ | |||||
| Maximum operating load (CMO) | 1250N | |||||
| Maximum long-term load (EDS) | 500N | |||||
| Self-sustaining Fiber Optics | Optical Drop for 80 m spans | |||||
Certifications
| ITU-T Rec. G.657A | IEC 60794 | ISO9001 | |||
| ANATEL(certificado) | ICEA-596 | YD/T 1997-2009 |
| Fiber Optical Test Datas | ||||||||
| The properties of single mode optical fiber (ITU-T Rec. G652|G657) | ||||||||
| Category | Description | G.652 | G.652.D | G.652.D | G.657.A1 | G.657.A2 | Unit/ Unidade | |
| Transmission Characteristics | Attenuation Coefficient | @1310 nm | ≤0.35 | ≤0.34 | ≤0.32 | ≤0.34 | ≤0.34 | dB/km |
| @1285-1330 nm | ≤0.37 | ≤0.35 | ≤0.37 | ≤0.37 | dB/km | |||
| @1383 nm(after hydrogen aging) | ≤0.30 | ≤0.30 | ≤0.29 | ≤0.31 | ≤0.31 | dB/km | ||
| @1490 nm | ≤0.24 | ≤0.22 | ≤0.23 | ≤0.23 | dB/km | |||
| @1550 nm | ≤0.22 | ≤0.21 | ≤0.18 | ≤0.2 | ≤0.2 | dB/km | ||
| @1525-1575 nm | ≤0.22 | ≤0.19 | ≤0.21 | ≤0.21 | dB/km | |||
| @1625 nm | ≤0.25 | ≤0.24 | ≤0.2 | ≤0.22 | ≤0.22 | dB/km | ||
| Mode Field Diameter | @1310 nm | 8.6±0.4 | 9.0±0.4 | 9.0±0.3 | 9.0±0.3 | 8.6±0.4 | µm | |
| @1550 nm | 9.8±0.5 | 10.2±0.4 | 10.2±0.4 | 10.2±0.4 | 9.6±0.5 | µm | ||
| Cable Cut-off wavelength(λ cc) | ≤1260 | ≤1260 | ≤1260 | ≤1260 | ≤1260 | nm | ||
| Zero Dispersion Wavelength | 1300-1324 | 1300-1324 | 1300-1324 | 1300-1324 | 1300-1324 | nm | ||
| Zero Dispersion Slope | ≤0.092 | ≤0.092 | ≤0.09 | ≤0.09 | ≤0.09 | ps/nm²/km | ||
| Dispersion Coefficient | @1285-1339 nm | ≤3.4 | ≤3.2 | ≤3 | ≤3.4 | ps/(nm·km) | ||
| @1271-1360 nm | ≤5.3 | ps/(nm·km) | ||||||
| @1550 nm | ≤ 18 | ≤ 18 | ≤ 17 | ≤ 17 | ≤ 18 | ps/(nm·km) | ||
| @1625 nm | ≤ 22 | ≤ 22 | ≤ 21 | ≤ 21 | ≤ 22 | ps/(nm·km) | ||
| PMD Maximum Individual Fiber | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ps√km | ||
| PMD Link Design Value | ≤0.06 | ≤0.06 | ≤0.06 | ≤0.06 | ≤0.06 | ps/√km | ||
| Point Discontinuity | @1310 nm, @1550 nm | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | ≤0.05 | dB | |
| EGRI Effective Group Refractive Index | @1310 nm | 1.4671 | 1.4671 | 1.4671 | 1.4676 | |||
| @1550 nm | 1.4675 | 1.4675 | 1.4675 | 1.4683 | ||||
| @1625 nm | 1.468 | 1.468 | 1.468 | 1.4685 | ||||
| Macro Bending Loss | 10turns of 15mm radius | ≤0.25 | ≤0.03 | @1550 nm dB | ||||
| 1turns of 10mm radius | ≤0.75 | ≤0.1 | ||||||
| 1turns of 7.5mm radius | ≤0.2 | |||||||
| 1turns of 5mm radius | ||||||||
| 100turns of 30mm radius | ≤0.05 | ≤0.05 | ≤0.05 | @1625 nm dB | ||||
| 10turns of 15mm radius | ≤1.0 | ≤0.1 | ||||||
| 1turns of 10mm radius | ≤1.5 | ≤0.2 | ||||||
| 1turns of 7.5mm radius | ≤0.5 | |||||||
| 1turns of 5mm radius | ||||||||
