A reliable Ethernet cabling project is not built by selecting cable alone. The cable, patch cord, keystone jack, patch panel, connector, shielding method, grounding path, and rack layout must be matched as one system.
Match the whole cabling channel, not only the cable category.
For shielded systems, cable, jack, panel, patch cord, and grounding must stay consistent.
Cat6A project failures often come from small component mismatches, not from one obvious wrong item.
To match cable, patch cord, keystone jack, and patch panel in one structured cabling project, the safest rule is simple: design the whole link as one system, not as separate low-cost components. The cable category, shielding structure, conductor size, termination style, patch panel layout, grounding method, and patch cord performance must work together.
For Cat6A projects, the most common problems are not caused by one obviously wrong item. They usually come from small mismatches: shielded cable with unshielded jacks, Cat6A horizontal cable with Cat6 patch cords, large-diameter cable forced into incompatible keystone jacks, or shielded patch panels installed without proper bonding.
A copper cabling project is not only about buying Ethernet cable. A complete link may include bulk horizontal cable, keystone jack, modular outlet, patch panel, patch cord, RJ45 plug, cable manager, grounding accessory, faceplate, label, and test report.
If these parts are selected independently, the project may pass visual inspection but fail during installation, testing, maintenance, or future upgrade. This is especially important for Cat6A projects, where cable diameter, alien crosstalk control, rack density, and shielding continuity are more demanding than basic Cat5e or Cat6 installations.
| Project Item | Must Match With | What to Confirm Before Ordering | Common Risk |
|---|---|---|---|
| Bulk cable | Jack, patch panel, termination method | Category, shielding, conductor type, OD, AWG, jacket | Cable too thick for jack or panel |
| Keystone jack | Cable and patch panel | Cat rating, shielded/UTP, 180°, 90°, toolless, punch-down | Wrong jack for cable diameter or conductor type |
| Patch panel | Jack, rack space, grounding design | Loaded/unloaded, 1U/2U, 24-port/48-port, shielded/UTP | Panel selected only by port count |
| Patch cord | Channel category and equipment port | Cat rating, UTP/FTP, AWG, length, boot design, flexibility | Cat6A channel downgraded by lower-grade patch cord |
| RJ45 plug / field plug | Cable type and endpoint design | Solid/stranded compatibility, shielded/UTP, AWG, OD | Plug not suitable for cable construction |
The cable and keystone jack form one of the most critical termination points in a structured cabling project. If they do not match, the whole link becomes unstable even when the cable category looks correct on paper.
| Cable Parameter | Keystone Jack Requirement | Why It Matters |
|---|---|---|
| Category: Cat6 / Cat6A | Same or higher category jack | Lower-grade jack can reduce link performance |
| Shielding: UTP / F/UTP / S/FTP | Matching UTP or shielded jack | Shielded cable needs shielded termination |
| Conductor: solid or stranded | Jack must support the conductor type | Most horizontal cable uses solid conductors |
| AWG size | Jack must support cable gauge | Cat6A cable may be thicker than Cat6 cable |
| Cable outer diameter | Jack housing must accept cable OD | Oversized cable may cause termination stress |
For horizontal cabling, use solid conductor bulk cable with compatible keystone jacks. For equipment connections, use factory-made patch cords. Do not use patch cord cable as horizontal cable unless the project specification clearly allows it.
A patch panel is often treated as a simple rack accessory, but it directly affects installation density, labeling, grounding, rear cable routing, and future maintenance. For Cat6A and shielded projects, the panel should not be selected only by port count.
| Patch Panel Type | When to Choose | Key Benefit | Risk |
|---|---|---|---|
| Loaded patch panel | Standardized projects with fixed configuration | Faster ordering and installation | Less flexibility if jack type changes |
| Unloaded keystone patch panel | Mixed jack types or phased installation | Flexible port configuration | Requires correct keystone selection |
| 1U 24-port panel | Standard rack density | Common and space-efficient | Rear cable management must be controlled |
| 2U 48-port panel | Higher port count with easier working space | Better routing and maintenance access | Uses more rack space |
| Shielded patch panel | Shielded Cat6A systems | Supports bonding and shield continuity | Must be grounded correctly |
Patch cords are frequently handled, moved, replaced, and mixed between racks. This makes them one of the easiest points where a project-level cabling design can be weakened.
| Project Link | Recommended Patch Cord | Reason |
|---|---|---|
| Cat6 UTP permanent link | Cat6 UTP patch cord | Maintains category consistency |
| Cat6A UTP permanent link | Cat6A UTP patch cord | Avoids channel downgrade |
| Cat6A shielded permanent link | Cat6A shielded patch cord | Maintains shielded chain |
| High-density rack | Slim Cat6A patch cord if allowed | Improves airflow and cable management |
| Industrial EMI area | Shielded patch cord | Helps maintain EMI control path |

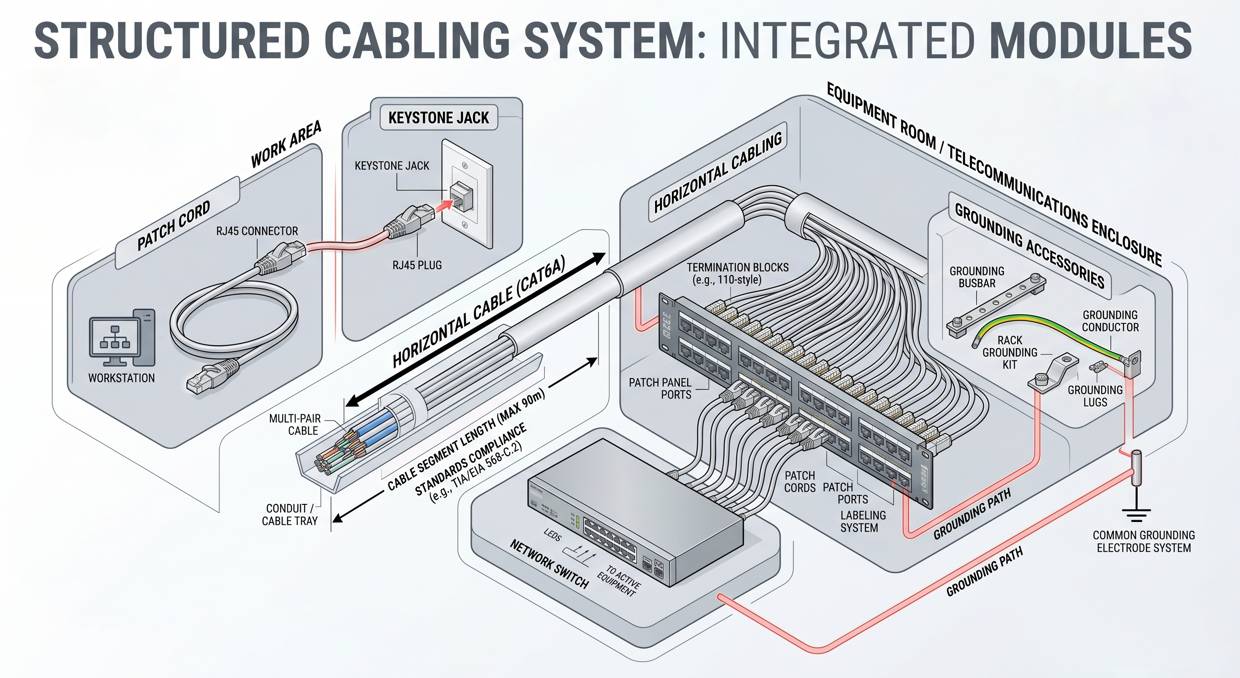

For shielded cabling, the key principle is: shielded cable + shielded keystone jack + shielded patch panel + shielded patch cord + proper bonding. If one part is missing, the project may still look correct from the outside, but the shielding design becomes incomplete.
| Component | Shielded System Requirement |
|---|---|
| Cable | F/UTP, F/FTP, S/FTP, or project-defined shielded structure |
| Keystone jack | Shielded jack with proper metal contact |
| Patch panel | Shielded metal panel or shield-compatible keystone panel |
| Patch cord | Shielded patch cord |
| Rack / cabinet | Bonding path available |
| Grounding | Confirm grounding bar, rack bonding, and continuity |
Shielding is usually considered when cable routes are close to power distribution equipment, motor control centers, VFD cabinets, industrial machinery, elevator shafts, outdoor metallic pathways, high-density copper bundles, or sensitive monitoring systems. However, shielding is not automatically better unless installation and grounding are handled correctly.
| Inconsistency | What Happens | How to Avoid It |
|---|---|---|
| Cat6A cable + Cat6 jack | Link performance may be downgraded | Use Cat6A-rated jack |
| Shielded cable + UTP jack | Shield continuity is broken | Use shielded jack |
| Shielded panel without grounding | Shielding benefit is incomplete | Confirm rack bonding path |
| Thick Cat6A cable + incompatible jack | Difficult termination and failure risk | Check OD and AWG range |
| 1U high-density panel without cable management | Rear congestion and bend stress | Use proper cable managers |
| Cat6A link + unknown patch cords | Channel reliability becomes uncertain | Specify Cat6A patch cords |
A complete RFQ should not only say “Cat6A cable.” It should confirm the complete system and the installation environment.
| Item | Questions to Confirm |
|---|---|
| Cable category | Cat6, Cat6A, Cat7, or other? |
| Shielding type | UTP, F/UTP, F/FTP, S/FTP? |
| Cable conductor | Solid or stranded? Bare copper or CCA? |
| Cable AWG and OD | 23AWG, 24AWG, 26AWG, 28AWG? Will the jack accept the cable diameter? |
| Jacket material | PVC, LSZH, PE, UV-resistant, indoor, outdoor? |
| Keystone jack | 180°, 90°, toolless, punch-down, shielded, or UTP? |
| Patch panel | Loaded or unloaded? 1U or 2U? 24-port or 48-port? |
| Patch cord | Same category? Same shielding type? What length and boot style? |
| Connector / field plug | Standard patch cord or direct field termination? |
| Grounding and testing | Required for shielded system? Permanent link test or channel test? |
Cable: Cat6 UTP solid copper bulk cable
Jack: Cat6 UTP 180° or toolless jack
Panel: Cat6 UTP 24-port or 48-port patch panel
Best for: General office LAN and cost-sensitive projects
Cable: Cat6A UTP solid copper cable
Jack: Cat6A UTP jack, confirmed OD/AWG range
Panel: Cat6A UTP patch panel or unloaded keystone panel
Best for: New buildings, Wi-Fi APs, and 10G-ready infrastructure
Cable: Cat6A F/UTP or S/FTP cable
Jack: Cat6A shielded keystone jack
Panel: Shielded Cat6A panel with grounding
Best for: EMI-sensitive areas and high-density copper links
Cable: Cat6 or Cat6A solid copper cable
Endpoint: Outlet + patch cord or MPTL field plug
Panel: Matching Cat6/Cat6A patch panel
Best for: Cameras, APs, and PoE devices
Cable, patch cord, keystone jack, and patch panel should be selected as one complete system. In Cat6A projects, small mismatches can create real installation and testing problems: wrong shielding chain, incompatible cable diameter, lower-grade patch cords, insufficient rack space, or missing grounding accessories.
For procurement teams, the best approach is to confirm the full link before ordering. For engineers and system integrators, the key is to design around application speed, shielding requirement, termination method, cable management, and future maintenance.
ZION can help confirm cable structure, patch cord type, keystone jack compatibility, patch panel design, connector selection, grounding accessories, labeling, packaging, and sample approval before mass production.
