How to Select the Right Outdoor Ethernet Cable？

How to Choose the Right Outdoor Ethernet Cable

The right outdoor Ethernet cable is selected by installation environment first and category second. Confirm whether the route is exposed to sunlight, moisture, standing water, burial pressure, mechanical damage, electrical noise, lightning risk, or entry into a building. Then match the jacket, water-blocking construction, shielding, conductor size, and category to the application and the equipment at both ends.

■ Quick Answer: What Should You Look For?

For an exposed outdoor route, specify an outdoor-rated, UV-resistant jacket and confirm the manufacturer’s temperature range. For conduit or direct burial, add the required water-blocking and crush-resistant construction; a cable that is merely suitable for outdoor exposure is not automatically rated for direct burial. Use outdoor-rated connectors or weatherproof enclosures at termination points, because a durable cable jacket does not protect an unsealed RJ45 connection.

• Exposure: UV, rain, humidity, chemicals, salt, temperature, and ice.

• Installation: aerial, tray, wall, conduit, or direct burial.

• Network: required data rate, channel length, PoE load, and connected equipment.

• Protection: water blocking, armor, surge protection, grounding, bonding, and enclosure rating.

■ Start With the Installation Environment

“Outdoor” describes a range of conditions rather than one universal cable construction. A cable clipped to a shaded wall, a cable installed in a wet underground duct, and a direct-buried cable face different risks. Before choosing a category, define the route and identify where water can collect, where sunlight reaches the jacket, and where the cable may be pulled, crushed, flexed, or damaged by rodents.

Important: When an outdoor cable enters a building, the transition point, pathway, grounding method, and permitted indoor length must follow the applicable local code and project specification. An outdoor jacket rating does not replace building fire-safety requirements.

■ Choose the Jacket and Water-Blocking Construction

PE and UV-resistant outdoor jackets

Polyethylene is widely used for outdoor data-cable jackets because suitable PE formulations can provide strong moisture and UV resistance. However, jacket material alone does not define the complete environmental rating. Check the product datasheet for UV exposure, installation and operating temperatures, chemical resistance, and the intended pathway.

PVC, LSZH, and double-jacket designs

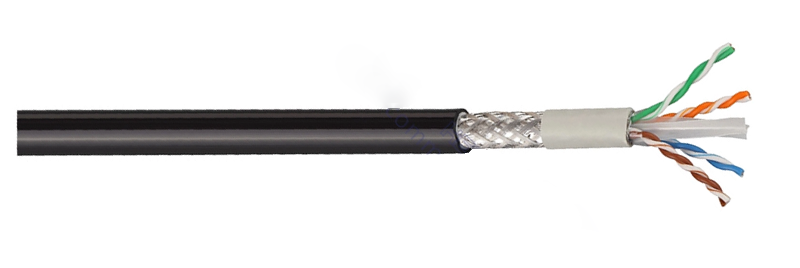

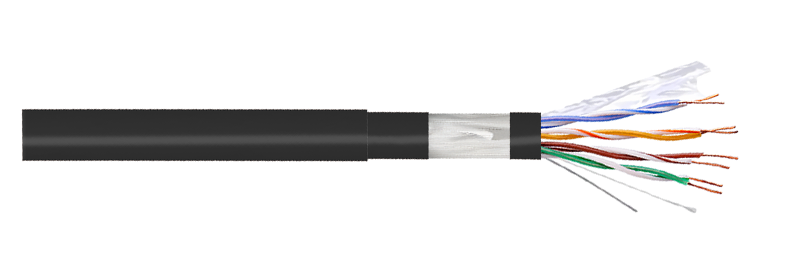

PVC and low-smoke zero-halogen materials are used where flame, smoke, halogen, flexibility, or local building requirements matter. They are not automatically outdoor-rated. A double-jacket cable may combine an indoor-suitable layer with an outdoor protective layer, but the exact construction and transition method must be confirmed from the cable specification.

Water blocking and direct burial

Wet locations may require water-swellable tape, yarn, gel, or another manufacturer-specified blocking system to limit longitudinal water migration. Direct-burial routes may also require added crush, impact, or rodent protection. Do not treat “water resistant,” “outdoor,” and “direct burial” as interchangeable labels.

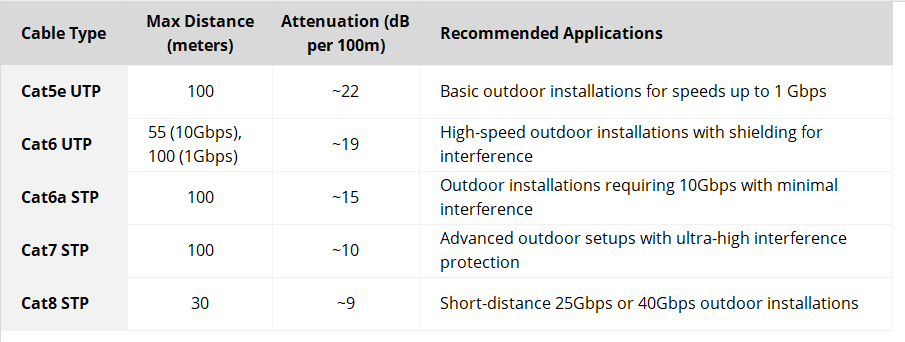

■ Select Cat5e, Cat6, or Cat6A by the Required Link

Cable category describes transmission performance, not weather resistance. The category, connectors, patch cords, installation quality, and test limits must work as one channel. Outdoor conditions do not increase the standards-based copper channel length, and a higher category does not correct poor termination, water ingress, excessive pulling tension, or unsuitable surge protection.

Cat5e: practical for many 1 Gigabit links

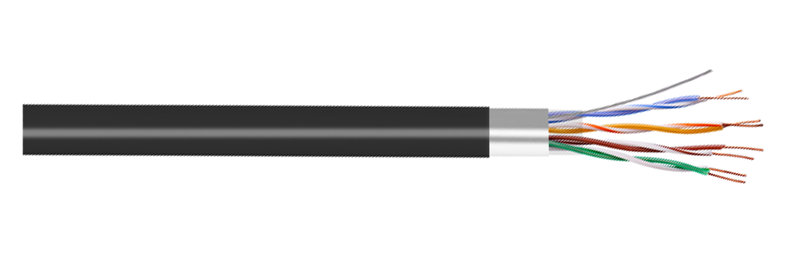

Cat5e remains suitable when the equipment, application, and tested channel require up to 1 Gigabit Ethernet. For an outdoor PE-jacket example, see the F/UTP Cat5e 4-pair 24 AWG PE cable (NO.7112111). Confirm its current datasheet against the required environment and channel design.

Cat6: added performance margin for Gigabit projects

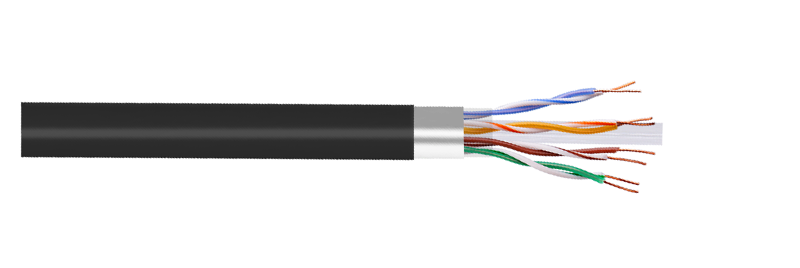

Cat6 is often selected for new Gigabit installations when additional crosstalk margin and a larger conductor are useful. Support for higher data rates depends on the application, installed length, channel components, bundling, and alien-crosstalk conditions. The F/UTP Cat6 4-pair 23 AWG PE cable (NO.7112211) is one outdoor-jacket construction to compare with the project specification.

Cat6A: the normal choice for 10 Gigabit to 100 m

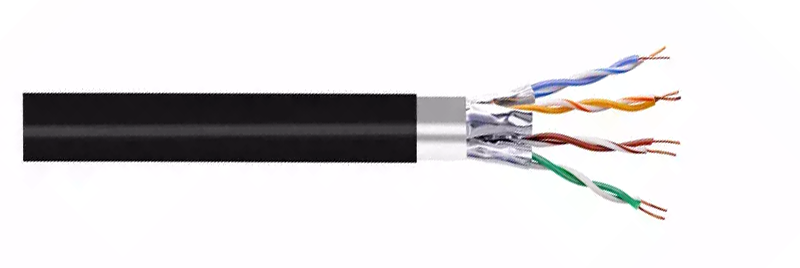

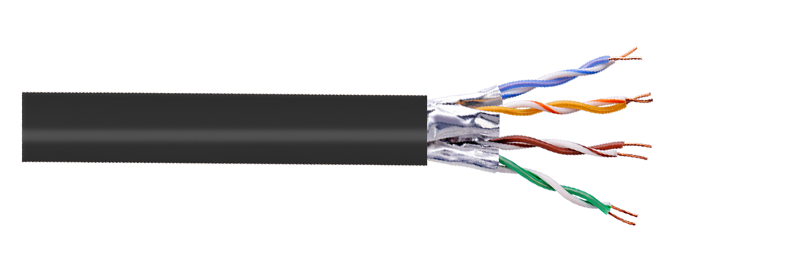

Cat6A is designed to support 10GBASE-T over a standards-compliant 100 m channel and provides stronger alien-crosstalk control than lower categories. It is typically thicker and may need larger pathway space and compatible hardware. The U/FTP Cat6A 4-pair 23 AWG PE cable (NO.7112321) illustrates a screened outdoor Cat6A construction.

■ Decide Whether Shielding Is Necessary

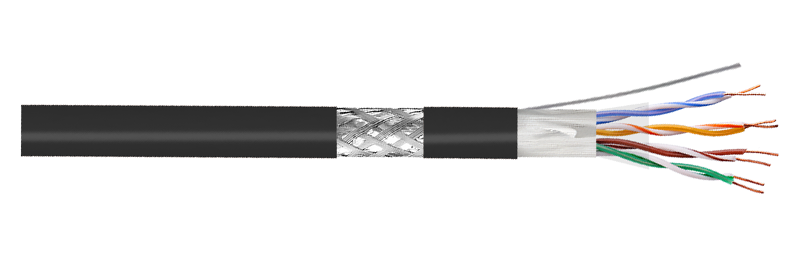

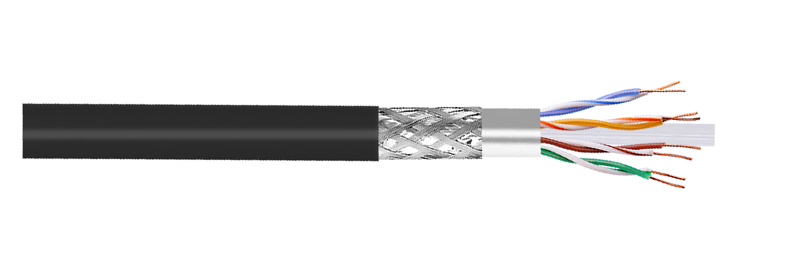

Shielding is not required simply because a cable is outdoors. Balanced U/UTP cabling can work well when it is correctly separated from power cables, drives, motors, welders, and other noise sources. Screened constructions such as F/UTP, U/FTP, or SF/UTP can improve noise control in demanding environments, but only when connectors, patch panels, bonding, and grounding form a compatible system.

Do not leave a cable screen electrically floating or improvise a grounding method. Follow the cabling-system design, equipment manufacturer guidance, and local electrical rules. Where ground-potential differences, severe EMI, or lightning exposure create unacceptable risk, fiber is often the safer inter-building medium because it is nonconductive.

■ Check PoE, Conductor Size, and Temperature

Outdoor cameras, wireless access points, intercoms, and sensors often use Power over Ethernet. PoE adds current and heat, especially when many cables are bundled or installed in hot, sun-exposed pathways. Confirm conductor material and gauge, DC resistance, temperature rating, bundle size, ambient temperature, connector compatibility, and the PoE type supported by the complete channel.

A category label by itself is not a PoE thermal design. Use the cable manufacturer’s current installation guidance and apply the project’s derating and bundling rules where required.

■ Plan Mechanical Protection and Installation

Armor can protect against crushing, impact, and some rodent damage, but “armored” does not automatically mean direct-burial, waterproof, shielded, or suitable for every grounding arrangement. Choose armor type and pathway protection according to the actual hazard. During installation, observe the specified pulling tension, bend radius, support spacing, and minimum installation temperature.

1. Keep copper data cabling separated from power and high-EMI equipment according to the applicable design rules.

2. Seal entries with compatible glands, drip loops, enclosures, and connectors; do not rely on tape as the primary environmental seal.

3. Use surge protection and bonding practices appropriate to outdoor conductive cabling and the connected equipment.

4. Test the installed channel to the specified category and document the results before service.

■ Outdoor Ethernet Cable Buying Checklist

Provide these details when requesting a cable recommendation or quotation:

• Application and required Ethernet speed.

• Permanent-link and total channel length.

• Aerial, tray, conduit, wall-mounted, or direct-burial route.

• UV, water, chemical, salt, temperature, crush, flexing, and rodent exposure.

• U/UTP or screened construction, plus the grounding and bonding plan.

• PoE type, powered-device load, bundle size, and ambient temperature.

• Required jacket, fire, environmental, and project compliance markings.

• Connector, enclosure, surge-protection, testing, and documentation requirements.

■ Frequently Asked Questions

Can indoor Ethernet cable be placed in outdoor conduit?

Do not assume that conduit makes an indoor cable suitable for outdoor use. Outdoor conduit can collect condensation or water, so the cable must be rated for the actual wet or damp environment and meet the applicable code and project requirements.

Is every outdoor Ethernet cable suitable for direct burial?

No. Direct-burial suitability must be stated by the manufacturer. The cable may need water blocking and additional mechanical protection beyond a UV-resistant outdoor jacket.

Should all outdoor Ethernet cables be shielded?

No. Shielding is selected for the electromagnetic environment and the complete grounding and bonding design. Correctly routed balanced U/UTP can be suitable in many locations, while screened cable can help in high-noise areas when terminated as a compatible system.

When should fiber be used instead of outdoor copper Ethernet?

Consider fiber for links beyond the supported copper channel length, between buildings with different ground potentials, in severe EMI, or where a nonconductive medium is preferred. The final choice also depends on equipment interfaces, power delivery, pathway, budget, and maintenance capability.
