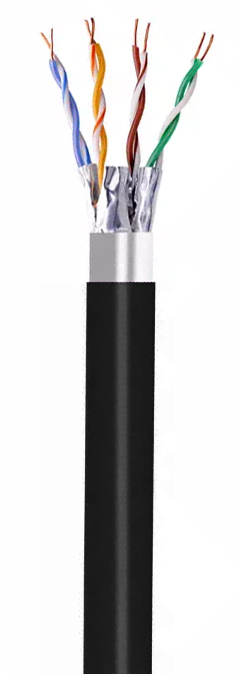

NO. 7112331 F/FTP CAT 6A PE-Global Market

Construction

Conductor:

0.55±0.005mm Solid Bare Copper

Pairs:

4 Pairs

Insulation:

1.33±0.05 mm Foam PE

Insulation Colors:

Blue-White/Blue OR White

Orange-White/Orange OR White

Green-White/Green OR White

Brown-White/Brown OR White

Shielded

AL/PET  Foil,100% Coverage

Cover every pair

Overall Shield

Aluminum Foil, 110% Coverage

Drain Wire

0.40±0.005mm TC

Rip Cord:

Cotton or Fibre

Out Jacket:

7.5±0.5 mm  PVC

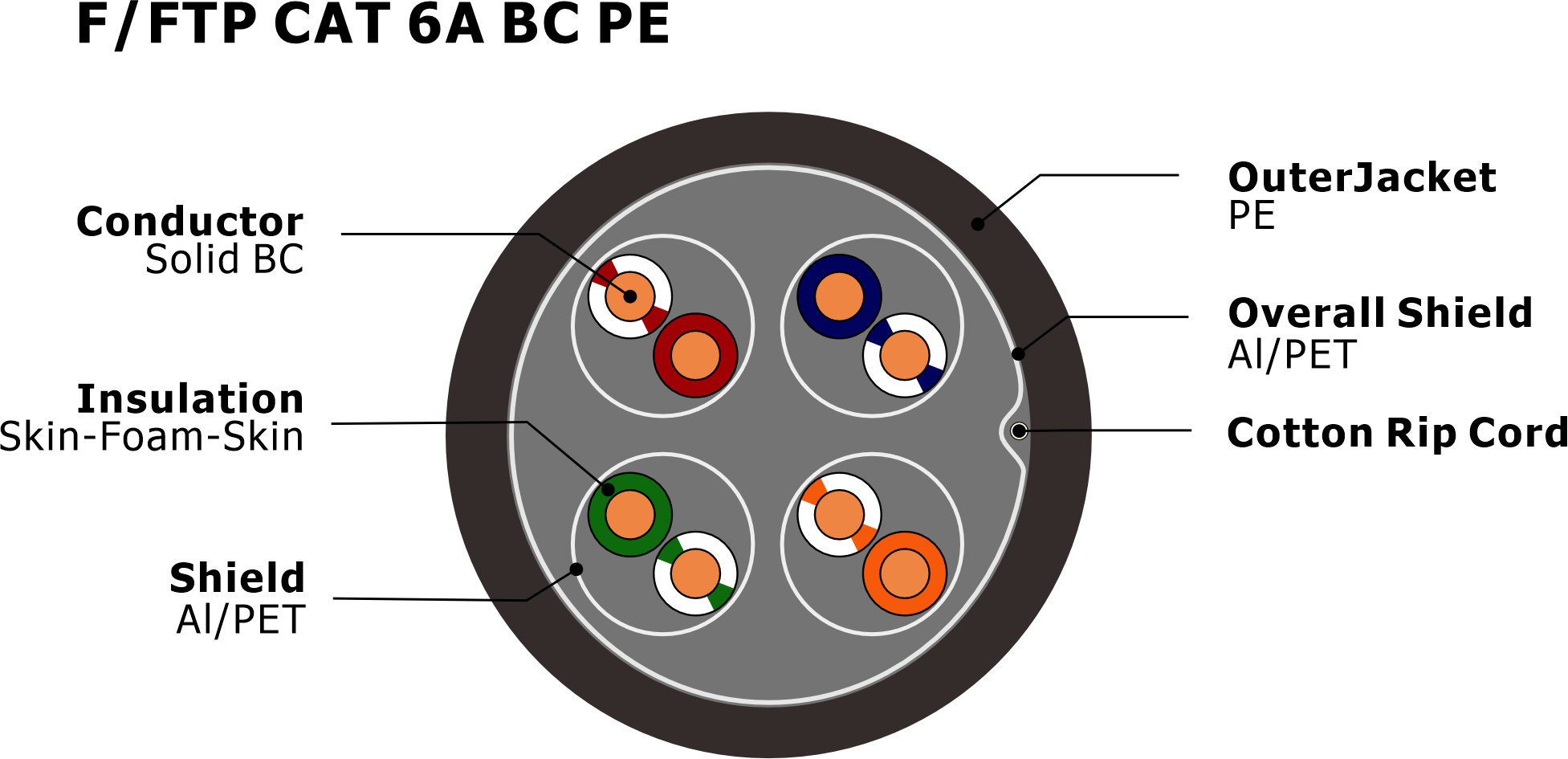

Cross Section

COMPLIANCE （Reference Standard and Certificates)

· ISO/IEC 11801-1 Ed.1.0

· ANSI/TIA-568-C.2 、 ANSI/TIA-568.2-D

· UL444、UL1581、UL1666、IEC60332-1、EN50399

Application Support

· 10GBASE-T 、 1000BASE-T 、 100BASE-T 、 10BASE-T

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

Electrical Characteristics

DC Resistance

＜9.38 Ohms/100m @20℃

DC Resistance unbalance

5% @ 20℃

Mutual Capacitance

5.6 nF/100m

Characteristic Impedance

    1 - 100 MHz : 100±15 Ohms

100 - 750 MHz : 100±25 Ohms

Max Frequency

750MHz

Capacitance Unbalance

330 pF/100m

NVP(传输速率）

74%

Delay Skew

≤ 45ns/100m

PHYSICAL PROPERTIES

Pulling Tension(Max)

≥13.5Mpa

Bend Radius(Min)

8×OD of Jacket

Operating Temperature

-20 to 60 ℃ （-4 to 140℉）

Performance Characteristics

Frequency

RL                     (Min.)

Insertion Loss(Max.)

Propagation Delay (Max.)

Delay Skew(Max.)

NEXT (Min.)

PSNEXT (Min.)

ELNEXT (Min.)

PSELNEXT (Min.)

MHz

dB

dB/100m

ns/100m

ns/100m

dB

dB

dB/100m

dB/100m

1

22.8

1.9

570.0

45.0

74.3

72.3

67.8

64.8

4

25.6

3.6

552.0

45.0

65.3

63.3

55.8

52.8

10

31.4

5.5

545.4

45.0

59.3

57.3

47.8

44.7

16

31.4

7.1

543.0

45.0

56.2

54.2

43.7

40.7

20

33.0

8.0

542.1

45.0

54.8

52.8

41.8

38.8

31.25

34.2

10.1

540.4

45.0

51.9

49.9

37.9

34.9

62.5

32.0

14.3

538.6

45.0

47.4

45.4

31.9

28.9

100

37.3

18.2

537.6

45.0

44.3

42.3

27.8

24.8

200

30.3

25.8

536.1

45.0

39.8

37.8

21.8

18.8

300

27.1

31.9

536.1

45.0

37.1

35.1

18.3

15.3

400

25.5

37.2

535.8

45.0

35.3

33.3

15.8

12.8

500

20.8

41.6

535.6

45.0

33.8

31.8

13.8

10.8

※550

22.8

44.0

※625

21.0

46.2

※750

18.8

51.9

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.

※Note: Values for frequencies beyond 500mHZ are for information only
