NO. 7112371 U/FTP CAT 6A 0.56 BC LSZH CST PE

Construction

Conductor:

0.56±0.008mm Solid Bare Copper

Pairs:

4 Pairs

Insulation:

Material: HDPE

Diameter:1.36±0.03 mm

Pair Shielded

AL/PET  Foil,125% Coverage

Cover every pair

Drain Wire

0.40mm Tinned Copper

Inner Jacket

7.4±0.5mm LSZH

(Average Thickness:0.6mm)

Armour

Material: CST=Corrugated Steel Tube

Thickness:0.215mm

Out Jacket:

12.5±0.8mm MDPE

Average Thickness:1.5mm

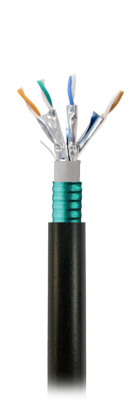

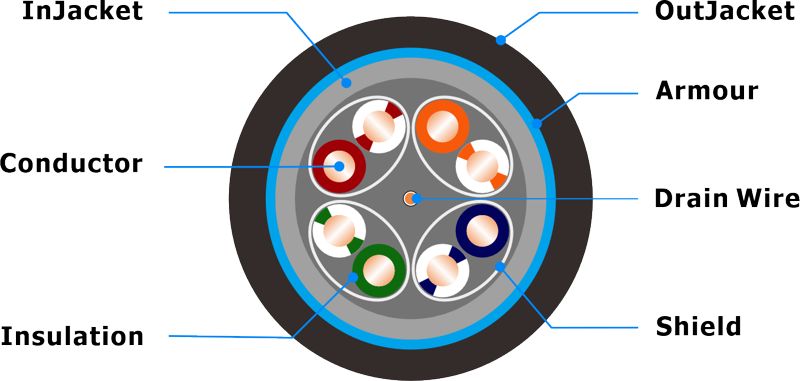

Cross Section

COMPLIANCE （Reference Standard and Certificates)

· ISO/IEC 11801;  IEC-61156-5;  TIA568.2-D;  RoHS 2011/65/EU; REACH EC 1907/2006

Application Support

· 10GBASE-T 、 1000BASE-T 、 100BASE-T 、 10BASE-T

· 1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo、 POE Type1,2,3,4

Electrical Characteristics @20℃

DC Resistance

＜9.5 Ω/100m

Insulation Resistance

≥5000MΩ.KM

Unbalance Capcity

≤330 pF/100m

Charateristic Impedance

100±5Ω (100MHz)

PHYSICAL PROPERTIES

Conductor Elongation ratio

≥  15%

Insulation Tensile strength

≥ 16.0 Mpa

Insulation Elongation ratio

≥ 300%

LSZH Jacket Tensile strength

≥ 10.0 Mpa

LSZH Jacket Elongation ratio

≥ 125%

MDPE Jacket Tensile Strength

≥ 12.0 Mpa

MDPE Jacket Elongation Ratio

≥ 300%

Working temperature

-20℃  to 60 ℃

Bending Radius

≥ 10 ×OD

Performance Characteristics (20℃,100m)

Frequency

Return Loss

Attenuation

Next

PS NEXT

EL FEXT

PS EL FEXT

MHz

dB

dB/100m

dB

dB

dB

dB/100m

1

20.0

2.1

74.3

72.3

67.8

64.8

4

23.0

3.8

65.3

63.3

55.8

52.8

8

24.5

5.3

60.8

58.8

49.7

46.7

20

25.0

8.4

54.8

52.8

41.8

38.8

25

24.3

9.4

53.3

51.3

39.8

36.8

62.5

21.5

15.0

47.4

45.4

31.9

28.9

100

20.1

19.1

44.3

42.3

27.8

24.8/

250

17.3

31.1

38.3

36.3

19.8

16.8

500

15.2

45.3

33.8

31.8

13.8

10.8

※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
