Mylar Cable
hellosignal
7111409
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

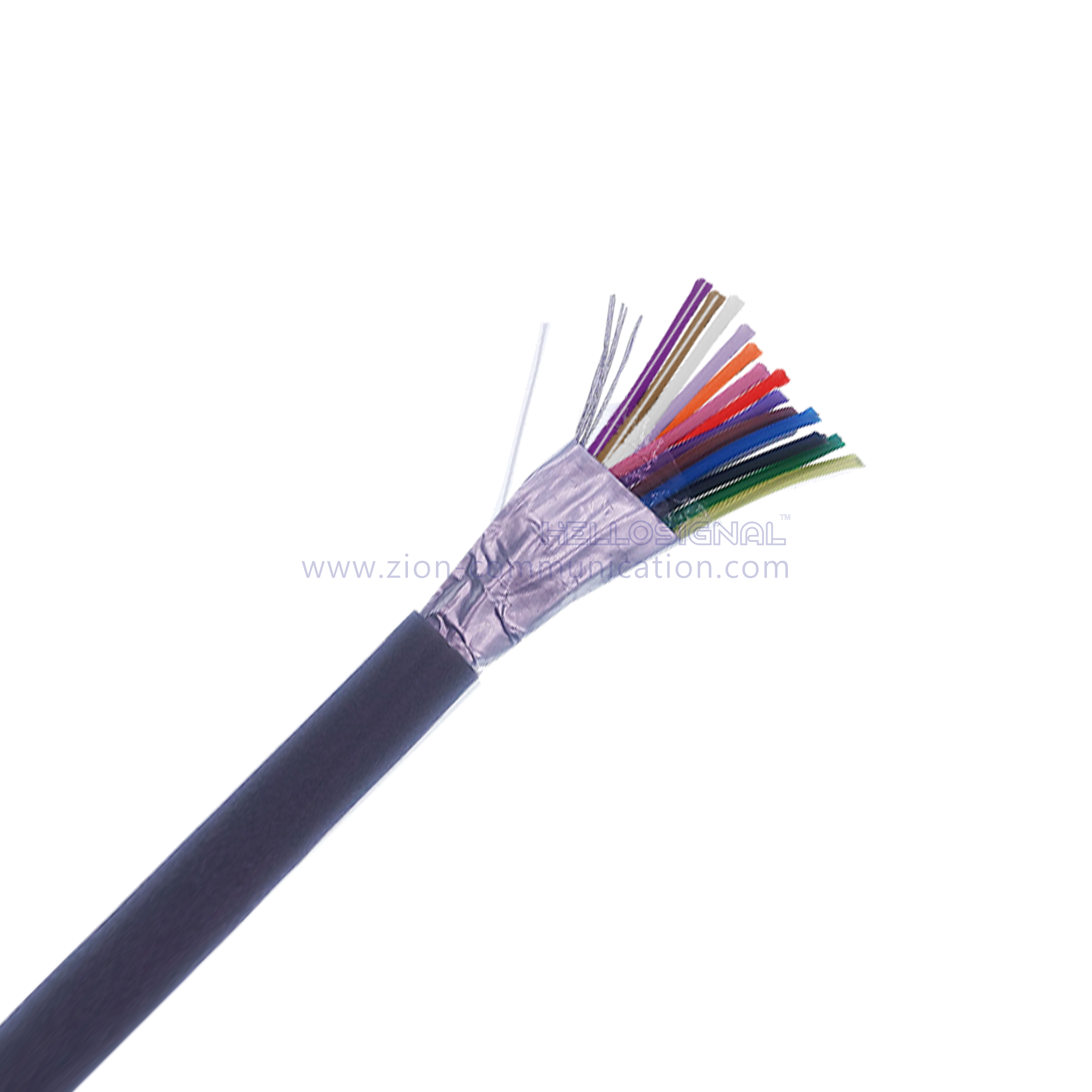

18×0.22mm² Mylar Cable
NO.7111409
Conductor: 18 x (7/0.20mm TC/BC/CCA/TCCA)
Dielectric:
Type: PVC/PP
Diameter: 1.00mm
Color Code: 1. Blk 2. Red 3. Ylw 4. Grn 5. Born 6. Blu 7. Wht 8. Org 9. Ppl 10. Gry 11. Pnk 12. Tan 13. Wht/Brn 14. Wht/Ppl 15. Wht/Grn 16. Wht/Blu 17. Wht/Gry 18. Wht/Ylw
Shield1: PET
Drain Wire: 7 x 0.20mm TC/BC/CCA/TCCA
Shield2: Aluminum / Mylar tape
Rip Cord: Cotton Wire
Jacket:
Type: PVC
Diameter: 7.60mm
Temperature Rating: （-20℃ ~ +60℃）
Operating Voltage: 300 Volts max
Capacitance: 45pf/ft nom.
Impedance: 40 Ohms nom.
DC Resistance: 16.5 Ohms/M' at 20℃
HELLOSIGNAL NO.7111409 18×0.22mm² Mylar Cable (ROHS) ×××× M
Package: Inquired Length on Reel, Pull Box, Plastic Spool, wooden Spool, pallet …
Delivery time: Normally 25 days after receiving the deposit.
Brand: HELLOSIGNAL® OR OEM
18×0.22mm² Mylar Cable
NO.7111409
Conductor: 18 x (7/0.20mm TC/BC/CCA/TCCA)
Dielectric:
Type: PVC/PP
Diameter: 1.00mm
Color Code: 1. Blk 2. Red 3. Ylw 4. Grn 5. Born 6. Blu 7. Wht 8. Org 9. Ppl 10. Gry 11. Pnk 12. Tan 13. Wht/Brn 14. Wht/Ppl 15. Wht/Grn 16. Wht/Blu 17. Wht/Gry 18. Wht/Ylw
Shield1: PET
Drain Wire: 7 x 0.20mm TC/BC/CCA/TCCA
Shield2: Aluminum / Mylar tape
Rip Cord: Cotton Wire
Jacket:
Type: PVC
Diameter: 7.60mm
Temperature Rating: （-20℃ ~ +60℃）
Operating Voltage: 300 Volts max
Capacitance: 45pf/ft nom.
Impedance: 40 Ohms nom.
DC Resistance: 16.5 Ohms/M' at 20℃
HELLOSIGNAL NO.7111409 18×0.22mm² Mylar Cable (ROHS) ×××× M
Package: Inquired Length on Reel, Pull Box, Plastic Spool, wooden Spool, pallet …
Delivery time: Normally 25 days after receiving the deposit.
Brand: HELLOSIGNAL® OR OEM
