A practical, engineering-focused guide for selecting PoE, PoE+ or PoE++ switches, aligning cable types, and avoiding power-budget surprises in CCTV, Wi-Fi and smart building deployments.
Match PoE / PoE+ / PoE++ to real device wattage and project risk, not just “it powers on”.
Always check total PoE power budget and cabling distance before promising a design.
Use Cat6/Cat6A and shielded cabling for PoE++ to reduce heat, loss and troubleshooting cost.
Power over Ethernet (PoE) has become a default design choice in IP surveillance, Wi-Fi, smart buildings, and industrial IoT. By combining data and power in a single Ethernet cable, PoE eliminates local power adapters, reduces AC outlet requirements, and simplifies installation and maintenance. For project owners and contractors, the real question is no longer “Do we use PoE?”, but “Which PoE level and cabling strategy keeps the project safe, scalable and within budget?”.
From the perspective of engineers and procurement teams, the key decision thresholds are:
How much power does each device really need (PoE vs PoE+ vs PoE++)?
Can the switch’s total PoE power budget support all ports at peak load?
Is the chosen cable type and route length acceptable for voltage drop, heating and EMI?

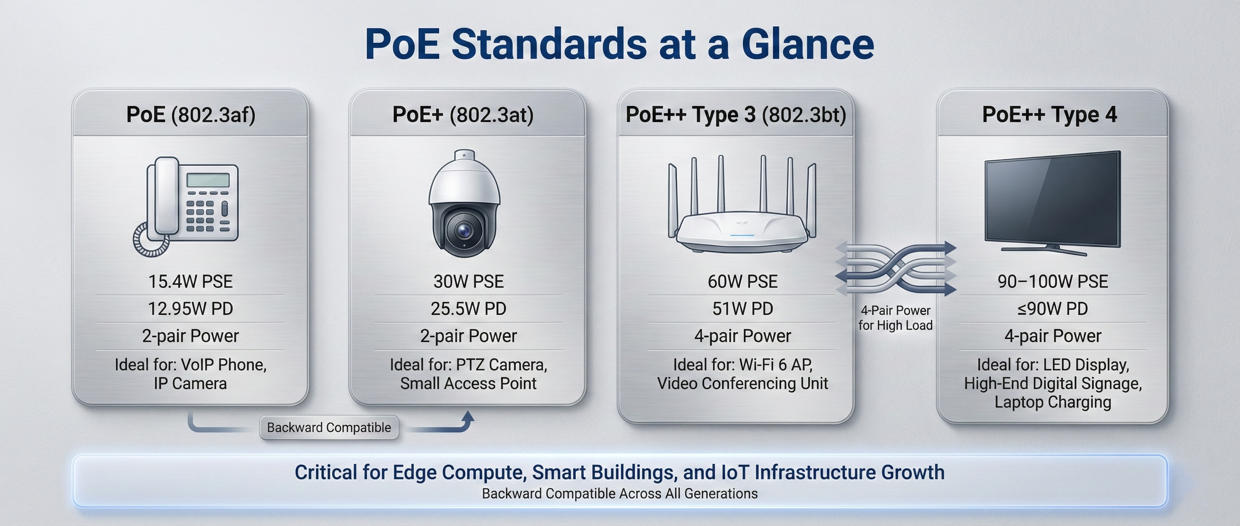

The PoE ecosystem is defined by IEEE 802.3 standards. Each generation increases the maximum power available at the switch port (PSE) and at the device (PD). Understanding these ranges is the first step to correct switch selection and cabling choice.
| Technology | IEEE Standard | Max PSE Power | Max PD Power | Wire Pairs | Typical Devices |
|---|---|---|---|---|---|
| PoE | 802.3af | 15.4 W | ≤ 12.95 W | 2 pairs | VoIP phones, simple IP cameras |
| PoE+ | 802.3at | 30 W | ≤ 25.5 W | 2 pairs | PTZ cameras, Wi-Fi AP, door controllers |
| PoE++ Type 3 | 802.3bt Type 3 | 60 W | ≤ 51 W | 4 pairs | Wi-Fi 6 AP, multi-sensor units |
| PoE++ Type 4 | 802.3bt Type 4 | 90–100 W | ≤ 71–90 W | 4 pairs | LED displays, industrial IoT, edge compute |
In real projects, PoE issues rarely come from IEEE specs on paper. They come from under-estimated power budgets, long cable runs, cheap cabling, and the assumption that “if it powers on, it is fine”. For project managers, these issues convert directly into truck rolls, night-time troubleshooting and warranty costs.
| Design Aspect | Typical Pitfall | Better Engineering Practice |
|---|---|---|
| Total PoE power budget | Assume each port can output “max power” simultaneously. | Check total PoE budget in datasheet and keep ≥ 20–30% margin vs. maximum expected load. |
| Cable length | Run close to 100 m without thinking about voltage drop. | Keep critical PoE++ links under 70–80 m where possible; use high-quality Cat6A. |
| Cable category & conductor | Use CCA or low-grade cable to save up-front cost. | Use full copper Cat6/Cat6A from reputable manufacturers; avoid CCA for PoE. |
| Bundle size and heating | Install very large cable bundles in hot risers. | Limit bundle size or derate power; follow installation guidelines for PoE++ loads. |
To avoid analysis paralysis, engineers and buyers can rely on a few clear decision rules. The following matrix helps you choose a PoE class and rough switch specification in less than one minute, based on device power, quantity and project criticality.
| Scenario | Device Power Range | Recommended PoE Class | Switch Power Budget Rule | Risk Level if Undersized |
|---|---|---|---|---|
| Basic IP phones / door readers | ≤ 10–12 W | PoE (802.3af) | Total budget ≥ 1.5 × sum of PD wattage | Low |
| Wi-Fi AP & fixed CCTV | 12–25 W | PoE+ (802.3at) | Total budget ≥ 1.7 × sum of PD wattage | Medium |
| PTZ cameras, multi-sensor units | 25–45 W | PoE++ Type 3 | Total budget ≥ 2 × sum of PD wattage | High (video instability) |
| LED displays, edge compute, IoT hubs | 45–90 W | PoE++ Type 4 | Total budget ≥ 2–2.2 × sum of PD wattage | Very high (system-wide outages) |
Different vertical markets push PoE to different limits. The table below maps typical applications to PoE classes and gives a quick engineering note for each.
| Application | Typical Devices | Recommended PoE Class | Engineering Note |
|---|---|---|---|
| Office telephony & access control | IP phones, card readers | PoE | Focus on reliability and UPS integration instead of high power. |
| Enterprise Wi-Fi & campus networks | Wi-Fi 5/6 AP | PoE+ | Plan for firmware upgrades that may increase power draw. |
| Video surveillance & perimeter security | PTZ and multi-sensor cameras | PoE+ / PoE++ | Consider night IR, heaters and motion as peak conditions. |
| Smart building & lighting control | Lighting drivers, controllers | PoE++ | Cable routing and bundling require more attention to heating. |
| Industrial IoT & edge computing | IoT gateways, edge servers, HMI panels | PoE++ Type 3/4 | Use shielded cabling and robust connectors in harsh environments. |
The PoE switch is only half of the story. The Ethernet cable between switch and device determines voltage drop, heat, EMI performance and long-term stability. ZION COMMUNICATION focuses on PoE-ready Cat6/Cat6A solutions that are tested for real project environments: indoor, outdoor, riser, plenum and underground.
| Environment / Route | Recommended Cable Type | PoE Class Focus | ZION Solution Example |
|---|---|---|---|
| Standard indoor horizontal runs | Cat6 U/UTP, full copper | PoE / PoE+ | ZION Cat6 Ethernet Cable (CM/CMR/LSZH) |
| High-density PoE++ bundles | Cat6A U/FTP or S/FTP | PoE++ Type 3/4 | ZION Cat6A S/FTP LSZH, PoE++-ready |
| Outdoor & rooftop links | Outdoor CMX PE jacket, UV resistant | PoE / PoE+ | ZION Outdoor Ethernet Cable (UV/Water resistant) |
| Direct burial / duct | Gel-filled, armored options | PoE+ / PoE++ | ZION direct burial copper cable series |
| EMI-heavy industrial areas | Shielded F/UTP or S/FTP | PoE+ / PoE++ | ZION shielded industrial Ethernet cables |
ZION COMMUNICATION supports system integrators, distributors and OEM partners with a broad portfolio of PoE-ready cabling products and customized assemblies. Instead of buying switches and cables separately with guesswork, customers can build a complete PoE layer based on verified combinations.
Cat6 and Cat6A copper cables for PoE / PoE+ / PoE++ deployments
Indoor CM, CMR and LSZH rated constructions for offices and smart buildings
Outdoor CMX, PE jacket, UV-resistant designs for rooftops and masts
Direct burial and gel-filled options for ducts and underground routes
Shielded F/UTP & S/FTP constructions for EMI-heavy or industrial sites
RJ45 connectors and keystone jacks optimized for thicker PoE++ cable diameters
Patch panels, wall outlets and accessories for structured cabling layouts
Factory pre-terminated patch cords (from 1 ft to 50 m) with labeling and color-coding
OEM / ODM branding options for private label and project-based solutions
Selecting between PoE, PoE+ and PoE++ is no longer a purely technical detail. It influences project risk, maintenance cost and future scalability. By matching PoE class to device loads, respecting power budget margins, and choosing PoE-ready cabling, engineers and buyers can deliver networks that remain stable for years instead of months.
List all powered devices with their real power draw (including IR, heaters, future firmware).
Select PoE class (PoE / PoE+ / PoE++) with at least one level of safety margin where budgets allow.
Verify the switch’s total PoE budget with 20–30% extra headroom.
Confirm cable category, jacket rating and shielding based on environment and route length.
Standardize on a trusted PoE-ready cabling family (such as ZION Cat6/Cat6A series).
Share your device list, distances and installation environment, and our team can recommend suitable PoE classes, copper cable types and accessory sets — so your network is stable from day one.
