Author: Will Publish Time: 13-01-2026 Origin: Site
In 2026, PoE++ (802.3bt) is increasingly required for Wi-Fi 7 APs and AI/PTZ cameras—plan power budget early.
Cable quality affects voltage drop and heating. Cat6 is the minimum recommendation; Cat6A is the safer default for PoE++ and high-density bundles.
Design PoE as a system: standards + switch budget + cable + installation density + surge/grounding for outdoor runs.
Power over Ethernet (PoE) delivers DC power and data over the same Ethernet cable. In real projects, PoE reduces electrical work, speeds installation, and centralizes power management—especially for ceiling-mounted and outdoor devices.

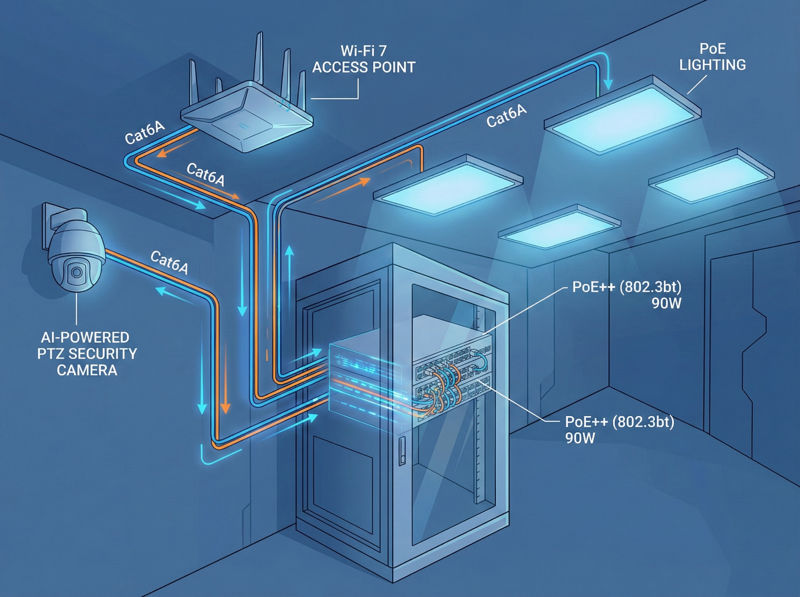

Typical PoE-powered devices include Wi-Fi access points (Wi-Fi 6E/7), IP cameras (including AI and PTZ), VoIP phones, intercoms, sensors, and IoT gateways. A well-designed PoE network improves maintainability by allowing central power backup (UPS), monitoring, and remote power cycling.

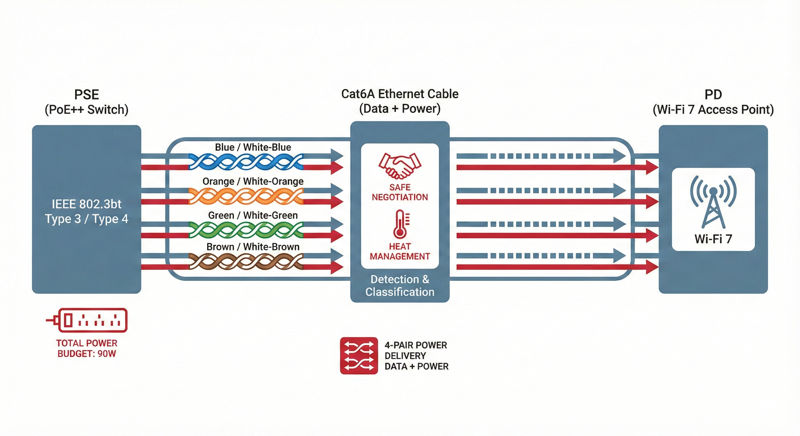

A PoE system has two roles: PSE (Power Sourcing Equipment, such as a PoE switch or PoE injector) and PD (Powered Device). Before delivering power, the PSE performs detection and classification to confirm compatibility, then negotiates power delivery based on PD demand.
PoE commonly uses a nominal 48V DC system to reduce current and cable loss. However, real-world reliability depends on the full chain: switch/injector capability, cable category and conductor quality, length, bundling density, and environmental protection for outdoor runs.
Choosing the correct PoE standard is the first decision gate. In 2026, many new deployments move directly to PoE++ (802.3bt) to support higher-power endpoints.
| IEEE Standard | Common Name | Typical Port Power Range | Best-fit Devices | 2026 Recommendation |
|---|---|---|---|---|
| 802.3af | PoE | Up to ~15W class | VoIP phones, basic sensors | OK for legacy / low-power only |
| 802.3at | PoE+ | Up to ~30W class | HD cameras, mid-power APs | Minimum for many enterprise devices |
| 802.3bt Type 3 | PoE++ | Up to ~60W class | Wi-Fi 6E/7 APs, PTZ/AI cameras | Recommended default for new builds |
| 802.3bt Type 4 | PoE++ | Up to ~90W class | PoE lighting, displays, multi-radio APs | Use when future-proofing or high-power endpoints |
If your current switch is non-PoE, you can still deploy PoE endpoints using injectors or upgrading selected switch layers. The right method depends on scale, budget, and operational risk tolerance.
| Method | Best For | Pros | Risks / Notes |
|---|---|---|---|
| PoE Switch (Endspan) | New builds, medium-to-large upgrades | Clean architecture; centralized power monitoring; easier maintenance | Higher upfront cost; verify total PoE budget |
| PoE Injector (Midspan) | Small expansions; selective PoE for a few endpoints | No need to replace existing switches; fast rollout | More devices to manage; ensure injector class matches PD |
| PoE Splitter | Powering non-PoE devices from PoE cabling | Keeps a single-cable run; useful for legacy endpoints | Adds an extra failure point; confirm output voltage and connector type |

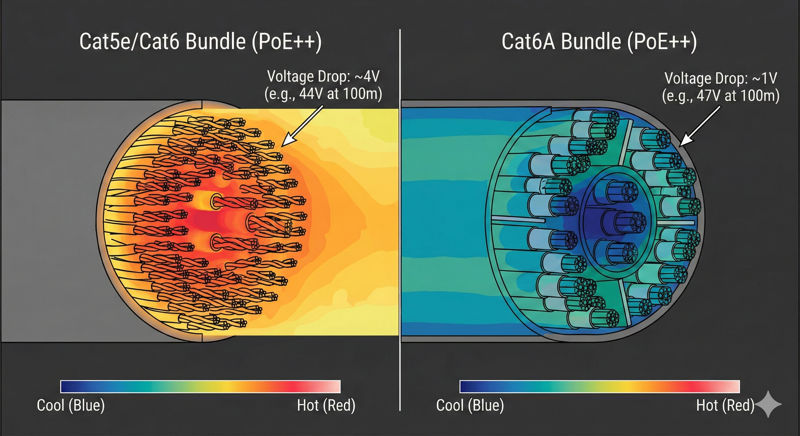

For PoE++ deployments, cabling decisions directly impact stability. Long cable runs, low-grade conductors, and high-density bundles can increase resistance, causing voltage drop and heat buildup. This is where cable category and construction quality become project risks—not just performance details.
Practical engineering best practices for PoE++:
Prefer higher-category cables (Cat6/Cat6A) and consistent conductor quality for lower loss.
Plan for bundle heating in trays—avoid overpacking and consider ventilation paths.
For outdoor/edge devices, use surge protection, proper grounding, and suitable jacket ratings.
Verify device power requirements (PD) and confirm the PSE can support simultaneous load.
Use the following shortcut table to quickly choose PoE class, switch approach, and cabling direction based on device type and deployment conditions. This is optimized for 2026 project reality (Wi-Fi 7 + AI surveillance + smart buildings).
| Scenario | Recommended PoE Standard | Cabling Direction | Deployment Method | Decision Rule |
|---|---|---|---|---|
| VoIP phones / basic sensors | 802.3af | Cat5e/Cat6 acceptable | PoE switch or injector | Choose simplest architecture; keep margin for growth |
| HD cameras / mid-power APs | 802.3at (PoE+) | Cat6 recommended | PoE+ switch preferred | If future Wi-Fi upgrade is expected, consider PoE++ now |
| Wi-Fi 6E/7 APs | 802.3bt Type 3 (PoE++) | Cat6A preferred | PoE++ switch | Default to PoE++ for new enterprise WLAN builds |
| PTZ / AI cameras, IoT hubs | 802.3bt Type 3/4 | Cat6A + controlled bundling | PoE++ switch; injectors only for small counts | If power is uncertain, design for Type 4 and budget margin |
| Smart building (PoE lighting / multi-device zones) | 802.3bt Type 4 | Cat6A with thermal planning | Centralized PoE switching with UPS | Treat PoE as a system: power, safety, redundancy, maintenance |
Procurement and project leaders often focus on device pricing, but PoE success is determined by the full cost structure: switch budget, cabling quality, installation density, and maintenance strategy.
| Decision Item | Hidden Cost Driver | Risk if Ignored | Mitigation |
|---|---|---|---|
| Total PoE budget | Under-spec switches cause staged failures | Random device shutdowns under peak load | Calculate simultaneous load + expansion margin |
| Cable category & quality | Voltage drop + heating in bundles | Instability, rework, shortened lifecycle | Default to Cat6A for PoE++; control bundling density |
| Injector vs switch strategy | Operational complexity and spare parts | Troubleshooting time increases | Use injectors only for small, controlled expansions |
| Outdoor surge/grounding | Site-dependent protection needs | Damage from surges and lightning events | Use surge protection and correct grounding practices |
In 2026, PoE is a strategic infrastructure layer—especially for Wi-Fi 7 access points, AI surveillance, and smart building systems. The most reliable approach is to design PoE as a complete system: select the right standard (often PoE++), verify switch power budget under simultaneous load, and choose cabling that can handle real-world voltage drop and thermal conditions.
If you are planning a new deployment or upgrading an existing network, prepare a simple device list (quantity + power requirement + cable length estimate), and validate power budget and cabling rules early. This prevents mid-project redesign, downtime risk, and rework cost.
