Suspension for ADSS

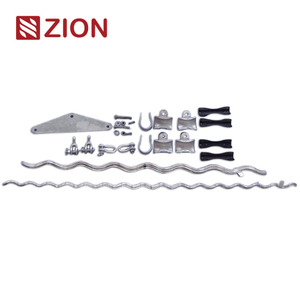

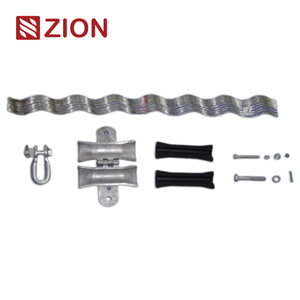

Suspension Set for ADSS pre-twisted wire with single-and double-twisted wire two kinds of pre-design, single-storey pre-twisted threads within the file folder for the 400m distance connections, double the pre-twisted threads are generally used for large file from the folder ( within 1000m) the connection between, may be based on actual need to select a different
installation method.

Pictures and illustrations:

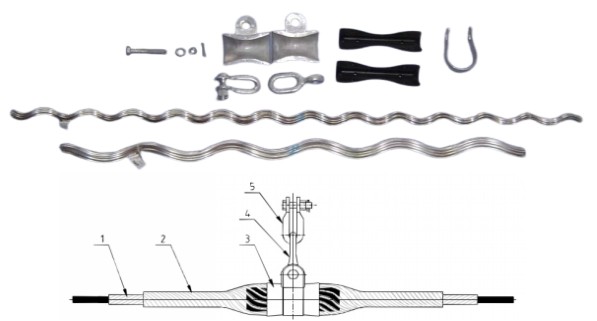

1.Structural Reinforcing Rods    2.Dead-end Component    3.AGS Clamp    4.Eye Chain Link(Type ZH)   5.U-Clevis

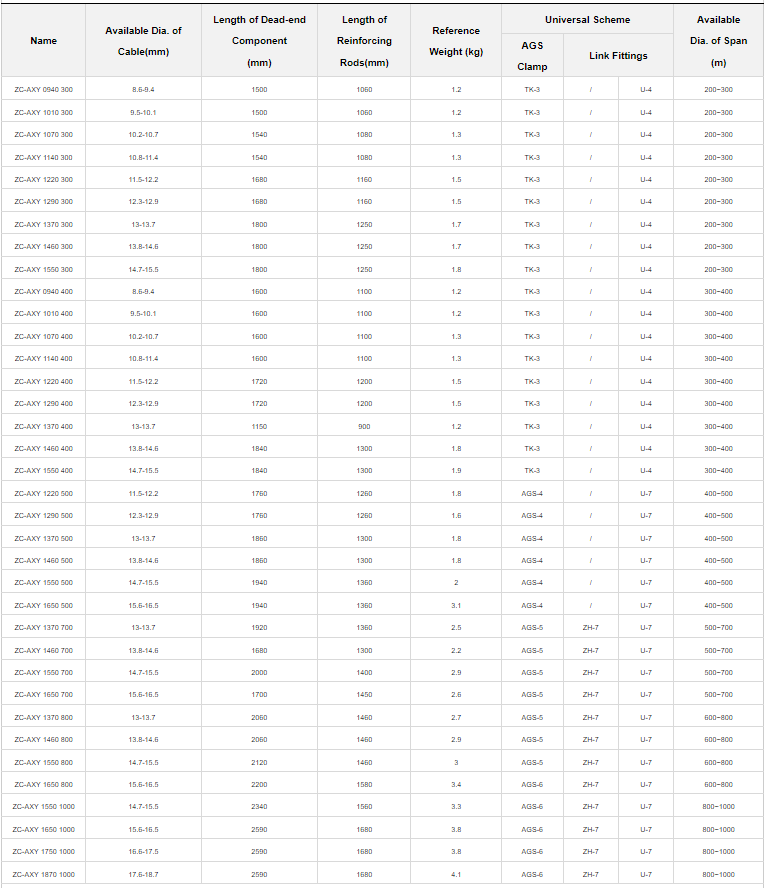

Model Specification (Span ＜ 200m):

Name

Available Dia. of
Cable(mm)

Length of Dead-end
Component
(mm)

Length of Reinforcing Rods(mm)

Reference
Weight (kg)

Universal Scheme

Available
Dia. of Span
(m)

AGS Clamp

Link Fittings

ZC-AXY 0940 300

8.6-9.4

1500

1060

1.2

TK-3

/

U-4

200~300

ZC-AXY 1010 300

9.5-10.1

1500

1060

1.2

TK-3

/

U-4

200~300

ZC-AXY 1070 300

10.2-10.7

1540

1080

1.3

TK-3

/

U-4

200~300

ZC-AXY 1140 300

10.8-11.4

1540

1080

1.3

TK-3

/

U-4

200~300

ZC-AXY 1220 300

11.5-12.2

1680

1160

1.5

TK-3

/

U-4

200~300

ZC-AXY 1290 300

12.3-12.9

1680

1160

1.5

TK-3

/

U-4

200~300

ZC-AXY 1370 300

13-13.7

1800

1250

1.7

TK-3

/

U-4

200~300

ZC-AXY 1460 300

13.8-14.6

1800

1250

1.7

TK-3

/

U-4

200~300

ZC-AXY 1550 300

14.7-15.5

1800

1250

1.8

TK-3

/

U-4

200~300

ZC-AXY 0940 400

8.6-9.4

1600

1100

1.2

TK-3

/

U-4

300~400

ZC-AXY 1010 400

9.5-10.1

1600

1100

1.2

TK-3

/

U-4

300~400

ZC-AXY 1070 400

10.2-10.7

1600

1100

1.3

TK-3

/

U-4

300~400

ZC-AXY 1140 400

10.8-11.4

1600

1100

1.3

TK-3

/

U-4

300~400

ZC-AXY 1220 400

11.5-12.2

1720

1200

1.5

TK-3

/

U-4

300~400

ZC-AXY 1290 400

12.3-12.9

1720

1200

1.5

TK-3

/

U-4

300~400

ZC-AXY 1370 400

13-13.7

1150

900

1.2

TK-3

/

U-4

300~400

ZC-AXY 1460 400

13.8-14.6

1840

1300

1.8

TK-3

/

U-4

300~400

ZC-AXY 1550 400

14.7-15.5

1840

1300

1.9

TK-3

/

U-4

300~400

ZC-AXY 1220 500

11.5-12.2

1760

1260

1.8

AGS-4

/

U-7

400~500

ZC-AXY 1290 500

12.3-12.9

1760

1260

1.6

AGS-4

/

U-7

400~500

ZC-AXY 1370 500

13-13.7

1860

1300

1.8

AGS-4

/

U-7

400~500

ZC-AXY 1460 500

13.8-14.6

1860

1300

1.8

AGS-4

/

U-7

400~500

ZC-AXY 1550 500

14.7-15.5

1940

1360

2

AGS-4

/

U-7

400~500

ZC-AXY 1650 500

15.6-16.5

1940

1360

3.1

AGS-4

/

U-7

400~500

ZC-AXY 1370 700

13-13.7

1920

1360

2.5

AGS-5

ZH-7

U-7

500~700

ZC-AXY 1460 700

13.8-14.6

1680

1300

2.2

AGS-5

ZH-7

U-7

500~700

ZC-AXY 1550 700

14.7-15.5

2000

1400

2.9

AGS-5

ZH-7

U-7

500~700

ZC-AXY 1650 700

15.6-16.5

1700

1450

2.6

AGS-5

ZH-7

U-7

500~700

ZC-AXY 1370 800

13-13.7

2060

1460

2.7

AGS-5

ZH-7

U-7

600~800

ZC-AXY 1460 800

13.8-14.6

2060

1460

2.9

AGS-5

ZH-7

U-7

600~800

ZC-AXY 1550 800

14.7-15.5

2120

1460

3

AGS-5

ZH-7

U-7

600~800

ZC-AXY 1650 800

15.6-16.5

2200

1580

3.4

AGS-6

ZH-7

U-7

600~800

ZC-AXY 1550 1000

14.7-15.5

2340

1560

3.3

AGS-6

ZH-7

U-7

800~1000

ZC-AXY 1650 1000

15.6-16.5

2590

1680

3.8

AGS-6

ZH-7

U-7

800~1000

ZC-AXY 1750 1000

16.6-17.5

2590

1680

3.8

AGS-6

ZH-7

U-7

800~1000

ZC-AXY 1870 1000

17.6-18.7

2590

1680

4.1

AGS-6

ZH-7

U-7

800~1000

Note: 1. The maximum unilateral suspension angle of single suspension clamp is 15 ° - 18 °.

2.The above configuration is conventional configuration. If special configuration is required, consult the technical department of the company.
