Tangent Suspension and Single Preformed Rods Suspension for ADSS(Span＜100m)

Tangent is mainly used with the tangent clamp connections within a 100m span, single
pre-twisted wire Suspension is mainly used within a 200m span connection.

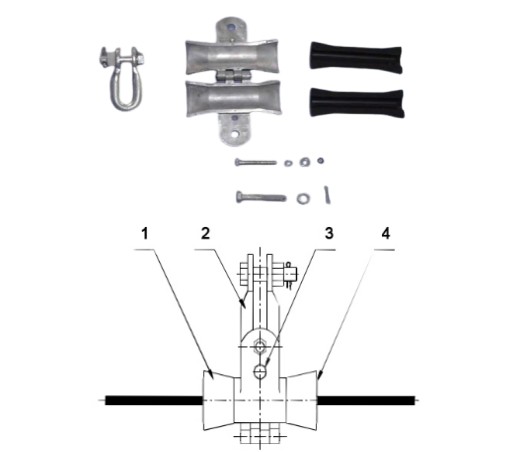

Pictures and illustrations:

Span=100m

Model Specification (Span ＜ 100m):

Name

Model

Available Dia. of
Cable(mm)

Universal Scheme

Available
Dia. of Span
(m)

AGS Clamp /Weight(kg)

U-Clevis

Tangent Clamp
for ADSS

ZC-AXQ 1110

9.0-11.1

XGT-25

1.00

U-4

100

ZC-AXQ 1330

11.2-13.3

XGT-25

1.00

U-4

ZC-AXQ 1550

13.4-15.5

XGT-25

1.00

U-4

ZC-AXQ 1770

15.6-17.7

XGT-25

1.00

U-4

ZC-AXQ 1900

17.8-19.0

XGT-25

1.00

U-4
