UTP with 2c
hellosignal
XT0751
Specification
Video over UTP Cable
| Construction Parameters: | ||

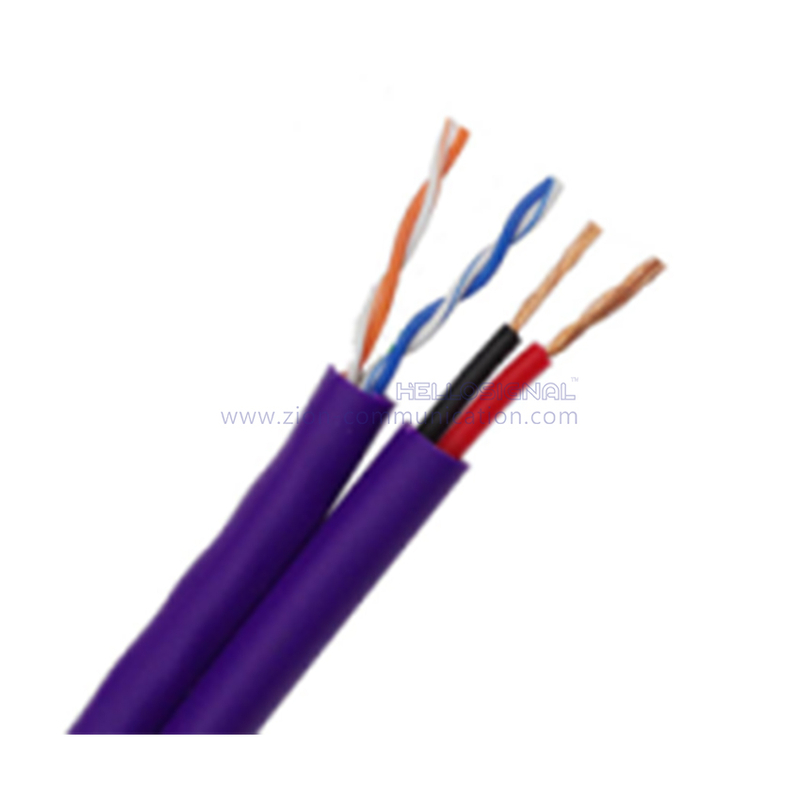

| Description | 2 Pair Cat5E Type + 2C-18AWG Siamese Construction | |
| Video and Control Pairs | ||
| Inner Conductor | 0.0196"/0.50mm/24AWG Bare Copper | |
| Stranding | Solid | |
| Insulation Material | Polyethylene 0.008"/0.2mm | |
| Number of Conductors | 4(2 Pair) | |
| Shield | None | |
| Power Conductors | ||
| Inner Conductor | 18AWG Bare Copper | |
| Stranding | 7×26AWG / 7×0.0145" | |
| Insulation Material | PVC 0.008"/0.2mm | |
| Number of Conductors | 2 | |
| Shield | None | |
| Electrical Characteristics: | ||
| Video and Control Pairs | ||
| Temperature Rating | -20℃ to 60℃ | |
| Operating Voltage | 300 V RMS | |
| Max.Capacitance @1 KHz | 14 pf/ft | |
| Nom.Impedance | 100 Ohms | |
| Nom.Velocity of Propagation | 66% | |
| DC Resistance per Cond. @ 20℃ | 26 Ohms/1M' Nom | |
| Insulation Colors | Blue/White-Blue, Orange/White-Orange | |
| Power Conductors | ||
| Temperature Rating | -20℃ to 60℃ | |
| Operating Voltage | 300 V RMS | |
| Max.Capacitance @1 KHz | NA | |
| DC Resistance per Cond. @ 20℃ | 6.2 Ohms/1M' Nom | |
| Insulation Colors | Black, Red | |
| Overall Construction | ||
| Jacket Type | PVC | |
| Jacket Color | Siamese-Gray | |
| Nom.O.D. | 0.180" × 0.340" | |
| Mechanical Properties | ||
| Max.Recommended Pull Tension | 33 lbs. | |
| Min. Bend Radius(Install) | 3.40" | |
| Order Informations: | ||
| Marking | HELLOSIGNAL Video Over UTP 2 Pair Cat5E Type + 2C-18AWG Siamese | |
| Inner Package | 500FT/PULL BOX, 1000FT/Wooden Spool,Pallet | |
| Delivery time | Normally 20-25 days after received the deposit. | |
| Brand | HELLOSIGNAL® OR OEM | |
