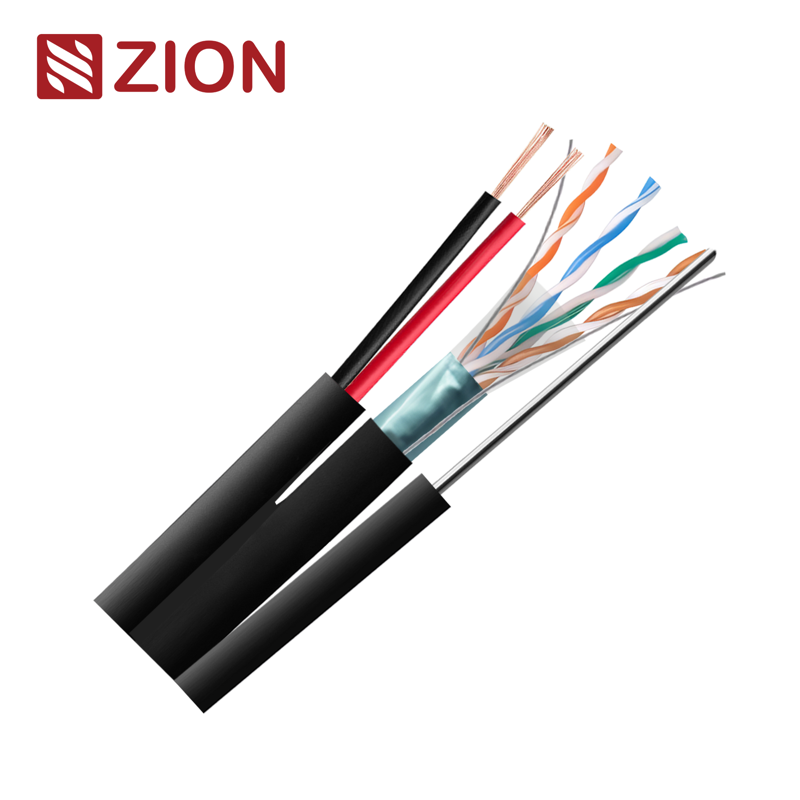

FTP CAT5E 5E 4P+2/0.75+Messenger

  • FTP with 2C
  • hellosignal
  • XT0759

Specification

FTP CAT5E 5E 4P+2/0.75+Messenger
Video over FTP Outdoor Cable











Construction Parameters:








  Description

4 Pair Cat5E Type + 2C-0.75 With Messenger Construction

  Video and Control Pairs








  Inner Conductor

0.0196"/0.50mm/24AWG Bare Copper

  Stranding

Solid

  Insulation Material

Polyethylene 0.008"/0.2mm

  Number of Conductors

8(4 Pair)

  Drain wire

TCCS

  Shield

Aluminum/PET Foil

  Power Conductors








  Inner Conductor

Copper Clad Aluminum

  Stranding

31×0.25mm

  Insulation Material

PVC 0.008"/0.25mm

  Number of Conductors

2

  Shield

None

  Messenger

1.2mm Zinned Steel

Electrical Characteristics:








  Video and Control Pairs








  Temperature Rating

-20℃ to 60℃

  Operating Voltage

300 V RMS

  Max.Capacitance @1 KHz

45.9 pf/100m

  Nom.Impedance

100 Ohms

  Nom.Velocity of Propagation

0.66

  DC Resistance per Cond. @ 20℃

26 Ohms/1M' Nom

  Power Conductors








  Temperature Rating

-20℃ to 60℃

  Operating Voltage

300 V RMS

  Max.Capacitance @1 KHz

NA

  DC Resistance per Cond. @ 20℃


  Insulation Colors

Black, Red

Overall Construction








  Jacket Type

UV-PE

  Jacket Color

Siamese-Black

  Nom.O.D.

5.4mm × 5.0mm

Mechanical Properties








  Max.Recommended Pull Tension

15 KGS

  Min. Bend Radius(Install)

86mm

Order Informations:








  Marking

HELLOSIGNAL Video Over UTP 4 Pair FTP Cat5E Type + 2C-0.75MM2 M

  Inner Package

500FT/PULL BOX, 1000FT/Wooden Spool,Pallet

  Delivery time

Normally 20-25 days after received the deposit.

  Brand

HELLOSIGNAL® OR OEM
