QR540 trunk cable is a 540-series 75Ω hardline coaxial cable used for CATV, HFC broadband, RF distribution, and outdoor feeder networks. It is not a fiber optic trunk cable. For buyers and engineers, the key decision is whether the project needs lower RF attenuation and stronger trunk construction than RG6 or RG11, without moving to larger and more expensive hardline cables such as QR715 or QR860.
Use QR540 when RG6 / RG11 loss is too high for the route, but QR715 / QR860 is not necessary.
Confirm frequency range, attenuation budget, connector model, bend radius, installation method, and jacket type before ordering.
Use QR540M when the route is aerial and requires a messenger wire for self-supporting installation.
QR540 trunk cable is a 540-series 75Ω hardline coaxial cable used mainly in CATV, HFC broadband, RF distribution, community antenna systems, and outdoor feeder networks. It is not an MPO / MTP fiber optic trunk cable. The “540” usually refers to the approximate outer conductor size of the cable, around 0.540 inch, which places QR540 between smaller drop cables and larger hardline trunk cables.
For procurement and engineering teams, QR540 is usually selected when the project needs lower attenuation and more robust trunk construction than RG6 or RG11, but does not need the size, cost, and installation burden of larger hardline cables such as QR715 or QR860.
QR540 is a hardline coaxial cable designed for broadband RF signal transmission. Compared with flexible drop cables, it uses a larger and more stable structure to control attenuation, shielding performance, and mechanical reliability over longer outdoor or distribution routes.
| Item | Typical Meaning for QR540 Projects |
|---|---|
| Cable category | 75Ω hardline coaxial trunk / distribution cable |
| Main applications | CATV, HFC broadband, RF feeder, community antenna, outdoor coaxial distribution |
| Typical impedance | 75Ω |
| Common conductor type | Copper-clad aluminum center conductor |
| Shield / outer conductor | Welded smooth aluminum tube |
| Messenger option | QR540M version for aerial self-supporting pole routes |
| Main decision factor | Frequency range, attenuation budget, route length, connector compatibility, installation method |

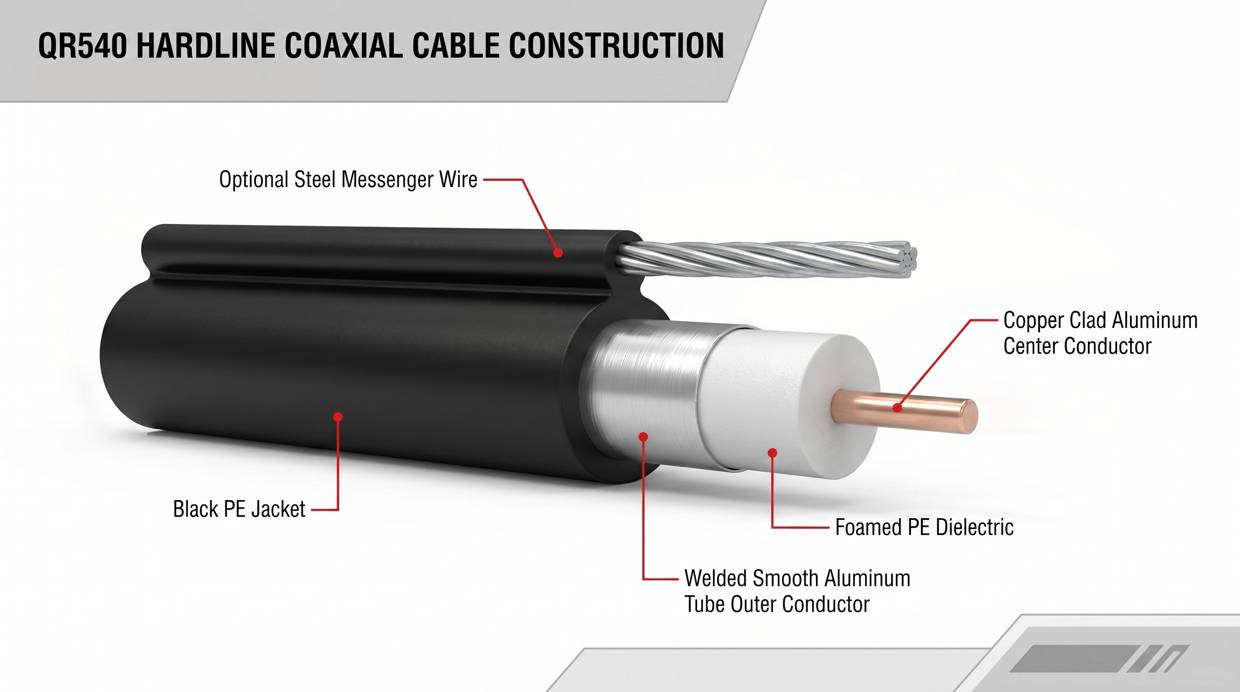

The structure of QR540 directly affects attenuation, connector fit, bending behavior, pulling limits, and long-term outdoor reliability. This is why two cables both called “QR540” may not be equal if their conductor, jacket, flooding, messenger, or test performance is different.
| Layer / Part | Typical QR540 Construction | Why It Matters |
|---|---|---|
| Center conductor | Copper-clad aluminum conductor | Affects RF performance, DC resistance, and connector pin fit |
| Dielectric | Foamed PE dielectric | Controls impedance, signal velocity, and cable stability |
| Outer conductor | Welded smooth aluminum tube | Provides shielding, mechanical stability, and hardline interface |
| Jacket | PE or flame-retardant PE depending on project | Must match outdoor, indoor, UV, or fire-safety requirements |
| Messenger wire | Optional steel messenger in QR540M | Required for many aerial self-supporting pole routes |
| Packaging | Wooden drum or export reel | Affects transport, installation length, splice points, and project logistics |

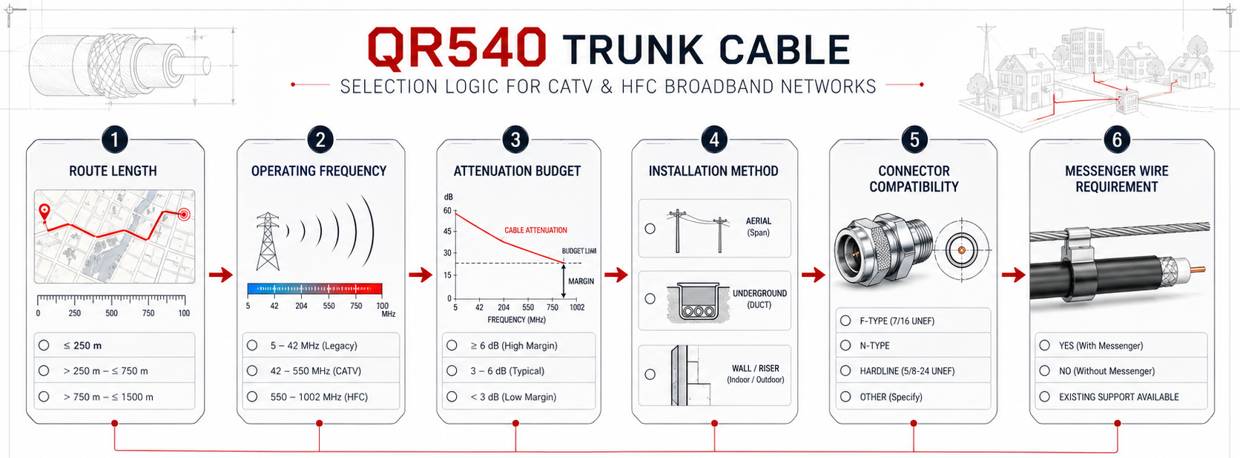

Use QR540 when the coaxial route has moved beyond a simple subscriber drop and becomes part of the RF distribution infrastructure. The cable should be selected based on loss budget and route conditions, not only by product name.
| Project Situation | QR540 Suitability | Reason |
|---|---|---|
| CATV trunk distribution | Good fit | Designed for 75Ω RF distribution and feeder routes |
| HFC broadband feeder line | Good fit | Supports lower-loss transmission than smaller drop cables |
| Outdoor aerial pole route | Use QR540M | Messenger wire supports self-supporting installation |
| Long RF route where RG11 loss is too high | Good fit | QR540 offers more attenuation margin than smaller coaxial cables |
| Short indoor TV connection | Usually over-specified | RG6 or RG11 is usually easier and more cost-effective |
| Very long trunk route with strict loss margin | Check QR715 / QR860 | Larger trunk cable may provide better high-frequency loss performance |
QR540 should not be compared only by cable diameter. The correct comparison should include attenuation, route length, installation difficulty, connector system, logistics, and total project cost.
| Cable Type | Best Used For | Main Advantage | Main Limitation |
|---|---|---|---|
| RG6 | Short drop, indoor TV, short RF link | Low cost and easy handling | Higher attenuation on longer routes |
| RG11 | Longer drop or short distribution extension | Lower loss than RG6 | Still not ideal for trunk backbone routes |
| QR540 | Medium CATV / HFC trunk and distribution route | Balanced loss, cost, size, and installation handling | Needs hardline connectors and compatible tools |
| QR715 | Longer trunk route or higher loss margin | Lower attenuation than QR540 | Larger diameter and higher cost |
| QR860 | Main trunk or long-distance coaxial infrastructure | Stronger RF loss margin | Heavier, more expensive, and harder to install |
For QR540 projects, the datasheet is not only a technical attachment. It is the basis for quotation accuracy, connector matching, installation planning, and later troubleshooting.
| Parameter | What to Confirm | Why It Matters |
|---|---|---|
| Impedance | 75Ω system requirement | Must match CATV / HFC equipment and connectors |
| Frequency range | Project operating band | Different networks may require different high-frequency performance |
| Attenuation | dB / 100 m or dB / 100 ft by frequency | Determines whether signal level remains within design range |
| Return loss | SRL / return loss across operating band | Poor return loss can create reflection and system instability |
| Bend radius | Minimum bend radius during installation | Over-bending may deform the hardline structure |
| Pulling tension | Maximum recommended pulling load | Prevents conductor, dielectric, or jacket damage |
| Jacket and environment | PE, FR PE, UV, flooded, armored, or custom jacket | Must match outdoor, underground, indoor, or local compliance needs |
One common RFQ mistake is not confirming whether the buyer needs normal QR540 or QR540M with messenger wire. The cable may look similar in the product name, but the installation logic and cost structure are different.
| Version | Typical Use | Buyer’s Checkpoint |
|---|---|---|
| QR540 | Duct, underground, tray, wall-supported, or cabinet-supported route | Confirm jacket, flooding, armor, bend radius, and connector model |
| QR540M | Aerial self-supporting pole route | Confirm span, pole hardware, messenger diameter, and installation tension |
| Flooded QR540 | Moisture-sensitive duct or underground route | Confirm water-blocking and flooding compound requirement |
| Armored QR540 | Mechanically harsh environment | Confirm armor structure, bend radius, weight, and installation tools |
| Flame-retardant QR540 | Indoor or code-sensitive pathway | Confirm local fire rating and indoor installation rules |
A complete QR540 inquiry should include project conditions, not only cable name and quantity. This helps avoid wrong construction, wrong connector, wrong drum length, and later installation claims.
| RFQ Field | What to Provide | Risk If Missing |
|---|---|---|
| Exact cable type | QR540, QR540M, flooded, armored, FR jacket, custom version | Wrong construction or wrong installation method |
| Operating frequency | Required frequency band and system standard | Attenuation or return loss may not match project design |
| Route length | Maximum link length and total quantity | Loss budget and drum planning may be wrong |
| Installation method | Aerial, duct, underground, tray, indoor, cabinet, wall-mounted | Wrong jacket, messenger, armor, or accessory choice |
| Connector model | Compatible 0.540 hardline connector series | Poor contact, impedance mismatch, water ingress |
| Tools and accessories | Coring tool, stripping tool, grounding, sealing, clamps | Installation delay or unstable RF performance |
| Drum length and packaging | Length per reel, wooden drum, pallet, export packing | Extra splice points, shipping damage, or unloading difficulty |
| Marking and brand | ZION / HELLOSIGNAL / OEM marking, batch traceability | Difficult project identification and after-sales tracking |
QR540 must be matched with hardline connectors designed for 0.540 coaxial cable. Wrong connector fit can cause reflection, moisture ingress, and unstable signal levels.
Hardline coax should not be bent like flexible RG6. Excessive bending may deform the dielectric or aluminum tube and damage RF performance.
Aerial self-supporting routes may require messenger wire. Using normal QR540 where QR540M is needed can create installation and safety risks.
Low price may hide differences in conductor material, jacket compound, shielding quality, attenuation table, testing, or packaging length.
QR540 trunk cable is a practical choice for CATV, HFC broadband, and RF distribution projects where smaller drop cables cannot provide enough loss margin, but larger hardline trunk cables are not necessary. The best selection depends on frequency band, route length, attenuation budget, installation method, connector compatibility, and environmental requirements.
For procurement teams, the safest approach is to confirm QR540 by datasheet and project conditions instead of ordering only by product name. A complete RFQ should include cable version, jacket type, messenger requirement, connector model, drum length, marking, and test documentation.
Send your route length, operating frequency, installation method, connector requirement, and packaging preference to ZION Communication. Our team can help confirm cable construction, quotation details, and compatible accessories before production.
