Author: Site Editor Publish Time: 30-04-2026 Origin: Site
NFPA 262 is the flame travel and smoke test method used to evaluate cables intended for plenum and other air-handling spaces. It is especially relevant to North American projects or international projects that follow NEC-based specifications. For buyers, engineers, project managers, and system integrators, the key issue is not just whether a cable “passed a test,” but whether the installation route, cable rating, UL / ETL listing evidence, jacket marking, and project documents all match.
NFPA 262 is mainly relevant to North American NEC-based plenum cable selection and similar international project specifications.
NFPA 262 is a flame travel and smoke test method; CMP, OFNP, and related markings are finished cable ratings used for installation decisions.
LSZH does not automatically equal plenum-rated. Buyers should verify UL / ETL listing evidence, jacket marking, and route compatibility before ordering.
NFPA 262 is the standard test method used to evaluate flame travel and smoke generation of wires and cables intended for plenum and other air-handling spaces. In practical terms, it is the fire and smoke benchmark behind plenum cable selection in many North American building projects.
For engineering and procurement teams, the important point is that NFPA 262 is a test method, not a cable category by itself. A product still needs the correct cable type, rating, listing status, jacket marking, packaging label, and project acceptance before it can be confidently specified or installed.
NFPA 262 matters most in North American cable projects and in international projects that follow NEC-based specifications. In these projects, cable selection is not only about bandwidth, conductor size, jacket color, or price. The installation route must match the required fire rating.
Plenum spaces, such as certain ceiling voids or raised-floor air-handling areas, can distribute air through a building. If the wrong cable is installed in these spaces, flame spread, smoke generation, inspection rejection, and rework risk can become serious project issues.
| Project Condition | Recommended Cable Direction | Why It Matters |
|---|---|---|
| Cable runs in air-handling plenum space | Use plenum-rated cable, such as CMP or OFNP, depending on cable type | NFPA 262 addresses flame travel and smoke behavior for this environment |
| Cable runs vertically between floors | Use riser-rated cable, such as CMR or OFNR | Riser risk is mainly vertical flame propagation, not plenum air distribution |
| Cable stays in ordinary horizontal indoor pathway | CM or general-purpose rating may be enough, subject to code and project documents | Avoid unnecessary over-specification while preventing rating downgrade |
| Installation route is uncertain at quotation stage | Clarify route or quote options by fire rating | Reduces quotation ambiguity, inspection rejection, and rework risk |

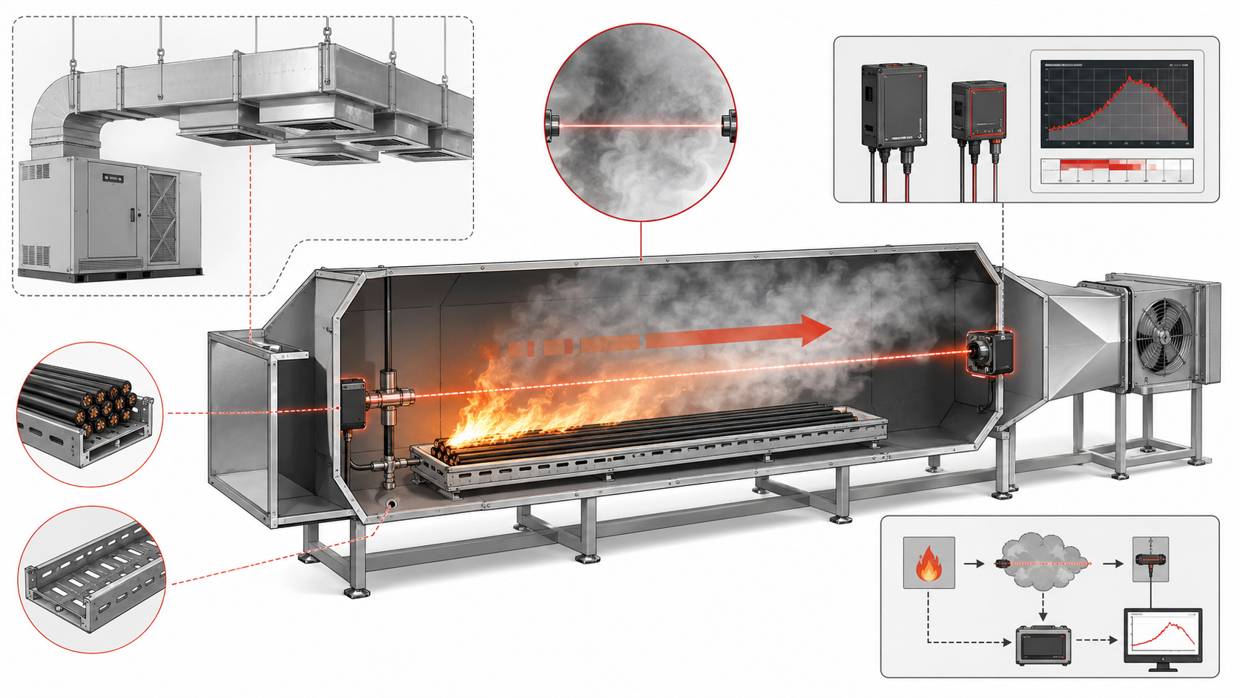

NFPA 262 mainly focuses on two performance outcomes: how far flame travels along the cable and how much smoke is generated during the test. These two dimensions matter because plenum spaces can distribute smoke and heat through a building. In an engineering decision context, the test does not mean a cable is “fireproof.” It means the cable construction has been evaluated under a defined plenum flame and smoke test condition.
| Test Focus | What It Means | Procurement Meaning |
|---|---|---|
| Flame travel distance | How far flame propagates along the cable specimen | Helps judge whether cable construction can limit flame spread in air-handling spaces |
| Optical smoke density | How much smoke is produced during the test | Important because smoke movement in plenum routes affects building safety and acceptance |
| Controlled fire exposure | A defined laboratory condition rather than every real-world fire scenario | Prevents overclaiming and helps teams interpret the rating correctly |

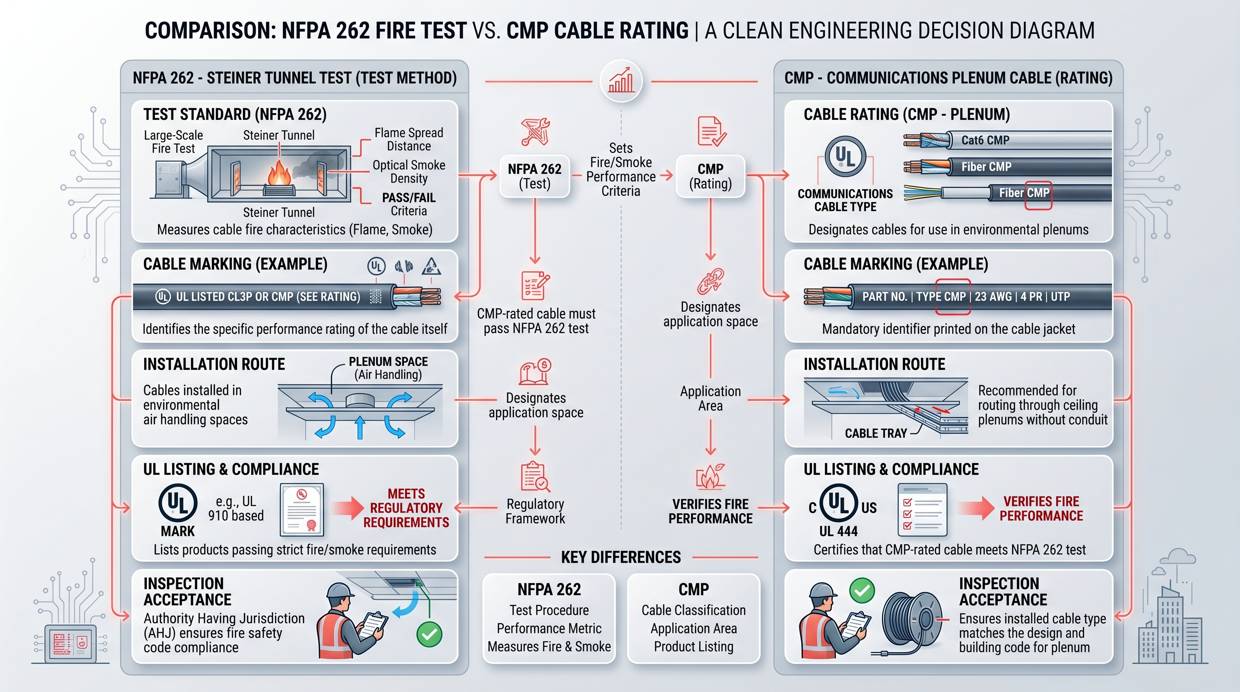

One of the most common mistakes is treating NFPA 262 and CMP as the same thing. NFPA 262 is the fire and smoke test method. CMP is the communications plenum cable rating used on the finished product. One defines how performance is evaluated; the other helps define where the cable can be used.
Procurement teams should never approve a product only because a supplier says it “meets NFPA 262” without confirming the actual cable marking, listing evidence, and installation suitability.
| Term | What It Is | How Buyers Should Use It |
|---|---|---|
| NFPA 262 | Flame travel and smoke test method for plenum use | Use it as the fire/smoke test reference |
| CMP | Communications plenum cable rating | Specify it when communications cable is required for plenum installation |
| CMR | Communications riser cable rating | Use it for riser shafts, not as a substitute for CMP in plenum spaces |
| OFNP | Optical fiber nonconductive plenum rating | Use it when indoor optical fiber cable is required in plenum spaces |
| NEC / local code | Installation rule framework | Final acceptance depends on project code and the authority having jurisdiction |
In commercial practice, buyers may see typical plenum test criteria summarized around flame spread and smoke density limits. These values help teams understand why plenum-rated products cost more and why not every indoor cable can be used above a suspended ceiling. Even so, a quotation should not rely only on test language. The real procurement boundary is the listed finished cable and whether its marking matches the project route.
| Commonly Referenced Item | Typical Value | Selection Meaning |
|---|---|---|
| Maximum peak optical density | 0.50 or less | Controls smoke intensity during the test |
| Average optical density | 0.15 or less | Reflects overall smoke generation level |
| Maximum flame spread distance | 5 ft or less | Indicates the flame travel control expected in plenum evaluation |
Specify plenum-rated cable when the route passes through air-handling spaces, such as certain ceiling plenums or raised-floor areas used for environmental air distribution. The correct cable rating depends on both the cable family and the installation route. For engineering teams, the easiest rule is to start with the route. For procurement teams, the safest rule is to avoid closing an RFQ before the cable pathway is confirmed.
| Route Condition | Minimum Decision Direction |
|---|---|
| Air return ceiling space | Confirm CMP, OFNP, or the required plenum-rated cable type |
| Raised floor used for air distribution | Treat as plenum unless project documents clearly state otherwise |
| Vertical shaft between floors | Confirm CMR, OFNR, or project-specified riser rating |
| Ordinary room-to-room horizontal cable path | CM or general-purpose cable may be sufficient, depending on cable type and local code |
| Mixed route: telecom room to riser to ceiling plenum | Select the highest required rating for the continuous run, or separate cable sections properly |
LSZH and plenum cable are often confused because both are related to fire safety and smoke behavior. However, they are not the same requirement. LSZH focuses on low smoke and zero halogen material behavior, helping reduce toxic and corrosive gas emissions during fire. NFPA 262 focuses on flame travel distance and optical smoke density for cables installed in plenums and other air-handling spaces.
In many European-style projects, LSZH materials and CPR / EN 50575 reaction-to-fire classification are common specification references. In North American NEC-based projects, however, plenum spaces normally require cable ratings such as CMP for communications cable or OFNP for optical fiber cable. Therefore, an LSZH jacket does not automatically mean the cable is acceptable for plenum installation.
| Item | LSZH Cable | Plenum Cable / NFPA 262 Context |
|---|---|---|
| Main focus | Low smoke and zero halogen material behavior | Flame travel and optical smoke density in air-handling spaces |
| Common market context | Often seen in European, transportation, public building, and low-toxicity specifications | Common in North American NEC-based building cabling specifications |
| Typical buyer mistake | Assuming LSZH automatically means plenum-approved | Assuming “tested to NFPA 262” is enough without checking CMP / OFNP marking and listing |
| Procurement rule | Use LSZH when the project requires low-halogen and low-toxicity material behavior | Use CMP, OFNP, or the required plenum-rated marking when the cable enters NEC-style plenum spaces |
For North American projects, buyers should not rely only on supplier claims such as “fire rated,” “NFPA 262 passed,” or “plenum suitable.” More reliable evidence includes a recognized UL or ETL listing mark, correct cable jacket printing, manufacturer identity, product family or model information, and database verification through UL Product iQ or Intertek ETL directories.
| Evidence to Check | What Buyers Should Look For | Why It Matters |
|---|---|---|
| UL or ETL listing mark | A recognized third-party mark on the cable jacket, reel label, carton label, datasheet, or certificate | Shows the product has been evaluated by a recognized certification body |
| UL File Number | A file number, often beginning with “E,” linked to the manufacturer or product category | Allows buyers to verify the listing through UL Product iQ or related UL resources |
| ETL directory result | Manufacturer, product type, model, or cabling product record in Intertek’s directory | Helps confirm whether the ETL mark claim is traceable |
| Cable jacket print | Rating such as CMP, CMR, CM, OFNP, or other required marking printed clearly on the cable | Inspectors often check the installed cable itself, not only paperwork |
| Reel / box label | Product code, rating, batch or lot information, manufacturer name, and traceability data | Supports receiving inspection and project documentation |
| Datasheet and test reference | Cable construction, rating, application, standard reference, and operating performance | Helps engineering, procurement, and site teams review the same product basis |
The most common purchase failures happen when teams confirm electrical performance but skip route, listing, or document review. A robust RFQ for plenum cable should always connect the product type, route, fire rating, listing evidence, and package traceability. This is especially important for projects with inspection requirements or multinational sourcing.
| What to Confirm | Why It Matters | Good RFQ Wording |
|---|---|---|
| Cable type | Copper communications, coaxial, control, alarm, and fiber cables may use different markings | “Cat6 CMP UTP cable” or “Indoor OFNP fiber cable” |
| Installation route | Determines whether plenum rating is required | “For ceiling plenum air-handling space” |
| Listing evidence | Avoid self-declared or incorrectly marked cable | “Provide UL / ETL listing evidence and file or directory information where applicable” |
| Jacket print | Inspectors often check surface marking | “Cable jacket must show correct rating and listing mark” |
| Packaging label | Reel / box label supports traceability | “Provide label photo before shipment if required” |
| Regional compliance system | North America, Europe, Middle East, and other regions may use different fire-rating logic | “Confirm whether NEC / CMP, CPR / EN 50575, LSZH, or local code applies” |
| Quantity and lead time | Plenum materials may have higher cost and longer preparation time | “Quote by reel length, total quantity, MOQ, and delivery schedule” |
Treating NFPA 262 as a product label: it is a test method, not a finished cable category.
Assuming LSZH automatically means plenum-compliant: material language is not the same as NEC-based plenum route approval.
Using CMR in a plenum space: riser and plenum are different route requirements.
Ignoring route changes: one cable run can cross normal space, riser, and plenum sections.
Accepting vague “fire rated” claims: buyers should check UL / ETL listing evidence, jacket print, and product traceability.
Buying only by price: inspection rejection and rework often cost more than the initial cable premium.
Plenum-rated cable is usually more expensive than general-purpose or riser cable because it typically requires different jacket compounds, stricter fire and smoke performance, better production control, and more demanding certification processes. However, the real business comparison is not only material price. Buyers should also consider inspection risk, labor cost of replacement, project delay, and end-customer liability if the wrong cable is installed.
| Cost / Risk Factor | Why It Changes for Plenum Cable |
|---|---|
| Jacket compound | Plenum constructions require materials designed to control flame spread and smoke generation |
| Manufacturing control | Consistency matters more when fire performance and listing requirements are involved |
| Testing and certification | Higher compliance burden usually increases cost |
| Documentation and traceability | Project review often requires better paperwork, label control, and database verification |
| Rework and delay risk | Wrong cable selection may trigger replacement, schedule impact, and commercial loss |
A weak RFQ often says only “Need NFPA 262 cable, best price.” That leaves too much room for misunderstanding. A better RFQ should define the cable family, installation route, fire rating, listing expectation, construction details, and commercial requirements. This helps suppliers quote the correct product and helps procurement compare offers on the same basis.
“Please quote Cat6 UTP CMP communications cable for installation in ceiling plenum air-handling spaces. Cable shall have appropriate UL / ETL listing evidence where applicable, correct jacket marking, reel or box traceability, datasheet support, and compliance documentation. Please confirm conductor, jacket type, color, reel length, lead time, MOQ, and available file or directory verification information.”
“Please quote indoor OFNP optical fiber cable for NEC-style plenum installation. Please confirm fiber count, fiber type, jacket color, tensile rating, bend radius, reel length, cable marking, listing evidence, packaging label, and compliance documentation for project review.”
NFPA 262 is a core reference for understanding flame travel and smoke performance of cables intended for plenum and air-handling spaces. It is especially important for North American NEC-based projects, where route-based cable rating selection directly affects inspection, acceptance, and rework risk.
For engineering teams, the main value of NFPA 262 is helping define the right fire-performance boundary for the cable route. For procurement teams, the main value is preventing specification errors, quotation confusion, and weak compliance evidence. The practical rule is straightforward: confirm the installation route first, then match the correct cable rating, UL / ETL listing evidence, jacket marking, packaging label, and documentation package.
If your project involves plenum-rated communications cable, Ethernet cable, optical fiber cable, or related low-voltage cabling, ZION can support structure selection, technical clarification, and project-based quotation according to route and compliance requirements.
