Author: James Publish Time: 24-03-2026 Origin: Site
A practical engineering guide to MPO patch cord definition, male/female selection, polarity, insertion loss, and short-distance deployment decisions in high-density optical networks.
MPO patch cords are short multi-fiber jumpers used for dense indoor interconnects, not long backbone runs.
Most ordering errors come from wrong gender, wrong polarity, or assuming standard loss is always acceptable.
Selection should be driven by the full channel design: connector interface, mapping logic, loss budget, fiber type, and cable length.
An MPO patch cord is a short factory-terminated fiber optic jumper that uses MPO connectors to carry multiple fibers through a single interface. It is designed for high-density optical links where space, cabling speed, and front-panel efficiency matter more than the flexibility of many individual duplex cords.
In practical deployment, an MPO patch cord is usually used inside cabinets, between MPO cassettes and panels, or between active equipment and structured cabling interfaces. It is not the same as a long-distance trunk cable and it is not a breakout assembly unless it converts to LC or other connectors.
| Assembly Type | Typical Length | Connector Structure | Primary Role | Best Fit |
|---|---|---|---|---|
| MPO Patch Cord | Short | MPO to MPO | Direct jumper / interconnect | Rack and cabinet-level patching |
| MPO Trunk Cable | Medium to long | MPO to MPO | Backbone distribution | Zone to zone or panel to panel backbone |
| MPO Breakout / Harness | Short to medium | MPO to LC or other duplex ends | Fan-out to equipment ports | Switches, servers, transceiver adaptation |
The main classification points for MPO patch cords are connector gender, fiber mode, fiber count, and jacket construction. For engineering teams, the first two checks are usually connector compatibility and channel architecture.

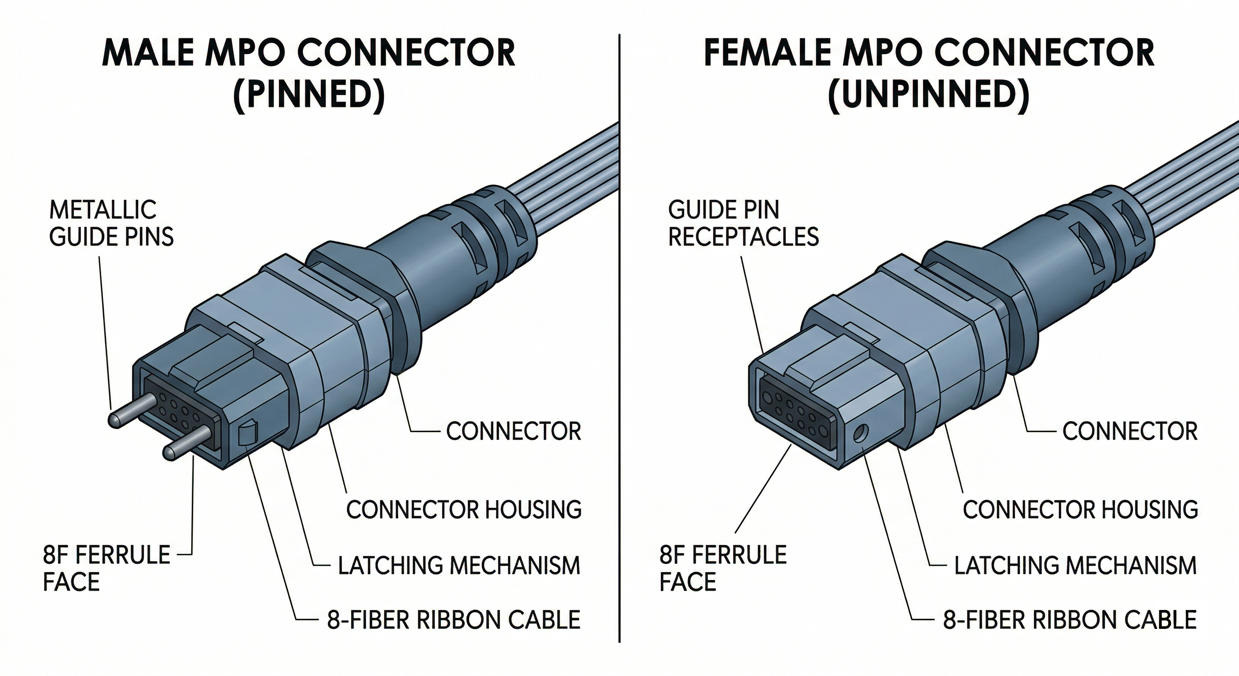

A male MPO connector has guide pins. A female MPO connector does not. The mating side must be reviewed carefully because a wrong gender selection can stop installation immediately, even if every other parameter is correct.
Single mode MPO patch cords are often selected for OS2-based infrastructure and longer optical budgets, while multimode versions are common in short high-speed data center channels using OM3, OM4, or OM5 fiber.
The most common counts are 8-fiber, 12-fiber, and 24-fiber. The correct choice depends on transceiver architecture, cassette design, migration path, and spare fiber strategy.
| Selection Item | Common Options | Why It Matters | Typical Risk if Ignored |
|---|---|---|---|
| Connector Gender | Male / Female | Ensures correct mating interface | Cannot mate or requires replacement |
| Fiber Mode | OS2 / OM3 / OM4 / OM5 | Affects transmission design and equipment fit | Channel mismatch or performance limitation |
| Fiber Count | 8F / 12F / 24F | Matches transceiver and mapping logic | Unused fibers or wrong channel topology |
| Jacket / Cable Structure | Round / LSZH / OFNR / OFNP | Influences routing, safety, and compliance | Poor routing or code non-compliance |
MPO patch cords do not only connect fiber physically; they also carry fiber mapping logic. This is where polarity becomes critical. A physically correct jumper can still produce a non-working channel if transmit and receive lanes are not mapped correctly.
The common polarity methods are Type A, Type B, and Type C. The correct option depends on the full link architecture, including trunks, cassettes, and equipment optics. For that reason, a patch cord should be chosen as part of a channel plan, not as an isolated item.
Insertion loss is the optical attenuation added by the connection. Standard loss assemblies are acceptable in many normal links, but low loss versions become important when the system has multiple mated pairs, tight channel budgets, or a future upgrade plan that reduces margin.
| Topic | What to Check | Why It Matters | Typical Failure Mode | Engineering Response |
|---|---|---|---|---|
| Polarity Type | A / B / C mapping | Controls Tx/Rx lane continuity | Link does not pass despite correct connectors | Review full channel map before ordering |
| Insertion Loss Grade | Standard loss / Low loss | Affects total channel budget | Marginal or unstable optical performance | Use low loss where margin is limited |
| Reference Path | Cassette, trunk, adapter, optics | Patch cord must match the full system | Local fix creates wider channel inconsistency | Document the end-to-end architecture |
Most field issues around MPO patch cords are specification mistakes rather than manufacturing defects. The challenge is that the assemblies look similar externally, so errors are often discovered only during installation or testing.
| Common Mistake | Immediate Impact | Cost Effect | Prevention Method |
|---|---|---|---|
| Ordering wrong male/female type | Cannot mate to interface | Replacement cost and installation delay | Check the mating side, not only the cord itself |
| Ignoring polarity plan | Link failure or reversed path | Time-consuming troubleshooting | Review channel mapping end-to-end |
| Choosing standard loss in a tight budget channel | Low margin or test failure | Rework, retest, and future upgrade constraints | Calculate the loss budget before purchase |
| Using wrong cable length | Slack, congestion, or tension stress | Reduced serviceability and airflow issues | Measure routing path, not straight-line distance |
Use the table below as a quick engineering filter. It is designed for teams who need to decide whether an MPO patch cord is the correct assembly and, if so, which direction the specification should take.
| Decision Question | If Yes | If No | Recommended Action |
|---|---|---|---|
| Is the connection short and inside a rack, cabinet, or local distribution area? | Patch cord is likely appropriate | A trunk cable may be more suitable | Check physical routing distance first |
| Do both ends stay MPO rather than fan out to LC? | Keep evaluating MPO patch cord | A breakout or harness may be required | Confirm interface format on equipment |
| Is the channel polarity already defined? | Match the patch cord to the design | Do not freeze the part number yet | Document Type A/B/C logic before procurement |
| Is the loss budget tight or the channel expected to scale to higher speeds? | Low loss should be prioritized | Standard loss may be acceptable | Review total mated-pair count |
| Is the interface gender on both mating sides confirmed? | Proceed to exact part specification | Pause ordering | Verify pin requirement with cassette, adapter, or optics |

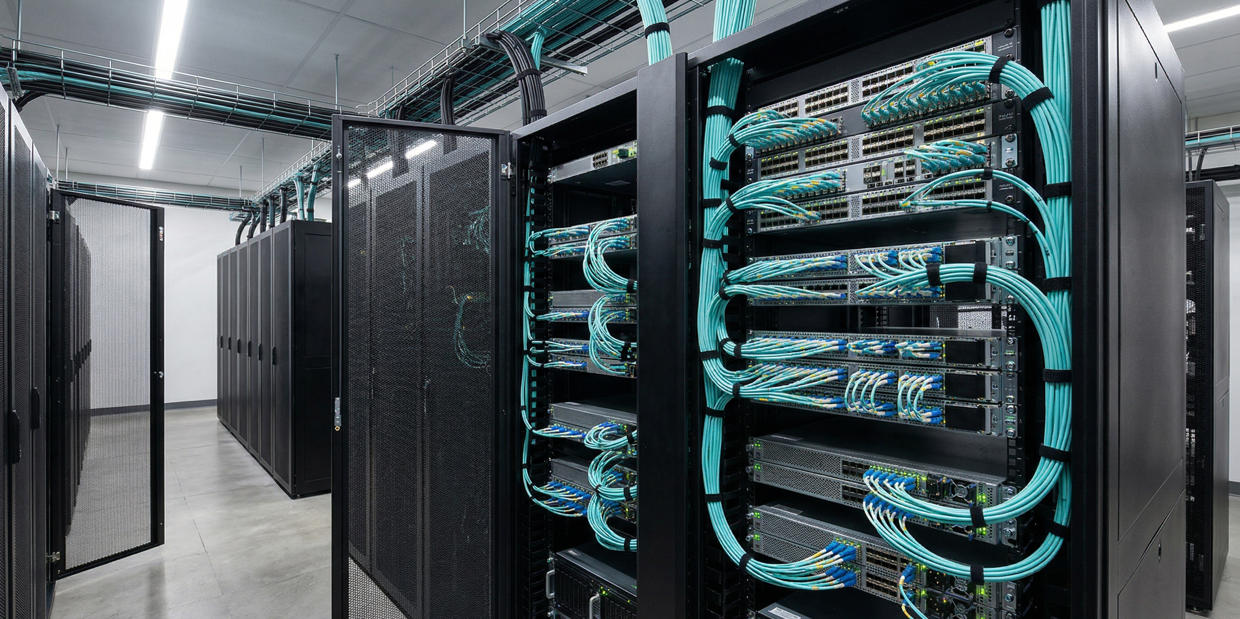

MPO patch cords are most valuable in short-distance, high-density, indoor optical environments where efficient routing and front-panel density are operational priorities.
| Application Scenario | Why MPO Patch Cord Fits | Main Selection Focus | Typical Concern |
|---|---|---|---|
| Data center cabinet patching | Saves space and reduces cable congestion | Length, polarity, service loop control | Overlength routing and maintenance access |
| Patch panel to cassette interconnect | Maintains MPO-based structured cabling path | Gender and system mapping | Channel inconsistency across modules |
| High-speed parallel optics links | Supports dense multi-fiber optical architecture | Loss grade and fiber count | Insufficient margin in upgraded channels |
| Cross-connect inside equipment zones | Fast, clean local connection method | Route discipline and documentation | Troubleshooting complexity if mapping is not recorded |
A complete MPO patch cord specification should be driven by the installation environment and the full optical channel, not only by connector appearance. For procurement teams, a structured specification request reduces both pricing ambiguity and delivery mistakes.
| Parameter | Why Buyer Should Specify It | Commercial Effect | Engineering Note |
|---|---|---|---|
| Connector type and gender | Avoids interface mismatch | Prevents returns and lead-time loss | Confirm with mating adapter or cassette |
| Fiber mode and count | Matches optical design | Affects price and stock availability | Must align with transceiver and migration plan |
| Polarity type | Prevents channel logic errors | Reduces troubleshooting cost | Should be linked to the full channel map |
| Insertion loss grade | Protects system margin | Low loss may cost more but avoids rework | Important in multi-connection channels |
| Cable length and jacket | Improves routing and compliance | Influences installation quality and maintenance access | Measure the path and review local code requirements |
An MPO patch cord is typically a short jumper used for local interconnects, while an MPO trunk cable is usually deployed as a longer backbone segment between panels, zones, or distribution areas. The correct choice depends mainly on routing distance and channel architecture.
Check the mating interface on the cassette, adapter, or equipment side. Male MPO connectors have guide pins; female versions do not. The decision must be based on the full mated pair, not on the patch cord alone.
Low loss is usually the better choice when the optical budget is tight, the channel contains multiple mated pairs, or the network is expected to scale to higher-speed links where margin becomes more critical. It reduces risk more than it improves appearance.
That is not recommended. Polarity should be defined across the entire channel, including trunks, cassettes, adapters, and equipment ports. Selecting it only at the patch cord level often creates local fixes that do not solve the broader mapping problem.
At minimum, include connector type at both ends, male or female requirement, fiber mode, fiber count, polarity type, insertion loss requirement, cable length, jacket type, and the application environment. This reduces both quotation ambiguity and fulfillment risk.
Standard MPO patch cords are primarily used in controlled indoor environments. If the deployment involves unusual mechanical stress, routing exposure, or special compliance requirements, the jacket, protection level, and installation design should be reviewed before specification.
An MPO patch cord is a short, high-density optical jumper used where multiple fibers need to be connected efficiently in a compact space. Its practical value comes from structured deployment, serviceability, and cleaner routing in dense optical systems.
For engineering and procurement teams, the correct decision sequence is straightforward: first confirm the use case, then verify the MPO interfaces, then lock connector gender, polarity, loss grade, fiber type, fiber count, cable length, and jacket. This sequence reduces installation delays, lowers rework risk, and makes the channel easier to maintain.
If the project includes multiple connection points, future speed upgrades, or mixed module types, document the channel mapping before placing the order. That step usually creates more value than comparing part numbers only by price.
Send your interface type, male/female requirement, fiber mode, fiber count, polarity, loss target, cable length, and application environment. A complete parameter set helps shorten quote time and reduces compatibility risk.
