A Comprehensive Guide To Fire-Resistant Optical Fiber Cables for Railway Systems

Author: Site Editor     Publish Time: 27-03-2025      Origin: Site

Fire-Resistant Optical Fiber Cables for Railway Systems

How to distinguish fire-performance requirements, compare cable constructions, and prepare a railway fiber cable specification.

A railway optical fiber cable should be selected by separating four questions: Will the cable limit flame spread? How much smoke and corrosive gas may it release? Must the optical link continue operating during a fire? What mechanical and environmental protection does the route require? These are different performance characteristics, and no single term such as fire-resistant proves all of them.

For rolling stock, tunnels, stations, trackside routes, signaling networks, CCTV, passenger information systems, and emergency communications, the correct cable depends on the installation location and the project's specified test methods, classifications, duration, and acceptance criteria. A model name or construction description is only a starting point; approval should be based on the applicable test report and the exact offered cable configuration.

ZION fire-resistant optical fiber cable construction series for railway applications

What Fire Performance Means for Railway Fiber Cables

Railway specifications often combine several fire-safety objectives. Treating them separately makes technical comparison and document review much clearer.

Requirement What it evaluates What the purchaser should request
Flame propagation Whether a single cable or a defined cable bundle limits vertical flame spread under a specified test. The exact test part, category, specimen arrangement, and pass criteria.
Smoke emission Smoke density produced by burning cable under defined conditions. The required test method and minimum light-transmittance criterion.
Halogen and gas acidity Halogen acid gas content and, where specified, the acidity and conductivity of combustion gases. The required limits and evidence for the materials used in the offered cable.
Circuit integrity Whether the optical link remains within the stated acceptance criterion during a defined fire exposure. The current project-specified method, flame conditions, duration, optical measurement method, and pass criterion.

Important distinction: flame-retardant performance addresses flame spread. Low-smoke and halogen-related tests address visibility and combustion gases. Circuit-integrity testing addresses continued operation under a defined fire exposure. Passing one test does not automatically demonstrate the others.

How Cable Construction Changes the Application Fit

Fire behavior is only one part of cable selection. The route may also require resistance to crushing, impact, moisture, rodents, termites, lightning exposure, or induced electrical effects. More armor can increase mechanical protection, but it also adds metal, weight, diameter, stiffness, grounding considerations, and installation effort.

All-dielectric construction

An all-dielectric cable avoids metallic armor and can be useful where electrical isolation, lightning exposure, or bonding complexity is a concern. Mechanical performance still has to match the installation method. The ZION GYFZY all-dielectric railway optical cable is one example of this construction family.

Metal-armored construction

Corrugated aluminum or steel tape can improve mechanical and moisture protection, depending on the design. Double-armored or multi-armored cables may suit routes with higher crushing or impact risk, but the cable's tensile rating, minimum bend radius, pulling method, metallic bonding, and corrosion protection must be checked. The ZION GYTZA53 double-armored railway optical cable illustrates this design direction.

Additional environmental protection

Long outdoor routes may need extra defenses against water ingress, rodents, termites, or corrosive environments. These features should be specified independently from fire behavior. The ZION GYFZA04+33 multi-armored cable combines mechanical and pest-protection features; its suitability still depends on the exact route and required test documentation.

ZION Railway Cable Construction Families

The following comparison organizes the legacy model list by construction. It is not a declaration that every model or fiber-count variant meets every railway fire requirement. Confirm the offered construction, fiber count, mechanical data, fire-test standard and edition, test category, report number, and scope before specification.

GYFZY

Construction: All-dielectric construction with a fire-protection layer and flame-retardant sheath.

Selection question: Is a metal-free cable required, and does its mechanical rating suit the route?

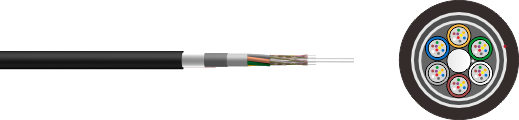

GYFZY all-dielectric railway optical cable construction

GYTZA

Construction: Single aluminum-polyethylene laminate armor and flame-retardant sheath.

Selection question: Is moderate mechanical and moisture protection sufficient?

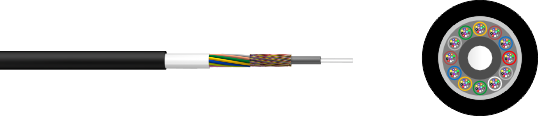

GYTZA single-armored flame-retardant optical cable construction

GYTZA53

Construction: Aluminum laminate plus steel-tape armor with multiple sheaths.

Selection question: Does the route need additional crush and impact protection?

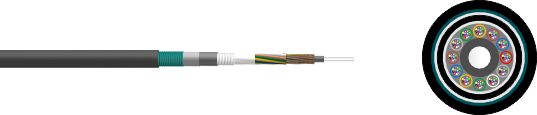

GYTZA53 double-armored railway optical cable construction

GYZS

Construction: Fire-protection layer, steel-tape armor, and flame-retardant sheath.

Selection question: Which fire and mechanical tests are required for this route?

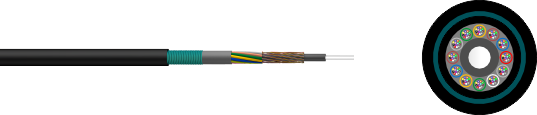

GYZS steel-tape armored fire-resistant optical cable construction

GY(F)ZS53

Construction: Layered fire protection, steel-tape armor, and multiple sheaths.

Selection question: Are enhanced mechanical protection and a defined circuit-integrity test both required?

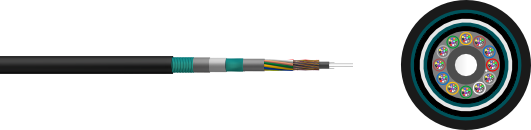

GYFZS53 layered fire-resistant railway optical cable construction

GYZS53+33

Construction: Multiple steel armor and sheath layers.

Selection question: Do severe conditions justify the additional size, weight, and handling effort?

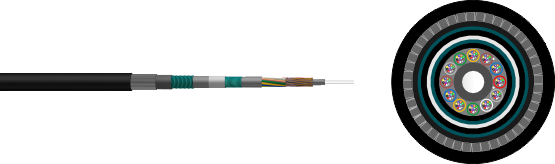

GYZS53 plus 33 multi-armored optical cable construction

GYFZA04+33

Construction: Multi-armored construction with anti-rodent and anti-termite features.

Selection question: Are pest exposure and severe mechanical risks documented for the route?

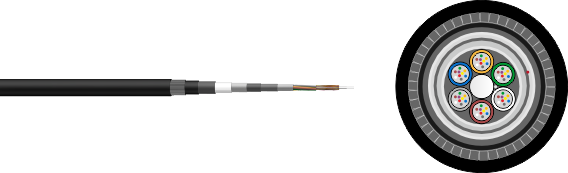

GYFZA04 plus 33 anti-rodent railway optical cable construction

Standards to Put in the Correct Context

A useful railway cable specification names the exact standard part, edition, requirement level, and acceptance evidence. Broad references to an entire standards family are not enough.

  • EN 45545-2 addresses reaction-to-fire requirements for materials and products used on railway vehicles. The applicable requirement set and hazard level depend on product location and the vehicle's operation and design categories. It is not a generic requirement for every trackside or tunnel installation.

  • IEC 60332 series covers flame-propagation tests for electric and optical fiber cables. Single-cable and bunched-cable tests are not interchangeable, so the relevant part and category must be stated.

  • IEC 60754 series evaluates gases evolved during combustion of cable materials, including halogen acid gas content and, in the relevant part, acidity and conductivity.

  • IEC 61034-2 provides the procedure and recommended requirements for measuring smoke density from burning cables under defined conditions.

  • IEC 60331 series or another project-specified method may be relevant when the optical link must maintain defined circuit integrity during fire. IEC 60331-25:1999, often quoted for optical fiber cables, was withdrawn at the end of 2024; do not cite it as a current standard without confirming the contractual basis and accepted replacement method.

  • IEC 60794 series supplies generic optical cable requirements and mechanical or environmental test methods. It supports cable evaluation but does not by itself prove a railway fire classification.

Railway Fiber Cable Selection Checklist

A complete request for quotation should give the supplier enough information to select a construction and return comparable evidence.

  1. Installation location: rolling stock, station, tunnel, trackside duct, tray, bridge, aerial route, or direct burial.

  2. Fire objective: flame spread, smoke density, halogen/gas acidity, circuit integrity, or a defined combination.

  3. Required standards: exact part, edition, category or classification, test duration, and pass criteria.

  4. Optical design: fiber type, fiber count, attenuation limits, wavelengths, splice or connector plan, and link budget.

  5. Mechanical conditions: tensile load, crush, impact, bending, vibration, pulling method, and minimum bend radius.

  6. Environment: temperature range, water exposure, UV, chemicals, rodents, termites, and corrosion risk.

  7. Metallic elements: whether metal is permitted and how armor will be bonded, grounded, and protected.

  8. Evidence and delivery: datasheet, construction drawing, third-party test report, inspection plan, drum length, marking, and traceability documents.

Installation and Acceptance Considerations

The installed system can perform differently from a laboratory specimen. Cable loading, tray fill, vertical runs, joints, closures, fire stops, bend radius, pulling tension, and proximity to heat sources all affect the route. IEC guidance also cautions that passing a single-cable flame test does not predict the behavior of a cable bundle.

Before commissioning, verify cable identity and drum records, inspect the sheath, document metallic bonding where applicable, and measure the optical link with the project-approved method. Keep baseline results for later maintenance. If circuit integrity is required, the acceptance package should show that the tested construction and optical evaluation match the supplied cable closely enough for the authority or customer to accept the evidence.

Frequently Asked Questions

Is a flame-retardant optical cable the same as a fire-resistant cable?

Not necessarily. Flame-retardant testing focuses on limiting flame spread. A project that requires continued optical transmission during fire needs separate circuit-integrity requirements and evidence.

Does EN 45545-2 apply to every railway installation?

No. EN 45545-2 covers materials and products used on railway vehicles. Stations, tunnels, and trackside infrastructure can be governed by different contracts, national rules, infrastructure standards, or authority requirements.

Does compliance with IEC 60332 prove low smoke or circuit integrity?

No. IEC 60332 addresses flame propagation. Smoke density, combustion gases, and circuit integrity are evaluated by other test methods and must be specified separately.

What is the most important document to review before ordering?

Review the exact cable datasheet together with the applicable test reports. Confirm that the model, construction, material system, fiber-count range, test standard and edition, classification, and report scope correspond to the cable being offered.

Should the most heavily armored cable always be selected?

No. Extra armor may be useful for severe mechanical exposure, but it can increase diameter, weight, stiffness, bonding requirements, pulling load, and installation cost. Choose the lightest construction that satisfies the documented fire, mechanical, environmental, and operational requirements.
