How to choose the right cable for CCTV & Video Surveillance systems?

Views:168     Author:Michael     Publish Time: 2018-01-18      Origin:Site

How to choose the right cable for CCTV & Video Surveillance systems?




Download Solution PDF

View PDF file on your mobile, convenient and detailed


When considering the video surveillance system. There are two kinds of the security system are available in the market; DVR security system and NVR security system. As we know, digital video recorder (DVR) and network video recorder (NVR) come in diverse different features, models, and types. Understanding the function of them and the difference between them is very important when you want to choose one system to meet your needs. And choose the right cable for them especially important. ZION Communication gives the following suggestion on choosing the right cables to help you.


Security System

Transmission Distance

Suggested Cable

TOP Quality

Economy

DVR

Length≤200M

RG59

7100107

7100108

RG59+2C

7102021

7102034

200MLength≤500M

RG6

7100061

7100064

RG6+2C

7102002

7102001

Length500M

RG11

7100261

7100209

RG11+2C



Length≤100M

Cat5e

7112110

7112109

Cat5e+2C

7112302

7112305

Length1000M

Optical fiber Cable



NVR

Length≤100M

UTP CAT5E


7112109

100MLength≤200M

UTP CAT5E BC

7112110


200MLength≤300M

UTP CAT6

7112202

7112209

Length1000M

Optical fiber Cable








Power & Control

Transmission Distance

Suggested Cable

TOP Quality

Economy

PTZ Control

Length≤100M

RVV6×0.5mm2

7144103


Length100M

RVV6×0.75mm2

7144111


Lens Control


RVV4×0.5mm2

7144102


Decoder Control


RVV2×1mm2 Shielded

7144116


Camera Power

34-50M

6mm2 Power Cable

7144006


(20PCS Camera)

21-33M

4mm2 Power Cable

7144005



20M

2.5mm2 Power Cable

7144004



Mainly transmission methods commonly used in CCTV & Surveillance System

When our customers installing CCTV & Surveillance System, they will prepare different design according to the different circumstances of their clients. Using the correct installation design will improve the stability of the monitoring system and improve the construction efficiency, also can reduce costs. Today, ZION COMMUNICATION will tell you several programs in the data transmission of digital monitoring.

One camera, one power supply, a PC of  network cable

Wiring need to wire two types of cable: Power cable and network cable.
Power cable best choice:
http://www.zion-communication.com/HELLOSIGNAL-Electrica-Installation-Cable-RV-pd6477503.html
Network cable best choice:
http://www.zion-communication.com/CAT5E-CPA-for-network-camera-Twisted-Pair-Installation-Cable-pd6425962.html
Power cable transmission 220V AC, each camera requires one power supply to power. The network cable is used to transfer data to the VCR. Both are indispensable.

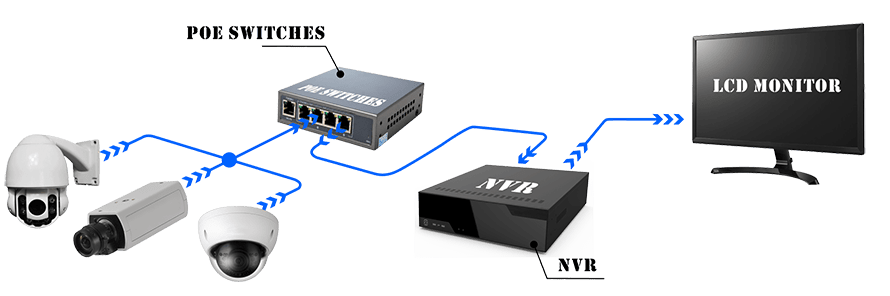

Using POE switches
This way, only use the 8-core network cable as a transmission medium, no longer need power cord, its transmission distance can reach 160 meters, It is said that some manufacturers can now reach 250 meters through non-standard models.ZION COMMUNICATION supply good quality cat5e for POE switches:
http://www.zion-communication.com/CAT-5E-network-cable-pl579621.html


CCTV & Video Surveillance systems


Advantages of using POE switches in CCTV & Surveillance system

1. Needn’t wire power cable, save materials, save labor, improve the construction efficiency!

2. Pure Low-voltage electricity, no electric shock, no fire hazards!

3, No longer use power, reduce the probability of faults, reduce maintenance costs!

4. With the storage bracket, works more beautiful, acceptance is easier to pass!

5. Reduce the difficulty of construction, easy and simple, easier to get started!

What are the other benefits? People having used POE switches can understand through their own experience!
