GYFZA04+33 Multi-armored Fire-resistance Optical Cable Anti-rodent & Anti-termite for Railway Transportation

■ Introduction:

Optical fibers are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compounds.The tubes (and fillers) are stranded around a non-metallic central strength member to form a cable core. The core is covered by a fire resistance layer. An LSZH inner sheath is extruded and armored with laminated aluminum tape. Then a PE second sheath and a nylon third sheath are extruded and wrapped with steel wires. Finally, an LSZH outer sheath is extruded.

■ Features:

• Accurate process control ensures good mechanical and temperature performances


• The material of loose tubes with good hydrolysis resistance and relatively high strength


• Fire-resistant layers and LSZH sheaths ensure good fire resistance and flame-retardant performances


• Excellent crush resistance


• Nylon sheath with high hardness provides certain anti-termite performances


• Comply with IEC60331(no cooling),IEC60754-1&2,IEC61034 and IEC60332-2-24

■ Product Series:

• GYFZY: Non-metallic+Fire-Resistant Layer+Flame-Retardant Sheath

• GYTZA: Single APL Armor+ Single Flame-Retardant Sheath

• GYTZA53: Single APL+Single PSP Armor+Double Flame-Retardant Sheaths

• GYZS: Single: Fire-Resistant Layer+ Single PSP armor+ Single Flame-Retardant Sheath

• GYZS53: Double Fire-Resistant Layers+Double PSP armors+Double Flame-Retardant Sheaths

• GYZS53+33: Double Fire-Resistant Layers+Double PSP+Single Steel Wire Armor+3 Flame-Retardant

• GYFZA04+33: APL+Steel Wire armor+Fire-Resistant Layer+Anti-Termite Layer+Flame-Retardant Sheath

■ Cross Section:

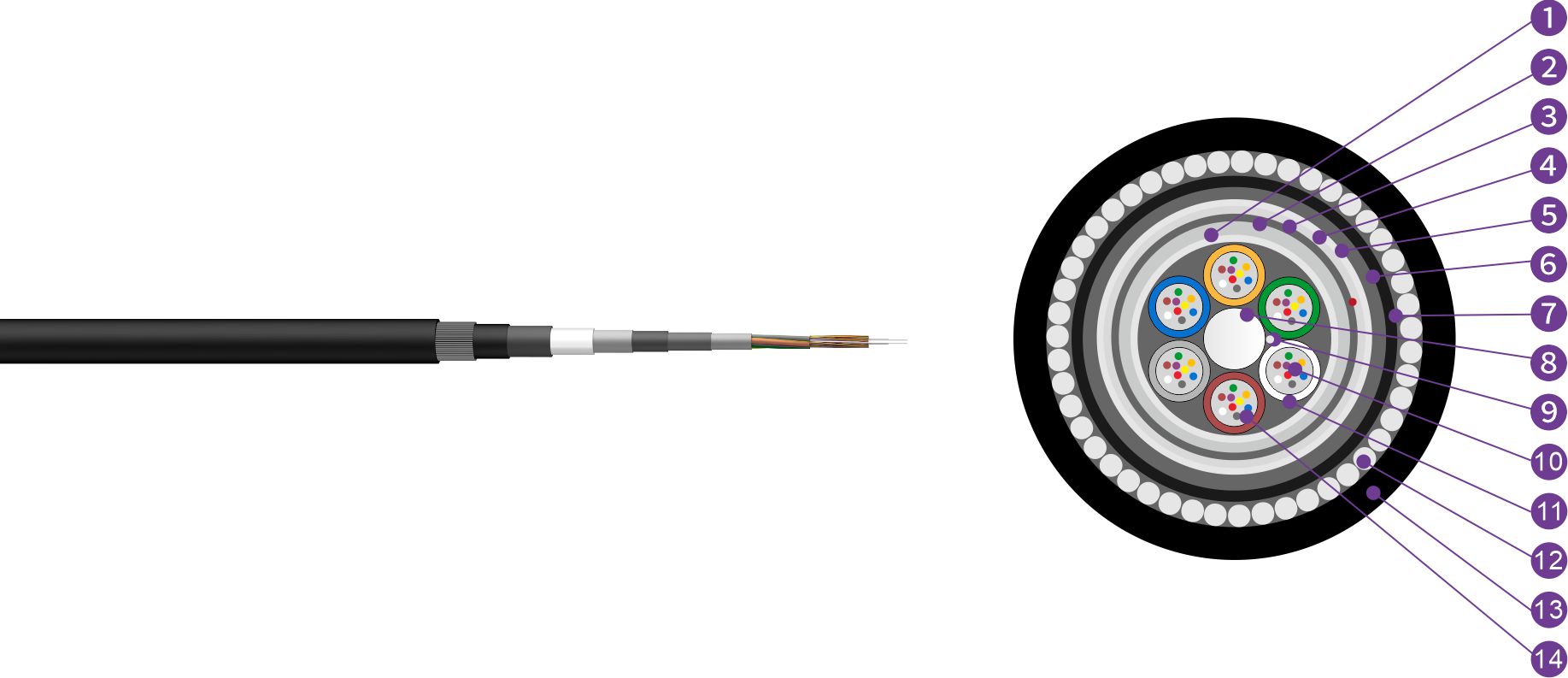

1. Water Blocking Tape    2. Fire Resistance Tape    3. LSZH Inner Sheath    4. Water Blocking Tape    5. APL    6. HDPE Second Sheath     7. PA Sheath    8. Strength Member    9. Water Blocking Yarn    10. Fibre    11. Loose Tube    12. Steel Wire    13. LSZH Outer Sheath     14. Tube Filling Compound

■ Technical Characteristics:

GYFZA04+33-4Xn

• Diameter: 19.1 mm

• Weight: 580 kg/km

• Tensile Strength (Long/Short term): 3000/5000 N

• Crush Resistance (Long/Short term): 2000/4000 N/100mm

GYFZA04+33-12Xn

• Diameter: 19.1 mm

• Weight: 580 kg/km

• Tensile Strength (Long/Short term): 3000/5000 N

• Crush Resistance (Long/Short term): 2000/4000 N/100mm

GYFZA04+33-24Xn

• Diameter: 19.1 mm

• Weight: 580 kg/km

• Tensile Strength (Long/Short term): 3000/5000 N

• Crush Resistance (Long/Short term): 2000/4000 N/100mm

GYFZA04+33-48Xn

• Diameter: 20 mm

• Weight: 650 kg/km

• Tensile Strength (Long/Short term): 3000/5000 N

• Crush Resistance (Long/Short term): 2000/4000 N/100mm

GYFZA04+33-72Xn

• Diameter: 20 mm

• Weight: 650 kg/km

• Tensile Strength (Long/Short term): 3000/5000 N

• Crush Resistance (Long/Short term): 2000/4000 N/100mm

GYFZA04+33-96Xn

• Diameter: 21.6 mm

• Weight: 730 kg/km

• Tensile Strength (Long/Short term): 3000/5000 N

• Crush Resistance (Long/Short term): 2000/4000 N/100mm

Note: The specifications provided serve as a normative reference. Adjustments to the outer diameter may be made to suit your budget. Contact us for more details.

■ Environmental Characteristics:

Transport/storage temperature: -40℃~70℃



■ Delivery Length:

Standard length: 2000m; Other lengths available
