Author: James Publish Time: 09-10-2025 Origin: Site
The All-Dielectric Self-Supporting (ADSS) structure of this cable has been adopted by power utilities, telecom service providers, and internet providers. Their design enables the use of no metallic tools, for example, gloves, during installation. Nevertheless, the performance of ADSS networks in terms of sustainability depends not only on the cables used. ADSS cable accessories, such as suspension clamps, tension clamps, and pole attachment hardware, ensure the mechanical integrity, optical behavior, and safety.
In this article, we explore some of the primary categories of ADSS accessories, describe how they function, provide guidance on procurement, and address frequently asked questions about installation.
https://www.zion-communication.com/ADSS-Hardware.html

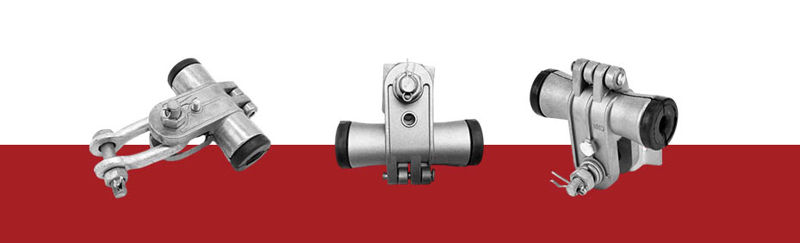

An ADSS suspension clamp is installed to protect the cable from bending in straight sections of the routing path. It makes the cable hang down freely with no tension but maintains the bending stress to a lower level. These modern clamps are typically made with aluminum alloy or anti-UV polymer material, all combined with protective inlays to avoid abrasions. They can be applied to spans ranging from 100 meters to 600 meters depending on the design.

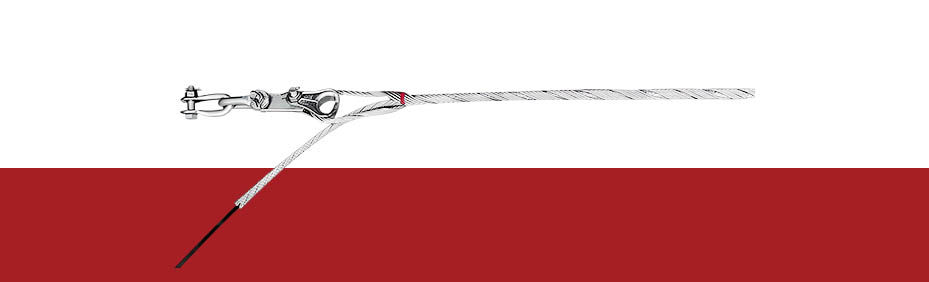

An ADSS tension clamp (also known as a fiber optic dead-end clamp) is used at the terminal of a span or at the point where the course may change. It forms a rigid hold to the cable through which the mechanical loads are relayed to the poles or towers. Usually, tension clamps possess the preform helical rods and corrosion-resistant clamps/ fittings, which safeguard the fibers against stress.
These units are mostly used for distribution networks that span up to 150 meters. The majority of the time, the ADSS anchor clamp is employed for fastening cables onto poles, and the installation process requires no instruments. These attachments interlock, so they are fit to carry specific proportions of cable size, specifically between 8 to 20 mm.
These clamps have a downward bias for aADSS cable that has been routed vertically along a pole or tower. Shaking, slipping, and vibrating is not possible under the influence of a down lead clamp because these clamps are anchor-oriented. The specification mentions stainless steel bands and UV-stable elastomers for long-range.

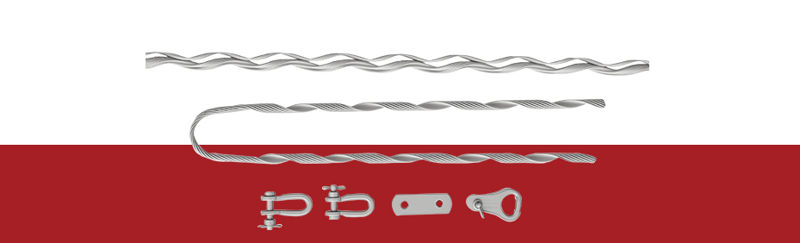

Fiber grips are used to secure cables at tension points. When ADSS cable grips are used, they ensure a mechanical balance is maintained, which spreads the stress evenly among the cable. These grips are particularly important in ice load, heavy wind, and seismic regions.
None of the ADSS installations are over without the pole attachment hardware. Brackets, hooks, and stainless-steel straps attach clamps towards a pole made of concrete, wood, or metal. Necessarily, one have to select installation fittings with a similar level of care as for the clamp itself, or else the pole components that are fitted incorrectly will reduce the lifespan of the cable.
The deployment of accessories as part of the ADSS cable installation is either simultaneous or is done subsequently.
The cable routes in straight lines get supported by the suspension clamps.
Cable ends and curves are fixed with tension clamps and dead-end clamps.
The pole and the tower cables are secured very effectively with down lead clamps.
Pole attachment hardware guarantees a smooth transmission of forces occurring due to load.
Cable diameter compatibility: Each clamp only supports the internal diameter that falls within a specified range.
Load capacity: Distinguishing between short and long span and the environmental loads.
Corrosion resistance: Hot-dip galvanizing of steel and aluminum alloys increases the working life.
UV stability: Polymers beyond 25 years are resistant to 25+ years exposure at a minimum.
Standards compliance: IEC 60794, IEEE 1222, and local utility codes.
Cable slipping or breaking.
Excessive fiber strain – the shift in content – thus loss in optical signal.
Reduction in service lifespan via corrosion or vibration.
AVM will accompany only the most suitable ADSS network cable hardware to minimize the risks involved' in the construction of the project and to accomplish stable transmission.
If you want to receive reliable ADSS accessories, here are important parts of the assessment process:
Manufacturer credibility and Track Record: By checking the field experience and the reputation of the supplier.
Manufacturers’ test reports, including mechanical load, UV aging, and salt-fog resistance.
Cable sizes and design of spans and cables.
After-sales support: consultations of the skilled ones, OEM customization, and spare parts availability.
Buy common fittings for the various diameters of the cables in order to cut the stock;
Purchase only whole kits (suspension, tension, and down lead clamps) from one vendor to ensure the harmonization among the pieces;
The longer-time figures should be considered as A better lasting clamp with a higher price may be just worth more than its worth when faced with repairs needed due to its early failure.
Q1: What are the main differences in suspension clamp and tension clamp towards ADSS?
A: The suspension clamp lengthwise hold cables along the cable span, while the tension clamp (engaged at the ends poles or at the change of directions of the cables) holds firm the cable in position.
Q2: Is it possible to use one clamp for all cable sizes?
A: Not quite so. Each clamp is engineered for a certain diameter, which falls in +/- two mm tolerances.
Q3: Do ADSS cable fittings have a long life span?
A: Those are made from Aluminum alloy, galvanized steel, UV-resistant polymers, and they can last above 25 years in nominal settings.
Q4: Is ADSS hardware interchangeable with that of OPGW?
A: Both suspension and dead-end clamps are compatible, but ADSS does not have a ground and an offset support of OPGW. OPGW contains some that are used for grounding, and ADSS does not need them.
Q5: You mentioned the risks of cantankerous ADSS clamps. What about the minimal ones?
Risk factors mentioned by the supplier include premature cable failure, optical attenuation, expensive fault-clearing, and may even incur safety threats for the power conductor.
ADSS cable accessories are not merely superfluous components. Such accessories are very crucial parts for any suffering fiber optic network. Every single support device such as suspension and down lead clamps for the cable, pole attachment hardware comes with its contribution to the mechanical support, safety and lifetime service.
It is recommended that all decision-makers who are considering to install ADSS cable to go through the accessories specification, suitability with international standards, and supplier's reliability. Such measures will promote reliable communication networks that remain operational for a long term, even throughout the harsh environmental conditions.
If you take advantage of the expertise of a reliable supplier of ADSS accessories with a record in fastening fiber optic infrastructure, you can get the best hardware or an OEM sole source.
