Author: Site Editor Publish Time: 28-04-2026 Origin: Site
A BMS cable quotation cannot be based only on the phrase “BMS cable.” Buyers and engineers should confirm the system protocol, cable function, conductor size, core or pair count, shielding, jacket material, fire rating, installation environment, quantity, packing, and required documents before asking suppliers to quote.
“BMS cable” is a project term, not always a single cable type.
Protocol, shielding, jacket, and fire rating usually decide whether the quote is technically usable.
A datasheet helps suppliers match the project specification; a catalogue alone is usually not enough for final approval.

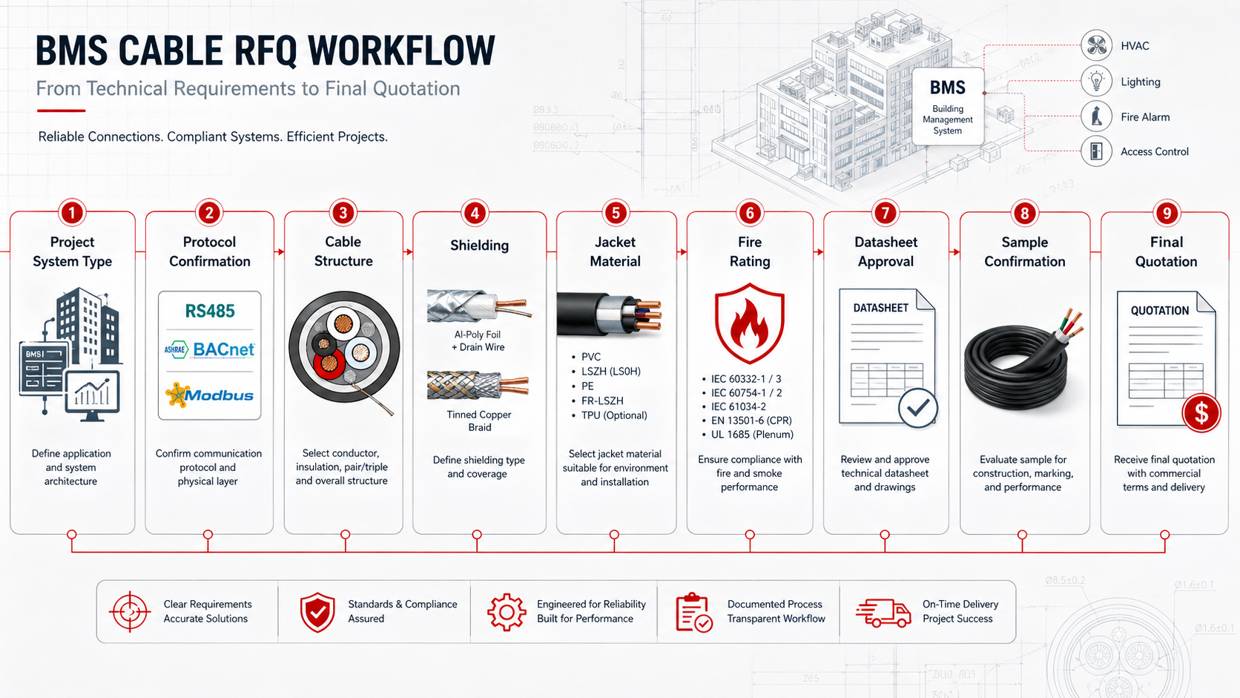

Before quoting a BMS cable, the supplier needs more than a cable name or rough quantity. A usable RFQ should define the system protocol, cable function, conductor size, core or pair count, shielding, jacket material, fire rating, installation environment, voltage rating, required standard, packing length, project quantity, and approval documents.
BMS projects are easier to revise repeatedly than ordinary cable inquiries because they may involve HVAC control, sensors, actuators, access control, energy meters, RS485 communication, IP-based controllers, and building safety requirements. If the RFQ only says “BMS cable,” the supplier cannot know whether the project needs shielded twisted pair, multi-core control cable, signal cable, Ethernet cable, KNX cable, or another low-voltage building cable.

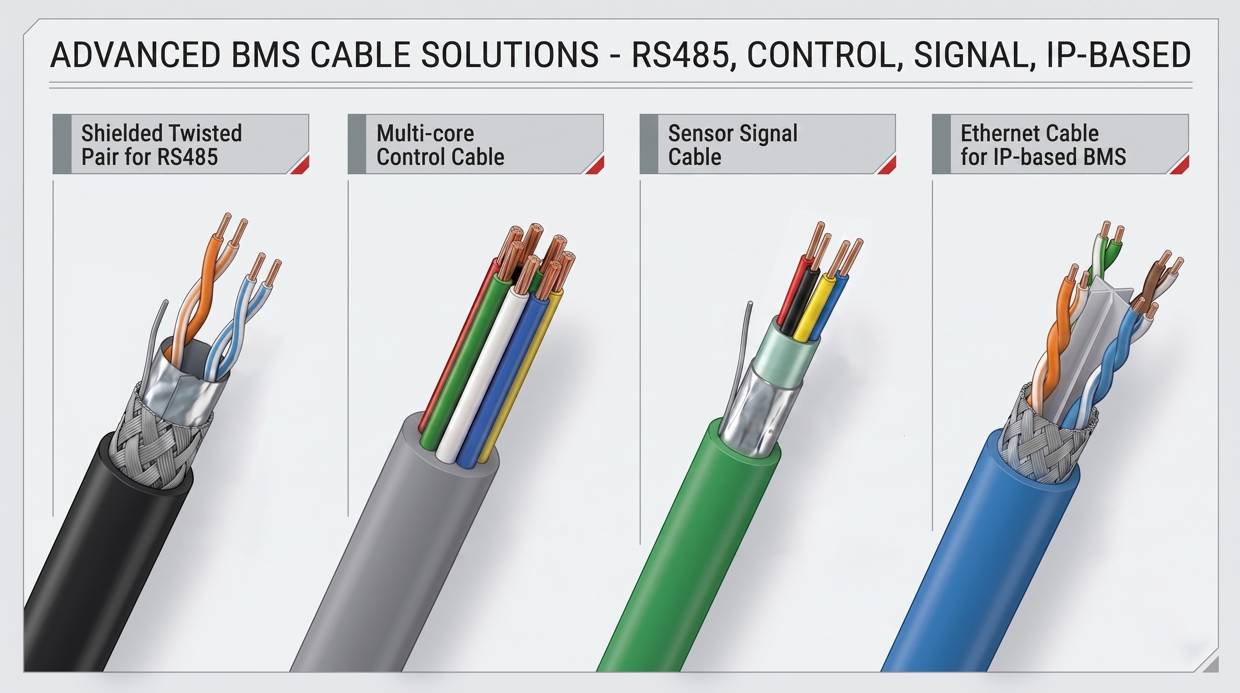

BMS cable refers to the low-voltage cables used in a Building Management System to connect controllers, field devices, sensors, actuators, meters, panels, gateways, and monitoring equipment. In real projects, “BMS cable” is not one standard construction. It is a project-side description that may include several cable families.
| BMS Application | Possible Cable Requirement | Main Selection Concern |
|---|---|---|
| BACnet MS/TP / Modbus RTU / RS485 | Shielded twisted pair, often low-capacitance cable | Signal stability, distance, EMI resistance |
| Sensors and dry contacts | Multi-core signal or control cable | Core count, conductor size, wiring distance |
| Actuators, valves, dampers | Control cable or separated power/signal cable | Voltage drop, mechanical durability, termination |
| Energy meters and equipment monitoring | RS485 communication cable or shielded signal cable | Daisy-chain wiring, grounding, noise control |
| IP-based BMS devices | Cat5e, Cat6, Cat6A or other Ethernet cable | Bandwidth, PoE, route length, indoor/outdoor rating |
| KNX or dedicated bus systems | Application-specific bus cable | Protocol compatibility and project specification |
A BMS project is usually handled by multiple parties: the building owner, MEP consultant, electrical contractor, system integrator, equipment supplier, and purchasing team. Each party may use different words for the same cable route. One document may call it “BMS cable,” while another drawing may call it “RS485,” “BACnet cable,” “Modbus cable,” “shielded control cable,” or “low-voltage signal cable.” These names are not always technically identical.
| RFQ Problem | Why It Causes Revisions | Commercial Impact |
|---|---|---|
| Only “BMS cable” is written | Supplier cannot identify protocol or cable structure | Quotation delay |
| No core or pair count | Cable capacity cannot be confirmed | Wrong model or repeated quotation |
| No shielding requirement | EMI risk cannot be evaluated | Field communication problems |
| No jacket or fire rating | Indoor safety and compliance needs are unknown | Approval delay or replacement cost |
| No datasheet reference | Supplier cannot match consultant specification line by line | Technical clarification loop |
| No packing length | Installation waste and freight estimate cannot be optimized | Cost variation after quotation |
A practical BMS cable RFQ should include the following fields. If some fields are not available, the buyer should at least provide the project drawing, equipment list, consultant specification, or existing datasheet for cross-checking.
| RFQ Field | What to Confirm | Why It Matters |
|---|---|---|
| System / protocol | RS485, BACnet MS/TP, Modbus RTU, KNX, Ethernet, analog signal, dry contact | Determines cable structure and electrical performance |
| Cable function | Communication, control, sensor, actuator, power, data, or composite use | Prevents wrong product category selection |
| Conductor size | AWG or mm² | Affects resistance, voltage drop, flexibility, and cost |
| Core / pair count | 1 pair, 2 pair, 4 core, 6 core, etc. | Determines wiring capacity and termination method |
| Conductor type | Solid or stranded copper | Affects flexibility, installation route, and termination reliability |
| Shielding | Unshielded, foil shield, braid shield, foil + braid, drain wire | Affects EMI resistance and grounding method |
| Jacket material | PVC, LSZH, PE, PUR, or project-specific material | Depends on indoor safety, outdoor exposure, oil, UV, or abrasion risk |
| Fire rating | Flame retardant, LSZH, CPR, UL, IEC, or local requirement | Critical for building approval and tender compliance |
| Installation environment | Indoor, outdoor, riser, tray, conduit, wet area, rooftop, plant room | Determines jacket, shielding, and mechanical protection needs |
| Packing | Reel length, carton, pallet, wooden drum, project code printing | Affects installation efficiency, freight, and site handling |
| Required documents | Datasheet, catalogue, certificate, test report, sample | Needed for consultant approval, purchasing comparison, and acceptance |
In BMS cable procurement, a catalogue and a datasheet are not the same document. The catalogue helps buyers understand product families and available options. The datasheet confirms the exact construction and performance used for quotation, technical approval, and project comparison.
| Document | Main Use | Who Needs It | When It Matters Most |
|---|---|---|---|
| Catalogue | Product range overview | Buyer, distributor, project owner | Early sourcing and comparison |
| Datasheet | Exact technical specification | Engineer, consultant, system integrator | Technical approval and quotation matching |
| Test report | Performance verification | QA team, consultant, project owner | Compliance review and acceptance |
| Certificate | Standard or regulatory proof | Procurement and compliance team | Tender, import, or project submission |
| Sample | Physical confirmation | Contractor, installer, end user | Before bulk order or brand approval |
The fastest way to reduce RFQ revisions is to confirm the selection logic before asking for price. The following table can be used by procurement teams, engineers, and system integrators before contacting suppliers.
| Question | If Yes | Suggested Action |
|---|---|---|
| Is the cable used for RS485 / BACnet / Modbus? | Yes | Confirm twisted pair, shielding, and electrical parameters if specified |
| Is the route near motors, pumps, VFDs, or power cables? | Yes | Consider shielded cable and define grounding method |
| Is it installed inside a public or enclosed building? | Yes | Confirm LSZH, flame rating, CPR, UL, IEC, or local compliance |
| Is it outdoor, rooftop, or wet-area exposed? | Yes | Confirm PE jacket, UV resistance, water resistance, and mechanical protection |
| Is it part of a tender or consultant specification? | Yes | Match the datasheet line by line before quoting |
| Is the order for a large project or multi-site deployment? | Yes | Confirm sample, packing length, printing, delivery schedule, and documentation |
For RS485, BACnet MS/TP, and Modbus RTU, focus on twisted pair construction, shielding, route length, and noise environment.
For sensors, dry contacts, actuators, and field devices, confirm core count, conductor size, voltage rating, and termination method.
For public buildings, enclosed areas, and tender projects, jacket material and fire rating may be more important than only unit price.
BMS cable cost is affected by more than copper weight. The main cost drivers include conductor size, copper structure, shielding method, jacket compound, fire rating, certification, packing, customization, and project documentation. A low-cost cable quote may become expensive if it causes rework, consultant rejection, field communication failure, or repeated sample confirmation.
| Cost Driver | Lower-Cost Option | Higher-Spec Option | Risk If Chosen Incorrectly |
|---|---|---|---|
| Conductor size | Smaller AWG / mm² | Larger conductor | Voltage drop or signal issue |
| Shielding | Unshielded | Foil, braid, or foil + braid | EMI-related communication failure |
| Jacket material | General PVC | LSZH, PE, PUR, UV-resistant | Compliance, aging, or durability problem |
| Fire rating | Basic flame-retardant option | Project-specified fire class | Approval rejection |
| Packing | Standard reel | Customized reel length or project packing | Site waste, shortage, or handling delay |
| Documentation | Basic catalogue | Datasheet + test report + certificate | Consultant rejection or purchasing delay |
Buyers can use the following structure to reduce clarification time and help suppliers quote the correct cable faster.
Project type: hotel, office building, hospital, data center, industrial facility
Application: HVAC control, RS485 communication, sensor wiring, actuator wiring, Ethernet connection
Protocol: BACnet MS/TP, Modbus RTU, KNX, Ethernet, analog signal, dry contact
Installation route: indoor, outdoor, riser, tray, conduit, rooftop, plant room
Conductor size and type: AWG/mm², solid or stranded
Core/pair count and shielding structure
Jacket material, fire rating, voltage rating, required standard
Quantity, reel length, packing, printing, sample, datasheet, certificate
Project: Building Management System for [hotel / office / hospital / data center / industrial facility]
Application: HVAC control / RS485 communication / BACnet MS/TP / Modbus RTU / sensor wiring / actuator wiring / Ethernet connection
Cable specification: Conductor size, core/pair count, shielding, jacket, fire rating, voltage rating, installation environment
Commercial requirement: Quantity, packing length, printing, delivery schedule, required documents
Additional note: Please confirm the closest available specification if the exact cable is not standard.
Not always. RS485 cable may be used in many BMS systems, especially for BACnet MS/TP or Modbus RTU communication, but BMS cable can also include control cable, sensor cable, Ethernet cable, KNX cable, or other low-voltage building automation cables.
The most important information is the cable application and communication protocol. After that, buyers should confirm conductor size, core or pair count, shielding, jacket material, fire rating, installation environment, quantity, and required documents.
No. Shielding depends on the signal type, route length, EMI environment, and project specification. However, shielded twisted pair is often preferred for RS485, BACnet MS/TP, and Modbus communication, especially in noisy building environments.
A datasheet allows the supplier to match the exact cable structure, materials, electrical performance, jacket rating, and standard requirements. Without it, two suppliers may quote different products under the same general cable name.
It depends on the building type, local code, and project specification. LSZH is commonly requested for indoor public buildings or enclosed areas where low smoke and halogen-free performance are important.
Yes. Many modern BMS devices use IP-based communication, and Ethernet cable may be required for controllers, gateways, switches, or PoE devices. However, Ethernet cable should not be automatically substituted for RS485 or control cable unless the system design allows it.
Because the final cable cost depends on conductor size, copper structure, shielding, jacket compound, fire rating, certification, packing, and customization. Once these fields are clarified, the quotation may change from the initial rough estimate.
A sample is recommended when the project requires consultant approval, OEM printing, special jacket material, large quantity, or physical confirmation of flexibility, marking, shielding, and cable diameter before bulk order.
A BMS cable RFQ should not start and end with the phrase “BMS cable.” To quote accurately, suppliers need to know the system protocol, cable function, conductor size, core or pair count, shielding, jacket material, fire rating, installation environment, quantity, packing, and required documents. For procurement teams, engineers, and system integrators, preparing these fields early reduces quotation revisions, prevents technical mismatch, and improves project approval efficiency.
Before requesting a BMS cable quotation, prepare the datasheet or at least a structured RFQ table. If the project includes RS485, BACnet, Modbus, HVAC control, sensors, or multiple building subsystems, confirm the cable function first—then select the cable construction.
Send your project specification, cable schedule, datasheet, or application details. ZION can help check cable structure, shielding, jacket material, fire rating, packing, and sample requirements before quotation.
