Choosing ADSS fiber cable is not only about fiber count. For aerial fiber projects, the correct design depends on span length, installation method, route condition, mechanical load, sheath requirement, and matching accessories. This guide helps buyers, engineers, project owners, and system integrators confirm the key technical fields before quotation.
Start ADSS selection with maximum span, not only average span or fiber count.
Core count affects capacity and closure planning, but it does not automatically define tensile strength.
Installation method and accessories must match cable diameter, span rating, and route condition.
ADSS means All-Dielectric Self-Supporting fiber optic cable. It is designed for aerial installation without a metallic messenger wire. Because the cable supports itself between poles or towers, mechanical design is a core part of product selection.
A simple request such as “ADSS 24 core cable” is not enough for accurate quotation. A professional RFQ should include span length, core count, installation method, route environment, sheath requirement, and accessory needs. These fields affect tensile strength, cable diameter, sag, jacket material, fittings, drum length, and total installed cost.
| Selection Factor | Why It Matters | What Buyers Should Confirm |
|---|---|---|
| Span length | Determines tensile strength, sag, cable weight, and fitting type. | Maximum span, average span, pole spacing. |
| Core count | Determines fiber capacity, cable structure, closure size, and expansion margin. | 12F, 24F, 48F, 96F, 144F, or customized. |
| Installation method | Affects hardware, tension points, route risk, and maintenance logic. | Tangent pole, angle pole, dead-end, power corridor, roadside route. |
| Sheath type | Affects UV resistance, tracking resistance, abrasion resistance, and service life. | PE sheath, AT sheath, single sheath, double sheath. |
| Accessories | Determines field installation compatibility. | Tension set, suspension set, pole clamp, downlead clamp, closure. |

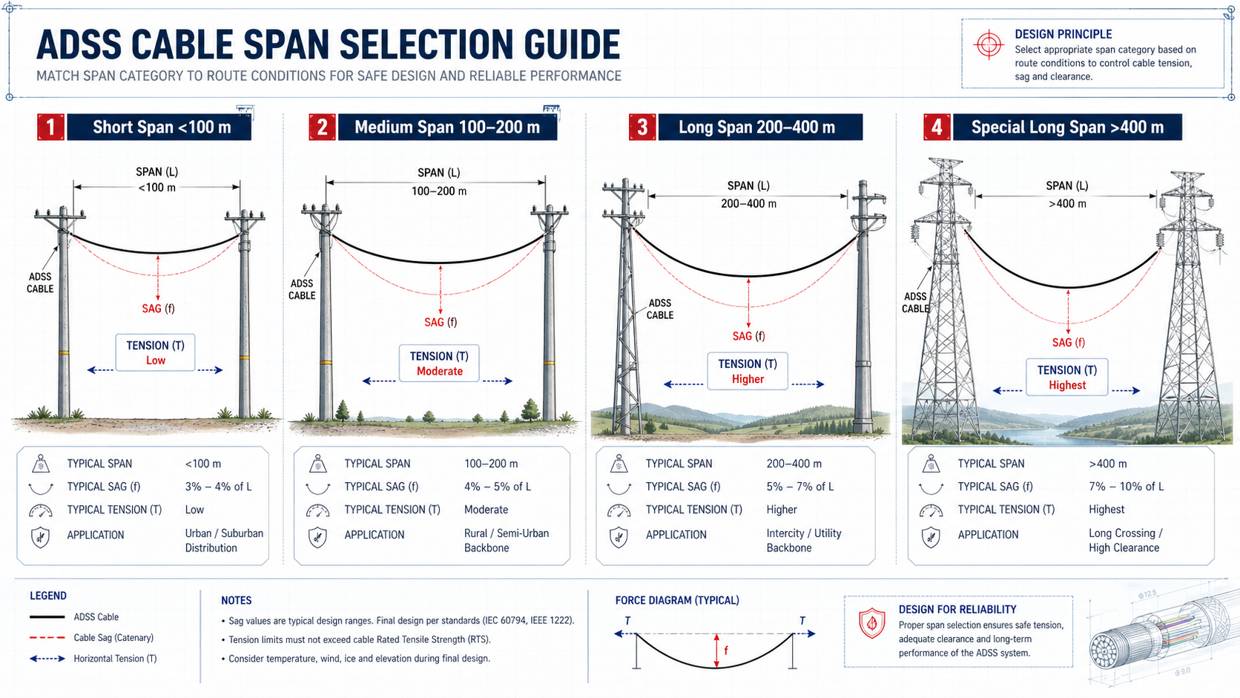

Span length is usually the first and most important technical field in ADSS cable selection. It refers to the distance between two supporting points, such as telecom poles or utility towers. The longer the span, the higher the mechanical demand on the cable.
For engineering review, the maximum span is more important than the average span. Even if most sections are short, one longer span may affect cable strength, sag allowance, and accessory selection.
| Span Range | Typical Project Type | Cable Selection Focus |
|---|---|---|
| Below 100 m | FTTH distribution, rural telecom poles, short aerial routes. | Economy, easy installation, basic tensile performance. |
| 100–200 m | Standard outdoor aerial telecom routes. | Balance between cable weight, tensile strength, sag, and accessories. |
| 200–400 m | Longer pole routes, open areas, utility corridors. | Higher tensile strength, better sag control, stronger fittings. |
| Above 400 m | Special long-span or difficult routes. | Customized engineering design, route data, wind and ice load review. |

Core count determines how many optical fibers are inside the ADSS cable. Common ADSS fiber counts include 2F, 4F, 6F, 12F, 24F, 48F, 72F, 96F, 144F, and customized higher counts.
Core count should be selected based on current service demand, future expansion, splice planning, and budget. Too few fibers may limit future capacity. Too many fibers may increase cable diameter, closure size, splicing work, inventory complexity, and total project cost.
| Core Count | Typical Application | Buyer’s Decision Point |
|---|---|---|
| 2–12 cores | Small FTTH branch, CCTV, rural connection, private network. | Low cost, simple route, limited expansion. |
| 24 cores | Common distribution network, small ISP route, campus network. | Good balance between cost and capacity. |
| 48 cores | Telecom distribution, industrial park, village network, backbone extension. | Better expansion capacity with moderate cost increase. |
| 72–96 cores | Larger ISP routes, city distribution, utility communication networks. | Requires better closure and splice planning. |
| 144 cores and above | High-capacity backbone or special network project. | Needs detailed planning for cable diameter, drum length, closure capacity, and installation. |
Higher fiber count supports future expansion, but it also affects splicing workload and closure selection.
Higher core count does not automatically mean stronger tensile performance. Span and load define cable strength.
Installation method affects cable structure, hardware selection, installation tension, and long-term maintenance. ADSS cable may be installed on telecom poles, roadside routes, power corridors, tangent pole sections, angle poles, dead-end poles, and splice points.
The installation method determines whether the project mainly needs suspension hardware, tension hardware, or a complete accessory package.
| Installation Method | Typical Condition | What to Confirm |
|---|---|---|
| Telecom pole-to-pole route | Standard aerial fiber distribution. | Span, pole height, cable diameter, fittings. |
| Roadside rural route | Long outdoor route with variable pole spacing. | Wind, sag, pole condition, route angle. |
| Power line corridor | Cable installed near electrical infrastructure. | Voltage level, electric field risk, sheath requirement. |
| Angle pole route | Cable direction changes. | Angle degree, tension hardware, installation load. |
| Terminal / dead-end pole | Cable is fixed and tensioned. | Tension set, pole clamp, rated tension. |
| Splice point | Cable is connected or branched. | Closure, storage bracket, downlead clamp. |
A typical ADSS cable may include optical fibers, loose tubes, water-blocking materials, central strength member, aramid yarn, and outer sheath. The exact structure depends on fiber count, span, and installation condition.
| Component | Function | Why It Matters |
|---|---|---|
| Optical fiber | Transmits optical signal. | Determines transmission performance and compatibility. |
| Loose tube | Protects fibers from mechanical and temperature stress. | Important for outdoor stability. |
| Water-blocking material | Helps reduce water migration. | Critical for outdoor service life. |
| Aramid yarn | Provides tensile strength for self-supporting installation. | Critical for span and installation tension. |
| Outer sheath | Protects against UV, abrasion, weather, and outdoor exposure. | Determines durability and application suitability. |
Sheath selection affects cost, cable weight, mechanical protection, UV resistance, tracking resistance, and long-term reliability. Buyers should not select double sheath or AT sheath only because they sound stronger. The route condition must justify the choice.
| Option | Typical Use | Advantage | Limitation |
|---|---|---|---|
| Single sheath ADSS | Short to medium span telecom routes. | Lighter, economical, easier to install. | Lower protection than double sheath. |
| Double sheath ADSS | Longer spans, harsher outdoor routes, higher mechanical stress. | Better mechanical and environmental protection. | Higher cost, larger diameter, heavier cable. |
| PE sheath | Standard outdoor telecom pole routes. | Good outdoor durability and cost balance. | Not always suitable for high electric field environments. |
| AT sheath | Power corridor or high electric field environment. | Improves resistance to electrical tracking risk. | Requires project condition review and may increase cost. |
ADSS cable is not a standalone product in most aerial projects. It works together with tension sets, suspension sets, pole clamps, downlead clamps, storage brackets, and fiber optic closures. If the accessories do not match the cable diameter, span rating, and installation point, the project may face installation delays or field modification.
| Accessory | Function | Selection Basis |
|---|---|---|
| Tension set | Fixes cable at terminal poles, angle poles, and dead-end points. | Cable diameter, span, rated tension. |
| Suspension set | Supports cable at tangent poles. | Cable diameter, span, sag requirement. |
| Pole clamp | Fixes hardware to pole. | Pole type, pole diameter, installation method. |
| Downlead clamp | Guides cable down the pole safely. | Cable diameter, fixing position. |
| Cable storage bracket | Stores spare cable near splice point. | Spare length, pole condition. |
| Fiber optic closure | Protects splicing and branching. | Fiber count, cable ports, installation environment. |
A professional ADSS inquiry should give the supplier enough information to recommend the correct structure, sheath, tensile strength, packing length, and accessories. The more complete the RFQ, the lower the risk of wrong cable design or missing hardware.
| RFQ Field | Example | Why It Matters |
|---|---|---|
| Fiber count | 12F / 24F / 48F / 96F / 144F | Defines capacity and splice planning. |
| Fiber type | G.652.D / G.657.A1 / G.657.A2 | Affects optical compatibility and bend performance. |
| Maximum span | 80 m / 100 m / 150 m / 200 m / 300 m | Determines mechanical design and sag control. |
| Installation method | Telecom pole route / power corridor / roadside route | Affects cable structure and hardware type. |
| Sheath requirement | PE / AT / single sheath / double sheath | Affects outdoor durability and power corridor suitability. |
| Route condition | Straight route / angle route / terminal pole / splice point | Determines suspension and tension hardware needs. |
| Accessories | Tension set, suspension set, pole clamp, closure | Improves installation compatibility. |
| Packing length | 2 km / 3 km / 4 km per drum | Affects logistics, splice points, and installation efficiency. |
ADSS fiber optic cable, 48 cores, G.652.D fiber, maximum span 150 m, outdoor aerial installation on telecom poles, PE sheath, with matching tension sets, suspension sets, pole clamps, downlead clamps, and splice closure.
“ADSS 24 core price” is not enough. Span, installation method, route condition, and sheath requirement are still needed.
Average span helps cost estimation, but maximum span often determines mechanical design.
Two cables with the same fiber count may have different tensile strength, diameter, sheath, and span capability.
Missing tension sets, suspension sets, pole clamps, or closures can delay installation.
Double sheath improves protection, but it also increases cost, weight, and diameter.
For power corridor projects, sheath material and electrical tracking risk must be reviewed.
| Project Example | Selection Focus | Buyer’s Note |
|---|---|---|
| 24-core ADSS for 100 m span | Standard telecom pole route, normal environment, cost-effective structure. | Confirm fiber type, cable diameter, span rating, and matched fittings. |
| 48-core ADSS for 150–200 m span | Higher attention to tensile strength, sag control, and hardware selection. | Check aramid yarn design, tension set, and suspension set compatibility. |
| 96-core ADSS for power corridor | Sheath type, voltage level, installation position, and environmental pollution. | AT sheath may be required depending on project conditions. |
| ADSS for mountain or open-area route | Wind load, long span, difficult installation, higher mechanical stress. | Review cable strength, drum length, sag, fittings, and installation method before quotation. |
A complete ADSS RFQ should include fiber count, fiber type, maximum span, installation method, sheath requirement, route condition, weather condition, and accessory needs. For power corridor projects, voltage level and installation position should also be provided.
In many standard telecom pole routes, 24-core ADSS cable can be suitable for around 100 m span. However, final selection depends on cable structure, tensile strength, sag requirement, weather load, and installation condition.
No. Higher fiber count means more optical capacity, but it does not automatically mean higher tensile strength. Span length and mechanical load determine the required cable strength.
Single sheath ADSS is usually lighter and more economical, suitable for many short and medium span routes. Double sheath ADSS provides better mechanical and environmental protection, but it is heavier and more expensive.
AT sheath should be considered when ADSS cable is installed near power lines or in high electric field environments. The decision depends on voltage level, installation position, distance from conductors, pollution level, humidity, and project specification.
Tension sets, suspension sets, and clamps must match the cable diameter, span, and rated tension. Incorrect accessories can create installation stress, cable damage, or field delays.
To choose ADSS fiber cable correctly, start with three questions: What is the maximum span? How many fibers are required now and in the future? How will the cable be installed along the route?
After these fields are confirmed, the supplier can recommend the correct cable structure, sheath type, tensile strength, drum length, and matching accessories. For professional aerial fiber projects, the best ADSS quotation is not simply the lowest price per meter. It is the solution that matches route condition, installation method, mechanical load, accessory compatibility, and long-term maintenance requirements.
Share your span length, core count, installation method, route condition, and accessory requirements. ZION can help review cable structure, sheath option, drum length, and matched installation hardware for your aerial fiber project.
