Backbone Cabling vs Horizontal Cabling

• Backbone cabling forms the core link between equipment rooms and telecommunications rooms.

• Horizontal cabling extends network access from the telecom room to work area outlets and end-user devices.

• Well-designed structured cabling improves scalability, maintenance efficiency, and long-term upgrade readiness.

A stable network does not begin at the switch port. It begins with the physical infrastructure behind the system.

In modern buildings, structured cabling provides a standardized and modular framework for transmitting data, voice, and video. Instead of relying on scattered point-to-point wiring, it organizes the network into clearly defined subsystems that are easier to deploy, maintain, troubleshoot, and expand. Among these subsystems, backbone cabling and horizontal cabling are two of the most important.

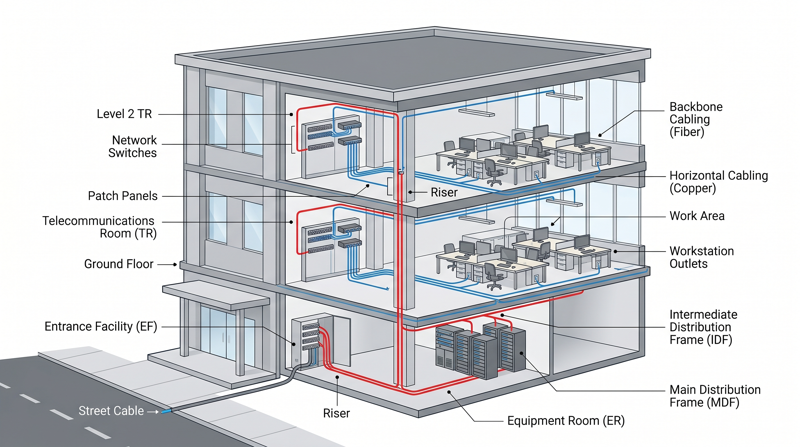

■ What Is Structured Cabling?

Structured cabling is a standards-based approach to organizing network wiring infrastructure inside a building or campus. Rather than creating isolated cable runs for each application, it divides the system into functional sections so the network can be managed as a unified whole.

A typical structured cabling system includes the entrance facility, equipment room, telecommunications room, backbone cabling, horizontal cabling, and work area. Each part supports a different stage of the connection path, which makes the system more scalable and easier to maintain over time.

This architecture is widely used in offices, factories, hospitals, schools, data rooms, and commercial buildings where stable connectivity and future expansion matter.

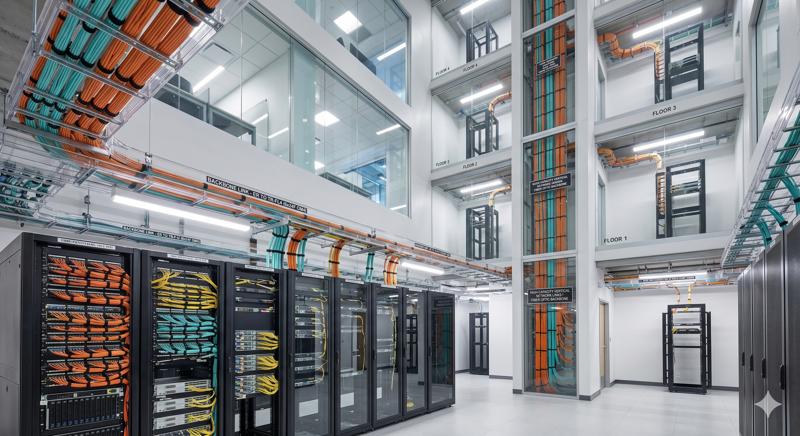

■ What Is Backbone Cabling?

Backbone cabling, also called vertical cabling, is the core transmission path within a structured cabling system. It connects key spaces such as the entrance facility, equipment room, and telecommunications rooms, and often links the main distribution frame with intermediate distribution frames across floors or between buildings.

Because this layer carries aggregated traffic, backbone cabling is usually designed for higher bandwidth, longer distances, and stronger upgrade potential. For this reason, fiber optic cable is commonly the preferred medium for backbone applications, although high-pair-count copper may still be used in some environments.

In practical terms, backbone cabling is the internal highway of the network. It keeps the major rooms and distribution points connected so the entire building can function as one system.

■ What Is Horizontal Cabling?

Horizontal cabling is the portion of the structured cabling system that runs from the telecommunications room to the work area. It connects floor-level distribution points to outlets, user terminals, computers, IP phones, wireless access points, and other networked devices.

This subsystem is commonly built with twisted-pair copper cable such as Cat5e, Cat6, or Cat6A. In higher-speed or specialized applications, multimode fiber may also be used. Supporting components typically include patch panels, outlets, connectors, and patch cords.

If backbone cabling moves traffic through the building, horizontal cabling is the final delivery layer that brings connectivity to the user.

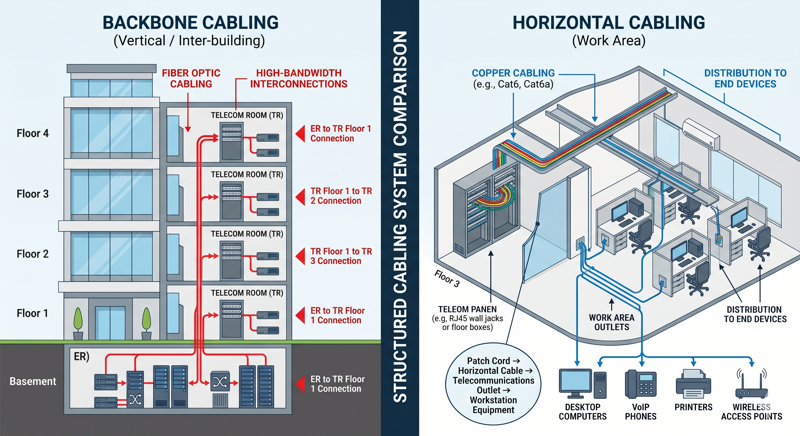

■ Key Differences Between Backbone and Horizontal Cabling

■ Cable Types and Typical Applications

In most modern projects, backbone cabling is more likely to use fiber optic cable. The reason is straightforward: backbone links must carry large traffic loads, support longer distances, and remain ready for future upgrades.

Horizontal cabling, on the other hand, is commonly built with copper twisted pair because it is practical, cost-effective, and well suited to work area connections. Categories such as Cat6 and Cat6A are often chosen where stable performance, higher bandwidth, and support for newer devices are required.

■ Distance and Standards Considerations

In a structured cabling system, horizontal cabling is generally expected to follow defined channel limits. A common planning guideline is that the permanent link from the telecommunications room to the work area outlet should not exceed 90 meters, while patch cords in the telecom room and at the user side occupy the remaining channel allowance.

This matters because horizontal performance depends on more than cable category alone. Termination quality, routing discipline, bend control, patching practice, and total channel length all affect real-world performance.

Backbone design is different. It is shaped more by media choice, bandwidth target, topology, and building layout, which is why fiber is often the more suitable option for this part of the infrastructure.

■ ZION COMMUNICATION’s Practical View

In real projects, backbone and horizontal cabling should never be treated as interchangeable. They solve different infrastructure problems.

Backbone cabling should be planned around bandwidth growth, stability, transmission distance, and upgrade readiness. Horizontal cabling should be planned around standards compliance, endpoint density, installation consistency, and cost-performance balance.

When these two layers are designed correctly, the result is not just a functioning network. It is a cleaner, more scalable, and easier-to-maintain physical infrastructure.

■ Conclusion

Backbone cabling and horizontal cabling are not competing options. They are complementary parts of the same structured cabling system.

Backbone cabling supports the network core by connecting major rooms and distribution points. Horizontal cabling extends that connectivity to work areas and end-user devices in a standardized, manageable way.

The best structured cabling designs build the backbone for capacity and the horizontal layer for reliable delivery. Done properly, this creates a network foundation that is easier to manage today and more prepared for tomorrow.
