Fiber color code is an essential part of fiber optic communication systems. Following the TIA-598 standard, the process of identification of fiber types, buffer tubes, fiber strands, and connectors is described universally using the standard colors. This makes it simpler for fiber optic technicians to manage installation, splicing, and troubleshooting of the fiber optic system.

■ What Is the TIA-598 Fiber Color Code?

The TIA-598 standard is a global standard that has been developed by the Telecommunications Industry Association (TIA) to provide a color coding system for fiber optics. It defines color codes for:

• Fiber optic outer jacket

• Buffer tubes

• Individual optical fibers

• Connectors and terminations

The main aim is to come up with a harmonized approach across cable manufacturers, thereby facilitating the process of identifying the fiber optic cables during fieldwork.

■ Outer Jacket Color Code

The color of the fiber optic cable's outer jacket indicates the type of fiber used. Below is the TIA-598 color chart for non-military and military applications:

For hybrid cables (with multiple fiber types), the jacket should include printed legends to indicate the fiber count and types inside.

■ Buffer Tube Color Code

In loose-tube fiber optic cables, multiple fibers are grouped inside color-coded buffer tubes. The standard assigns 12 unique colors:

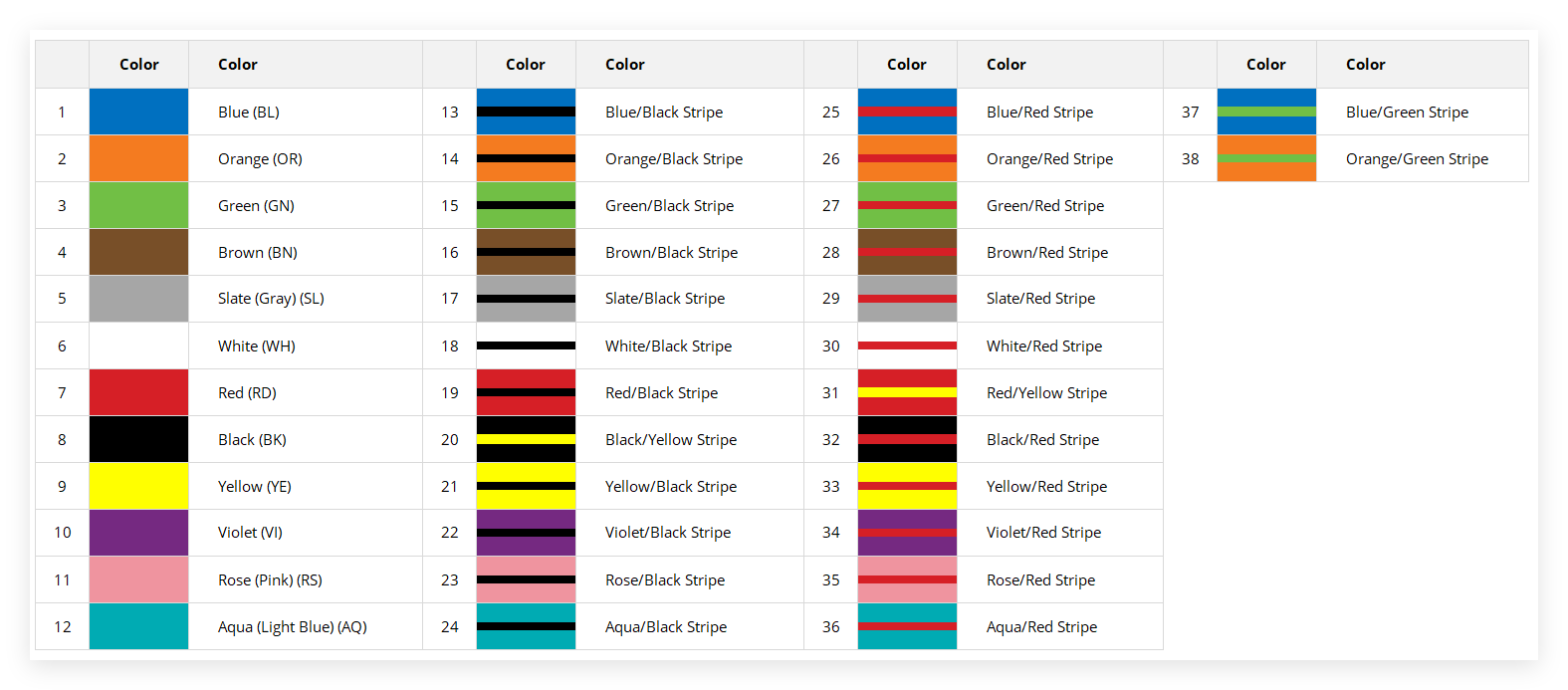

Unit Position Color Code for Loose Tube (TIA-598)

For cables with more than 12 tubes, the sequence repeats with added stripes or other markers for distinction.

■ Fiber Color Code (Individual Fibers)

Each fiber inside a cable is color-coded using the same 12-color system. This is applicable to both tight-buffered and loose-tube cable constructions.

For fiber counts greater than 12, the colors repeat with added rings, stripes, or dashes to differentiate the groups.

■ Fiber Connector Color Code

The coloring of the fiber optic connectors or their strain-relief boots is also regulated, different for fiber type and polish style (UPC or APC):

UPC (Ultra Physical Contact) and APC (Angled Physical Contact) connectors are not interchangeable. Matching by color is critical for proper performance and reflection control.

■ Why Fiber Color Code Matters

✅ Easy Identification

Through color coding, technicians are able to distinguish between different fiber types and strands with a mere look and without any special tools.

✅ Fast Installation

Technicians can quickly match fibers to their assigned ports, with no time wasted and no mistakes made during installations.

✅ Simplified Maintenance

In the event of fiber breaks or faults, technicians are able to trace and identify the precise fiber strand right away without any hindrances.

✅ Better Fiber Management

Offers a practicable guide in managing huge fiber counts in data centers, FTTH deployments, and backbone networks.

✅ Safety and Compliance

Color-coded jackets and connectors are used so as to make sure that fiber types are not mistaken and standard compliance is achieved.

■ Conclusion

The TIA-598-based color code set for fiber optic cable is undoubtedly one of the most significant elements in the management of these cables. From the coding of the external jackets, internal fibers, and connectors, they are very identifiable, safe and efficient. Regardless of whether you are deploying backbone infrastructure, FTTH networks, or if you are in charge of a large data center, proper color coding is vital for successful fiber optic operations.
