Author: Site Editor Publish Time: 12-08-2025 Origin: Site

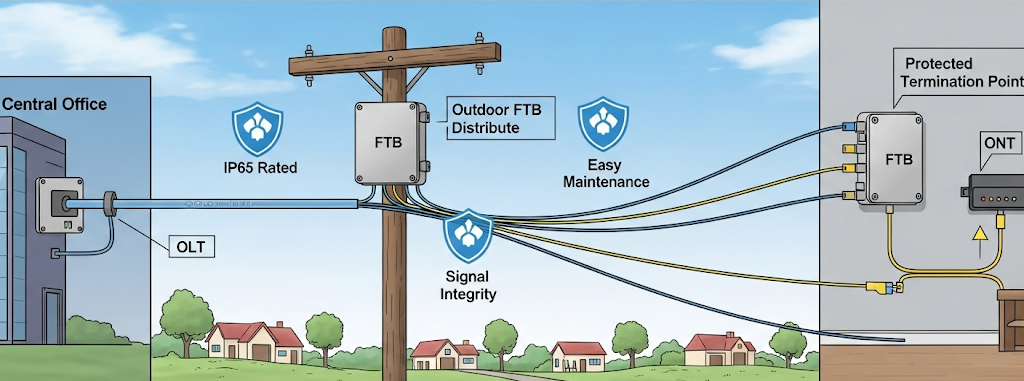

A fiber termination box is the standard instrument used in fiber optic networks to connect, secure, and protect optical fibers at the terminating point. It functions as a junction between the incoming fiber cable and the outgoing customer-side fiber cable, where one fiber can be spliced, patched, and distributed.
These boxes are frequently utilized in FTTH (Fiber-to-the-Home), FTTB (Fiber-to-the-Building), FTTC (Fiber-to-the-Curb), and data center implementations.
Fiber Protection: Prevents damage to the fiber strands from any kind of bending, dust, or unintentional handling.
Cable Organization: Fiber cables are windled up in a way that cable entanglement is avoided, and the standard bend radius is maintained.
Easy Maintenance: Enables technicians to access the fibers, ensuring the entire network is not impaired by the network service procedure.
Several tasks are given to fiber termination boxes, such as secure enclosures for optical connectors, adapters, and splice trays.
Signal Integrity: Ensuring proper cable alignment to mitigate potential signal loss or interference.

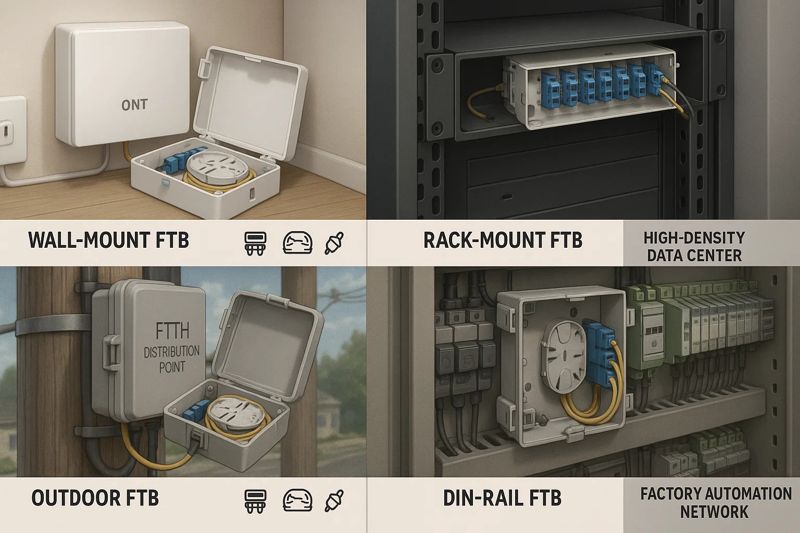

Fiber termination boxes come in different sizes, mounting styles, and port capacities, such as:
Type | Description | Typical Use |
Wall-Mount Fiber Termination Box | Mounted on walls for compact and accessible installation. | FTTH, office wiring. |
Rack-Mount Fiber Termination Box | Installed in 19" network racks; supports high-density connections. | Data centers, telecom rooms. |
Outdoor Fiber Termination Box | Weatherproof enclosure with IP65/IP68 protection. | Outdoor FTTH distribution points. |
DIN-Rail Fiber Termination Box | Mounted on DIN rails for industrial environments. | Factory automation, industrial networks. |
There are a number of factors that need to be considered when it comes to proper installation of a fiber termination box that involves ensuring safety, accessibility, and performance in the same package.
Inspect the capacity and consequently, the compatibility with adapters (SC, LC, FC, ST).
Choose a location where the required space is available and where the access is easy for future maintenance.
Pre-Installation of Tools Set is required: fiber cleaver, fiber stripper, fusion splicer, crimping tools, and cleaning kit.
Extending the fiber through the box makes use of a cable entry gland.
Fasten the cable to the clamps or ties to assure the cable is immovable.
Cable must be properly minimum radius (usually ≥30mm for standard fiber).
Remove the cable jacket and buffer coating material so as to loose the fiber stands.
Before incorporating the fiber strands, check smooth surfaces in order to obtain a better result.
Select either a fusion or mechanical splice to respond to the different project requirements.
Store the splice tray neatly.
Position adapters amid the panel slots.
The fibers issue is terminated through SC, LC, FC, or ST connectors as needs be.
Assess optical fiber through OTDR or power meter in order to know its continuity and loss.
Close tightly the box lid to avoid the entry of dust and moisture.
Mark each port of the machine for easy identification while troubleshooting.
The value of servicing lies in its ability to lengthen the lifespan and keep the network from experiencing problems.
Inspect regularly: Search for dust, loose connections, or the like insignia of damage.
Be mindful when cleaning the connectors, i.e., use isopropyl alcohol wipes or dedicated fiber cleaning tools.
Always check the cable strain relief: Ensure that cables are still in position to provide the necessary grip and protection.
Testing optical performance: Conduct OTDR tests done yearly to expose the possibility of signal loss.
Replace any damaged components: Immediately do a swap out for any cracked adapters or worn-out grommets you notice.
It is advised not to make direct visual contact with active fiber end - the invisible laser light can be harmful to your eyes.
Do not exceed the radius of bend - Fiber may suffer a permanent bend from much sharper than its natural state.
Proper use of PPE - Gloves and safety glasses during any fiber handling process.
Fiber scraps must be disposed of - Glass particles could be airborne and hazardous.
A: A termination box is smaller and used for localized fiber management in the home, office, or small distribution points, whereas an ODF is larger and located in central offices or data centers for large-scale management of fibers.

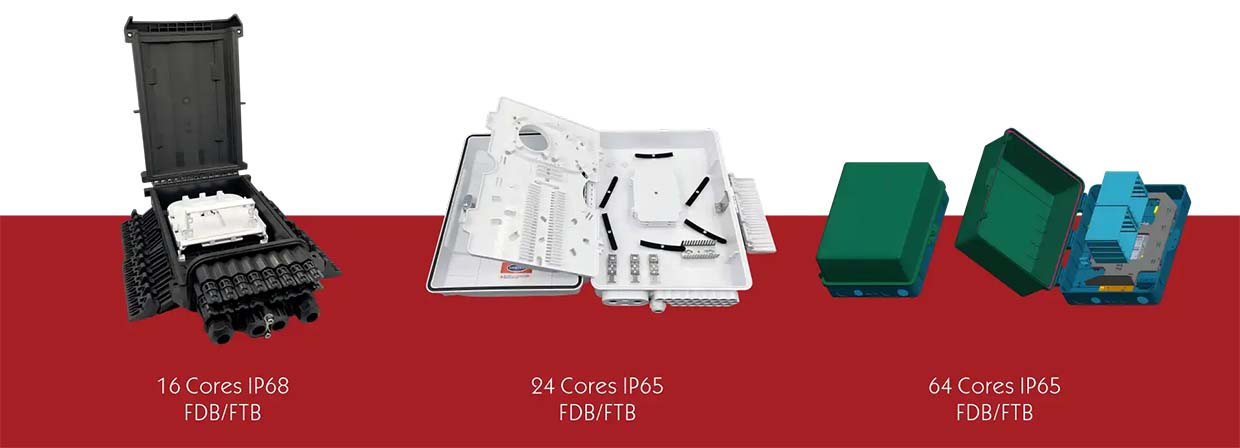

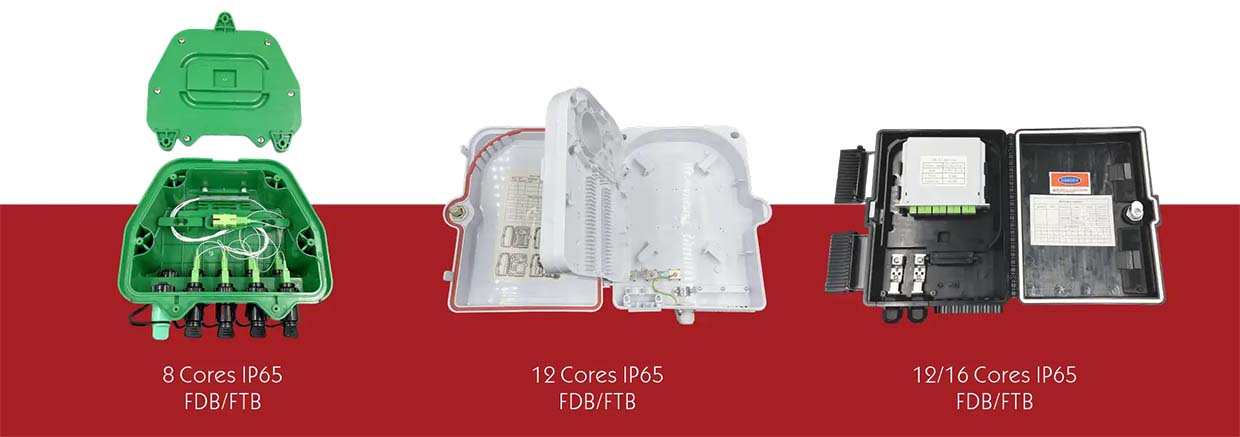

A: The model makes the difference - small boxes may keep only 2-12 fibers, but with the rack version, we can manage even 24, 48, or 96 fibers.
A: No, indoor ones do not have weatherproofing, so they are only used for inside functionality. For outdoor use, select IP-rated boxes.
A: Yes, in fact, even if you are using such cords, it is good to have a termination box to guard the connections, and also for easier maintenance.
A: Ideally, this should be done at least once every 6-12 months, and even though it should be more often done in dusty environments.
After all, fiber termination boxes are the components that provide protection for fibers, facilitate standardized maintenance, and ensure signal quality. Proper installation and maintenance of termination boxes not only in household or office but even industrial site as well as out-of-doors all will work for longevity and reliability.
With a good fiber termination box and appropriate maintenance, you can reduce the amount of downtime, heighten the quality of signals, and prolong use of the fiber optic network as a result.
