Author: Site Editor Publish Time: 28-04-2026 Origin: Site
For most outdoor backbone, duct, aerial, and direct burial fiber projects, G.652.D remains the standard and cost-effective single-mode fiber choice. However, when the route includes tight bends, small closures, FTTH drops, dense distribution boxes, microducts, or indoor-outdoor transitions, G.657.A2 can reduce bend-related loss risk and improve tender competitiveness.
Use G.652.D for standard outdoor backbone, duct, aerial, and direct burial routes where bend risk is controlled.
Use G.657.A2 for FTTH drops, small closures, compact cabinets, microducts, and indoor-outdoor transition areas.
For tenders, fiber type is not a minor detail: it affects compliance, quotation price, field reliability, and bid competitiveness.
For most outdoor fiber projects, buyers do not choose fiber type only from a catalog name. They should check the cable route, bend radius risk, termination space, installation method, tender wording, and total lifecycle cost. G.652.D and G.657.A2 are both single-mode fibers, but they solve different project problems. G.652.D is widely used for standard outdoor transmission. G.657.A2 is preferred when bend performance and installation tolerance become critical.

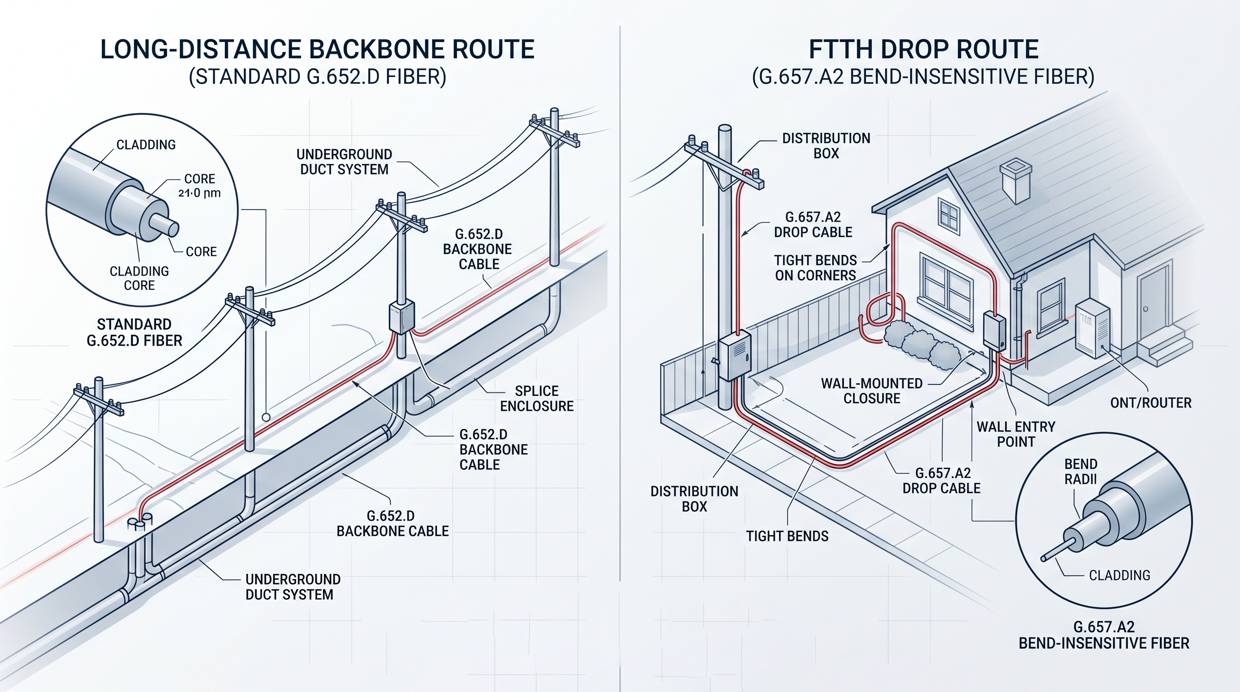

The fastest way to decide is to separate long, open outdoor routes from compact, bend-sensitive access routes. A price-sensitive backbone project does not need the same fiber logic as an FTTH drop cable or a microduct access route.
| Project Condition | Recommended Fiber Type | Why It Matters |
|---|---|---|
| Long-distance outdoor backbone | G.652.D | Mature, cost-effective, and widely accepted |
| Standard duct or aerial distribution cable | G.652.D or G.657.A2 | Depends on route bending and end-user requirement |
| FTTH drop cable or last-mile connection | G.657.A2 | Better bend resistance in tight routing |
| Small closure, cabinet, splice tray, or wall box | G.657.A2 | Reduces macrobend loss risk |
| Micro cable or compact cable design | G.657.A2 | More tolerant of smaller cable diameter and tighter routing |
| Price-sensitive project with normal bending conditions | G.652.D | Lower cost and easier commercial approval |
G.652.D is the most widely used standard single-mode optical fiber for outdoor telecom networks. It is commonly used in backbone, metro, distribution, duct, aerial, and direct burial fiber optic cables. For many outdoor fiber projects, G.652.D is still the default choice because the cable route usually has enough installation space and does not require repeated tight bending.
Stable long-distance transmission performance and broad compatibility with existing single-mode networks.
Usually more cost-effective for standard outdoor backbone and distribution projects.
Loose tube cable, duct cable, aerial cable, direct burial cable, ADSS cable, and standard outdoor distribution cable.
G.657.A2 is a bend-insensitive single-mode fiber designed to reduce optical loss caused by tight bends. It is often used in FTTH, access networks, drop cables, compact distribution cables, indoor-outdoor cables, and high-density termination areas.
In real projects, G.657.A2 is valuable when the cable passes through small wall boxes, fiber distribution boxes, compact splice closures, high-density ODF frames, building entry points, FTTH drop routes, microduct pathways, or areas where installers may not fully control bend radius.
| Item | G.652.D | G.657.A2 | Buyer Impact |
|---|---|---|---|
| Fiber category | Standard single-mode fiber | Bend-insensitive single-mode fiber | Affects technical compliance and tender wording |
| Typical use | Backbone, metro, duct, aerial, direct burial | FTTH, drop cable, compact access, dense routing | Choose based on route condition |
| Bend performance | Good for normal outdoor installation | Better for tight bend environments | Reduces bending-related attenuation risk |
| Cost | Usually lower | Usually higher | Impacts quotation competitiveness |
| Installation tolerance | Requires proper bend control | More forgiving in compact spaces | Reduces risk from field installation errors |
| Tender value | Suitable for general outdoor projects | Stronger for FTTH and premium access projects | Can improve tender scoring when required |
In many RFQs, buyers focus on cable structure: fiber count, jacket material, armor, span, sheath, or cable diameter. However, fiber type also changes the quotation logic. G.657.A2 may increase the fiber material cost compared with G.652.D. The difference may look small per meter, but in large-volume projects it can affect total bid price.
On the other hand, if the route has tight bending risk, choosing G.652.D only to reduce cost may lead to higher installation loss, rework, service complaints, or acceptance problems.
| Quotation Factor | Why It Changes with Fiber Type |
|---|---|
| Fiber raw material cost | G.657.A2 is usually more expensive than standard G.652.D |
| Cable design | Compact cables may be easier to justify with G.657.A2 |
| Installation risk | G.657.A2 reduces bend-related loss risk |
| Tender compliance | Wrong fiber type may cause technical rejection |
| Long-term maintenance | Bend-insensitive fiber may reduce future service issues in compact routes |
End users usually specify G.657.A2 when they care about installation tolerance, compact routing, and long-term maintenance stability. This is common in FTTH, FTTx access, outdoor-to-indoor transition, microduct installation, and dense termination applications.
Fiber often passes through walls, boxes, corners, conduits, and customer-side routes. G.657.A2 helps reduce signal loss from tight bends.
When outdoor cable enters buildings, telecom rooms, risers, or cabinets, routing space often becomes more compact.
In dense splice trays or distribution boxes, bend radius control is harder. G.657.A2 gives a safer margin.
If the tender clearly specifies G.657.A2, offering G.652.D may be considered non-compliant.
The key difference between G.652.D and G.657.A2 is not whether one can transmit data and the other cannot. Both are single-mode fibers used in telecom networks. The difference is how much bending stress the fiber can tolerate before optical loss becomes a problem.
Standard duct, aerial, or direct burial routes
Bend radius can be properly controlled
Closures and cabinets have enough space
Project is highly price-sensitive
Tender does not request bend-insensitive fiber
FTTH drop or customer-side access routes
Small boxes, cabinets, splice trays, or wall routes
Compact or micro cable design
High rework cost if acceptance fails
Tender rewards bend performance or field reliability
In outdoor fiber tenders, many suppliers quote similar cable structures. The difference often appears in technical details such as fiber type, cable diameter, tensile strength, sheath material, armor, water blocking, and test standards. Choosing the correct fiber type can improve technical compliance, reduce project risk, and strengthen lifecycle value.
| Tender Situation | Risk If Fiber Type Is Wrong | Better Approach |
|---|---|---|
| Tender specifies G.657.A2 | Offer may be non-compliant | Quote G.657.A2 clearly |
| Tender only says “single-mode fiber” | Buyer may compare only price | Clarify whether G.652.D or G.657.A2 is expected |
| FTTH project with compact routing | G.652.D may pass quotation but create field risk | Recommend G.657.A2 option |
| Price-sensitive backbone project | G.657.A2 may be technically unnecessary | Offer G.652.D to stay competitive |
| Mixed outdoor and indoor route | Bend risk may be underestimated | Confirm building entry and termination design |
Before asking for price, buyers should provide enough technical fields to avoid inaccurate quotation or later clarification. Fiber type should be written clearly, especially when the tender has strict compliance requirements.
| RFQ Field | What to Confirm | Why It Matters |
|---|---|---|
| Fiber type | G.652.D or G.657.A2 | Directly affects price and compliance |
| Fiber count | 2F, 4F, 12F, 24F, 48F, 96F, etc. | Determines cable design and cost |
| Cable structure | Loose tube, central tube, drop cable, micro cable | Affects bending and installation method |
| Installation environment | Duct, aerial, direct burial, wall route, indoor-outdoor | Determines mechanical and jacket requirements |
| Bend condition | Normal route or tight bending areas | Helps decide whether G.657.A2 is needed |
| Jacket material | PE, LSZH, flame-retardant, UV-resistant | Affects outdoor durability and indoor safety |
| Water blocking | Dry water blocking or jelly-filled design | Important for outdoor cable reliability |
| Armor requirement | Non-armored, steel tape, corrugated steel, FRP, etc. | Depends on rodent, crush, and burial risk |
| Testing requirement | Attenuation, OTDR, IEC/ITU compliance | Supports tender documentation |
| Packing length | 1 km, 2 km, 3 km, 4 km per drum | Affects logistics and installation planning |
“Single-mode” is not enough for accurate quotation. G.652.D and G.657.A2 have different performance priorities.
G.652.D may reduce cost, but it may also create hidden risk in FTTH or compact closure routes.
For large backbone projects, unnecessary upgrades may reduce price competitiveness.
If the tender specifies G.657.A2, the supplier should not quote G.652.D unless an alternative proposal is allowed.
For outdoor fiber projects, G.652.D and G.657.A2 are both valid choices, but they serve different project priorities. G.652.D is usually the practical and cost-effective choice for standard outdoor backbone and distribution networks. G.657.A2 becomes more valuable when the project involves FTTH, compact routing, tight bends, small closures, or strict end-user requirements.
For buyers, the best approach is to confirm the project route, bending risk, cable structure, and tender language before quotation. A clear fiber type decision can reduce technical clarification, prevent installation problems, and improve tender competitiveness.
Share your fiber count, route type, installation environment, cable structure, and tender requirements. ZION can help you match the correct fiber type and cable design before quotation.
