HELLOSIGNAL Industrial CAT6 Cable

▉ Application

Apply to complex industrial environment,power chain and moving mechanical components,
used in electric power transportation,water treatment and other industries.At the same time,
cable suitable for EtherCAT and Ethernet/IP system using.

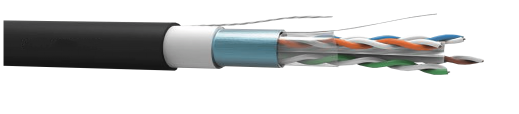

▉ Cable Construction

Conductor:  Stranded copper wire

Insulation: PO

Shield: AL/Mylar screen and copper wire braid

Jacket: see attached list

Color: grey(similar to RAL 7035)

▉ Product Feature

Professional design,reduce the using cost

PUR jacket is resistant to oil,abrasion and hydrolysis

Fire resistance meets IEC60332-1 UV resistance

Easy bending

UV resistance

Double shielded cable,excellent Anti-EMI performance and reliable transmission

▉ Cross Section

▉ Technical data

Temperature range

 .-40℃ to 80℃

Test voltage

1000V

Peak voltage

(Data transmission application) 100V

Characteristic impedance 100±15 Ohm

100±15 Ohm

Min bending radius

Fixed installation：8x cable diameter

Occasional movement：15x cable diameter

Other characteristics

According to ANSI/TIA-568 and IEC11801

▉ Product List

Item No.

Spec.

Jacket

Nominal
OD(mm)

Copper.weight approx (kg/km)

Weight approx(kg/km)

7130100

4*2*AWG26/19

PVC

6.8

29

54

7130101

4*2*AWG26/19

PUR

6.8

29

54

7130102

4*2*AWG24/19

PVC

7.1

38

66

7130103

4*2*AWG24/19

PUR

7.1

38

66

▉ Order Informations

Marking

HELLOSIGNAL Industrial CAT6 Cable XXXFT/M

Package

500FT/PULL BOX, 1000FT/Wooden Spool,Pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
