Author: Will Publish Time: 20-08-2025 Origin: Site
A home network with a strong foundation needs stable wired connections. However convenient it may be to use Wi-Fi, Ethernet cables and accessories transmit faster speeds, offer lower latency, and provide more reliable performance—especially you do gaming, live streaming, and remote working. Nevertheless, the choice of the right Ethernet cables is not solely a matter of connecting cables; it also includes the understanding of technical specifications, the ability to match the equipment with your needs, and the avoidance of common mistakes, which may slow down your network.
Let's break down what you need to know—so you can make smart, cost-effective choices.
The most common mistake? Modifying or not using the high-quality cables. The difference between Cat5e and Cat8 isn't just branding—it relates to the performance of the actual cables.
| Cable Type | Max Speed | Max Bandwidth | Best For |
|---|---|---|---|
| Cat5e | 1 Gbps | 100 MHz | Basic internet, HD streaming |
| Cat6 | 10 Gbps | 250 MHz | 4K streaming, gaming, home offices |
| Cat6a | 10 Gbps | 500 MHz | Long runs, future-proofing |
| Cat7/Cat8 | 10–40 Gbps | 600 MHz–2 GHz | High-end workstations, data centers |
Key Fact: According to the International Cablemakers Federation, 68% of home network issues stem from using incorrect or damaged cabling. Replacing it with a Cat6 cable can yield packet loss rates up to 40% lower in high-traffic networks (IEEE 802.3 Study, 2022).
The significance of a superior cable or high-quality cable might yet be negated if the connector is poorly made.
While your RJ45 connector must suit the cable category. The shielded Cat6a cable while the unshielded connector will lose its noise protection.
Search for gold-plated contacts, since these can endure corrosion and, thus, maintain signal integrity.
For DIY setups, use solid-core cables (which are less likely to break), with keystone jacks and wall plates. They can be less easy to terminate and more stable compared to stranded cables.
Ethernet switch designates the traffic conductor of your network.
Whereas a managed switch, by delivering a QoS service, monitors bandwidth, and segments devices, like home labs, or multiple users, becomes the perfect solution for them.
In the case of an unmanaged switch, the configuration is fast and easy, but won't give you any control.
To handle the 10 Gbps speed, the switch also has SFP+ ports if you are using fiber or multi-gig transceivers.
Data Point: In a 2023 Small Network Survey, homes with managed switches claimed that buffering issues had gone down by 30% during peak times.
Patch panels are not just for data centers. In home media rooms or offices, they:
Help cables to keep connections tidy.
Less frequency of wear on router/switch ports
Less trouble-shooting during testing
Attach them to the cable ties, and straps made of Velcro, and conduit to complete a solution that will avoid jumbled wiring behind the desks or entertainment centers.

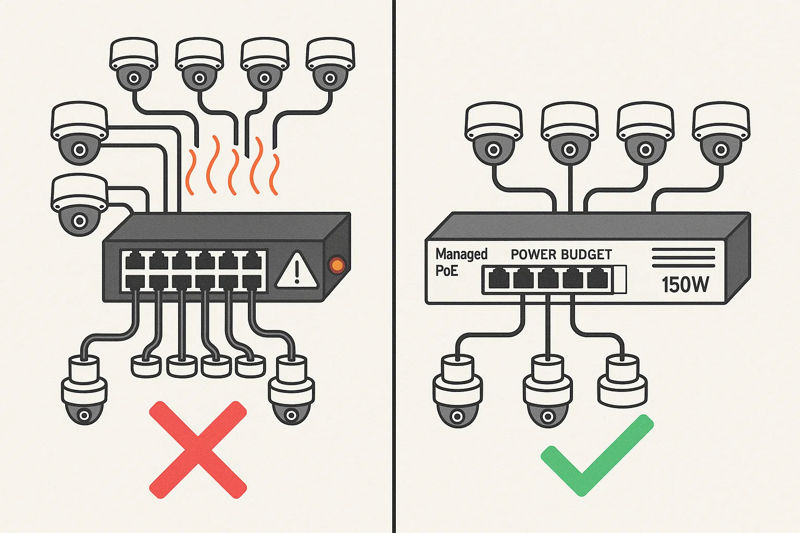

PoE accomplishes power transmission and data transfer over the one Ethernet cable that you have—an ideal way of connecting:
Surveillance-mounted cameras
VoIP gadgetsPhones
Smart light
Wireless routers (access point)
Keep in mind that not every PoE is similar:
| Standard | Max Power | Devices Supported |
|---|---|---|
| PoE (802.3af) | 15.4W | Basic IP cameras, phones |
| PoE+ (802.3at) | 30W | PTZ cameras, dual-band APs |
| PoE++ (802.3bt) | 60–100W | Laptops, TVs, heaters |
Q: Can I use outdoor-rated cables indoors?
A: Certainly. Indoor use is safe, since UV rays and moisture don't affect indoor specifications. However, their stiffer character, and the added restriction, should only be utilized when there is the use of attics, garages, or buried conduits.
Q: Are expensive cables worth it?
A: Not always. A 'gaming' Ethernet cable of $50 will never outperform a certified Cat6 cable of $10. Investigate the manufacturer’s certification marks in which UL certification and product warranty stand out more than the brand.
Q: How long can an Ethernet cable be?
A: Standard runs are usually up to 100 meters (328 feet). Beyond this, signal quality diminishes. Carry on with a switch or the active extender to travel further distances.
Q: Do I need shielded cables at home?
A: Only if you're near the electrical lines, HVAC system, or fluorescent lights. When the UTP (unshielded) cables are accidentally attached, they can be easily installed.
Q: Can I mix Cat5e and Cat6 in the same network?
A: Yes, but the connection likely will not be any faster than the lowest-rated device. A Cat5e drop can severely hamper a 10 Gbps network.
Purchase bulk cable for long distances. A large 1000-foot Cat6a reel costs less per foot than purchasing cables already cut to size.
Prefer shopping from branded companies like Cable Matters, Monoprice, or Belden. They publish test reports and offer 7–10 year warranties.
Avoid “Amazon-only-exclusive” brands without specific properties. Certification? No sale.
Choosing the appropriate Ethernet cables for your needs is not a matter of spending a lot on the best gear; it is about making those decisions by depending on established standards, actual performance in practice, your needs in particular.
The connection and participation of a connected home network can last over 10 years or longer with no modifications/changes. Instead of saving money for taking lower-quality parts, invest a bit more in quality, to save yourself from wasting time, energy, and money.
About to get started on the components for your setup? Give us your room sizes and use case descriptions, and we'd love to help you choose the right setup to provide reliable, high-speed connections.
