For Cat6A projects, a patch panel should not be selected only by port count or price. Buyers and engineers need to confirm rack space, cable density, shielding type, grounding method, and whether the project is better served by an empty keystone panel or a loaded patch panel.
Use a 24-port 1U Cat6A patch panel for many standard office and telecom room projects.
Choose 2U or lower-density layouts when cable diameter, shielded construction, or rear maintenance space becomes a risk.
For shielded Cat6A or Cat7-style projects, confirm shield continuity, rack bonding, and grounding before quoting.

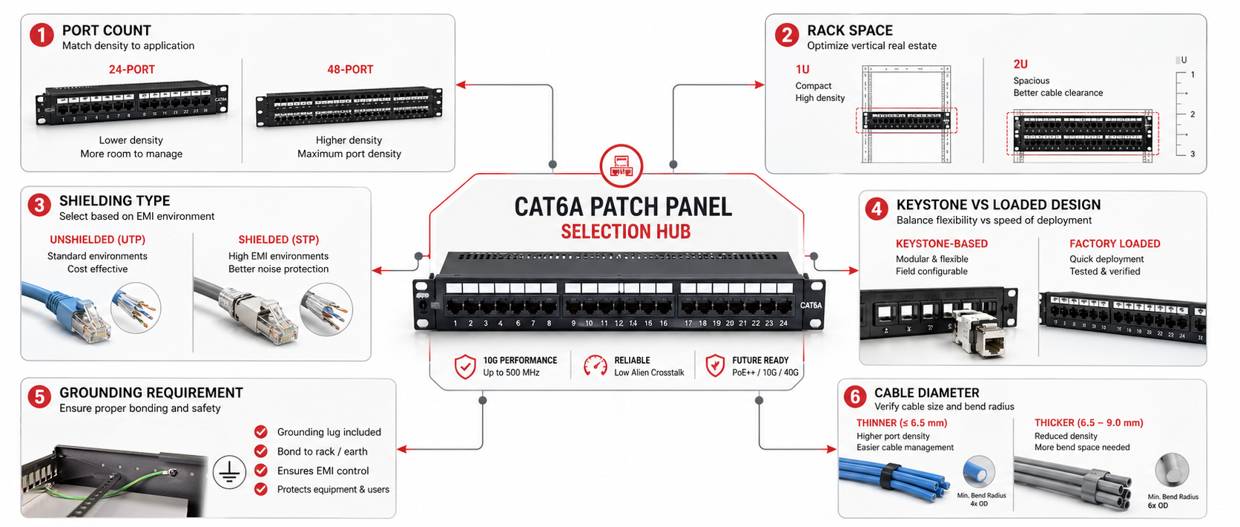

For a Cat6A project, the patch panel should be selected according to rack density, cable construction, grounding requirement, and maintenance access. A 24-port 1U panel is suitable for many standard installations. A 48-port panel improves density but makes rear cable management more demanding. A 2U panel is often safer when the project uses thick Cat6A cables, shielded cables, or requires easier labeling and maintenance.
| Project Condition | Recommended Patch Panel | Why It Matters |
|---|---|---|
| Standard office Cat6A UTP cabling | 24-port or 48-port unshielded Cat6A panel | Lower cost, easier installation, no shield bonding complexity |
| Dense telecom room with many outlets | 48-port panel, or 2U layout if space allows | Improves density while keeping cable routing manageable |
| Thick Cat6A cable or limited rear space | 2U panel or staggered keystone layout | Reduces termination stress and bend radius risk |
| Shielded Cat6A F/UTP or S/FTP project | Shielded Cat6A panel with grounding point | Maintains shield continuity and EMI protection |
| Mixed requirements or staged deployment | Empty keystone patch panel | Allows different jacks, blanks, couplers, and future changes |
| Fast repeated cabinet build | Loaded Cat6A patch panel | Faster installation and consistent component matching |
A Cat6A patch panel is the rack-mounted termination point for horizontal copper cabling in a structured cabling system. It organizes cable runs from work areas, wireless access points, IP cameras, equipment outlets, or floor distributors into a manageable interface inside the rack or cabinet.
In a Cat6A project, the patch panel is not only a mechanical rack accessory. It is part of the complete cabling channel. Incorrect category rating, poor termination, tight bending, weak rear support, or shield discontinuity can reduce the reliability of the installed link.
| Performance Area | Why the Patch Panel Matters |
|---|---|
| Transmission performance | Poor contacts or incorrect termination can reduce channel margin. |
| Alien crosstalk control | Cat6A systems operate at higher frequencies than Cat6 and need better installation discipline. |
| Cable management | Thick Cat6A cables need rear support and controlled routing. |
| Maintenance | Clear labeling and accessible ports reduce troubleshooting time. |
| Grounding | Shielded panels must be bonded correctly to make shielding effective. |
| Future expansion | Empty keystone panels allow easier port-level changes. |

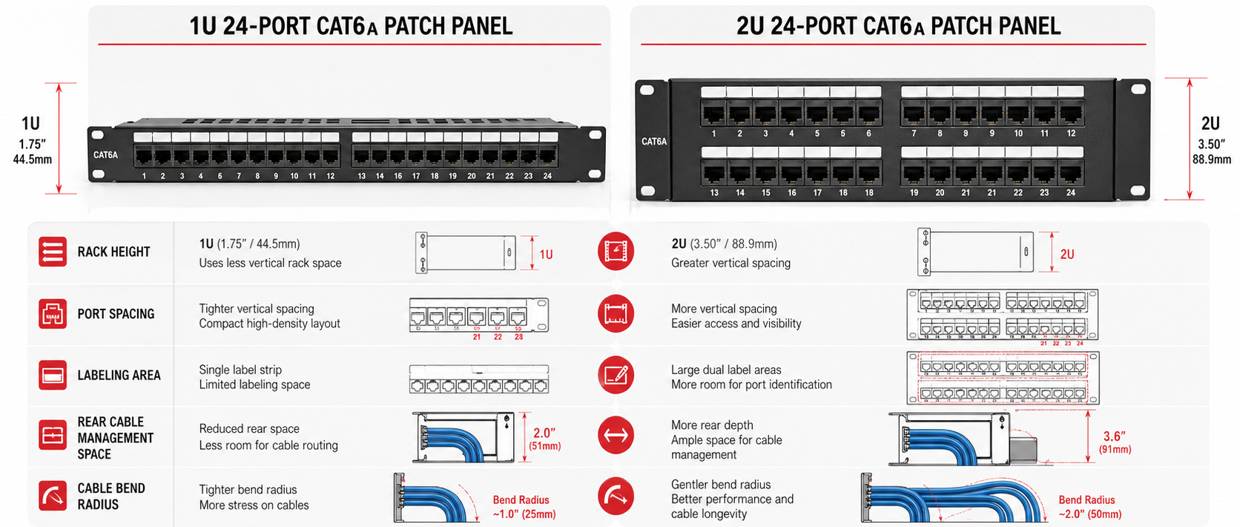

A 1U patch panel saves rack space and is common for 24-port Cat6A installations. A 2U patch panel uses more rack height but gives installers more room for cable routing, labeling, termination, and future maintenance. The right choice depends on the real cabinet condition, not only on the number printed in the RFQ.
| Option | Best For | Advantages | Risk to Check |
|---|---|---|---|
| 1U 24-port panel | Standard office, telecom room, compact cabinet | Saves rack space, familiar layout, cost-effective | Rear congestion if Cat6A cable is thick |
| 1U 48-port high-density panel | Dense rack where rack space is limited | Maximizes ports per rack unit | Harder termination, labeling, airflow, and rework |
| 2U 24-port or 48-port panel | Shielded Cat6A, thick cable, frequent maintenance | Better spacing and lower termination stress | Uses more rack space |
| Angled panel | High-density racks with side cable managers | Reduces front cable congestion | Requires enough side routing space |
A 24-port copper patch panel is usually easier to install, label, test, and maintain. A 48-port patch panel improves rack density but increases the importance of rear cable management. For Cat6A, this difference is more obvious because the cable is usually larger and stiffer than Cat5e or many Cat6 constructions.
| Factor | 24-Port Patch Panel | 48-Port Patch Panel |
|---|---|---|
| Rack density | Medium | High |
| Installation difficulty | Lower | Higher |
| Labeling space | Better | More limited |
| Cable bending risk | Lower | Higher if rear space is tight |
| Maintenance access | Easier | More crowded |
| Best use | Small to medium zones, project phases | High-density cabinets, large office floors, data rooms |

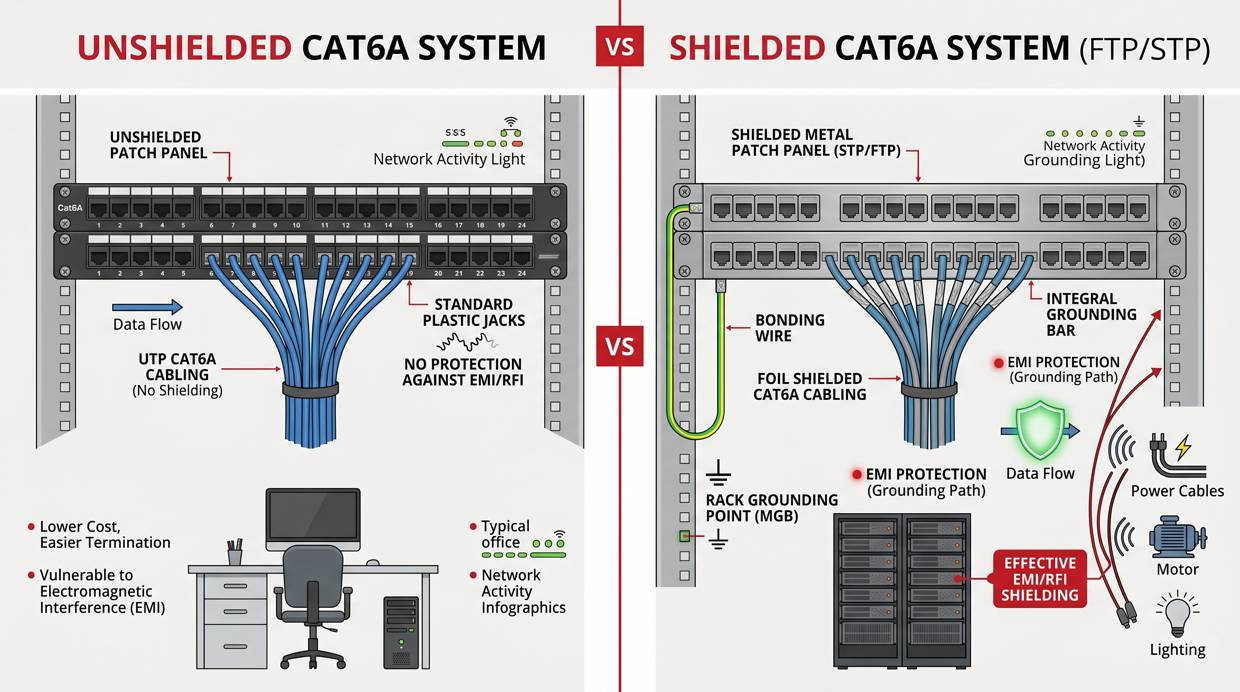

The patch panel should match the shielding design of the cable and the entire channel. An unshielded Cat6A UTP system should normally use an unshielded Cat6A patch panel. A shielded Cat6A F/UTP, U/FTP, S/FTP, or Cat7-style project should use shielded connectivity with a clear grounding and bonding plan.
| Cabling System | Patch Panel Type | Typical Use Case | Key Requirement |
|---|---|---|---|
| Cat6A UTP | Unshielded Cat6A panel | Offices, commercial buildings, standard LAN | Correct Cat6A termination and cable management |
| Cat6A F/UTP | Shielded Cat6A panel | Higher EMI areas, dense cable bundles | Shield continuity and bonding |
| Cat6A S/FTP or Cat7-style cable | Shielded panel with compatible jacks | Industrial, data room, high-interference routes | Full shielded system design |
| Mixed UTP and shielded ports | Empty keystone panel | Flexible projects, phased upgrades | Avoid unclear grounding and labeling logic |
There are two common ways to build a copper patch panel system: an empty patch panel with separate keystone jacks, or a loaded patch panel with fixed ports already installed. Both can be correct, but they serve different project and inventory needs.
| Selection Point | Empty Keystone Patch Panel | Loaded Patch Panel |
|---|---|---|
| Flexibility | High | Medium |
| Installation speed | Medium | Fast |
| Port replacement | Easy, replace one keystone | Depends on panel design |
| Mixed categories | Easier | Not ideal |
| Consistency | Depends on selected keystone quality | More consistent if factory-matched |
| Best for | Custom projects, future changes, mixed port types | Standardized projects with repeated same specification |
The project needs mixed port types, staged installation, future upgrades, individual port replacement, or inventory flexibility for distributors and system integrators.
The project has a fixed standard, repeated cabinet design, and clear Cat6A specification. Loaded panels can reduce component selection errors and speed up installation.
Shielded Cat6A patch panels normally include a grounding point or bonding feature. This is required to help connect the shielding system to the rack and telecommunications grounding infrastructure according to the project design. At the same time, Cat6A cables are often larger and stiffer than Cat5e or Cat6 cables, so rear cable space must be planned before installation.
| Item to Check | Why It Matters | Selection Impact |
|---|---|---|
| Cable outer diameter | Larger cables need more rear routing space | May require 2U or better rear cable manager |
| Bend radius | Tight bends can damage installation quality | Avoid overly dense panels in shallow cabinets |
| Shield continuity | Shielding must continue from cable to jack to panel | Use shielded jacks and shielded panel |
| Rack bonding | Shielded panel needs a reliable bonding path | Confirm grounding point and rack grounding design |
| Labeling space | Maintenance depends on clear port identification | 24-port or 2U layout may be easier to manage |
| Future rework | Crowded panels increase troubleshooting time | Use modular keystone panel if changes are expected |
For a Cat6A patch panel inquiry, procurement teams should confirm the technical details before comparing unit price. Many quotation mistakes happen because “24 port copper patch panel,” “2U patch panel,” or “Cat6A/Cat7 patch panel” is not specific enough.
| RFQ Question | Why It Matters |
|---|---|
| 24 port or 48 port? | Determines rack density, price, and cable routing pressure. |
| 1U or 2U? | Affects space, labeling, termination access, and cable bending. |
| Shielded or unshielded? | Must match the cable and grounding design. |
| Empty keystone or loaded panel? | Determines flexibility, installation speed, and inventory planning. |
| Cat6A only, or Cat7/Cat7A mentioned? | Prevents connector category and channel performance mismatch. |
| Rack type and depth? | Avoids rear cable management problems. |
| Cable OD and construction? | Thick or shielded cable may need more space. |
| Termination type? | Punch-down, toolless, coupler, or keystone style affects labor and compatibility. |
| Grounding requirement? | Critical for shielded systems. |
| Testing standard? | Clarifies whether permanent link or channel testing is expected. |
Yes. A 1U Cat6A patch panel is enough for many 24-port installations. The key is not only rack height, but also rear cable space, cable diameter, bend radius, and cable management.
Choose a 2U patch panel when the project uses thick Cat6A cable, shielded cable, high-density routing, or when easier labeling and maintenance access are required.
Match the patch panel to the cable system. Use unshielded panels for Cat6A UTP systems. Use shielded panels for F/UTP, S/FTP, or other shielded cabling systems with a proper grounding plan.
It may physically work in some cases, but it is usually not the right engineering choice. The shielding benefit will not be realized if the cable and channel are not shielded.
It depends on the project. Empty keystone panels are better for flexibility and future changes. Loaded panels are better for fast, standardized installations.
No. A 48-port panel saves rack space, but two 24-port panels may be easier to install, label, test, and maintain, especially with thick Cat6A cables.
Yes. Shielded patch panels should be bonded according to the project grounding and telecommunications bonding design. Without proper bonding, shielding performance may not meet expectations.
Sometimes it may be used for RJ45-based shielded installations, but the project requirement must be clarified. True Cat7 or Class F expectations may involve different connector and testing requirements.
Choosing a patch panel for Cat6A projects is not just a port-count decision. The correct selection depends on rack density, cable diameter, shielding type, grounding requirements, and long-term maintenance. A 24-port 1U panel is suitable for many standard installations, but 48-port and 2U designs may be better for high-density or shielded projects. Empty keystone panels provide flexibility, while loaded panels improve installation speed for standardized builds.
For Cat6A, Cat7, or shielded copper cabling projects, the safest rule is simple: match the patch panel to the cable system, confirm the grounding plan, and leave enough physical space for correct termination and future maintenance.
