Keystone Jack Installation: Punchdown Steps, Best Practices & Testing

Introduction

Properly wire-terminating a keystone jack maintains pair coherence, reducing crosstalk interferences and returning losses, and makes the link achieve the performance the cable category is supposed to provide. For the professionals, if the jack manufacturer advices well and the written standards for wiring are followed, the material rework and passing the certification tests will be less.

■ Tools & Materials Checklist

• Keystone jack (Cat5e / Cat6 / Cat6A) (connector)

• Bulk Ethernet cable (solid 22-24 AWG) (cable length)

• Cable jacket stripper / utility knife (cable tools)

• 110 punch-down tool or one-hand termination tool (termination tool)

• Scissors / side cutters (cutting tools)

• Cable tester or certifier (Fluke-style for certification) (cable test and certification)

• Wall plate / surface box or patch panel (cable control and distribution)

• Labels and label printer (labels necessity)

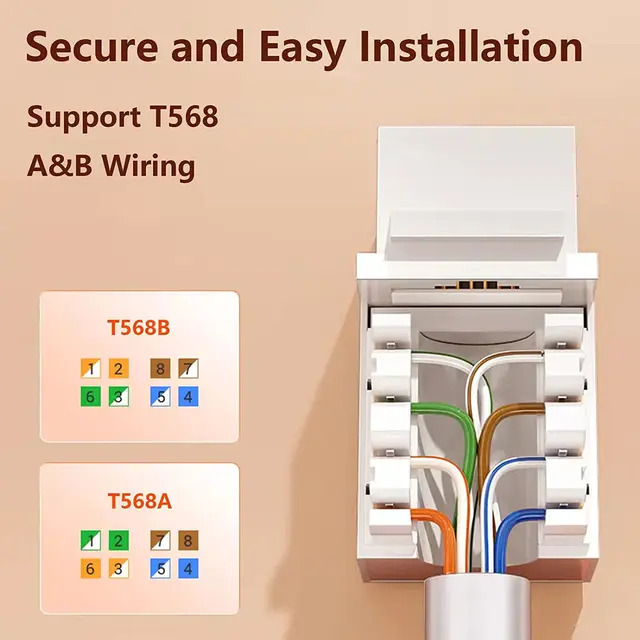

■ Wiring Standards: T568A or T568B

The one wiring design you need to choose should govern the whole wiring installation. If you select one run that has T568A and T568B mixed together, it creates a crossover that mariages severally expected connectivity. The main connection used in commercial installations is T568B. However, the standard may vary from site to site. Check first before you start the wiring.

■ Step-by-Step Installation

Prepare the Cable

Strip about 25-40 mm (1-1.5 in) of the jacket. Discard the ripcords and cut the filler. Elongate the jacket by the necessary length to ensure it enters the clamp's strain relief.

Arrange the Pairs

Align the pairs in a way which combines and results in the correct color code. The knockout areas for T568A and T568B connectors are flush and silk-screened on most keystone modules.

Seat the Conductors

While holding the cable, push the conductor into full depth of the IDC lead. Verify that the wires reach the end of the slot; they don't need to curl, shouldn't override, shouldn't sit idle.

Punch Down

Use a 110 punch-down tool (or one-hand termination tool) to seat each conductor fully. Punch once per conductor; use the cutting side of the blade on the outside so trimmed areas are clean.

Secure & Terminate

Trim any remaining conductor stubs. Engage the module's strain relief or snap-on cap to secure the jacket and reduce mechanical stress.

Mount the Module

Snap the keystone module into the wall plate, surface box, or patch panel. Label the port clearly to match your documentation.

■ Testing & Certification

First, run a basic continuity tester to find wiring errors such as opens, shorts or pair swaps. For business or warranty-backed work, always certify with a Level II tester (Fluke Networks or equivalent) to validate NEXT, return loss, and insertion loss and to produce a saveable report.

■ Common Mistakes & How to Avoid Them

• Untwisting pairs too far: keep the untwist to the minimum required to seat conductors.

• No strain relief: secure the jacket to avoid intermittent faults when cables move.

• Wrong wiring scheme: labeling and consistent standards prevent mismatches.

• Poor punchdown technique: use a quality impact tool and correct blade orientation.

■ When to Use Toolless Keystone Jacks

Toolless jacks are fast and convenient for home or low-volume installs, but they sometimes perform worse electrically than properly punched 110 terminations—especially on higher-category cables. Check the manufacturer's performance claims before using them in critical links.

■ Printable Installation Checklist

• Keystone jacks (correct category)

• Bulk cable (Cat5e/Cat6/Cat6A)

• Punch-down tool & blade

• Cable stripper / cutters

• Cable tester / certifier

• Labels / documentation

• Strain relief / snap cap applied

• Link certified (if required)

■ Quick Troubleshooting

• No link light: confirm both ends use same T568 pattern; test continuity; verify switch port.

• Intermittent dropouts: reseat the jack, check the strain relief, and retest with a certifier.

• Link speed lower than expected: confirm cable category and retest; check untwist and pair order.

■ Final Tips & Best Practices

Follow the keystone jack manufacturer's instructions (Cat6A modules can have different clearance needs). Maintain clear documentation — port numbers, destinations and saved test results — to reduce future troubleshooting time.
