Author: Site Editor Publish Time: 27-04-2026 Origin: Site
180° and toolless / no-punch are not the same thing. One describes cable entry direction; the other describes termination method.
User-side outlets usually prioritize rear space, bend control, and neat installation. Patch panel side usually prioritizes density, cable routing, and future maintenance.
For Cat6A, PoE, or shielded systems, do not choose only by convenience. Confirm category rating, conductor compatibility, shielding continuity, and long-term stability.
Buyers often ask a supplier, “Do you recommend 180° or no-punch?” That question is understandable, but technically incomplete. A 180° keystone jack mainly refers to cable entry direction and the rear installation layout. A toolless / no-punch keystone jack mainly refers to how the conductors are terminated into the IDC contact area. One is about physical routing logic. The other is about field termination method. Because they are different dimensions, the correct specification may be 180° and punch-down, 180° and toolless, or another combination depending on project conditions.
| Selection Point | What It Describes | Main Concern | Why It Matters |
|---|---|---|---|
| 180° keystone jack | Rear cable entry direction and installation profile | Space, routing, bend control | Impacts fit in faceplates, back boxes, and dense panels |
| Toolless / no-punch jack | Termination method without a standard punch-down tool | Labor efficiency, tool dependency, repeatability | Impacts installation speed and field service workflow |
| Punch-down jack | IDC termination using standard punch-down process | Cost, installer familiarity | Often selected for cost-sensitive or contractor-standard workflows |
| 90° or angled variants | Alternative rear cable exit form | Rear depth and cable approach angle | May suit some outlet or cabinet layouts better than 180° |
A 180° keystone jack is commonly selected when the project requires a straight, compact, or low-profile cable exit behind the jack body. This matters in shallow wall boxes, floor boxes, furniture outlets, and dense patch panel arrangements where poor rear clearance can force excessive cable bending or messy cable routing. In practice, the main value of a 180° design is not that it is automatically “better,” but that it often supports cleaner termination geometry in tighter spaces.
| Scenario | Why 180° May Be Preferred | Engineering Benefit |
|---|---|---|
| Wall outlet / faceplate | Cleaner rear cable entry in shallow back box | Helps reduce installation stress behind the plate |
| Furniture outlet / floor box | Better fit where outlet depth is restricted | Improves cable organization and physical fit |
| Patch panel side | Supports more consistent rear cable dressing | Helps rack-side serviceability and neat routing |
| Cat6A horizontal link | Termination geometry can be better controlled | Reduces avoidable installation-related performance risk |
That said, 180° is still only part of the selection logic. The jack must also match the category rating, cable conductor size, shielding type, and installation environment. A well-designed 180° jack can support better field consistency, but only if the project also manages pair untwist, jacket strip length, and correct T568A/B termination discipline.

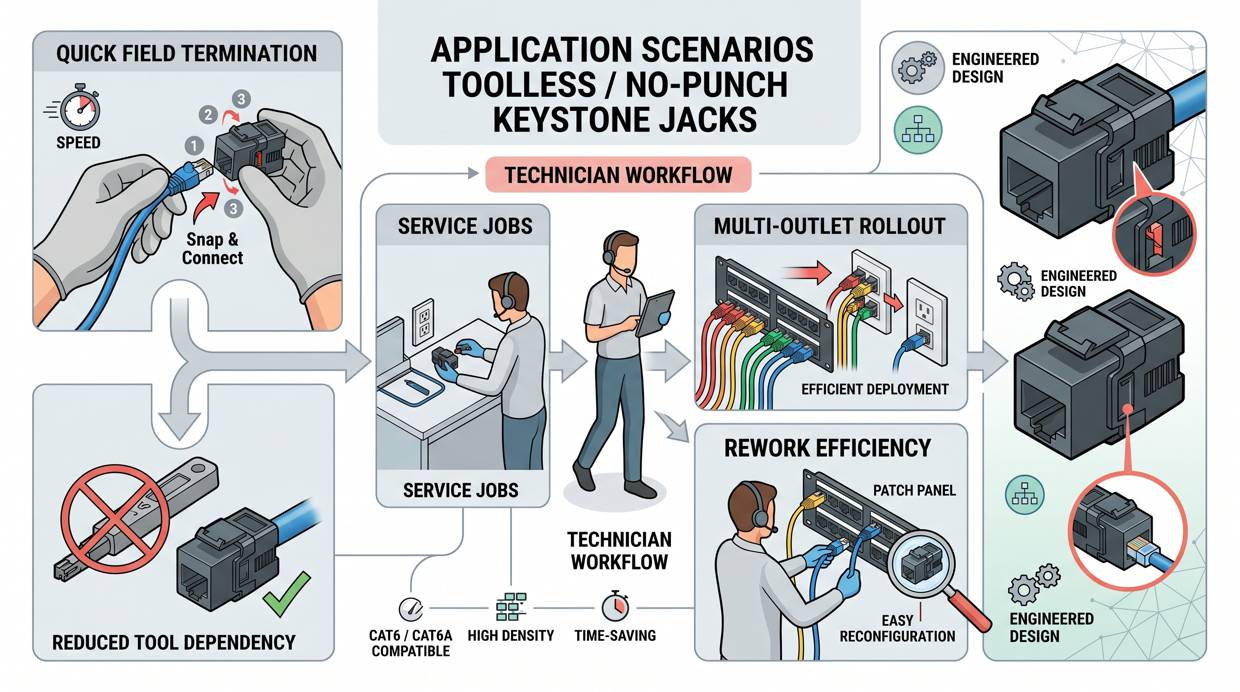

Toolless or no-punch keystone jacks are selected mainly for workflow reasons. They reduce dependency on a standard punch-down tool and often make conductor placement more guided and repeatable. In rollout projects, service work, and jobs with mixed installer skill levels, that can translate into faster termination and fewer field mistakes. However, “toolless” should not be confused with “risk-free.” Good results still depend on correct pair layout, proper jacket stripping, conductor seating, and final testing.
Fast outlet rollout across many drops
Projects with variable installer skill levels
Maintenance-heavy sites where jacks may be replaced later
Service jobs where fewer tools are preferable
Very cost-sensitive jobs
Contractors already standardized on punch-down workflow
Installers with strong existing IDC experience
Projects focused on minimum component cost

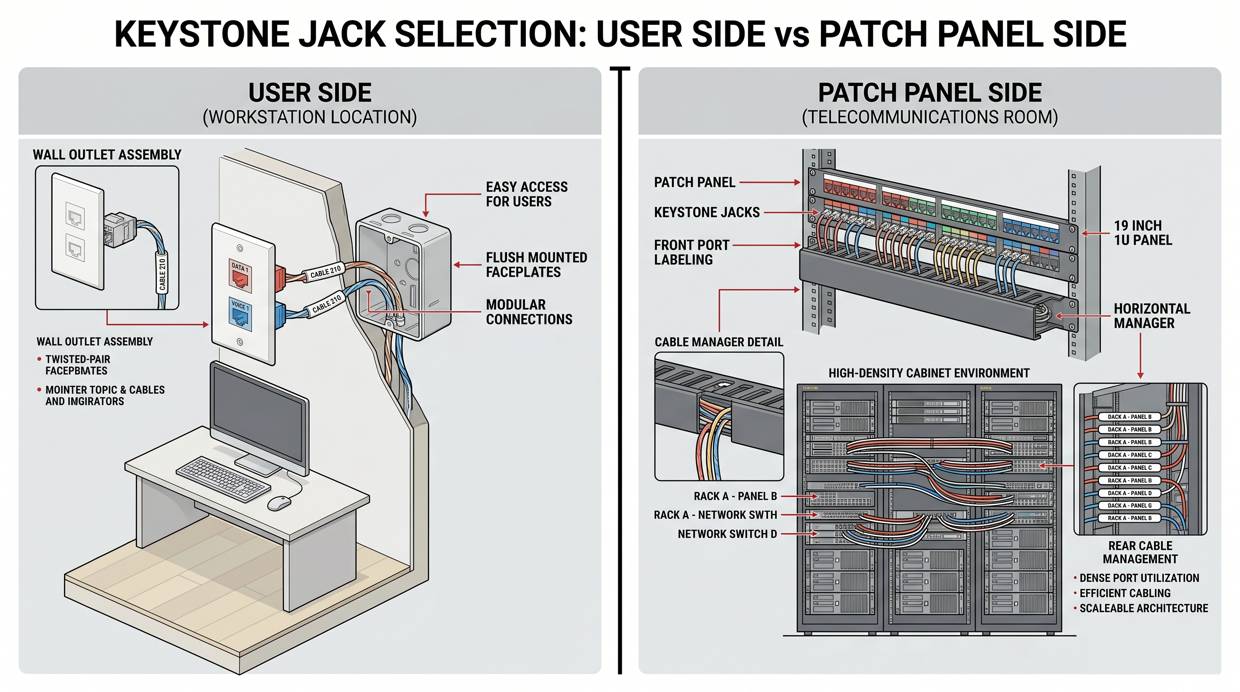

The user side and the patch panel side often look similar on a component list, but they can behave differently in the field. User-side outlets usually face depth limitations, tighter bend control, and finish-quality expectations. Patch panel terminations usually face density, labeling, access, and maintenance constraints. For this reason, some projects prefer one jack style for the user side and another for the patch panel side.
| Installation End | Typical Constraints | Often Preferred Features | Why |
|---|---|---|---|
| User side outlet | Shallow box, bend control, faceplate fit | Compact 180° design, sometimes toolless | Helps installation fit and speeds multi-outlet work |
| Patch panel side | Density, cable routing, labeling, future rework | Consistent rear-exit logic, manageable service access | Improves organization and maintenance efficiency |
One of the most common mistakes in keystone jack selection is over-prioritizing installation speed while under-prioritizing long-term channel stability. Toolless jacks can absolutely improve field efficiency, but speed alone is not enough. In higher-performance copper systems, especially Cat6A, installation quality, conductor seating, pair preservation, and shield continuity still matter more than whether the installer used a punch-down tool.
| Priority | What to Look For | Main Risk if Ignored |
|---|---|---|
| Installation speed | Guided conductor positioning, reduced tooling | Rework if conductor seating is inconsistent |
| Long-term stability | Stable IDC contact, controlled cable dressing, rated category performance | Performance failures or higher maintenance cost |
| Compatibility | Conductor size, solid/stranded fit, shielding match, faceplate/panel fit | Misfit hardware or reduced system value |
| Maintainability | Ease of replacement, re-termination, and access | High labor cost later in the life of the installation |
The best decision is usually based on the project’s actual installation conditions rather than on a generic preference. Use the matrix below as a simplified engineering shortcut.
| Project Condition | Recommended Direction | Reason |
|---|---|---|
| Shallow outlet box | 180° low-profile jack | Helps fit and cable routing behind the faceplate |
| Fast multi-drop installation | Toolless / no-punch jack | Improves labor efficiency and consistency |
| High-density patch panel | Consistent rear-exit design, often 180° | Supports cleaner cable dressing and serviceability |
| Budget-sensitive standard project | Punch-down jack | Usually lower component cost |
| Cat6A / PoE / shielded system | Category-rated jack chosen for compatibility first | Performance and system fit matter more than convenience alone |
| Maintenance-heavy site | Toolless or easy re-termination style | Can reduce service labor later |
Rear space is limited
Faceplate or back-box fit is important
Patch panel routing should stay clean and consistent
You need better cable entry control behind the jack
Installation speed is a major project KPI
Technician skill levels are mixed
You want fewer field tools
Future rework and serviceability are important
To avoid RFQ ambiguity, the keystone jack should not be specified only as “RJ45 jack” or “Cat6 jack.” A good purchasing checklist separates performance, installation, and compatibility points clearly.
| Item to Confirm | Why It Matters |
|---|---|
| Category rating: Cat5e / Cat6 / Cat6A | Must match channel or permanent-link expectation |
| Shielding: UTP or shielded system | Avoid system mismatch and grounding issues |
| Angle / rear-exit style | Affects space and cable routing logic |
| Termination method: punch-down or toolless | Affects labor model and installation workflow |
| Conductor compatibility | Important for AWG range, solid conductor fit, and system stability |
| T568A / T568B marking | Reduces field wiring errors |
| Faceplate / patch panel compatibility | Ensures physical fit in the chosen system |
| Target application: user side or patch panel side | Helps define installation logic and service priority correctly |
The most important lesson is simple: 180° and toolless / no-punch should not be treated as the same question. A 180° keystone jack is mainly a decision about rear cable routing and installation space. A toolless jack is mainly a decision about field termination workflow. In practical structured cabling projects, the correct choice depends on where the jack will be installed, how much labor efficiency matters, how much long-term stability matters, and what category and shielding requirements the full system must support.
For procurement and engineering teams, the safest RFQ approach is to specify the jack by category, shielding, angle, termination method, conductor compatibility, and installation end. That avoids the common misunderstanding behind “180° or no-punch?” and leads to fewer deployment errors, fewer compatibility surprises, and better long-term results.
