A decision-oriented guide for engineers, buyers, and project teams evaluating when MPO to LC breakout cables are the right choice, how they differ from trunks and cassettes, and which deployment rules matter before ordering.
Use MPO to LC breakout cables when the backbone is MPO-based but the equipment edge still terminates on LC duplex ports.
Choose breakout instead of cassette when port mapping is fixed, channel cost matters, and front-panel modularity is not a priority.
Verify fiber count, polarity, connector gender, breakout leg length, and application mapping before placing any order.
An MPO to LC breakout cable, also called an MPO harness cable, is a pre-terminated fiber assembly that converts one MPO connector into multiple LC duplex connectors. It is used when a high-density MPO side must be distributed to LC-based equipment ports.
In practice, the breakout cable sits between a multi-fiber MPO link and devices such as switches, servers, transceivers, or patch fields that still rely on duplex LC interfaces.
| Common format | Fiber count | LC output | Typical use |
|---|---|---|---|
| MPO-8 to LC | 8 fibers | 4 x LC duplex | 40G/100G breakout or short-reach structured distribution |
| MPO-12 to LC | 12 fibers | 6 x LC duplex | Legacy 12-fiber infrastructure and duplex edge devices |
| MPO-24 to LC | 24 fibers | 12 x LC duplex | Higher-density distribution in patching or equipment zones |
These three MPO-related components are often discussed together, but they solve different problems. The key is to distinguish transport, conversion, and modular distribution.
| Component | Primary function | Best suited for | Operational trade-off |
|---|---|---|---|
| MPO trunk cable | Backbone transport between cabinets, racks, or zones | High-density structured cabling runs | Does not directly fan out to LC ports |
| MPO cassette | Modular transition from MPO to front-facing LC ports | Cross-connect fields and high-change environments | Higher cost, more hardware, more insertion points |
| MPO to LC breakout cable | Direct fan-out from MPO to multiple LC duplex legs | Fixed port plans and lower-complexity channels | Less modular than cassette-based patching |
The internal logic of a breakout cable is simple in appearance but strict in execution. One MPO connector contains multiple fibers, and those fibers are divided into paired LC channels according to the target application and polarity method.
A breakout cable does not only change the connector shape. It also defines how fibers are grouped, numbered, and assigned to duplex channels. This matters for interoperability and field deployment.
| MPO format | LC channel count | Typical mapping logic | Deployment note |
|---|---|---|---|
| MPO-8 | 4 duplex LC | 8 active fibers divided into 4 duplex pairs | Common in parallel optics breakout schemes |
| MPO-12 | 6 duplex LC | 12 fibers divided into 6 duplex pairs | Often chosen for legacy 12-fiber infrastructures |
| MPO-24 | 12 duplex LC | 24 fibers divided into 12 duplex pairs | Useful for dense panels and multi-port equipment zones |

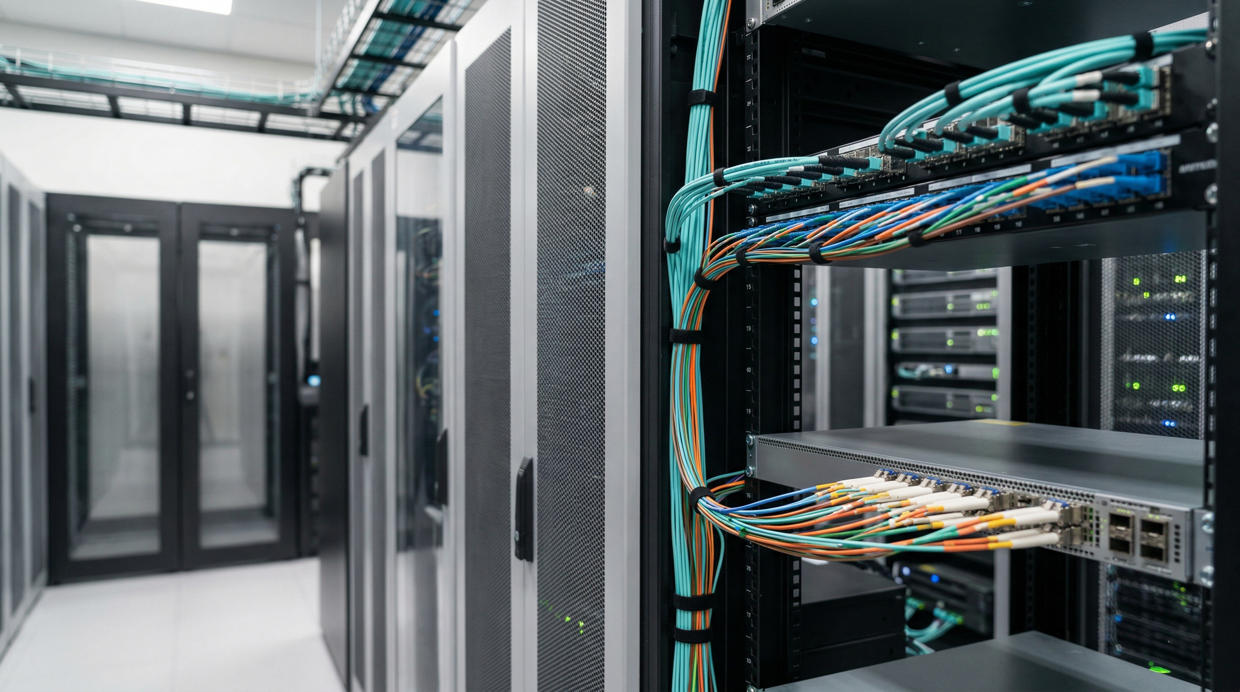

Breakout cables are most effective where the topology is stable, space efficiency matters, and direct connection is more valuable than modular patch flexibility.
| Network scenario | Why breakout fits | What to watch | Typical buyer concern |
|---|---|---|---|
| Data center switch-to-server links | Direct conversion from MPO infrastructure to LC equipment ports | Leg length, polarity, rack routing | Fast deployment with fewer passive components |
| 40G/100G to 10G/25G migration | Supports breakout logic across different speed architectures | Application compatibility and optical budget | Upgrade path without overbuilding modular hardware |
| Small and mid-sized data centers | Simpler structure and lower capital cost | Future repatching flexibility may be limited | Balancing cost and maintainability |
| Labs and staging environments | Fast to install and easy to replace | Need clear labeling to avoid confusion | Short project cycles and repeated reconfiguration |
| Known port allocation zones | No cassette required if patch changes are infrequent | Cable management discipline is critical | Lower hardware count and simpler channel planning |
The quickest way to decide is to compare operating model, hardware cost, future change rate, and access preference. The table below is meant as a rapid engineering filter.
| Decision factor | Choose MPO to LC breakout | Choose MPO cassette | Engineering note |
|---|---|---|---|
| Port plan stability | Fixed or rarely changed | Frequent moves, adds, or changes | Breakout is efficient when mapping stays stable |
| Budget sensitivity | Higher priority on lower passive hardware cost | Willing to pay for modularity | Cassette adds structure but also cost and insertion points |
| Front-panel access requirement | Not essential | Important for maintenance team workflows | Large sites usually benefit more from cassette patch visibility |
| Channel simplicity | Prefer fewer components | Accept more structured hardware layers | Simpler channels can help with loss margin control |
| Maintenance model | Known equipment and disciplined routing | Shared site operations and repeated service changes | Operational context matters more than connector cost alone |
| Best-fit outcome | Direct conversion for fixed LC edge connectivity | Modular cross-connect for larger structured sites | Choose the architecture that matches the maintenance reality |
Specification errors on breakout cables usually originate upstream in the selection process. A correct purchase specification should capture both physical structure and application logic.
| Selection item | What to confirm | Why it matters | Risk if ignored |
|---|---|---|---|
| Fiber count | MPO-8, MPO-12, or MPO-24 | Defines LC fan-out capacity and application fit | Unused fibers or incompatible breakout logic |
| Fiber type | OS2, OM3, OM4, or OM5 | Must match optics and link design | Performance mismatch and replacement cost |
| Connector details | MPO male/female, LC UPC/APC, leg quantity | Mechanical compatibility with installed hardware | Cannot mate with existing interfaces |
| Polarity | Type A/B/C or project-specific mapping | Controls Tx/Rx continuity across the channel | Links fail even when connectors appear correct |
| Breakout leg length | LC fan-out segment length and labeling | Affects routing convenience and cabinet cleanliness | Overcrowding, stress, or poor serviceability |
| Test and traceability | IL report, serial traceability, labeling, packing | Improves acceptance and project control | Difficult troubleshooting and slower field approval |
Most field issues are avoidable. They usually come from assumptions made during specification, not from the passive cable itself.
| Common mistake | Immediate impact | Long-term consequence | Preventive action |
|---|---|---|---|
| Choosing by connector type only | Incorrect mapping still passes visual check | Delayed commissioning and re-ordering | Approve polarity and fiber map explicitly |
| Using breakout where frequent MACs are expected | Operational inconvenience | Higher maintenance burden over time | Choose cassette if modular patching is central |
| Ignoring leg length and routing path | Messy installation or fiber stress | Reduced maintainability and accidental disturbance | Match breakout length to the real cabinet layout |
| Missing insertion loss review | Link margin may be tighter than expected | Upgrade constraints or intermittent performance issues | Check channel loss budget early |
| Assuming all MPO infrastructures are interchangeable | Mismatch across installed base | Project inconsistency across rows or cabinets | Standardize design rules before procurement |
In most commercial and project usage, yes. Both terms typically describe an assembly that converts one MPO connector into multiple LC duplex legs. The important point is to confirm the exact mapping, polarity, and connector structure rather than relying only on naming.
Choose breakout when the port relationship is fixed, direct equipment connection is preferred, and the site does not require frequent front-panel repatching. Choose cassette when modularity, clear patch field management, and repeated moves or changes are part of the operating model.
The biggest risk is not the visible connector style but the hidden mapping logic. Fiber count, MPO gender, polarity method, and LC pairing must all match the installed system and the intended transceiver application.
Yes, in the right architecture. Breakout cables can reduce cassette hardware, lower component count, and simplify the passive channel. However, the cost decision should also consider maintenance model, installation method, and future change frequency.
At minimum, provide fiber type, MPO fiber count, MPO gender, LC quantity, polarity requirement, overall length, breakout leg length, jacket requirement, labeling request, and any target insertion loss or testing format expected by the project.
Yes, provided the application logic is correct. They are widely used in enterprise backbones, data center rows, test environments, and structured optical zones where MPO infrastructure must interface with LC-based equipment efficiently.
MPO to LC breakout cables are most effective when the network backbone is MPO-based but the equipment edge still uses LC duplex connectivity. They reduce hardware layers, simplify the passive channel, and often lower total material cost in fixed-port environments.
They are not a universal replacement for MPO cassettes. The correct choice depends on how stable the port mapping will be, how the site is maintained, and whether modular front-panel access is operationally important.
For practical engineering decisions, verify the mapping first, then confirm polarity, connector gender, fiber type, breakout leg length, and test requirements. That sequence reduces risk far more effectively than comparing product names alone.
To get the right MPO to LC breakout configuration, send your required fiber count, connector type, polarity method, cable length, breakout leg length, fiber type, and target application. This helps shorten validation time and reduces ordering risk.
