50 Ohm coaxial Cable NO.7101120 | ||||
Construction Parameters: | ||||
Inner Conductor | 17.5mm Helical Copper Tube | |||
Dielectric | 43.5mm Foamed PE | |||
Shield | Nom.46.5mm Corrugated Copper Tube and Slot | |||
Jacket | 49.5mm Black PE | |||
Jacket Thickness | ||||
Application | ||||
Electrical Characteristics: | ||||
Capacitance | 76 pF/m | |||
Impedance | 50 Ω | |||
Velocity of Propagation | 0.88 | |||
Max.Frequency | 2800 MHz | |||
Insulation Resistantce | >5000 M Ω.km | |||
Insulation Voltage | 15 K V | |||
Inner DC ConductorResistance | 0.50 Ω/km | |||
Outer DC ConductorResistance | 0.55 Ω/km | |||
VSWR ≤ (Return loss≥dB) | ||||
0.005-3.0GHz | 1.30(18) | |||
0.300-0.5GHz | 1.15(23) | |||
0.800-1.0GHz | 1.15(23) | |||
1.700-2.0GHz | 1.20(21) | |||
2.000-2.4GHz | 1.20(21) | |||
Stop Bands | None | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius(mm) | 200 | |||
Operating Temp Range | -55 to +85 ℃ | |||
Cable diamensions | 49.5mm | |||

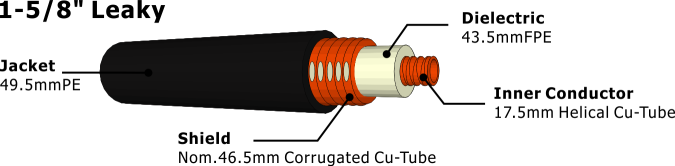

Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Attenuation (dB/100m) | Coupling Loss (50%/90%,dB) | ||
75 | 0.6 | 68/78 | ||
150 | 0.8 | 71/81 | ||
450 | 1.9 | 75/85 | ||
800 | 2.6 | 75/85 | ||
900 | 2.7 | 75/84 | ||
1800 | 4.4 | 77/86 | ||
2200 | 5.1 | 77/86 | ||
2400 | 5.5 | 77/86 | ||
Order Informations: | ||||
Marking | HELLOSIGNAL 1-58" Leaky | |||
Package | Inquired Length on wooden Spool | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
50 Ohm coaxial Cable NO.7101120 | ||||
Construction Parameters: | ||||
Inner Conductor | 17.5mm Helical Copper Tube | |||
Dielectric | 43.5mm Foamed PE | |||
Shield | Nom.46.5mm Corrugated Copper Tube and Slot | |||
Jacket | 49.5mm Black PE | |||
Jacket Thickness | ||||
Application | ||||
Electrical Characteristics: | ||||
Capacitance | 76 pF/m | |||
Impedance | 50 Ω | |||
Velocity of Propagation | 0.88 | |||
Max.Frequency | 2800 MHz | |||
Insulation Resistantce | >5000 M Ω.km | |||
Insulation Voltage | 15 K V | |||
Inner DC ConductorResistance | 0.50 Ω/km | |||
Outer DC ConductorResistance | 0.55 Ω/km | |||
VSWR ≤ (Return loss≥dB) | ||||
0.005-3.0GHz | 1.30(18) | |||
0.300-0.5GHz | 1.15(23) | |||
0.800-1.0GHz | 1.15(23) | |||
1.700-2.0GHz | 1.20(21) | |||
2.000-2.4GHz | 1.20(21) | |||
Stop Bands | None | |||
Mechanical and Envrionmental Properties | ||||
Cable bend radius(mm) | 200 | |||
Operating Temp Range | -55 to +85 ℃ | |||
Cable diamensions | 49.5mm | |||
Cross Section | ||||
| ||||
Attenuation(20℃): | ||||
Frequency (MHZ) | Attenuation (dB/100m) | Coupling Loss (50%/90%,dB) | ||
75 | 0.6 | 68/78 | ||
150 | 0.8 | 71/81 | ||
450 | 1.9 | 75/85 | ||
800 | 2.6 | 75/85 | ||
900 | 2.7 | 75/84 | ||
1800 | 4.4 | 77/86 | ||
2200 | 5.1 | 77/86 | ||
2400 | 5.5 | 77/86 | ||
Order Informations: | ||||
Marking | HELLOSIGNAL 1-58" Leaky | |||
Package | Inquired Length on wooden Spool | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNAL® OR OEM | |||
