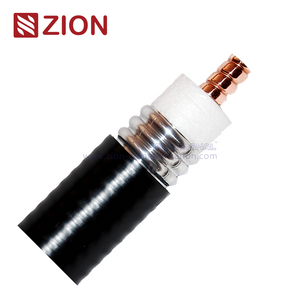

1 5/8" RF Coaxial Cable

■ Construction Parameters：

· Inner Conductor

· Material: Helical Corrugated Copper Tube

· Diameter: 17.30±0.20mm

· Insulation

· Material: Foamed PE

· Diameter: 42.50±0.50mm

· Outer Conductor

· Material: Annular Corrugated Copper Tube

· Diameter: 46.50±0.30mm

· Jacket

· Material: PE or LSZH

· Diameter: 49.50±0.30mm

■ SKU Information：

· 7101114-PEBK-500M

· Description: 1 5/8" RF Coax Cable PE Black Jacket (CPR Fca) 500M

· 7101114-OBK-500M

· Description: 1 5/8" RF Coax Cable LSZH Black Jacket 500M

· 7101114-××××-×××M

· Description: ××××-×××M will be named by Test inquired and Packing Length.

■ Marking on Cable Jacket：

· ZION 1 5/8" RF COAXIAL CABLE 7101114-××××-×××M

■ Characteristics：

· Capacitance

· Value: 76 pF/m

· Impedance

· Value: 50 ±2 Ω

· Velocity of Propagation

· Value: 0.88

· Peak Power Rating

· Value: 310 KW

· Max. Operating Frequency

· Value: 2.75 GHz

· Insulation Resistance

· Value: >10000 MΩ.km

· DC Breakdown Voltage

· Value: 15000 V

· Jacket Spark Test Voltage

· Value: 10000 Vrms

· Inner Conductor DC Resistance

· Value: ≤ 1.50 Ω/km

· Outer Conductor DC Resistance

· Value: ≥ 0.75 Ω/km

· Shielding Attenuation

· Value: ≥ 120dB

· VSWR (Voltage Standing Wave Ratio)

· 800MHz-1000MHz: ≤ 1.15

· 1700MHz-2200MHz: ≤ 1.20

· 2200MHz-2700MHz: ≤ 1.20

· PIM (Passive Intermodulation)

· Intermodulation (3rd order, 2*20W): ≤ -160 dBc

■ Mechanical Properties：

· Bending Radius (Single Bend)

· Value: 280 mm

· Bending Radius (Repeated Bend)

· Value: 500 mm

· Bending Moment

· Value: 60 Nm

· Flat Plate Crush Strength

· Value: 16 N/mm

· Tensile Strength

· Value: 2500 N

■ Environmental Specifications：

· Installation Temperature

· PE Jacket: -40℃ to +60 ℃

· LSZH Jacket: -20℃ to +60 ℃

· Operating Temperature

· PE Jacket: -55℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

· Storage Temperature

· PE Jacket: -70℃ to +85 ℃

· LSZH Jacket: -30℃ to +80 ℃

■ Attenuation (20℃)：

· 200 MHz

· Attenuation: 0.99 dB/100m

· Average Power: 11.8 KW

· 450 MHz

· Attenuation: 1.57 dB/100m

· Average Power: 7.45 KW

· 800 MHz

· Attenuation: 2.19 dB/100m

· Average Power: 5.33 KW

· 900 MHz

· Attenuation: 2.35 dB/100m

· Average Power: 4.97 KW

· 1800 MHz

· Attenuation: 3.58 dB/100m

· Average Power: 3.26 KW

· 2000 MHz

· Attenuation: 3.82 dB/100m

· Average Power: 3.05 KW

· 2200 MHz

· Attenuation: 4.05 dB/100m

· Average Power: 2.8 KW

· 2400 MHz

· Attenuation: 4.3 dB/100m

· Average Power: 2.69 KW

· 2500 MHz

· Attenuation: 4.42 dB/100m

· Average Power: 2.64 KW

· 2700 MHz

· Attenuation: 4.7 dB/100m

· Average Power: 2.43 KW

■ Standards：

· Fire Resistant

· Standards: IEC 60754-1, -2; IEC 60332-1, -2; IEC 61034-1, -2; IEC 60332-3-24

· RoHS

· Compliant: RoHS 2011/65/EU

· REACH

· Compliant: REACH

■ Packing：

· Packing Length

· Standard: 500M

Notes: Maximum attenuation value shall be 105% (some will be 110%) of the above nominal attenuation value.
