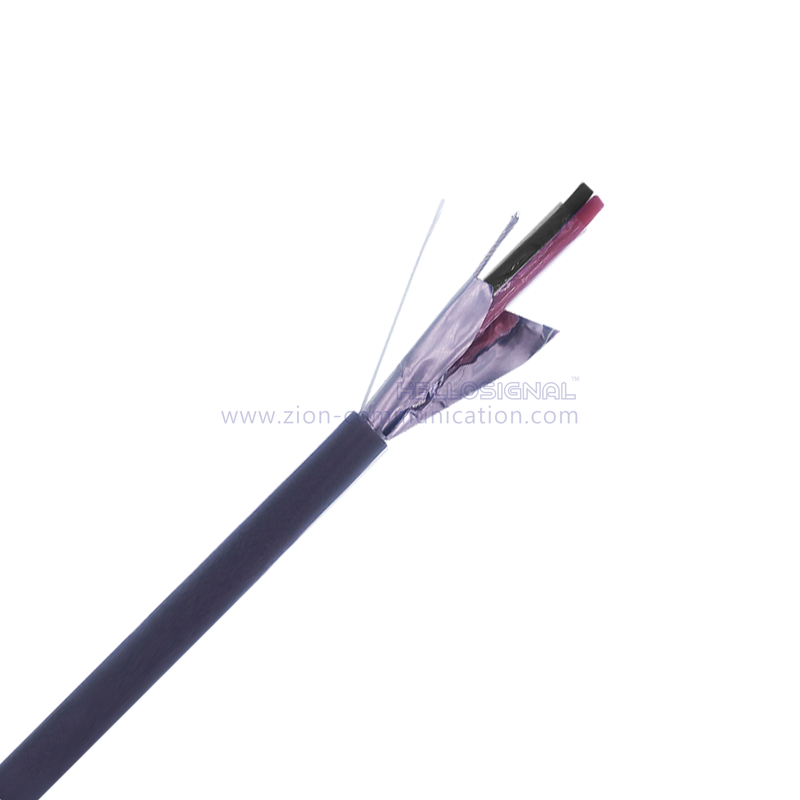

Mylar Cable
hellosignal
7111461
UL, ETL, CE,CPR, RoHS
100m,305m,500m,500ft,1000ft
pull box, wooden spool, carton, pallet
10KM
Normally 25 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight

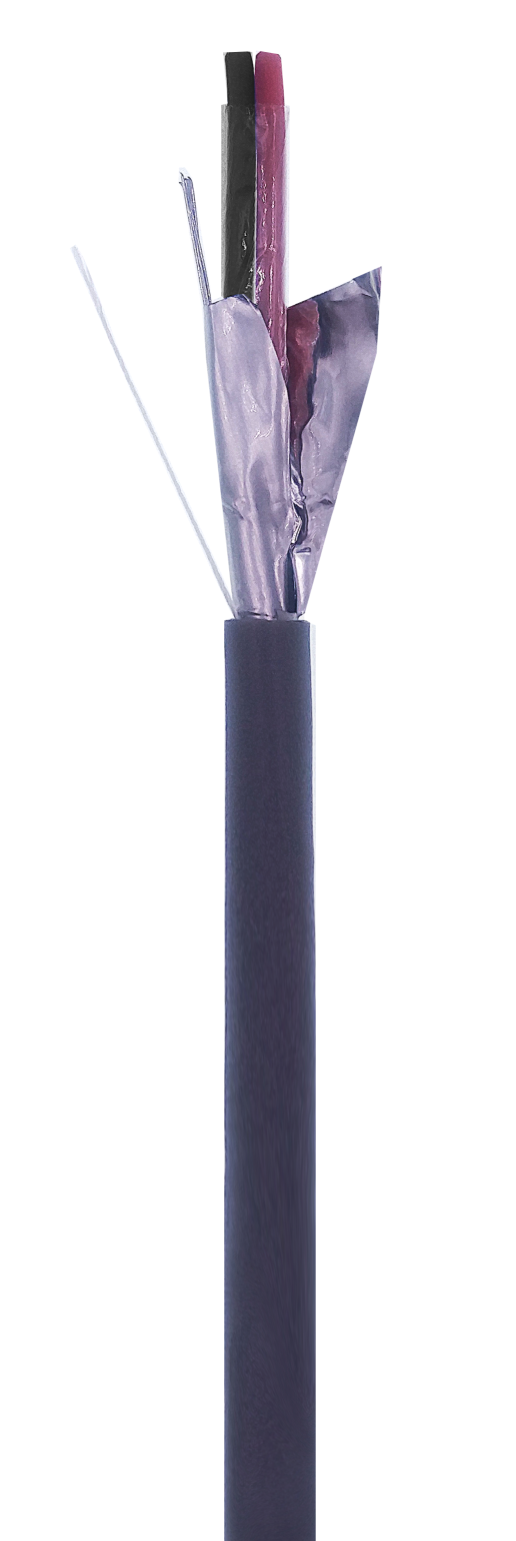

2×1.50mm² Mylar Cable | ||||
Cable construction : | ||||
Conductor: |
| |||
2 x (48/0.20mm TC/BC/CCA/TCCA) | ||||
Dielectric: | ||||
Type: PVC/PP | ||||
Diameter: 2.40mm | ||||
Color Code: | ||||
1.Blk | 2.Red | |||
Shield1: | ||||
PET | ||||
Drain Wire | ||||
7 x 0.20mm TC/BC/CCA/TCCA | ||||
Shield2: | ||||
Aluminum / Mylar tape | ||||
Rip Cord | ||||
Cotton Wire | ||||
Jacket: | ||||
Type: PVC | ||||
Diameter: 6.20mm | ||||
Electrical Properties : | ||||
Temperature Rating | （-20℃ ~ +60℃） | |||
Operating Voltage | 300 Volts max | |||
Capacitance | 45pf/ft nom. | |||
Impedance | 40 Ohms nom. | |||
DC Resistance | 16.5 Ohms/M' at 20℃ | |||
Print Legend: | ||||
HELLOSIGNAL NO.7111461 2×1.50mm² Mylar Cable (ROHS) ×××× M | ||||
Cross Section : | ||||
 | ||||
Order Informations : | ||||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | |||
Delivery time | Normally 25 days after received the deposit. | |||
Brand | HELLOSIGNALTM OR OEM | |||
