PK75-4-318 Coax Cable 75 Ohm CATV coaxial Cable

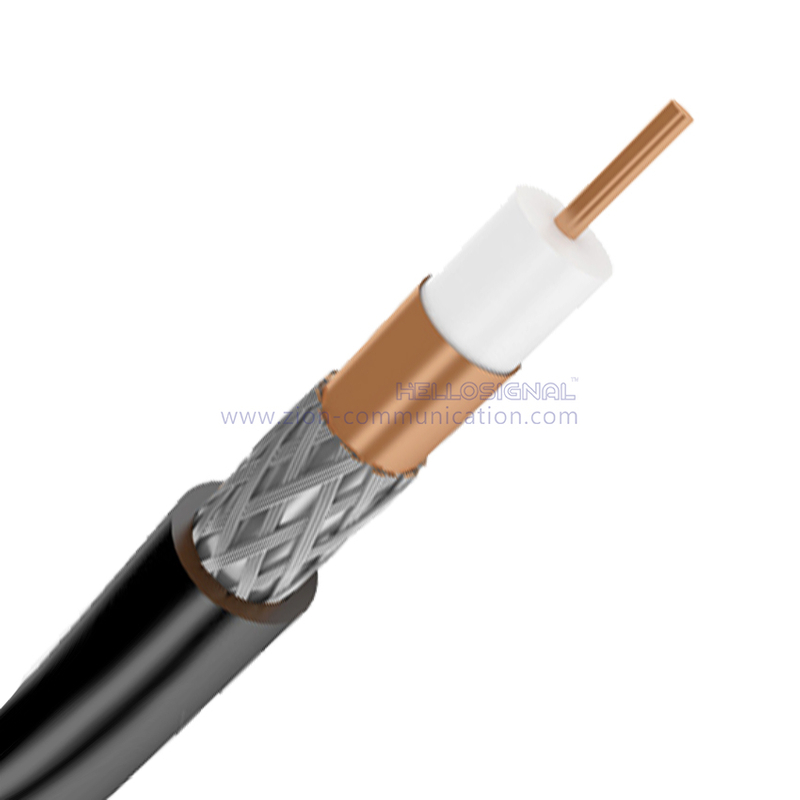

Construction Parameters:

Inner Conductor

0.04"/1.02mm/18 AWG BC

Dielectric

0.18"/4.60mm FPE

Shield 1

Cu/PET

Shield 2

CuSn braid wire 63% coverage

Jacket

6.80±0.20mm PVC

Jacket Thickness

0.032"/0.81mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be < 17.5Ω/km

Capacitance

54 ±3 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.82

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃

Cable diamensions

6.8±0.20mm PVC

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100m)

10

1.90

50

4.20

220

8.60

470

13.40

862

18.40

1000

20.00

1350

23.60

1750

27.20

2150

30.50

2400

32.90

3000

36.10

Order Informations:

Marking

HELLOSIGNAL PK75-4-318 Coax Cable

CATV COAXIAL CABLE 7100381 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL^® OR OEM
