РК75
hellosignal
7100387

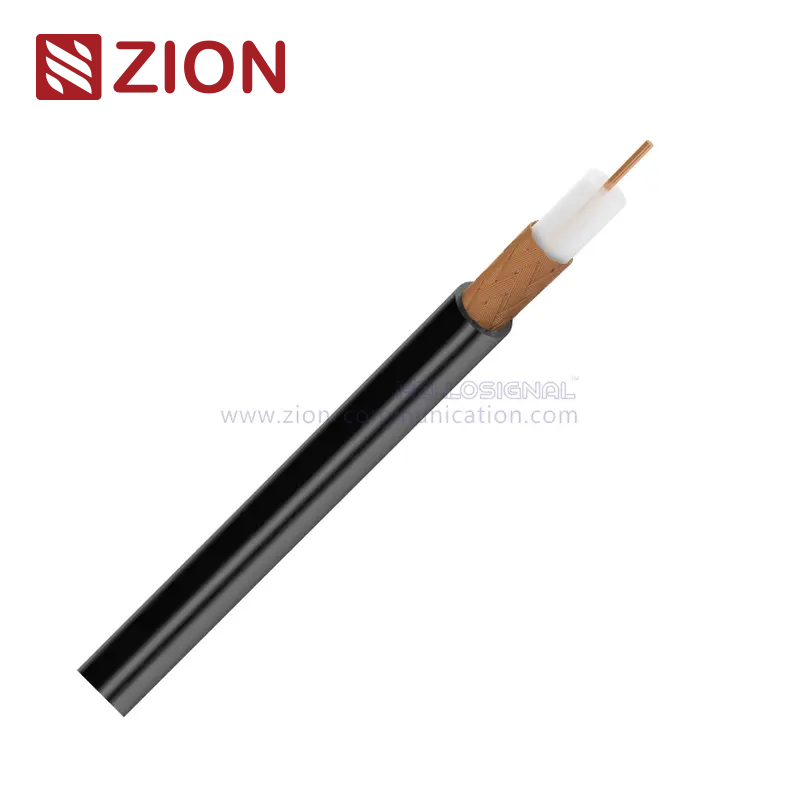

Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
Specification
75 Ohm CATV coaxial Cable NO.7100387 | |||
Construction Parameters: | |||
Inner Conductor | 0.68 mm Cu | ||
Dielectric | 4.30mm FPE | ||
Shield | 48/ 0.15mm CCAM | ||
Jacket | 6.7mm PE black | ||
Jacket Thickness | |||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | |||
Capacitance | |||
Impedance | |||
Return loss | |||
Velocity of Propagation | |||
Sparker Test (VAC) | |||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | |||
Cable diamensions | 6.8±0.20mm PVC | ||

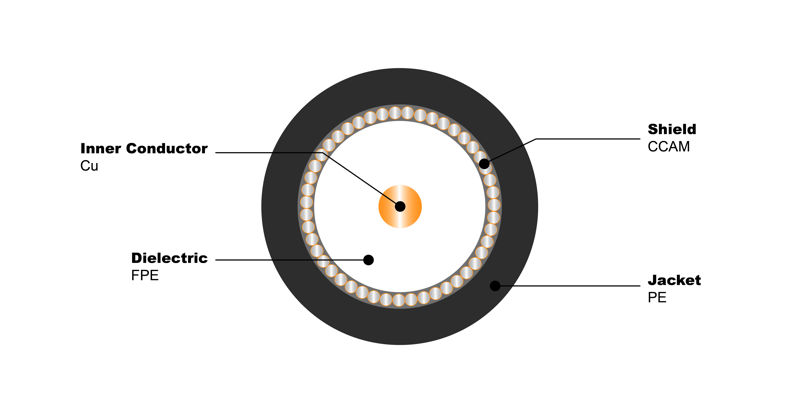

Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100ft) | ||
10 | |||
50 | |||
220 | |||
470 | |||
862 | |||
1000 | |||
1350 | |||
1750 | |||
2150 | |||
2400 | |||
3000 | |||
Order Informations: | |||
Marking | HELLOSIGNAL PK75-4-11АИ Outdoor PE CATV COAXIAL CABLE 7100387 ×××M/FT | ||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL® OR OEM | ||
РК75-4-11АИ Outdoor PE
