Author: James Publish Time: 25-06-2025 Origin: Site
Wired network connections not only require adequately used Ethernet cables, but they are also imperative. The type of cable that you would choose may influence your network in many aspects whether it is to connect computers, switches, or routers. Among the most frequently used types are patch cables (also referred to as straight-through cables) and crossover cables (possibly called crossover LAN cables or cross-through cables).
While they appear outwardly alike, their design is deviated, and they fail, respectively. In this post, we touch on the differences between a patch cable and a crossover cable, give an account on wiring, where to use, as well as how networking has changed the need for them.

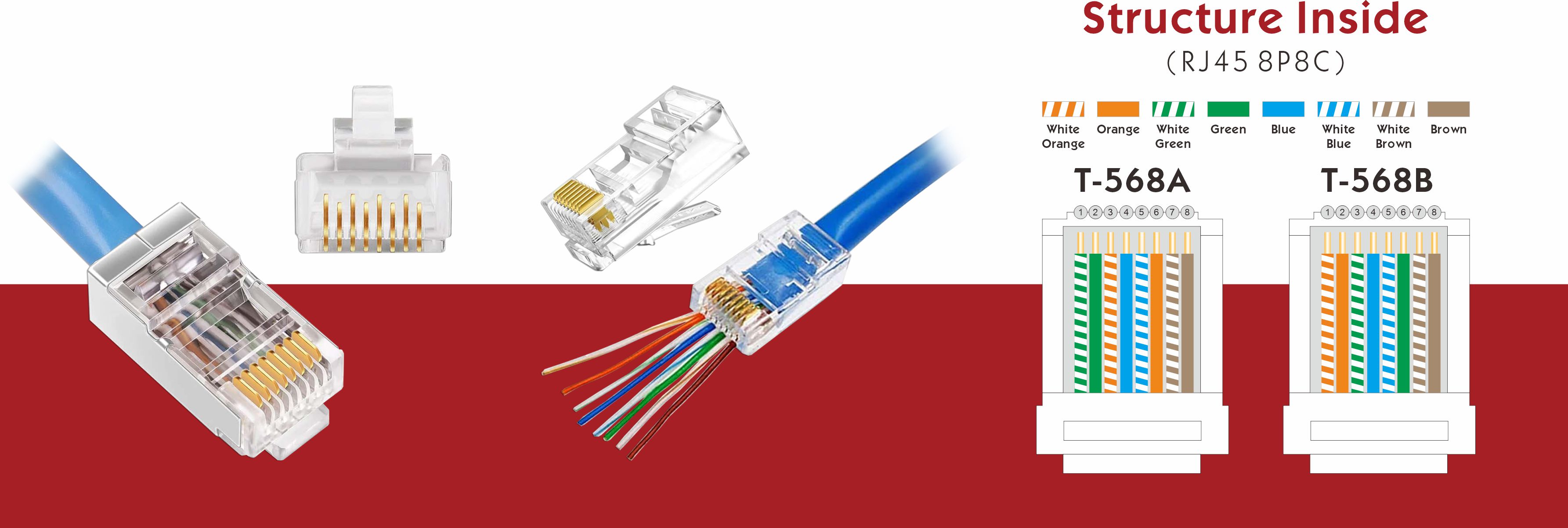

To test, remember that the T-568A and T-568B Ethernet wiring standards are to tell the difference between cables. Such standards describe the arrangement of eight wires with different colors in the RJ45 connectors.
T-568A is generally used in homes.
T-568B is the most popular in businesses.
The two standards perform the same task, yet the sequence of a pair of wires is variable. This has a significant meaning when a patch cord or cross network cable is being constructed.

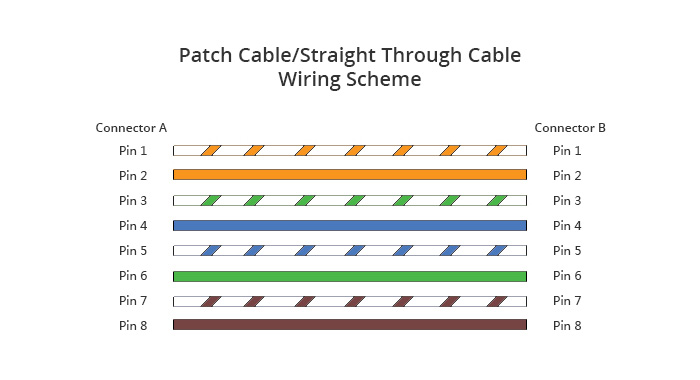

A patch cable, or a straight-through cable, is an Ethernet patch cord, it simply has the same wiring order at both ends, either T-568A to T-568A or T-568B to T-568B. This was accomplished by having the TX pins on one device go directly to the RX pins on the other device.
Easy access to Patch Cables:
Cover the same wiring standards on both ends
Connectorized for a variety of devices
Common for residential and corporate networks
The availability of a variety of industry-standard connectors such as Cat5e, Cat6, Cat6A, and better
Lengthy patch cables can be used in different scenarios at home, for instance, connecting a switch to a router, PC to switch, or patch panelling to switch.

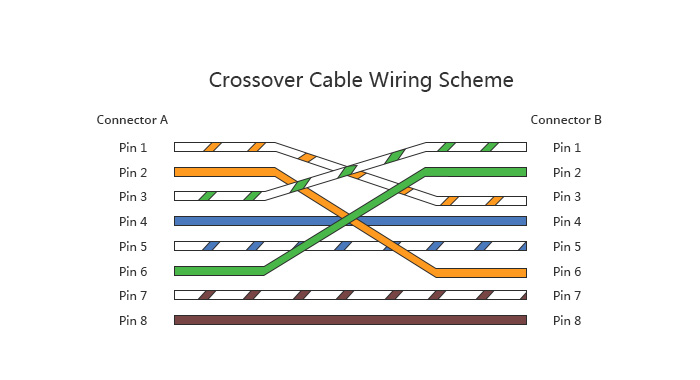

Cabling for HR and Data Communication (inverted cabling) uses "Straight-Through" wires on one end and "Cross-Over" wires on the other. This allows two like devices to talk with each other without going through a switch by reversing the TX and RX ports.
Coding of a Crossover Cable:
Cables differing in wiring standards on each and every end (A to B) Application specific for device-to-device connection. Can be used in legacy or networking standard.
Feature | ||
Wiring | Same on both ends (A–A or B–B) | Different wiring on each end (A–B) |
Use Case | Connects different device types | Connects same device types |
Examples | PC to switch, router to modem | PC to PC, switch to switch |
Alias | Straight through cable, patch cord | Cross through cable, crossover LAN cable |
Example 1: PC to PC
Two computers connected directly require a crossover cable since both send packets over the same wire pairs. In this trouble, your normal data transmission fails because of signal collision, and hence you cannot communicate. Therefore, the cross-network cable does not mix TX from PC 1 with RX of PC 2, and vice versa.

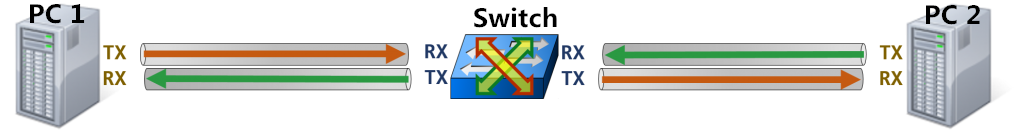

Example 2: PC → Switch → PC
As packet circuits improve, the switch handles internal signal routing. Thus, both straight-cable connections can go from each PC to the switch. No crossover LAN cable is needed.

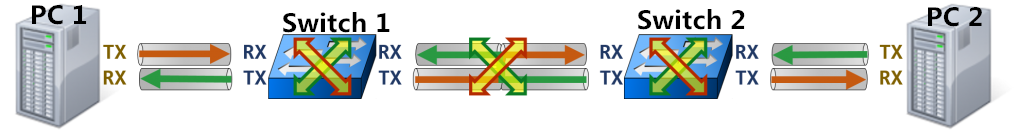

Example 3: PC → Switch → Switch → PC
Interconnect from PC 1 to Switch 1 becomes a reality
Input "cross over" cable between Switch 1 and Switch 2
Output a patch cable from Switch 2 to PC 2
Most of the time, the equipment has control of auto-MDI/MDI-X, which allows it to sense and change the direction of the signal. This means that now a patch cable can be used even if a crossover is traditionally needed. Still, for older hardware or industrial setups, a true crossover LAN cable can sometimes be essential.
One wire with two ends could be an Ethernet category as well, i.e., patch cables and crossover cables:
Cat5e: Consistent data transfer rate at 1 Gbps
Cat6: Could go up to the 10 Gbps rate at smaller distances
Cat6A/Cat7: Be shielded and preferable for high-noise spot
Cat8: Can be used for as much as 40 Gbps speed for data center
The function—cross network cable or straight through cable—does not affect speed. The performance is influenced by the shielding as well as the category and construction.
Thus Corresponding between a Patch Cord and a Crossover Cable, these suggestions are significant for consideration when you are purchasing a patch cord first to use as a crossover cable.
Some aspects to consider when choosing models for patch cords and crossover cables are:
Consider the compatibility and ports of devices when inquiring your choice.
Look out for automatic emission, as well as detection.
Going with the right cable category for data throughput is a task to be done.
Try to write down the name of your cables in order to have it easier.
Try the tester cord if you want to make custom-made or field-terminated cables.
It is essential to understand the difference between a patch cable and a crossover cable, or a straight through cable versus a cross through cable when you would like to set up a functioning Ethernet network.
While modern devices have advancements that automatically identify the type of cable, knowing which type of cable to use in various instances ensures reliability – especially if the system is using legacy hardware, industrial equipment, or has low-speed ports. In other words, whether you are comparing patch cord versus crossover or just determining the cabling layout to be used, the appropriate choice of the Ethernet cable will have an effect on the stability and performance of the network.
