Author: Site Editor Publish Time: 24-04-2026 Origin: Site
Patch panels and switches often sit side by side in the same rack, but they do very different jobs. One organizes the physical cabling. The other moves data between network devices.
A patch panel is a passive cabling management device used to terminate, label, and organize cables.
A network switch is an active device that forwards data between computers, servers, access points, cameras, and other network devices.
In a professional rack, the best practice is usually not patch panel or switch, but patch panel plus switch.
In a server room or office telecom cabinet, patch panels and switches may look similar at first glance. Both are often installed in a 19-inch rack. Both may have rows of RJ45 ports. Both may be connected by short patch cords. This is why many beginners confuse them.
However, their roles are completely different. A patch panel belongs to the physical cabling layer. It helps organize permanent cable runs from work areas, wall outlets, cameras, access points, or other locations. A switch belongs to the active network layer. It connects devices and forwards data traffic to the correct destination.
A simple way to understand it: the patch panel keeps the cabling clean; the switch makes the network communicate.
A patch panel is a passive connection point used in structured cabling systems. It does not require power, does not process data, and does not decide where network traffic should go. Its main job is to provide a centralized place where network cables can be terminated, labeled, and managed.
For example, Ethernet cables from office desks, IP cameras, Wi-Fi access points, or meeting rooms may all run back to the rack and terminate at the rear side of a patch panel. On the front side, short patch cords connect selected patch panel ports to switch ports.
Cleaner rack layout and easier cable identification
Reduced stress on permanent horizontal cabling
Faster moves, adds, and changes during network maintenance
Better troubleshooting when a port, cable, or endpoint has a problem
Professional appearance for office, data center, and industrial network cabinets

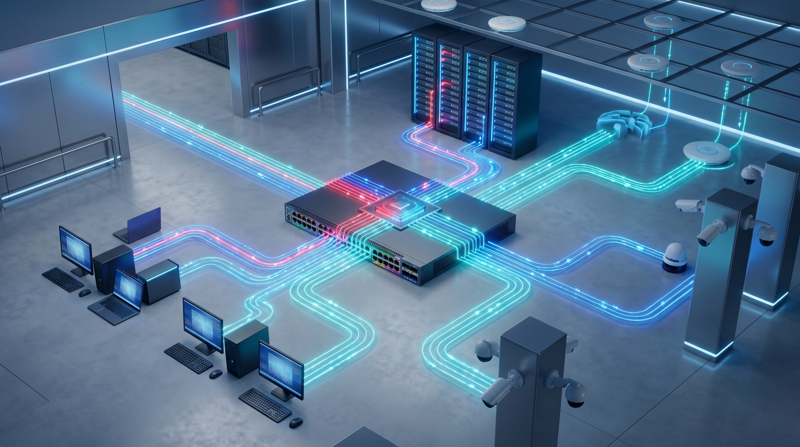

A network switch is an active device used to connect network devices within a LAN. Unlike a patch panel, a switch needs power and electronic processing. It receives data from one device and forwards it to the correct destination device through the appropriate port.
In a typical enterprise network, switches may connect desktop computers, servers, printers, wireless access points, security cameras, VoIP phones, and other IP devices. Some switches also support PoE, VLAN, QoS, link aggregation, or Layer 3 functions, depending on the network design.
Forwarding data between connected network devices
Supporting LAN communication inside offices, buildings, and data centers
Providing PoE power for cameras, access points, and IP phones when supported
Managing traffic segmentation through VLANs on managed switches
Improving network performance by sending traffic only where it needs to go

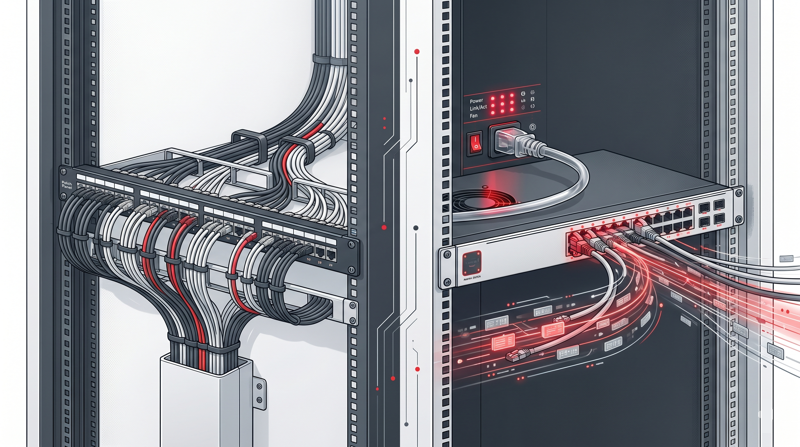

The easiest way to compare a patch panel and a switch is to separate physical connection management from data traffic management. A patch panel manages cables. A switch manages communication.
| Comparison Item | Patch Panel | Network Switch |
|---|---|---|
| Main role | Cable termination and organization | Data forwarding and device communication |
| Device type | Passive | Active |
| Power required | No | Yes |
| Data processing | No data processing | Forwards data to destination ports |
| Typical location | Rack, cabinet, telecom room, data center | Rack, cabinet, network room, data center |
| Main value | Clean layout, labeling, flexible patching | Network connectivity, traffic control, PoE or VLAN support |
In many professional installations, the patch panel is installed above or near the switch. Permanent cables from the building terminate on the patch panel. Short patch cords are then used to connect patch panel ports to the switch ports.
This design keeps the permanent cable infrastructure stable. When a user changes desk location, when an access point is moved to another VLAN, or when a switch port needs to be replaced, technicians only need to adjust short patch cords at the rack. They do not need to pull, bend, or re-terminate long horizontal cable runs.

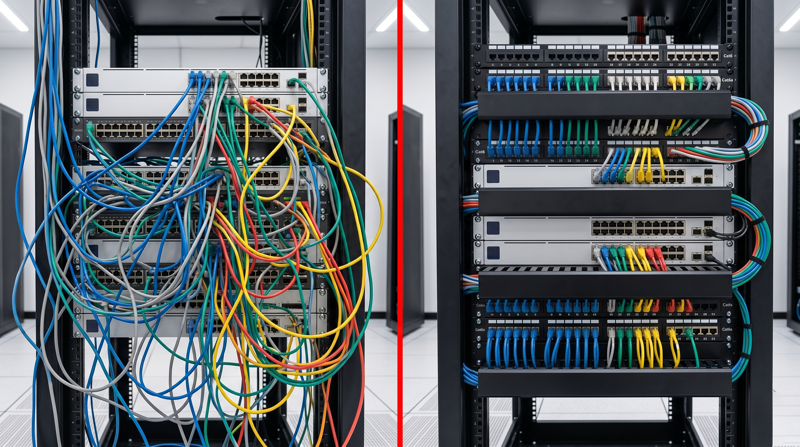

Patch panels help turn many long cable runs into a clear, labeled, and easy-to-manage rack layout.
Technicians can test, isolate, and change connections at the rack without disturbing the entire cable route.
When more users, cameras, APs, or servers are added, a labeled patching system makes expansion easier.
The right choice depends on what problem you are trying to solve. If your problem is messy cable routing, unclear labels, or difficult maintenance, you need a patch panel. If your problem is device communication, data forwarding, PoE power, VLAN control, or network capacity, you need a switch.
For a small temporary setup with only a few devices, a switch alone may be enough.
For an office, warehouse, telecom room, or server rack, use patch panels and switches together.
For high-density cabling, choose 24-port or 48-port patch panels with proper cable managers.
For Wi-Fi access points, IP cameras, or VoIP phones, choose PoE switches when power delivery is required.
For Cat6A or 10G copper cabling, match the patch panel, keystone jacks, patch cords, and cable category carefully.
For stable network performance, the quality of the active device is only part of the system. The physical cabling layer also matters. A well-designed rack should include suitable Ethernet cables, patch panels, cable managers, patch cords, labels, grounding accessories, and cabinet hardware.
ZION Communication provides structured cabling products for office networks, data centers, security systems, industrial communication, and building infrastructure. Whether the project requires Cat6, Cat6A, fiber optic cabling, cabinet fittings, or rack accessories, the goal is the same: clean installation, reliable transmission, and easier maintenance.
ZION Communication can support structured cabling projects with Ethernet cables, patch panels, patch cords, fiber optic products, cabinet accessories, and OEM-ready network infrastructure solutions.
More details please visit our websites: www.zion-communication.com, www.hello-signal.com
No. A patch panel is a passive device for cable organization and termination. A switch is an active device for data forwarding and network communication.
Yes. This is a common rack design. Permanent building cables terminate on the patch panel, and short patch cords connect the patch panel ports to the switch ports.
A properly selected and correctly terminated patch panel should not noticeably reduce network performance. The key is to match the cable category and maintain good installation quality.
For very small or temporary networks, a switch alone may work. For permanent office, building, security, or server room cabling, a patch panel is strongly recommended for easier management.
Many racks place the patch panel above the switch, with a cable manager between or nearby. The best layout depends on cable routing, rack height, airflow, and maintenance habits.
Patch panel vs switch is not really a competition. A patch panel protects and organizes the physical cabling layer. A switch enables the devices on that cabling system to communicate. For a reliable, scalable, and professional network rack, both devices should work together.
