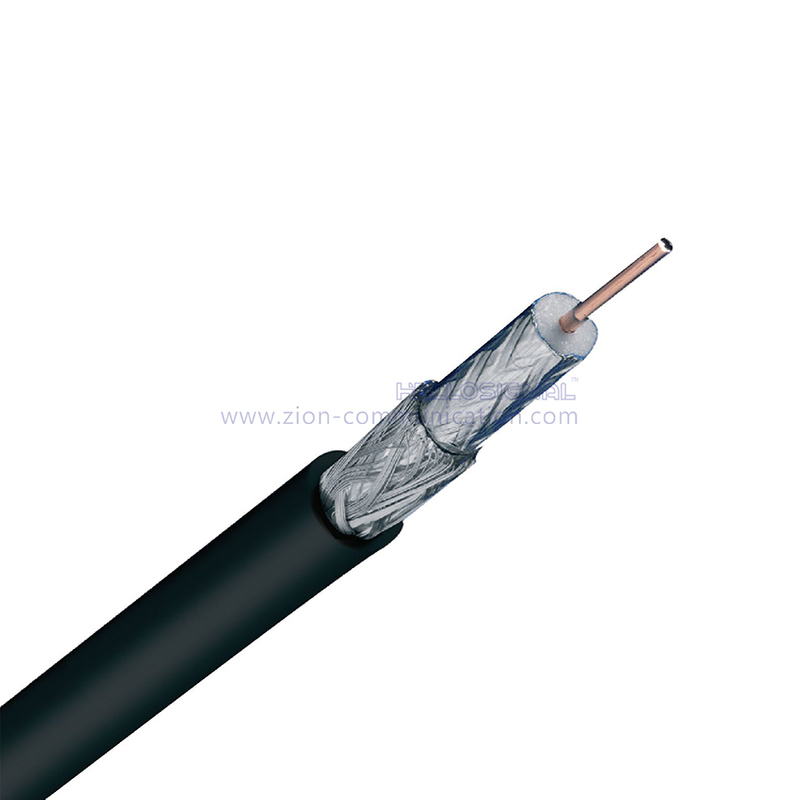

RG59 BC S 95%CCA PVC 75 Ohm CATV coaxial Cable

  • RG59
  • hellosignal
  • 7100101
  • Coaxial Cable
  • 75 ohm
  • UL, ETL, CE, RoHS
  • 100m, 305m,500m,1000m,500ft,1000ft
  • roll, wooden spool, carton, pallet
  • 30KM
  • Normally 15 working days
  • NINGBO, SHANGHAI
  • T/T, L/C at sight, D/P at sight
Availability:

Specification

75 Ohm CATV coaxial Cable

CATV coaxial cable description
ZION COMMUNICATION supplies a wide range of CATV coaxial cables for today’s wireless
and broadband networks, through all areas of a network to transport broadband data.
These 75 Ohm screened low loss cables offer optimum performance for main trunk
/ distribution use in IRS, MATV and CATV systems where extended cable runs are required.
These products are available to support most systems, for CATV network distribution,
whatever part of the network, whether the trunk cables, head end cable products
or indeed the drop cables into the home.All HANGZHOU ZION COMMUNICATION CO.,LTD
CATV Coaxial cables comply with International standards within the industry. If you do not
find the product you need in then we offer the option of a special custom design cable.
Here you can choose between different constructions, jacket color or other materials etc.

Key Features
Physical Foamed dielectric, preventing water ingress, mechanically robust and stable
attenuation to 3 GHz Optimum shielding with excellent protection against interference
and improved mechanical strength Wide product range, to suit a wide range of applications
and environments, available in a range of jacket materials.

Why chose us as your partner?
  Price: You can get ultimate reasonable factory price of the CATV coaxial cable itself from us!
  Service: You will enjoy best service from our export team on price for import and export, shipping time, documents and custom policy, which will save cost ultimately  and create biggest value for you.
  Quality Guarantee:You will received 100% quality pass testing before sending to our customers; also we are responsible for all products during it’s normal lifetime.

900zion LOGO

RG59BC S 95%CCA PVC
75 Ohm CATV coaxial Cable

NO.7100108

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20 AWG BC

Dielectric

0.144"/3.66mm  Foamed PE

Shield 1

0.151"/3.84mm Bonded Aluminum PET

Shield 2

Copper clad aluminum
braid wire 95% coverage

Jacket

0.240"±0.006"/6.10±0.15mm PVC

Jacket Thickness

0.032"/0.81mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor                    Resistance

The Max. at 20 shall be <   33.4  Ω/km

10.2Ω/1000ft

Capacitance

52±1 pF/m

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4


Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20  to 60

Cable diamensions

0.240"±0.006"/6.10±0.15mm PVC


Cross Section


Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.86

2.82

55

2.05

6.73

83

2.45

8.04

187

3.60

11.81

211

3.80

12.47

250

4.10

13.45

300

4.45

14.60

350

4.80

15.75

400

5.10

16.73

450

5.40

17.72

500

5.70

18.70

550

5.95

19.52

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64


The Factory

900factory

We have a study and design label,a professional team of engineers and skilled workers, also with the advanced machines and modern factories which can provide our customers with outstanding quality, service, and pricing.
Monthly Production Capacity:
Wire (Copper/copper clad aluminium) drawing: 500 Metric Tons+
Coaxial Cable: 14,000KM+
Telephone Cable: 10,000KM+
Data & Computer Cable: 12,200KM+
Security & Fire Alarm Cable: 10,000KM+
Other Cable Types: 10,000KM+
Cable Accessories: 180,000pcs+
Telecom Accessories: 180,000pcs+

Packing

900packing

We have abundant types of packing for you,such as reel, plastic spool, wooden spool,pull box, colorful carton, pallet and many other more. Also our design team will supply you best solution of the packing for size ,firm and artistic outlooking.

Order Informations:

Marking

HELLOSIGNAL RG59BC S 95%CCA PVC
CATV COAXIAL CABLE 7100108 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL®OR OEM


Similar Type:

insert-link

Cond.Type
&Nom.D.C.R

Shielding

Shielding&
%Coverage

Jacket Type

Nom. Capacitance

Nom.Imp.Ω



RG59 BC S
95%BC PVC
NO.7100107

20AWG
(Solid)BC
33.4 Ω/km

B.Al/PET

.BC-Braid 95%

PVC

67±2 pF/m

75±3Ω



RG59 BC S
95%BC
PVC-CMR
NO.7100109

20AWG
(Solid)BC
33.4  Ω/km

B.Al/PET

BC-Braid 95%

PVC-CMR

52±3pF/m

75±3Ω



RG59 BC S
95%CCA
PVC-CMR
NO.7100110

20AWG
(Solid)BC
33.4  Ω/km

B.Al/PET

CCA-Braid 95%

PVC-CMR

52±3pF/m

75±3Ω



RG59 BC S
95%BC
PVC-CMP
NO.7100111

20AWG
(Solid)BC
33.4  Ω/km

B.Al/PET

BC-Braid 95%

PVC-CMP

52±3pF/m

75±3Ω



RG59 BC S
95%CCA
PVC-CMP
NO.7100112

20AWG
(Solid)BC
33.4  Ω/km

B.Al/PET

CCA-Braid 95%

PVC-CMP

52±3pF/m

75±3Ω
