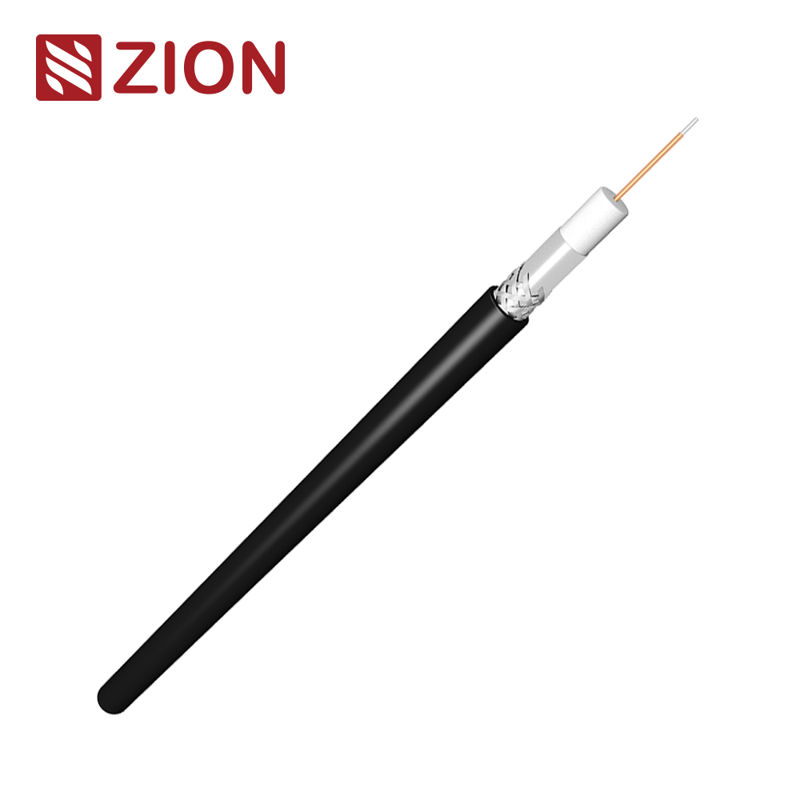

RG59 S
hellosignal
7100101
Coaxial Cable
75 ohm
UL, ETL, CE, RoHS
100m, 305m,500m,1000m,500ft,1000ft
roll, wooden spool, carton, pallet
30KM
Normally 15 working days
NINGBO, SHANGHAI
T/T, L/C at sight, D/P at sight
NO.7100101 | |||
Construction Parameters: | |||
Inner Conductor | 0.032"/0.81mm/20 AWG CCS | ||
Dielectric | 0.144"/3.66mm Foamed PE | ||
Shield 1 | 0.151"/3.84mm Bonded Aluminum PET | ||
Shield 2 | Aluminum braid wire 40% coverage | ||
Jacket | 0.240"±0.006"/6.10±0.15mm PVC | ||
Jacket Thickness | 0.032"/0.81mm | ||
Application | For Use in Longer CATV Run Lengths | ||
Electrical Characteristics: | |||
Inner Conductor Resistance | The Max. at 20℃ shall be < 133.9Ω/km 40.85Ω/1000ft | ||
Capacitance | 52 ±3 pF/m 15.8 ±1 pF/ft | ||
Impedance | 75 ± 3 Ω | ||
Return loss | between 5 and 1000MHz: > 22dB | ||
Velocity of Propagation | 0.85 | ||
Sparker Test (VAC) | 4 | ||
Mechanical and Envrionmental Properties | |||
Cable bend radius | 10 times the cable diameter | ||
Operating Temp Range | -20 ℃ to 60℃ | ||
Cable diamensions | 0.240"±0.006"/6.10±0.15mm PVC | ||

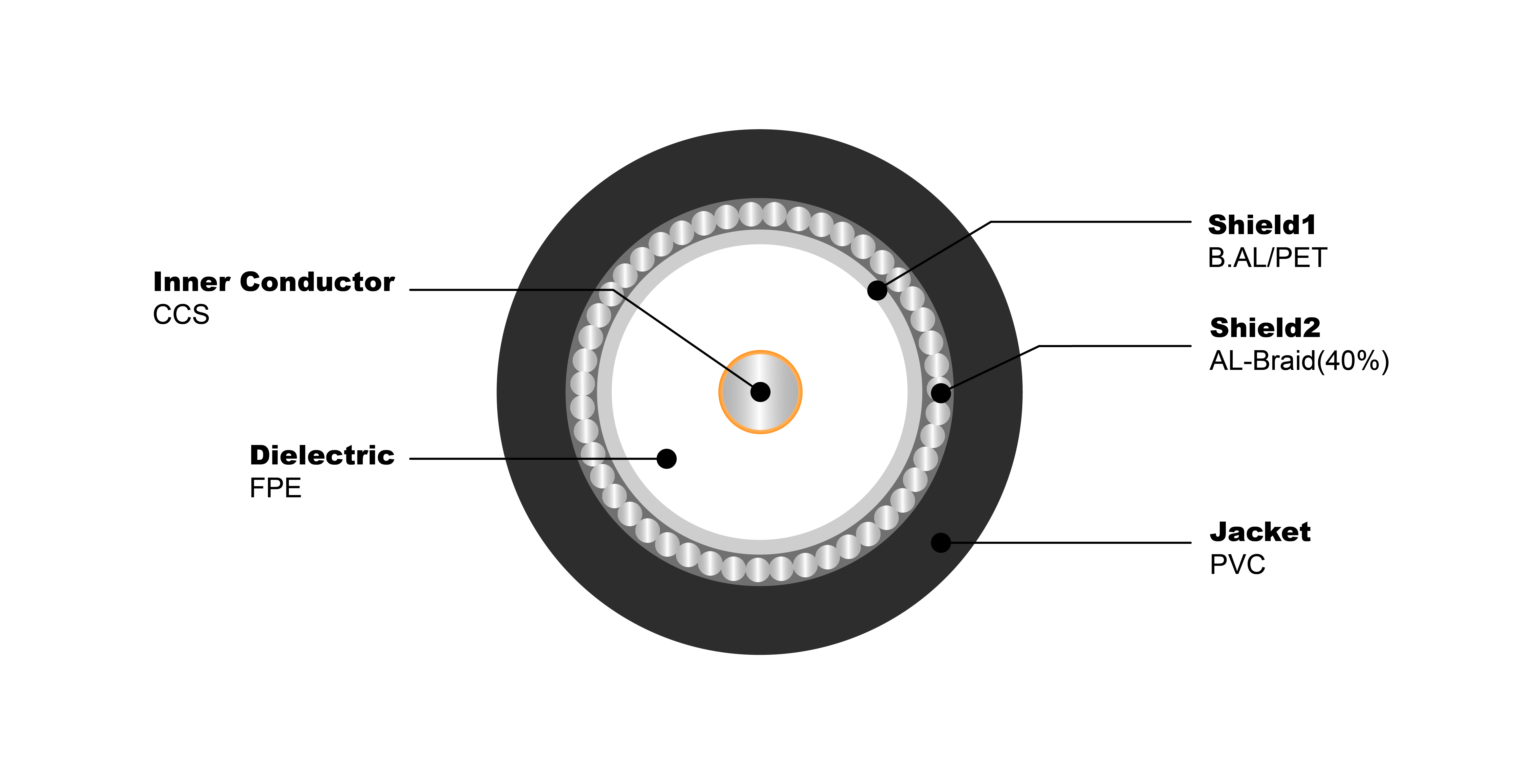

Cross Section | |||
| |||
Attenuation(20℃): | |||
Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) | |
5 | 0.86 | 2.82 | |
55 | 2.05 | 6.73 | |
83 | 2.45 | 8.04 | |
187 | 3.60 | 11.81 | |
211 | 3.80 | 12.47 | |
250 | 4.10 | 13.45 | |
300 | 4.45 | 14.60 | |
350 | 4.80 | 15.75 | |
400 | 5.10 | 16.73 | |
450 | 5.40 | 17.72 | |
500 | 5.70 | 18.70 | |
550 | 5.95 | 19.52 | |
600 | 6.20 | 20.34 | |
750 | 6.97 | 22.87 | |
865 | 7.52 | 24.67 | |
1000 | 8.12 | 26.64 | |
Order Informations: | |||
Marking | HELLOSIGNAL RG59 S 40% PVC | ||
Package | Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet … | ||
Delivery time | Normally 25 days after received the deposit. | ||
Brand | HELLOSIGNAL ®OR OEM | ||
