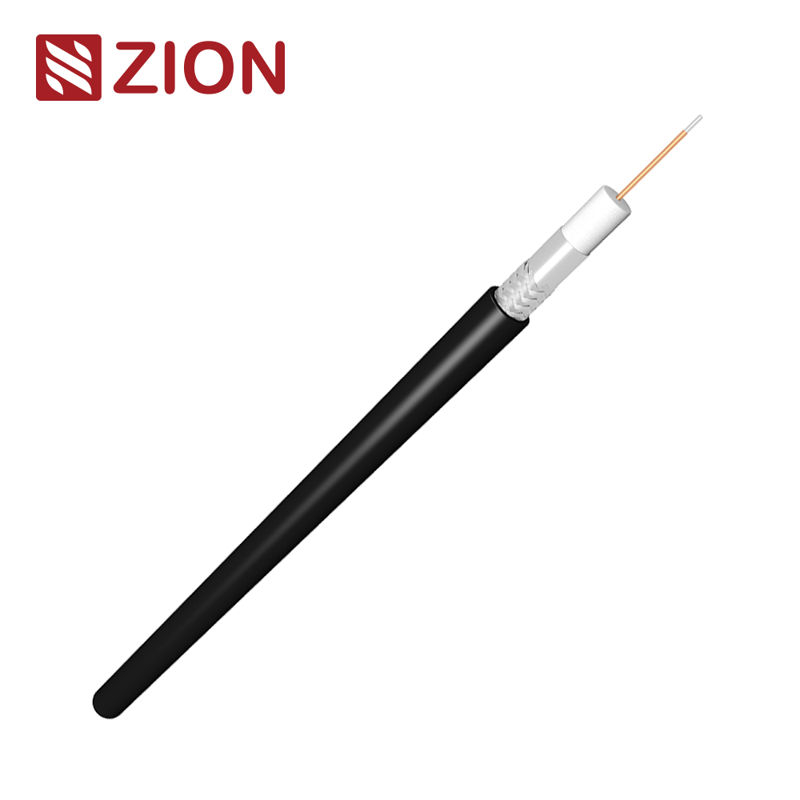

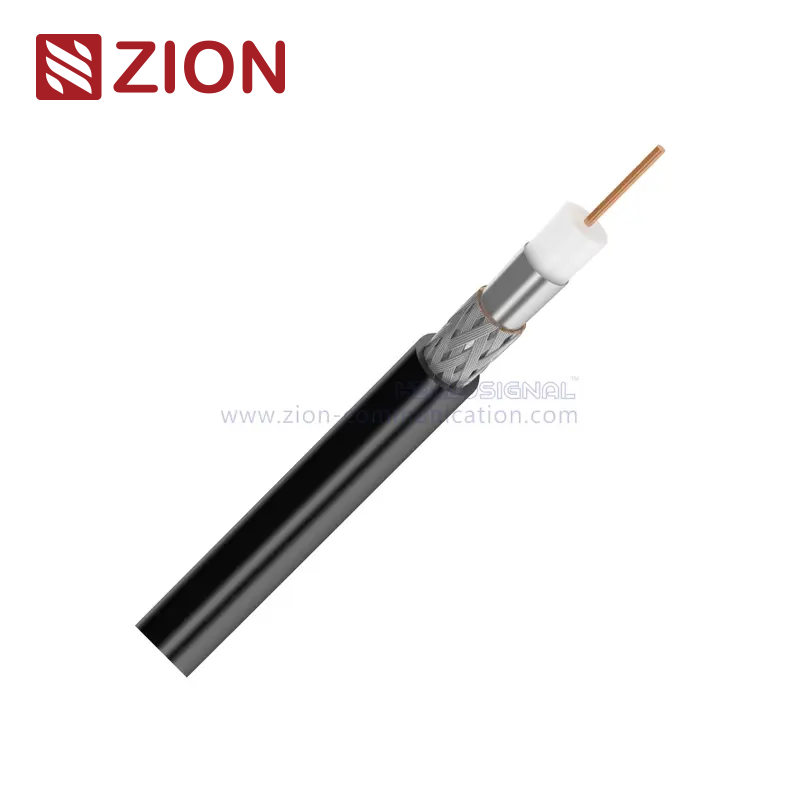

NO.7100102 RG59 S 95% Jelly PE

Construction Parameters:

Inner Conductor

0.032"/0.81mm/20 AWG CCS

Dielectric

0.144"/3.66mm  Foamed PE

Shield 1

0.151"/3.84mm Bonded Aluminum PET

Shield 2

Aluminum braid wire 95% coverage

Jacket

0.240"±0.006"/6.10±0.15mm Jelly PE

Jacket Thickness

0.032"/0.81mm

Application

For Use in Longer CATV Run Lengths

Electrical Characteristics:

Inner Conductor Resistance

The Max. at 20℃ shall be <  133.9Ω/km

40.85Ω/1000ft

Capacitance

52 ±3 pF/m       15.8 ±1 pF/ft

Impedance

75 ± 3 Ω

Return loss

between 5 and 1000MHz: > 22dB

Velocity of Propagation

0.85

Sparker Test (VAC)

4

Mechanical and Envrionmental Properties

Cable bend radius

10 times the cable diameter

Operating Temp Range

-20 ℃ to 60℃ / -40 ℃ to 80℃

Cable diamensions

0.240"±0.006"/6.10±0.15mm PE

Cross Section

Attenuation(20℃):

Frequency (MHZ)

Max Attenuation(dB/100ft)

Max Attenuation (dB/100m)

5

0.86

2.82

55

2.05

6.73

83

2.45

8.04

187

3.60

11.81

211

3.80

12.47

250

4.10

13.45

300

4.45

14.60

350

4.80

15.75

400

5.10

16.73

450

5.40

17.72

500

5.70

18.70

550

5.95

19.52

600

6.20

20.34

750

6.97

22.87

865

7.52

24.67

1000

8.12

26.64

Order Informations:

Marking

HELLOSIGNAL RG59 S 95% Jelly PE
 CATV COAXIAL CABLE 7100102 ×××M/FT

Package

Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL ®OR OEM
