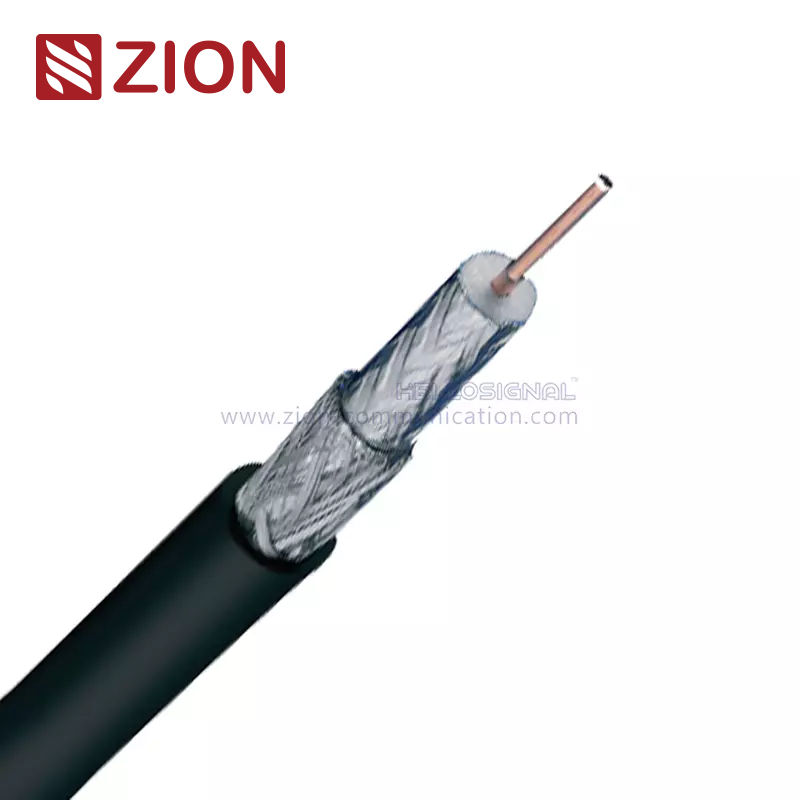

RG7 S 90% PVC 75 Ohm CATV Coaxial Cable

NO.7100803

■ Construction Parameters:

Inner Conductor: 0.051" (1.29mm) / 16 AWG Bare copper

Dielectric: 0.225" (5.72mm) Foamed PE

Shield 1: 0.246" (6.25mm) Bonded Aluminum PET

Shield 2: Aluminum braid wire, 90% coverage

Jacket: 0.319" ± 0.008" (8.10 ± 0.20mm) PVC

Jacket Thickness: 0.031" (0.78mm)

Application: For use in longer CATV run lengths.

■ Electrical Characteristics:

Inner Conductor Resistance: Max. at 20℃ < 91.2 Ω/km (27.8 Ω/1000 ft)

Capacitance: 50 ± 3 pF/m

Impedance: 75 ± 3 Ω

Structural Return Loss: 20 dB

Velocity of Propagation: 0.82

Sparker Test (VAC): 4

■ Mechanical and Environmental Properties:

Cable Bend Radius: 10 times the cable diameter

Operating Temperature Range: -20 ℃ to 70℃

Cable Dimensions: 0.319" ± 0.008" (8.10 ± 0.20mm) PVC

■ Cross Section:

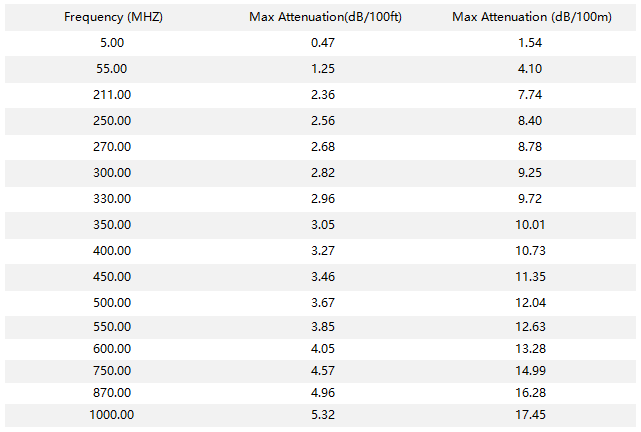

■ Attenuation (20℃):

■ Order Information:

Marking: HELLOSIGNAL RG7 S 90% PVC CATV COAXIAL CABLE 7100803 ××× M/FT

Package: Inquired length on reel, pull box, plastic spool, wooden spool, pallet, etc.

Delivery Time: Normally 25 days after receiving the deposit.

Brand: HELLOSIGNAL® OR OEM
